Summary of Contents for Coaster 182677

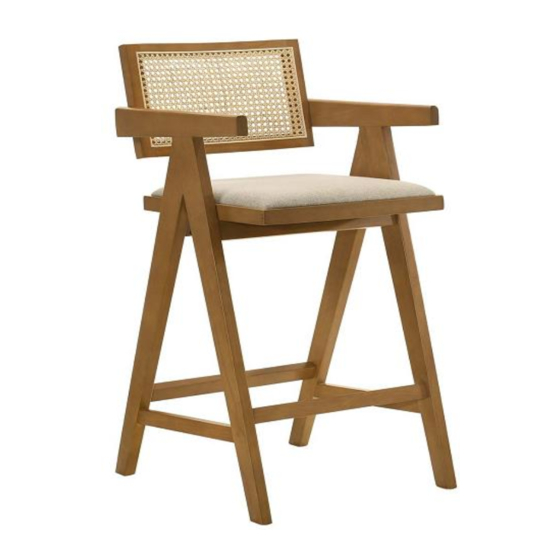

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 182677 Barstool REVISION 0 : 09/22/2023 COASTERFURNITURE.COM PAGE 1 OF 5...
- Page 2 182677 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
- Page 3 182677 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 SHORT SHORT LONG LONG STEP 2 MARKING HOLE LONG LONG SHORT SHORT FRONT DO NOT FULLY TIGHTEN MARKING HOLE PAGE 3 OF 5 COASTERFURNITURE.COM...
- Page 4 182677 ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STICKER FRONT DO NOT FULLY TIGHTEN STEP 4 DO NOT FULLY TIGHTEN PAGE 4 OF 5 COASTERFURNITURE.COM...
- Page 5 182677 ITEM: ASSEMBLY INSTRUCTIONS STEP 5 DO NOT FULLY TIGHTEN STEP 6 COMPLETE FULLY TIGHTEN ALL BOLTS PAGE 5 OF 5 COASTERFURNITURE.COM...
- Page 6 182677 ITEM: 17.25" 13.00" 18.00" 6.25" 16.00" 34.50" 39.25" 17.50" 16.00" 27.75" 7.25" 7.75" 5.50" 6.25" 17.75" 16.75" 20.00" 19.75" 21.00" Note Dimension tolerance ±5% COASTERFURNITURE.COM...
