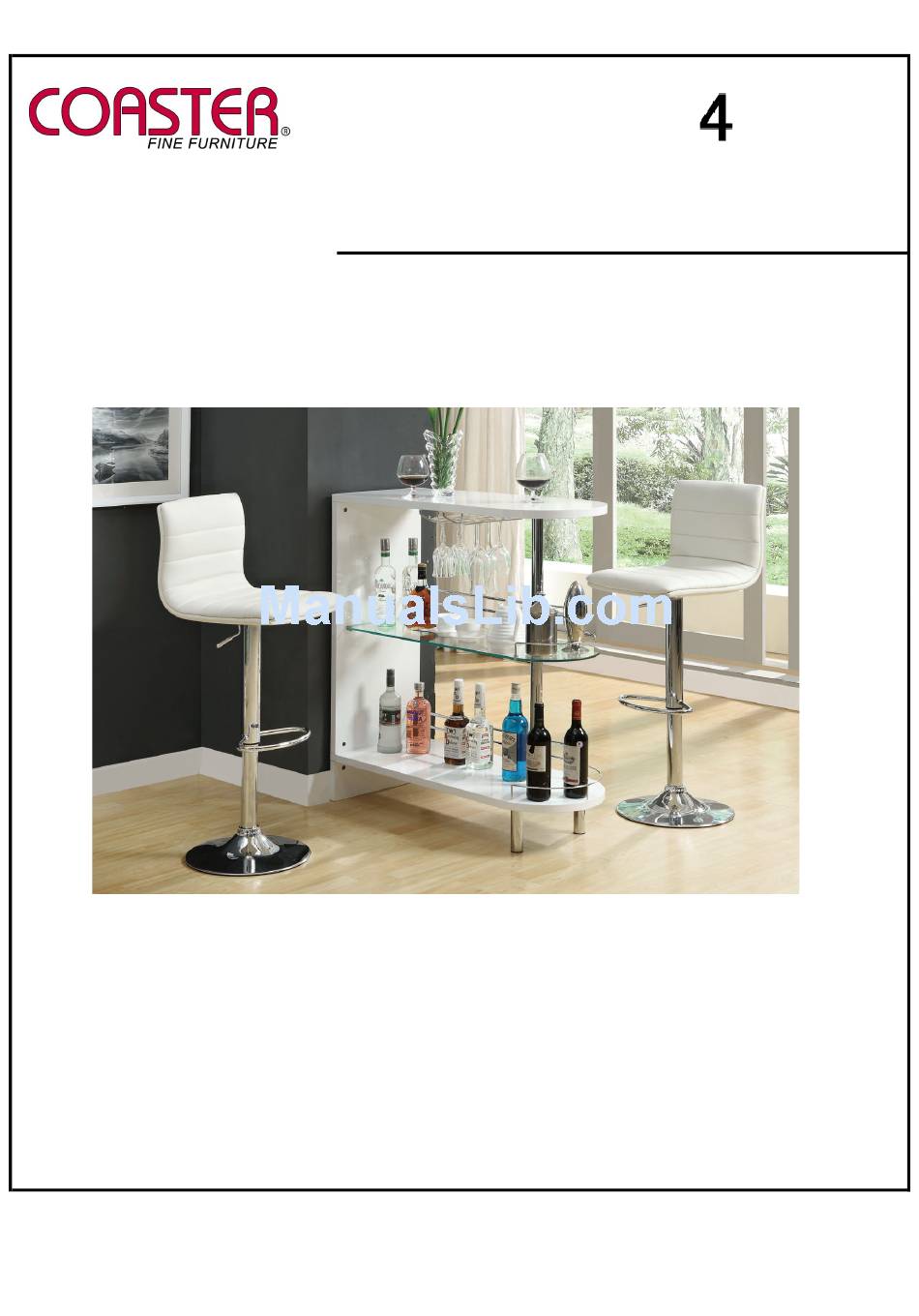

- Page 1 101063 BAR TABLE ASSEMBLY INSTRUCTION COASTER FINE FURNITURE www.coastercompany.com 2012/07/24 PAGE 1 OF 6...
- Page 2 ASSEMBLY INSTRUCTION ITEM NO:101064 TOP BAR TOP SHELF BOTTOM BAR GLASS SHELF GLASS HOLDER BOTTOM STEEL GUARD BOTTOM SHELF BOTTLE GUARD SIDE BOARD GLASS SHELF STEEL GUARD BOLT LOCK www.coastercompany.com PAGE 2 OF 6...
- Page 3 ITEM NO.:101064 ASSEMBLY INSTRUCTION GLUE GLASS METAL GLASS BOLT SMALL BOLT ROUND IRON PLASTIC WOOD DOWEL LABEL LARGE ALLEN BOLT MEDIUM ALLEN BOLT SMALL ALLEN BOLT SMALL WASHER LARGE BOLT LARGE WASHER SCREW SMALL ALLEN KEY LARGE ALLEN KEY SPRING WASHER...
- Page 4 ITEM NO.:101064 ASSEMBLY INSTRUCTION STEP1: 1.Screw Cam Bolt(1)and Wood Dowel(9) and Round Iron(7)onto Top Shelf(A). Install Glass Holder(G) using Screw(18) 2.Attach Round Iron(7)using Small bolt(6)and attach Top Bar(E)using Small Bolt(6) 3.Insert Side Board(D)into Top Shelf(A)then install Cam Lock(2)and place Label(10)
- Page 5 ASSEMBLY INSTRUCTION ITEM NO.: 101064 STEP3: 1.Place Plastic(8)into Top Bar(E),screw Cam BOLT(1)and Wood Dowel(9)onto Side Board(D). Insert Bottom Shelf(C), into Side Board(D)and tighten using Cam Lock(2) 2.Place Spring Washer(21)and Large Washer(16)onto Large Allen Bolt(11) and then screw it to Bottom Shelf(C)with Top Bar(E)and Plastic(8) 3.Screw Bottle Guard(I)onto Side Board(D)using Screw(18),and screw...
- Page 6 ASSEMBLY INSTRUCTION ITEM NO.:101064 STEP 4. 1.Insert Bottom Steel Guard(H)onto Bottom Shelf(C) 2.Assemble Glass Shelf Steel Guard(J)with Glass Shelf(B) using Allen Bolt(22)and Small Plastic(23). PAGE 6 OF 6 www.coastercompany.com...
