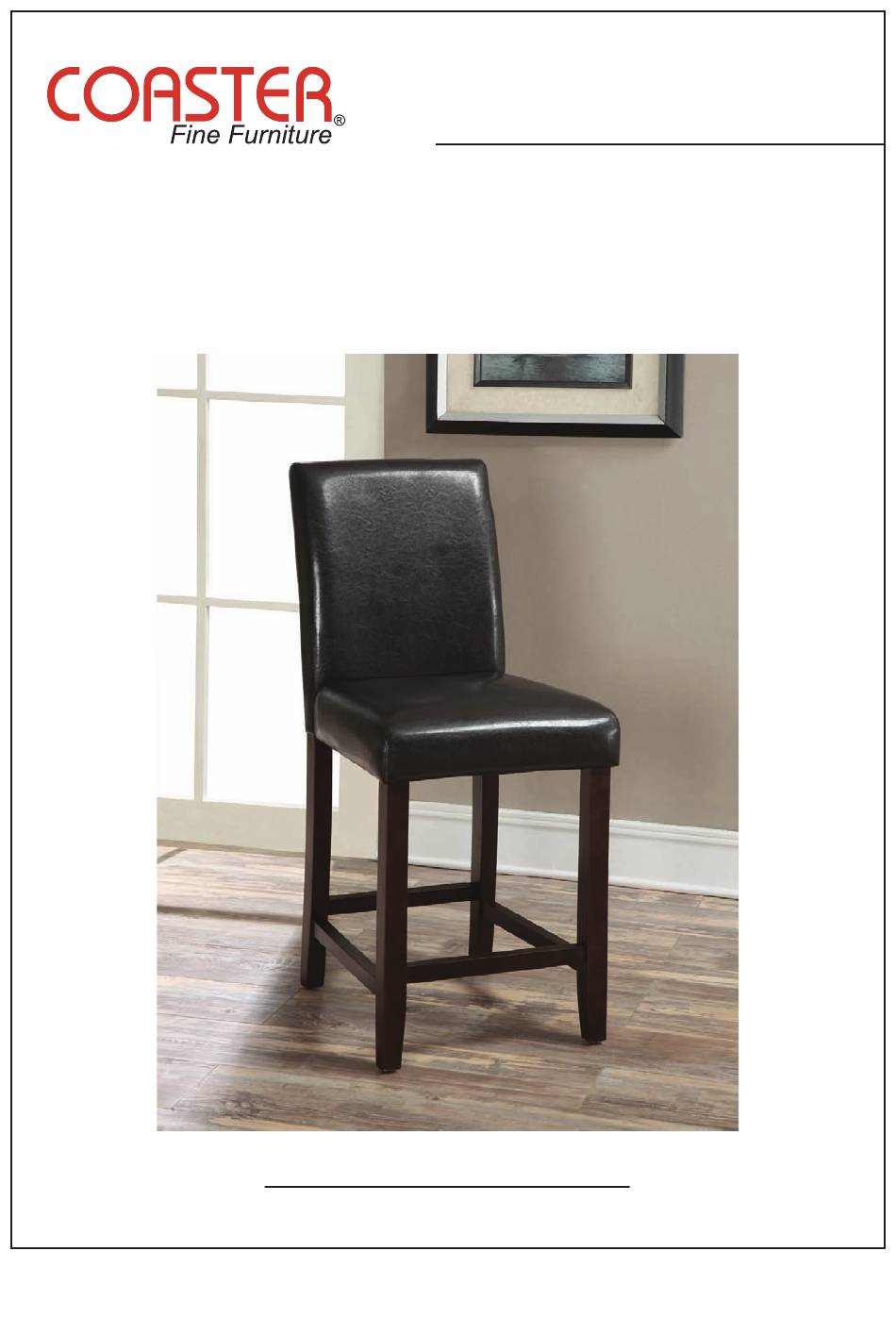

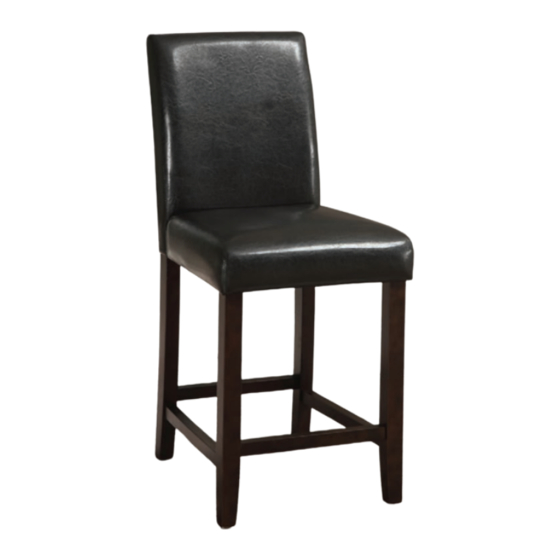

- Page 1 130059 24” BAR STOOL ASSEMBLY INSTRUCTION COASTER FINE FURNITURE www.coastercompany.com 1 of 4 2014/05/28...
- Page 2 ITEM: 130059 ASSEMBLY INSTRUCTION Assembly Instruction ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast and easy assembly.
- Page 3 ITEM: 130059 ASSEMBLY INSTRUCTION This unit can be assembled by 1 person. Approximate time of assembly: 20 minutes. Align and attach the seat (D) to the back rest (A) using the bolts (1) lock washer (2) flat STEP 1 washer (3) tighten with allen key.
- Page 4 ITEM: 130059 ASSEMBLY INSTRUCTION Attach the front stretcher (E) to the front right and left stretcher (C & B). STEP 4 arrow Secure the front right and left legs (C & B) to the seat (D) using bolts (1) lock washer (2) flat STEP 5 washer (3) tighten with allen key.
