LUCIA®
Rev. 1.2.0
Item no. OM–LUCIA
Compact installation amplifiers
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lucia 120/2 and is the answer not in the manual?

Questions and answers

Related Manuals for Lab.gruppen Lucia 120/2

Summary of Contents for Lab.gruppen Lucia 120/2

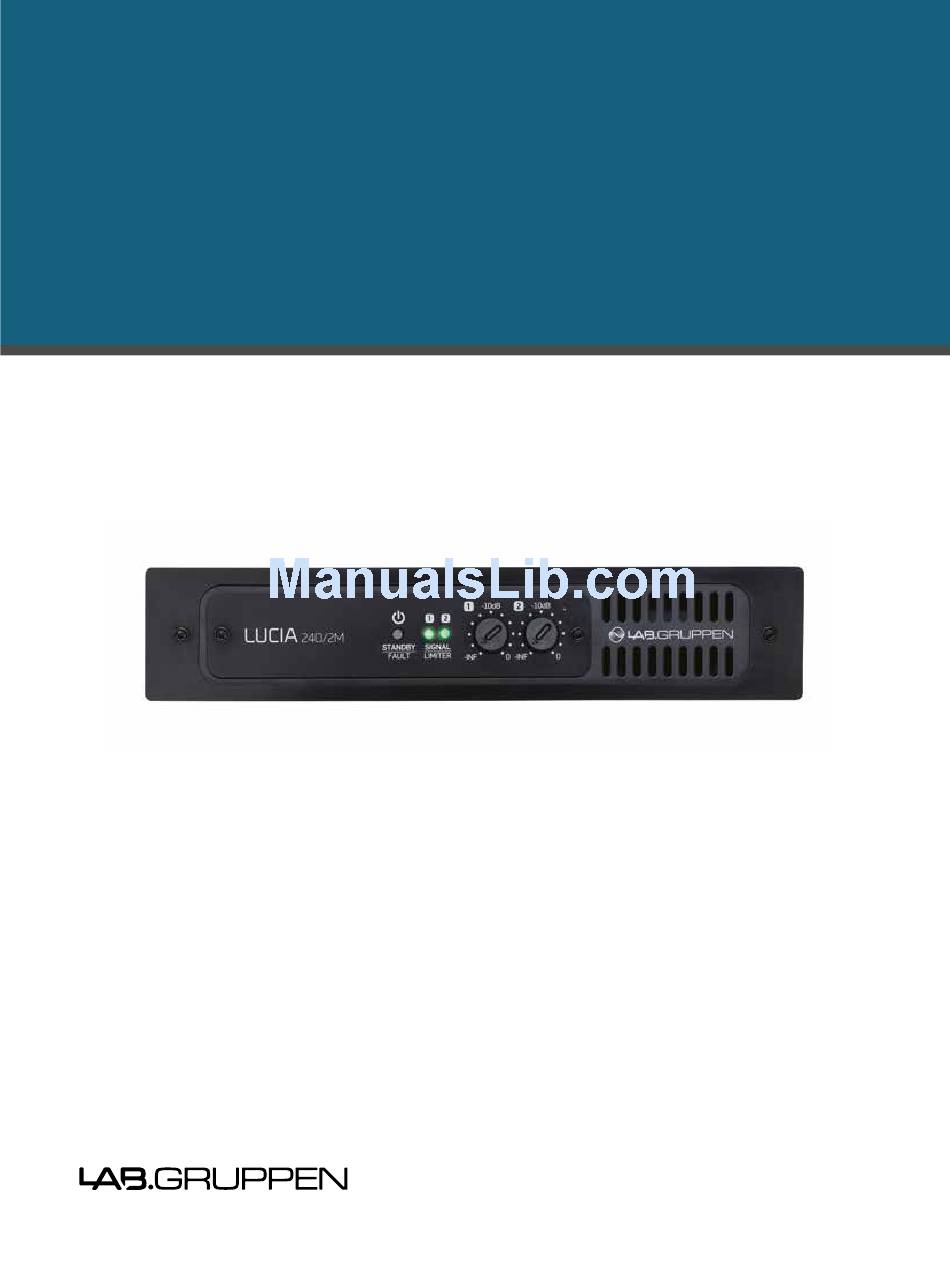

  • Page 1 LUCIA® Rev. 1.2.0 Item no. OM–LUCIA Compact installation amplifiers Operation Manual...

  • Page 2: Important Safety Instructions

    1. Important safety instructions 1. Important safety instructions and the Safety Instructions. Read these instructions. 2. Approvals Keep these instructions Heed all warnings. Follow all instructions. Do not use this apparatus near water. This equipment has been tested and found to comply with the Clean only with a dry cloth.

  • Page 3: Warnings

    3. Warnings 3.2 Warnings 3.3 User responsibility 3.1.1 Mains connection grounding apparatus to rain or moisture. Français: Pour réduire les risques d’incendie ou de choc électrique, n’exposez pas l’appareil à la pluie ou à l’humidité. 3.1.2 Speaker output hazard Do not expose this system/apparatus to dripping or splashing voltages.
  • Page 4 5.5. Additional features on LUCIA 60/1-70, 120/1-70 and 240/1-70 only 6. Unpacking and visual checks 7. Installation 7.1. Wall mounting 7.2. Rack shelf mounting 7.3. Lab.gruppen rack shelf kit 8. Cooling and fan operation 9. Operating voltage 10. Grounding 11. Front panel 12.
  • Page 5 4. Table of Contents 14. LUCIA application browser 14.1. Introduction 14.2. Software download and installation 14.3. Overview 14.4. Factory presets 14.5.2.1. Input block 14.5.2.2. Matrix block 14.5.2.3. Output block 14.5.2.4. Control block 14.6. Saving and storing custom applications 14.6.1. Saving applications 14.6.2.

  • Page 6: Introduction

    5. Introduction 5. Introduction 5.1. Welcome outstanding performance, reliable operation and a long service life in any type of commercial sound or general AV application. control and I/O are conveniently placed exactly where they are needed. In many AV applications requiring placement behind video displays.

  • Page 7: Additional Features On Lucia 60/2, 120/2 And 240/2 Only

    (see inside the shipping box). Use a 4 mm diameter machine screw (not supplied), ensuring that the length of the screw is suitable for the thickness of the shelf. The screws used should not penetrate into the 7.3. Lab.gruppen rack shelf kit A special dedicated rack mount shelf designed to hold two LUCIA accessory.

  • Page 8: Cooling And Fan Operation

    8. Cooling and fan operation 8. Cooling and fan operation Sustainable average Loudspeaker SPL extra Distance at which you get Fan noise at Fan mode description output power rel. 1 W sensitivity* the 1 W SPL** 1 m distance Low SPL applications with proper ventilation Up to 2x 6 W 7.8 dB 2.5 m...

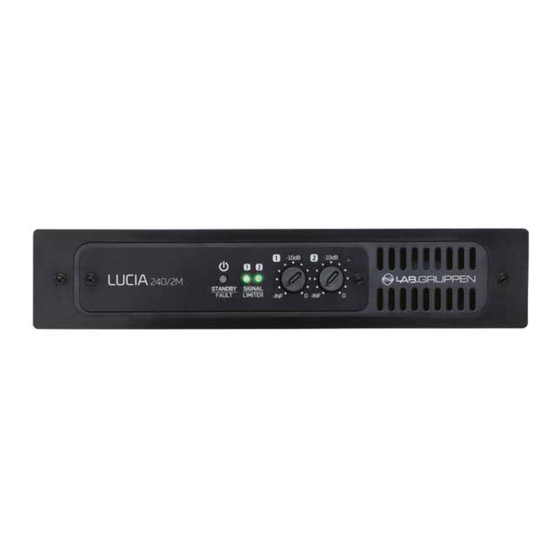

  • Page 9: Front Panel

    11. Front panel 11. Front panel 1 Standby/On LED indicator the speaker outputs are muted. See “Protection mode” in Section 13.3. 2 Signal present/limit/clip indicators – A three-color LED illuminates to provide channel status information as follows: Green – Signal is present at the input and the channel is operating normally. Amber –...

  • Page 10: Rear Panel

    12. Rear panel 12. Rear panel 12.1. Two output low impedance models: (LUCIA 60/2, 120/2, 240/2, 60/2M, 120/2M, 240/2M) 1 Balanced audio inputs (1 & 2) – Connect balanced inputs using 3-pole Euroblock connectors. Correct polarity (+, -) and ground terminations are shown on the rear panel. Observe polarity to avoid low frequency cancellation loss, especially if mixing to mono in in the matrix.
  • Page 11 12. Rear panel 12.2. Mono high-impedance models: (LUCIA 60/1-70, 120/1-70, 240/1-70) 1 Balanced audio inputs (1 & 2) – Connect balanced inputs using 3-pole Euroblock connectors. Correct polarity (+, -) and ground terminations are shown on the rear panel. 2 Unbalanced audio inputs (1 & 2) – Connect unbalanced inputs (e.g. local video screen output, CD player) to the RCA (phono) inputs.

  • Page 12: Set-Up And Operation

    13. Set-up and operation 13. Set-up and operation 13.1. Auto standby / Power-up urn on automatically when AC power is connected to the unit; it will go into standby mode if no signal is present at any input for 20 minutes. When in standby, the reset threshold (-54 dBu) is present at any channel input.
  • Page 13 13. Set-up and operation 13.3. GPIO Configuration: Mono high-impedance models The Default functionality is as described below for General Purpose Inputs and Output (GPIO). Remote volume control – Connect a remote volume control potentiometer to Ground, GPI1 and Vcc as shown in the diagram following.

  • Page 14: Protection Mode

    14.2. Software download and installation The LUCIA Application Browser software is available for free download from the Support section of the Lab.gruppen web site. Select Software & Firmware from the left-hand menu. You must be registered to access the download pages.

  • Page 15: Overview

    14. LUCIA application browser 14.3. Overview one view. The window is divided into three columns: Application Selector column – The left-hand column lists all application presets currently available for downloading to LUCIA devices. When created, new user presets are added at the top of the list. Application View column –...
  • Page 16 14. LUCIA application browser 14.5. Application presets: Selection and custom configuration 14.5.1. Configuration in application view Select the factory application or existing user application that is closest to the requirements of the new application. If necessary, add one or more additional devices to the application. Parameter presets for multiple units can be e column to add another device to the application.

  • Page 17: Input Block

    14. LUCIA application browser 14.5.2.1. Input block speech input (Vocal 100 Hz CUT). A third option (Custom…) allows user configuration of the 4 EQ sections on each input. Select the option appropriate for your application. 14.5.2.2. Matrix block The Matrix feature allows any of the inputs to be routed to any output. The level for each matrix route is adjustable from 0 to -30 dB using the fader to the right of the matrix.

  • Page 18: Output Block

    14. LUCIA application browser 14.5.2.3. Output block the connected loudspeakers. Factory presets – Presets are provided with output equalization optimized for many Tannoy loudspeakers. Custom user presets – To create a custom Output preset, scroll to the bottom of the menu and select Custom. Low Shelve 12 (Shelving boost or cut with 12 dB per octave slope) Low Shelve 9 (Shelving boost or cut with 9 dB per octave slope) Low Shelve 6 (Shelving boost or cut with 6 dB per octave slope)

  • Page 19: Control Block

    14. LUCIA application browser be accessible.) ADLC (Automatic Dynamic Loudness Contouring) – ADLC is a sophisticated, DSP-controlled function that maintains optimum sound balance regardless of listening level. ADLC may be enabled or disabled using the radio buttons to the right of each speaker preset. Adjustable delay –...

  • Page 20: Saving And Storing Custom Applications

    14. LUCIA application browser 14.6. Saving and storing custom applications 14.6.1. Saving applications lick on the Save button. A dialog window will ion of the Application preset. Click on the Save The new custom Application will appear at the top of the list in the left-hand column. IMPORTANT: Do not close the main Application Browser window (quit the program) before saving an Application 14.6.2.

  • Page 21: Online Mode

    14. LUCIA application browser Press the Program button essfully transferred to the device. The dialog also shows an option to Enable Synchronization. If you want to further edit parameters in real time, click the button and then click “OK.” (See Online Mode following.) If you do not want to do real-time edits, simply click “OK.” 14.8.

  • Page 22: Appendices

    15. Appendices 15. Appendices 15.1. Default configuration for LUCIA base models GPI1 GPI2 RC A +6 dB IN 1 SPK 1 BA L BA L IN 2 SPK 2 RC A +6 dB 15.2. Default configuration for LUCIA M models GPI 1 GPI 2 RC A +6 dB...
  • Page 23 A resistor ladder selector can be used to perform selection of up to 4 different alternatives. The total impedance should be between 1k and 100k ohm and one way to do it is as illustrated below (this is also how the Lab.gruppen accessory is made).

  • Page 24: Thermal Dissipation

    15. Appendices 15.5. Thermal dissipation LUCIA 60/2 Output Level Load Mains Watt *1) Thermal Dissipation power Dissipated BTU/hr kCal/hr 0,032 0,88 Standby w. remote Power Off. 0,027 0,77 0,028 0,76 0,12 11,9 Power On, Idling 0,19 13,0 0,22 13,1 0,16 18,6 16 Ω...
  • Page 25 *1) The amplifier’s PSU operates as a non-resistive load, so the calculation “Volts x Amps = Watts” would not be correct. Instead, measured and specified here is what is known as the “Active Power” in the amplifier providing useful, real-world values of power consumption and heat dissipation. LUCIA 120/2 Mains...
  • Page 26 4 Ω / Ch. 0.48 34.9 0.55 35.3 15. Appendices 0.32 37.7 2 Ω / Ch. 0.50 36.3 0.57 36.6 *1) The ampli er’s PSU operates as a non-resistive load, so the calculation “Volts x Amps = Watts” would not be correct. Instead, measured and speci ed here is what is known as the “Active Power”...
  • Page 27 15. Appendices LUCIA 240/2 Mains Line Level Load Output power Watt *1) Thermal Dissipation voltage current Dissi- BTU/hr kCal/hr pated 0.032 0.88 Standby w. remote Power Off. 0.027 0.77 0.028 0.76 0.12 11.9 Power on, Idling 0.19 13.0 0.22 13.1 0.29 34.4 16 Ω...
  • Page 28 15. Appendices LUCIA 240/1-70 Level Load Output power Mains Watt *1) Thermal Dissipation Dissipated BTU/hr kCal/hr 0,032 0,88 Standby w. remote Power Off. 0,027 0,77 0,028 0,76 0,12 11,9 Power On, Idling 0,19 13,0 0,22 13,1 70 V 0,42 53,7 Pink pseudo 70 V 0,70...
  • Page 29 15. Appendices 15.6. Technical Specifications General LUCIA 240/2M LUCIA 120/2M LUCIA 60/2M Number of powered channels Total output all channels driven 240 W 120 W 60 W Max output voltage per channel 1) 43.8 Vpeak 31 Vpeak 21.9 Vpeak Max output current per channel 7.8 Arms 5.5 Arms 3.9 Arms...
  • Page 30 15. Appendices General LUCIA 240/2 LUCIA 120/2 LUCIA 60/2 Number of powered channels Total output all channels driven 240 W 120 W 60 W Max output voltage per channel 1) 43.8 Vpeak 31 Vpeak 21.9 Vpeak Max output current per channel 7.8 Arms...
  • Page 31 15. Appendices General LUCIA 240/1-70 LUCIA 120/1-70 LUCIA 60/1-70 Number of powered channels Total output all channels driven 240 W 120 W 60 W Max output voltage 100 V peak 100 V peak 100 V peak Max output current 7 Arms 3.5 Arms 1.8 Arms Performance...
  • Page 32 Is the LUCIA power stage inherently bridged as on E Series, thereby allowing asymmetrical loading? to use power on one channel that is not being used on the other, as with Lab.gruppen’s E Series. However, the channels are automatically optimized when it comes to peak voltage, enabling one channel to deliver the full rated power into 2 ohms and the other channel into 8 ohms.
  • Page 34 LUCIA and Auto Load Sense are trademarks of Lab.gruppen AB. All other trademarks remain the property of their respective owners. Copyright © 2015 MUSIC Group Innovation Sweden AB. All rights reserved.
