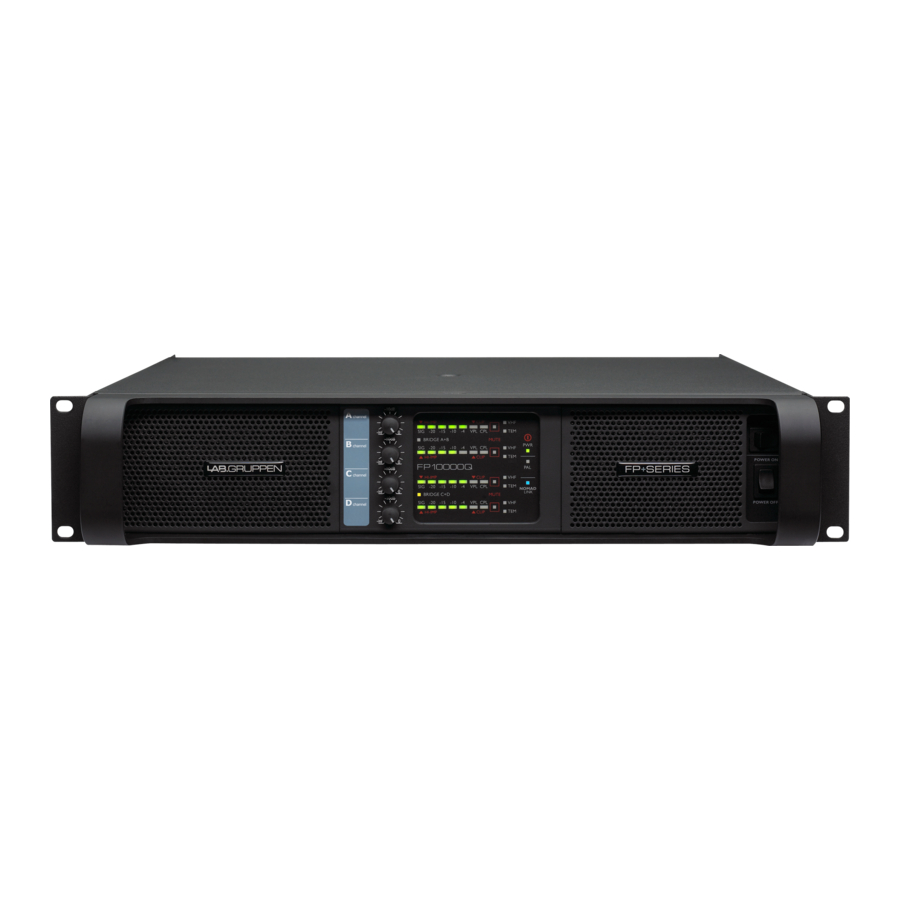

Operation Manual
FP+ Series:
Dedicated Touring Amplifiers
Rev. 1.0.4
Item no. OM-FP+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP+ Series FP 10000Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lab.gruppen FP+ Series FP 10000Q

Summary of Contents for Lab.gruppen FP+ Series FP 10000Q

  • Page 1 Operation Manual FP+ Series: Dedicated Touring Amplifiers Rev. 1.0.4 Item no. OM-FP+...

  • Page 2: Table Of Contents

    1 CONTENTs 1 CONTENTS ...2 2 APPROVALS ...4 3 WARNINGS ...4 Explanation of graphical symbols ...4 3.1.1 WARNING ...4 3.1.2 CAUTION...4 3.2 Important Safety Instructions ...4 3.3 User responsibility ...5 3.3.1 Mains connection grounding ...5 3.3.2 Speaker output hazard ...5 3.3.3 Radio interference ...5 3.3.4 Speaker damage ...5 3.3.5 Maintenance ...5...
  • Page 3 7.3.1 Signal flow blocks ...15 7.3.2 Headroom, sensitivity and VPL / Gain settings ...16 Audio Input and Output connections ...17 7.4.1 Balanced Input connections ...17 7.4.2 Unbalanced Input connection ...17 7.4.3 Speakon Output connections ...17 7.4.4 Binding Post ( BP ) Output connectors ...18 7.4.5 Output bridge mode ...19 7.4.6 Amplifier Gain ...19 7.4.6.1 Channel gain / Level ( Front-panel pots ) ...19...

  • Page 4: Approvals

    2 APPROVALs This equipment conforms to the requirements of the EMC directive 89/336/EEC, amended by 92/31/EEC and 93/68/EEC and the requirements of the Low Voltage Directive 73/23/EEC, amended by 93/68/EEC. Standards applied: EMC Emission EN55103-1, E3 EMC Immunity EN55103-2, E3, with S/N below 1% at normal operation level. Electrical Safety EN60065, Class I This equipment is tested and approved according to the U.S.

  • Page 5: User Responsibility

    3.3 user responsibility 3.3.1 Mains connection grounding Your amplifier must be connected to a grounded socket outlet. 3.3.2 Speaker output hazard Power amplifiers are capable of producing hazardous output voltages. To avoid electrical shock, do not touch any exposed speaker wiring while the amplifier is operating.

  • Page 6: Welcome

    The Lab.gruppen FP+ Series builds on the foundation of the road-tested fP Series, with the same sonic signature – powerful, tight bass and transparent high frequency response.

  • Page 7: Nomadlink / Ethernet Control And Monitoring Network

    The NomadLink network allows easy setup, monito- ring, and control of FP+ Series power amplifiers and other Lab.gruppen NomadLink-enabled amplifiers. The patented network topology provides automatic detection and addressing of multiple amplifiers, and is controlled from a PC via the optional NLB 60E NomadLink Bridge &...

  • Page 8: Installation

    5 INsTALLATION 5.1 unpacking Carefully open the shipping carton and check for any noticeable damage. Every Lab.gruppen amplifier is tested and inspected before leaving the factory and should arrive in perfect condition. If any damage is discovered, please notify the shipping company immediately.

  • Page 9: Cooling

    AC source type referred to on the label. The warranty will not cover damage caused by connecting to an incorrect type of AC mains. Lab.gruppen switch mode amplifiers use primary switching. Because the mains power is rectified INsTALLATION 5 directly in front of the transformer, the amplifier is insensitive to mains frequency.

  • Page 10: Quick Guide Overview

    6 QUICK GUIDE OVERVIEW 6.1 front-Panel overview The amplifier’s front panel presents the performance and fault condition indicators, power and remote switches, and a removable dust-filter cover. Level potentiometers provide individual attenuation for the amplifier channels. Range is 0 dB to - infinity. (The 12 o’clock position indicates -10 dB attenuation.) A convenient label strip with writing surface is provided adjacent to each level potentiometer.

  • Page 11: Rear Panel Overview

    6.2 Rear-Panel overview Ser. N:o Removed! FP 10000Q 200-240V 50-60Hz :2500W Must be grounded/earthed Made in Sweden Mains input 115 V NomadLink or 230 V operation network In and Out (Not selectable) on EtherCon-housed RJ45 connections Rear view of two-channel model fitted with Binding Post connectors Rear view of two-channel model fitted with Speakon connectors Rear view of four-channel model fitted with Binding Post connectors Ser.

  • Page 12: Network And Configuration Section

    6 QUICK GUIDE OVERVIEW 6.2.1 Network and Configuration section Four-channel model shown. Two-channel versions have VPL and Bridge Mode switches for channels A and B only. All models have different VPL values. Functions are otherwise identical. 44dB 150V 41dB 121V 38dB 101V 35dB...

  • Page 13: Input And Output Connectors

    QUICK GUIDE OVERVIEW 6 6.2.3 Input and Output connectors All FP+ Series amplifiers are equipped with balanced XLR-F input connectors. two-channel models also offer parallel (“loop-thru”) XLR-M output connectors for daisy-chaining multiple amplifiers from the same signal source. All FP+ Series amplifiers except the FP 13000 offer a choice of either binding post (BP) or Neutrik© NL4FC Speakon output connectors (SP).

  • Page 14: Nomadlink / Ethernet Network Setup

    The amplifier includes, as a standard feature, internal facilities for the NomadLink monitoring and control network. All features of the NomadLink network are accessible via a PC running Lab.gruppen’s proprietary DeviceControl software. A single rackspace NLB 60E NomadLink Bridge & Network Controller accepts the TCP/IP data stream from the computer and converts it to the NomadLink protocols.

  • Page 15: Operation And Performance 7

    7.1 Introduction The following sections provide comprehensive information on amplifier connection, setup, operation, and performance. The detailed information included here is essential to realizing the full functionality of the FP+ Series amplifiers. 7.2 Operation precautions Make sure that the Power switch and the Remote •...

  • Page 16: Headroom, Sensitivity And Vpl / Gain Settings

    7 OPERATION AND PERFORMANCE 7.3.2 headroom, sensitivity and VPL / Gain settings The input amplifier and limiter system is designed to accommodate extremes of performance. Typi- cally, exceeding maximum input by much as +10 dB will only result in a 1% increase in distortion. The following schematics illustrate how the adjustable VPL and Gain circuitry affect input sensitivity and output power.

  • Page 17: Audio Input And Output Connections

    7.4 Audio Input and Output connections 7.4.1 Balanced Input connections Audio inputs and loop-thru connectors - two-channel models Audio inputs - four-channel models The XLR input connectors are electronically ba- lanced, and wired according to the IEC 268 standard (pin 2 = hot). XLR input connectors should be wired as follows: Pin 1 Ground/shield...

  • Page 18: Binding Post (Bp) Output Connectors

    Channel A and B into two separate Speakons Channel A and B into one Speakon (Stereo and Bi-amp) Bridge mono four-channel amplifiers – Additional connectors are provided for Channel C and Channel D. Channel C functions as Channel A above, and Channel D as Channel B above.

  • Page 19: Output Bridge Mode

    Never connect an output terminal to ground, or to any other input or output. Observe relative loudspeaker polarity: loudspeakers connected in reverse polarity will exhibit degraded performance, particularly in bass frequen- cies, and may be damaged as a consequence. Use a high-quality stranded loudspeaker cable, and keep cable runs as short as possible.

  • Page 20: Output Voltage Peak Limiter (Vpl)

    7 OPERATION AND PERFORMANCE 7.4.7 Output Voltage Peak Limiter (VPL) Voltage Peak Limiter (VPL) is a unique feature in FP+ Series amplifiers. It is used to select the maxi- mum power available on each output channel. VPL levels are set using the rear-panel DIP-switches; eight level positions are offered on all models except the FP 6000Q, which offers six).

  • Page 21: Protection, Faults And Warnings

    7.5 Protection, faults and warnings 7.5.1 Introduction The FP+ Series amplifiers incorporate a sophisticated and comprehensive set of protection features. Faults and warnings are indicated on the front panel and reported via the NomadLink network for indication on the DeviceControl GUI. 7.5.2 Safe Operating Area detector (SOAd) The Safe Operating Area Detector (SOAD) compares output voltage against output current to ensure that...

  • Page 22: High-Impedance Warning (Open Load)

    7 OPERATION AND PERFORMANCE 7.5.5 high-impedance warning (open load) A high-impedance (open load) condition is indicated when an input signal above approximately -29 dB is detected and no functioning loudspeakers are connected to the amplifier. The fault in indicated by a orange Sig/Hi-imp LED. The indicator is green when a valid load is present under the same input signal conditions Since the Hi-impedance detection...

  • Page 23: Front Panel Monitoring And Adjustments

    7.6 front-panel monitoring and adjustments 7.6.1 Level indicators The front-panel displays an array of ten LED indica- tors for level and status monitoring of each amplifier channel. Indications related to signal levels are as follows: Orange CPL (Current Peak Limiter) •...

  • Page 24: Performance, Warning And Fault Indicators

    7 OPERATION AND PERFORMANCE 7.6.4 Performance, Warning and fault indicators Common Indicators: Power on/off (green) indicates that mains power • is switched on. NomadLink • (blue) indicates that the network is connected. The NomadLink LED will light up even before the mains power is connected and switched on as it takes phantom power from the network cable.

  • Page 25: Connection And Setup

    If any cable format or connection other than Cat-5 (or better) and RJ45 is utilized, network performance may be compro- mised. In this event Lab.gruppen cannot guarantee that the NomadLink network will be fully operational. 7.7.3 NomadLink network cable lengths...

  • Page 26: Ethernet Network Cable Lengths

    DeviceControl is Lab.gruppen’s proprietary software application for monitoring and controlling networked FP+ Series and other Lab.gruppen NomadLink-ready power amplifier. DeviceControl runs on a Windows PC, which connects via Ethernet to the NLB 60E NomadLink Bridge & Network Controller. DeviceControl provides comprehensive monitoring of amplifier status as well as control of amplifier power on/off and individual channel mute and solo functions.

  • Page 27: Appendix 8

    3 years purely as a preventative action. Following are common questions asked about Lab.gruppen FP+ Series power amplifiers together with helpful answers. q: What is the input sensitivity of the amplifiers? A: Input sensitivity is calculated from the amplifier gain, maximum output voltage and load.

  • Page 28: Current Draw And Thermal Dissipation Specifications

    28 FP+ Series Operation Manual FP 13000 Load Rated Power Line Current *2) 115 VAC 230 VAC Amp (I) 1200 x 2 10.6 2400 x 1 2350 x 2 16.2 1083 4700 x 1 4400 x 2 26.5...
  • Page 29 Load Rated Power Line Current *2) 115 VAC 230 VAC Standby, with remote power off via NomadLink Powered on, idling Amp (I) Pink noise (1/8 16 Ω / Ch. 660 x 4 10.7 rated power) 32 Ω / Bridged 1320 x 2 8 Ω...

  • Page 30: Technical Specifications

    9 TEChNICAL sPECIFICATIONs Following are the FP+ Series technical specifications. These figures are accurate at the time of printing but please note that all figures are subject to change without notice. For the most accurate and current information available, please visit www.labgruppen.com. Model Number of channels Peak total output all channels driven...

  • Page 31: Warranty 10

    Technical assistance and service International If your Lab.gruppen product requires repair, contact your Lab.gruppen dealer or distributor, or contact Lab.gruppen by fax or email to obtain the location of the nearest authorized service centre. factory service In the event Lab.gruppen product requires factory service, you may contact Lab.gruppen’s service...

This manual is also suitable for:

Fp+ series fp 6000qFp+ series fp 13000Fp+ series fp 7000
