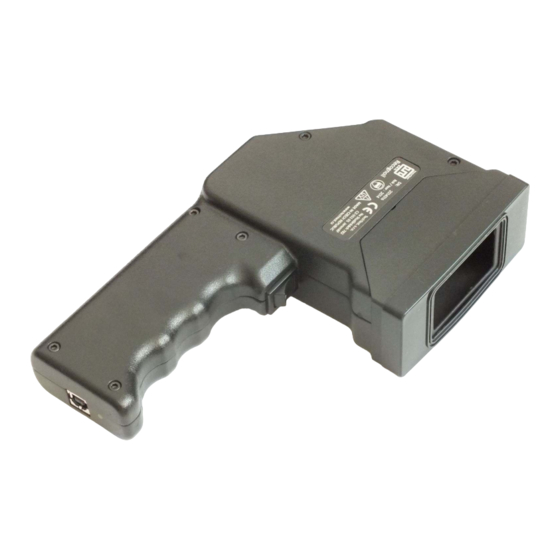

Summary of Contents for TechTest RECOGNOIL

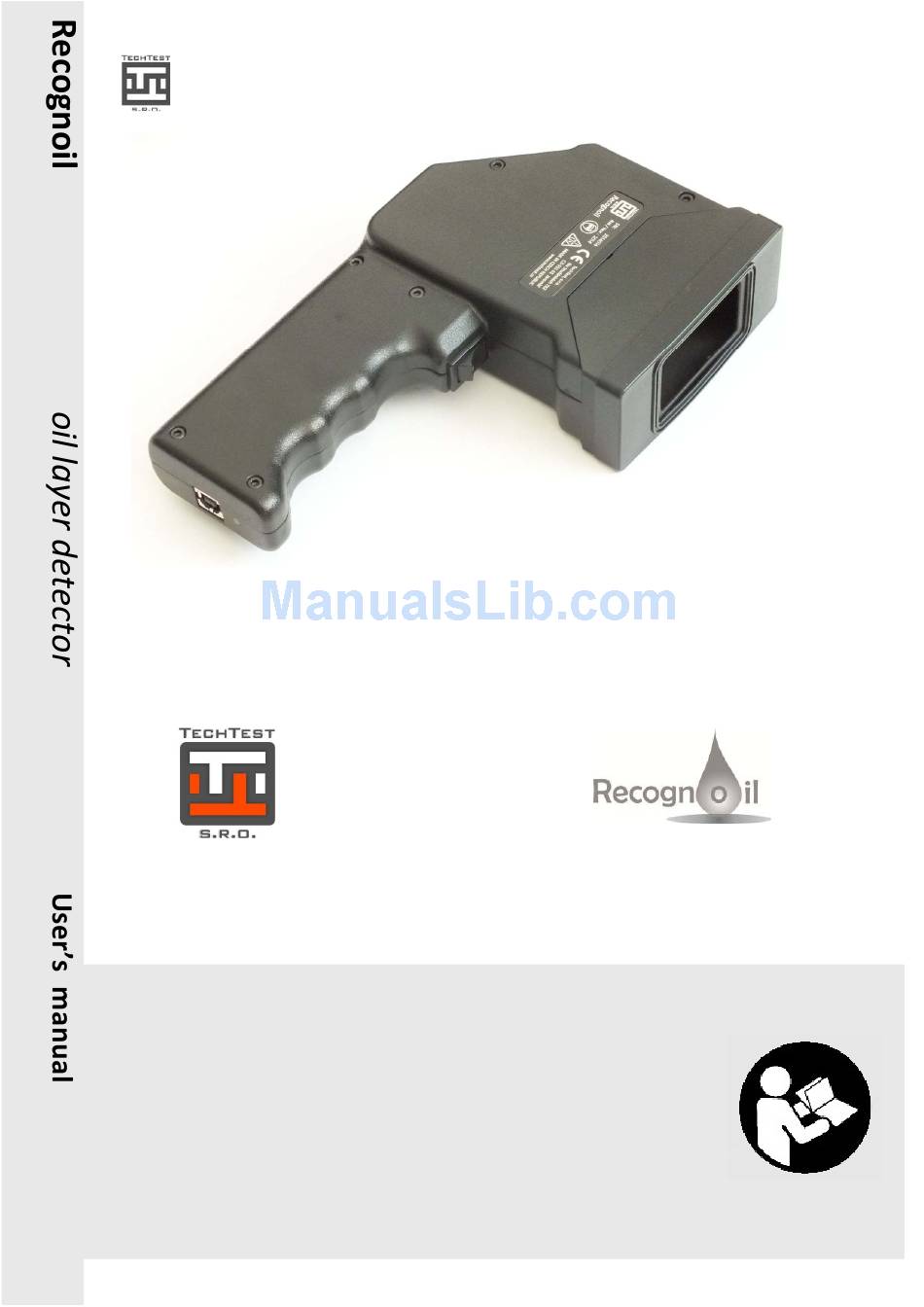

- Page 1 Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 ECOGNOIL Oil Layer Detector TechTest s.r.o. Na Studankach 782 CZ-551 01 Jaromer http://www.techtest.eu info@techtest.cz SER‘s ANUAL...
-
Page 2: Software Version 2.2.1_2015
Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 INTRODUCTION The Recognoil device enables the user to detect residual oil / grease contamination on the surface of the material. It can be used with almost all oil types and lubricant residues, which contain a part of a synthetic compound. -
Page 3: Quick Start
Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 QUICK START This short introduction chapter assumes that you have the Recognoil detector drivers and Recognoil Advanced / Professional SW installed on your TabletPC / PC. Otherwise, please skip this chapter and proceed to page 7. - Page 4 3.1. Device component overview ..................7 3.2. Hardware ........................7 3.3. Software ........................7 3.4. SW Recognoil Advanced / Professional ..............13 3.5. Detection walkthrough ................... 14 3.6. Settings and Oil-Pick dialog ..................16 3.7. Load RRW function ....................17 3.8.
-
Page 5: Safety Precautions
A powerful source of invisible UV-A radiation is used for surface irradiation. The Recognoil device can be operated only by an instructed person, equipped with UV goggles. No other person is allowed to share the same working place, or, must be also equipped with UV goggles. -
Page 6: Electrical Safety
1.3. Electrical safety a) Recognoil device uses only safe voltages, never exceeding 12 Volt DC. b) The USB charger works with high voltage of 230 Volt AC and is designed to be used only in indoor environment. It is strictly prohibited to be operated in wet and moist environment. -
Page 7: Quickstart Guide
3.2. Hardware Prior to use, connect the USB cable. You can run the PC Software Recognoil. After that, if battery voltage is O.K. you will be able to choose a detection mode. After the detector activation, choosing a mode and exposition trigger press, the surface is irradiated and the results are being collected. - Page 8 • Microsoft® Windows™ XP / Vista / 7 / 8 Operating system Recommended system requirements: • Intel i3 Processor, 2 GB RAM The Recognoil detection software must have these prerequisites pre-installed: • Microsoft .NET Framework 4.0 (free for download at microsoft.com, you will be noticed during the installation) •...
- Page 9 Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 img.3. • In the next Windows please select „Custom“ and click „Next >“. img.4. • The first item is to be checked, along with „uEye ActiveX control“. The other items need not be installed. After that, click „Next >“.
- Page 10 Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 obr.5. • Now if you want the driver to be installed in a different path, please select it and click „Next“. Otherwise click „Next >“ • Now you can choose the „Start“ item list path and click „Next>”. Otherwise click “Next>”...
- Page 11 3.3.3. Recognoil software – first run After the first run of the software, the default directory is „c:\recognoil“. The result files are also stored in this directory. You can change the path in Settings dialog. Please do not choose any network or flash card disc.
- Page 12 Software version 2.2.1_2015-02-21 3.3.4. Software Recognoil Basic Software Recognoil Basic is supplied with every Recognoil device free of charge. It does not contain either security or license restrictions. It can be operated with every Recognoil device. After device connection and after the trigger has been pressed, the map of detector output intensity (DO [-]) is shown, together with its arithmetic mean value of the whole evaluated surface (18x12 mm).
-
Page 13: Sw Recognoil Advanced / Professional
Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 3.4. SW Recognoil Advanced / Professional img.10. Software Recognoil Advanced / Professional + MENU... -
Page 14: Detection Walkthrough
4. choosing the surface contamination This step is optional. The oil files are loaded in the /Recognoil/OilDB/ directory. Choose “LOAD OILS” to show the list. After the oil has been chosen from the list, the surface concentration and layer thickness values are shown. - Page 15 Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 9. ALD always on If you want to use light deduction all the time to ensure the very same results at all condition, you can turn this function on in the Settings dialog.
-
Page 16: Settings And Oil-Pick Dialog
Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 3.6. Settings and Oil-Pick dialog img. 11. The Options dialog • Validation - calibration module: Please see chapter 6. • Working directory: click Change if you want to choose other directory, which contains oil files, RAW files and Result files. -
Page 17: Load Rrw Function
If you have the option “Save RAW images” checked in the Setting dialog, the raw (RRW – Recognoil RAW) files are saved in the working directory under “/Raw”. You can open these files later after the detection and evaluate and save it without the need of repeated surface scanning. -
Page 18: Battery Charging
Battery charging Please let the device charge whenever the battery capacity drops to 25%. The device is in the charging mode when: Connected to the computer while the Recognoil software is not opened • Connected to the USB wall adapter •... -
Page 19: Notes On Device Operation
3.8.1. Charging walkthrough The new 2014 hardware version now contains an USB Lithium-Ion battery charger. The device is in the charging mode when: Connected to the computer while the Recognoil software is not opened • Connected to the USB wall adapter •... -
Page 20: Maintenance And Long Term Storing
Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 MAINTENANCE AND LONG TERM STORING • store the device always in its protective package • do not store in a dusty environment / on a dusty surface • do not store in a damp environment •... -
Page 21: Software Version 2.2.1_2015
5.1. Principle of operation To get the fully trusted results and outcomes of the Recognoil device, it is important to get to know the basic principles of device operation. The device irradiates the surface with invisible and undetectable UV light. The certain physical and chemical properties of the residual grease and oils force the chemical elements and molecules to emit visible light. -
Page 22: Methodology
This section has been written for the reason of two basic existing limitations of the Recognoil device. First – the need of exact distance of the object and the Recognoil detector head, second – the need of 100% light out-screening. The Recognoil device is primarily designed for planar objects of bigger dimensions, but, with the help of this manual, the number of possible applications can be made considerably greater. - Page 23 The Recognoil device is put on the other side and secured in its place. The object is placed in an adjustable holder, to be allowed to set the appropriate focusing distance.
-
Page 24: Examples Of Use
For the purposes of demonstration, we can suggest 3 spheres of the device application. Example 1 – a paint shop The Recognoil device serves as a quick random check of the surface degreasing quality. The operator has already found out, what limit settings are appropriate for the type of object being detected. - Page 25 Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 VALIDATION - CALIBRATION (Professional version only) case Recognoil Professional version, aluminium sample validation- calibration sheet has been delivered to you, allowing you to perform validation test periodically. Validation procedure can be executed from the Settings menu.
- Page 26 The method is easy to accomplish and starts with the sample preparation. 1) Remove the foil from one part of the metal surface and right at the moment, place the Recognoil device on to this surface. 2) Click the Execute the calibration sequence button. After that, follow the instructions.
-
Page 27: Technical Data
Up to 5 to 10 µm Necessary hardware Laptop / tablet with operating system Windows XP / 7 / Supplied software Recognoil Basic free of license, Recognoil Advanced / Professional for extra charge Data interface USB 2.0 Digital output resolution 512 x 768 px. -
Page 28: Frequently Asked Questions
This problem may be caused by insufficient USB power of the Tablet. Please, charge the Recognoil’s internal battery to its maximum level, as well as the battery of the Tablet prior to using the device. Please note that an updated Frequently Asked Questions section is being built on our web page at http://www.techtest.eu/customer-faq/... -
Page 29: Appendix
Recognoil – User‘s Manual Software version 2.2.1_2015-02-21 APPENDIX...
