ExStik Description

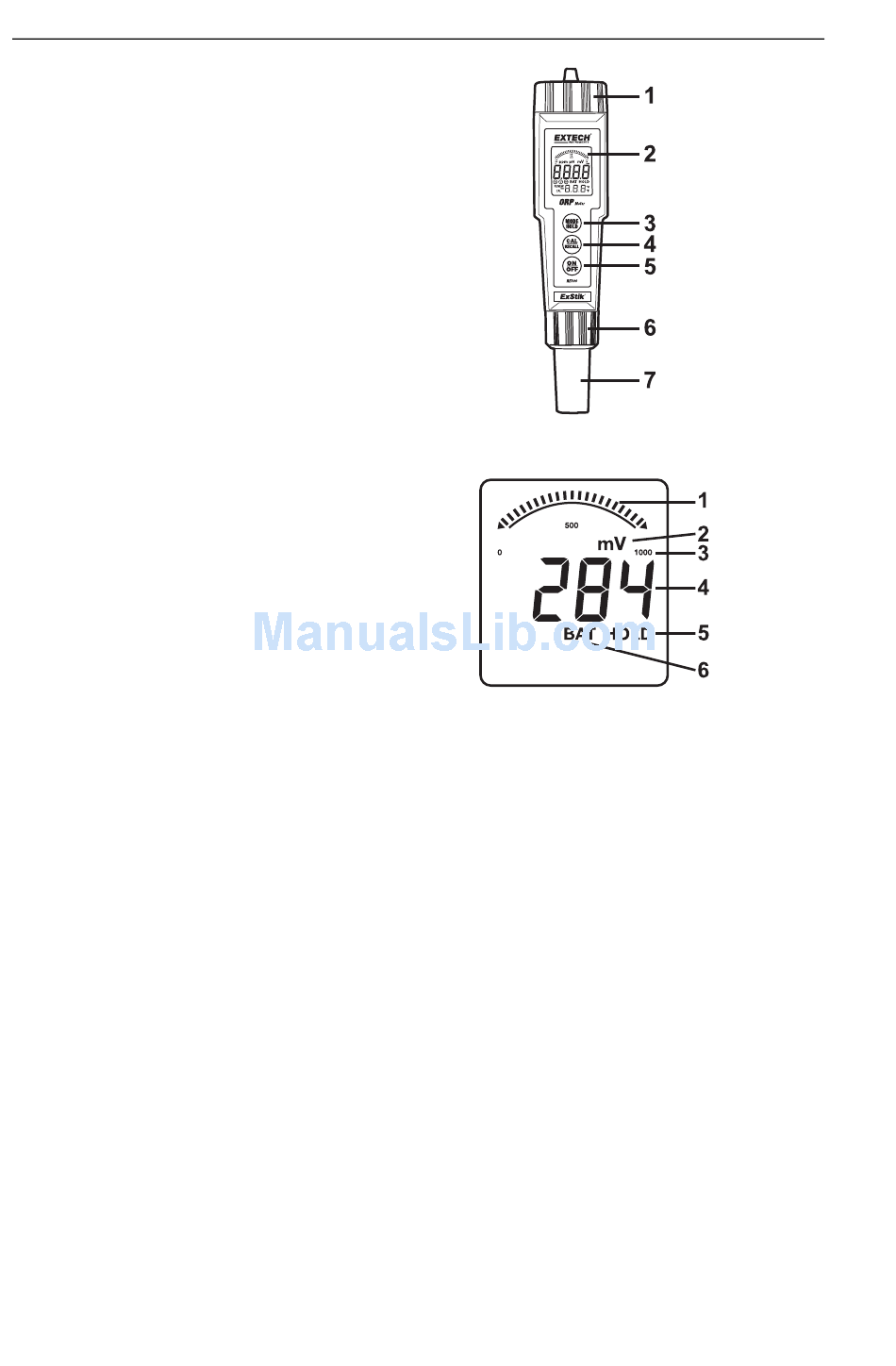

Front Panel Controls

1. Battery compartment cap
2. LCD Display
3. MODE button
4. CAL button (unused on RE300)
5. ON/OFF button
6. Electrode collar
7. Electrode
(Electrode cap is not shown)

Display Description

1. Bargraph
2. Units
3. Scale
4. Reading
5. Data Hold
6. Low Battery
CAUTIONS
•
This device is not a toy and must not reach children's hands. It contains hazardous
objects as well as small parts that the children could swallow. In case a child
swallows any of them, please contact a physician immediately
•
Do not leave batteries and packing material lying around unattended; they can be
dangerous for children if they use them as toys
•
In case the device is going to be unused for an extended period of time, remove the
batteries to prevent them from training
•
Expired or damaged batteries can cause cauterization on contact with the skin.
Always, therefore, use suitable hand gloves in such cases
•
See that the batteries are not short-circuited. Do not throw batteries into the fire.
ExStik
TM
2
