Summary of Contents for Block CVR-100+
- Page 1 Instruction Manual...
- Page 2 Table of contents Chapter 1 Intended use Explanation of symbols Chapter 2 Safety information Before use Chapter 3 The device Front panel control Remote control Wireless device remote control Rear panel Information on handling batteries rechargeable batteries Chapter 4 Connection Power supply Antenna Signal output...
-
Page 3: Chapter
Chapter 8 Music server Music player Information Chapter 9 Internet radio portal Bluetooth (for audio only) Chapter 10 General functions Alarm Sleep function Software upgrade Factory default settings Language Setting the time 12 24 hour display Chapter 11 Error messages Chapter 12 Troubleshooting Delivery contents... - Page 4 Dear customer, thank you for deciding on purchasing this quality product This instruction manual will give you a general idea of how this device operates as well as provide you with informa tion on cleaning and safety procedures Please take a few minutes to read and follow all safety and operating instructions found in this manual carefully in order to maintain this products condition and ensure safe operation.
-
Page 5: Intended Use
Intended use The unit is a hi fi stereo internet radio This device can be used for internet radio station reception by means of a broadband high speed internet access via cable Ethernet or - ). W LAN Wi Fi FM radio reception is also possible via antenna Music fles stored on a network can also be used . -
Page 6: Chapter
Dear customer , the following safety and hazard warnings are not only for the protection of your device but also serve as a protection against potential health hazards Please take time to read the following instructions carefully . We assume no liability for personal or property damage resulting from the failure to comply with the safety instructions improper operation and handling Under such circumstances all claims under warranty will become void ›... -
Page 7: Chapter
› Always pull on the plug’s grips and never on the cable to remove from a wall outlet. › Unplug the device from the power outlet, if it is not in use for a longer period of time . › For safety reasons always unplug the device from the power outlet during thunder storms. -
Page 8: Chapter
› Make sure the device is properly ventilated during operation and never operate it in constricted areas such as for example in a bookcase or shelf Never block ventilation openings with magazines tablecloths curtains or similar › Make sure the device is placed on a frm and stable surface . -
Page 9: Before Use
Before use Please read this instruction manual thoroughly before operating this device and retain it for fur ther reference questions and use Following and heeding all information found in this instruc tion manual shall maintain this products condition and ensure safe operation . This instruction manual contains information on how to operate and maintain this device. -
Page 10: The Device

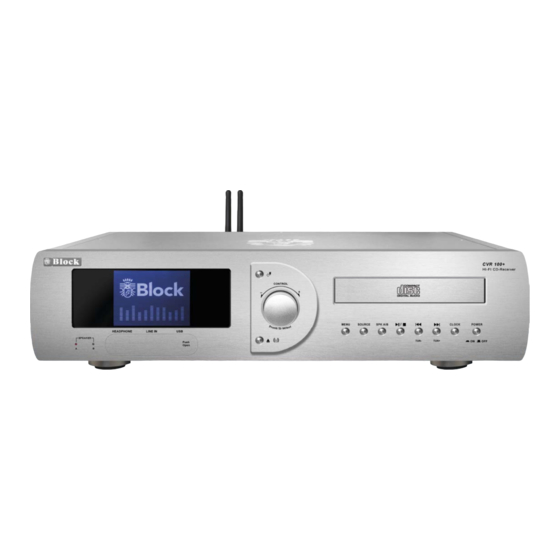

The device Open/close key for CD, press this key to go to CD mode directly. Play/pause: press this one time for play/pause function, press and hold this for about 5 seconds for stop function. When play mode is tuner , press to auto scan next station, When play mode is CD / Bluetooth / Media , press to skip to next track. - Page 11 1. Standby key 2. Mute key, press once mute on, press again mute off. 3. A/B: Speaker output select for A, B, A&B. Remote control 4. Input source selection keys, IR=internet radio, Media/usb: press this key to go to menu list with share media And usb playback.
- Page 12 Block Remote Before use this function, you have to download App to your smart phone For IOS or Android , the App name is “ Block Remote Control”. In IOS App store or Google Play store , search for Control “...
-
Page 13: Rear Panel
Rear panel 1. Power input jack. Warning icons: please be aware that this unit contains high voltages, And should not be opened, please refer to page 2 of this manual. Speaker output for A. 3b. Speaker output for B. Rating message. 5. - Page 14 Information on handling batteries/rechargeable batteries ” › The remote control requires two „AAA batteries for operation. Inserting/changing batteries Remove the battery compartment lid carefully . Remove the used batteries Insert new batteries and ensure correct polarity as graphically dis played inside the compartment Replace the battery lid carefully Information on handling batteries/rechargeable batteries Please adhere to the following information when handling batteries and rechargeable batteries.
- Page 15 Chapter 3 The device...
-
Page 16: Power Supply
Connection Power supply › Plug the power cable into a correctly installed power outlet of your public power system . Antenna ” › Connect the tuner antenna connector to the „Tuner Antenna connection on the back of the device Signal output ›... -
Page 17: Basic Operation
Basic operation Setup “ ” › You will be asked if Setup Wizard is to be started when the device is switch to IR/MEDIA/DAB/FM ’ for first time If you don t want this to be installed or it is to be started at a later point in time you will be able to start this setup function again as follows : MENU ›... - Page 18 Storing stations > Press “P” button on remote control, LCD screen will display the list of saving preset station. use Up/Down key to select the preset number, press Enter key to confirm saving preset station. 10 memory presets are available for storing. Selecting a preset station ›...
-
Page 19: Connecting To A Network
Connecting to a network “ “ › You will need a network connection for „I nternet radio or „Music player operation modes › You will need either a router and RJ45 cable or a W-LAN router together with the required pass - word to establish a connection to your network . - Page 20 ” ” › Press the „SOURCE button repeatedlly or select „Internet radio in the main menu for radio ope- ration. › The unit has access to thousands of stations and podcasts from around the whole world you select the internet radio mode then the unit will contact the Frontier Silicon Internet ra dio portal to access a list of stations that are organized into diferent categories such as Country or Genre Once a station has been selected the device will establish a connection to this station and begin broadcasting This internet portal also allows you to create several lists of your favorite...
- Page 21 4. Gateway address “ “ “ u “ and „t “ Set the Gateway address with „ and „ or with the „CONTROL dial Use the „ “ buttons to switch between fields Press „ENTER t o switch to the next field 5.
- Page 22 Network profle › You can use the options MENU › System settings › Network › Network Profle to delete an un - wanted network Here you will see a list of the previously used wireless networks Select a profle ▲ “...
- Page 23 › The following features are also available through the option „S tation List ”: My favorites Stations Podcasts My added stations “ › Select „Last List ened to gain access to a selection of the previously listened to stations Storing stations >...
-
Page 24: Copyright Information
Music server › In order for the unit to play music from your computer, you will have to configure your computer to allow access to files or media first UPnP (Universal Plug and Play) allows devices, such as the unit to play music from a shared media library You will also be able to browse through highlighted menus such as Genre or Ar- tist If you have a suitable server system... - Page 25 Information › Press the „ INFO“ button repeatedly to browse through diverse information. The type of information and whether information is displayed all depends on the broadcasting station . USB Operation (USB port on front panel) Chapter 8 Music server...
-
Page 26: Internet Radio Portal
Internet radio portal › The Frontier Silicon Internet radio website allows you to listen to internet radio through your computer and also lets you organize your favorite lists . › This portal is free of charge . To register your unit to this portal you will require an access code 1 Select in the menu Station list ›... -
Page 27: General Functions
General functions Alarm › You can set two diferent alarm times with the CVR 100 Select in the main menu the option ALARM Now you can select the alarm number one or two You can activate or deactivate the “ “... - Page 28 Language › Select System settings › Languages to choose a preferred language . Setting the time “ › Select System settings › Time setup to set the time Select „AUTO to activate an automatic time ” adjustment „Daylight savings determines whether you would like to use a summer or winter ”...
-
Page 29: Error Messages
Error messages Message Description Example MAC fltering is deactiva - Failed to connect Key entered correctly the router rejects request . ted on the router . Format error File format can not be reco Received – gnized independent of found that the stream the network . - Page 30 Troubleshooting of amplifier Chapter 11 Error messages...
-
Page 31: Troubleshooting
Troubleshooting The device you have just purchased is equipped with state of the art technology and is safe to operate Nevertheless problems or malfunctions may occur Before contacting a service technician refer to the following possible solutions Distorted sound or no sound is audible. ›... - Page 32 Maintenance and handling Carry out a technical safety inspection on a regular basis e g check if the power cable or housing may have become damaged . If there is reason to believe that the device can no longer be operated safely then disconnect it immediately from the power supply and secure it against any unintentional operation Carefully remove the power cable plug from the wall outlet and where applicable switch of the corre sponding circuit breaker frst .
- Page 33 Cleaning the device ’ › Unplug the power cable before cleaning Always use a soft and dry cloth to clean the unit s exterior If the device is extremely dirty you can use a soft cloth, dampened with water or a mild ( .
-
Page 34: Technical Data
Specifcations Technical data › Operating voltage AC 230 V/ ~ 50 Hz › Max power consumption 300 W – › Frequency range FM 87 5 108 MHZ DAB 174.928 - 239.200 MHz › Amplifier: Frequency response: 10Hz - 30KHz Signal noise ratio: >85dB Input channel separation : >60dB... - Page 35 www audioblock de Audioblock Gm H Bollmannsweg 41 26125 Oldenburg Tel 0441 39063112 E Mail info audioblock de...
