GSM/GPRS/GPS

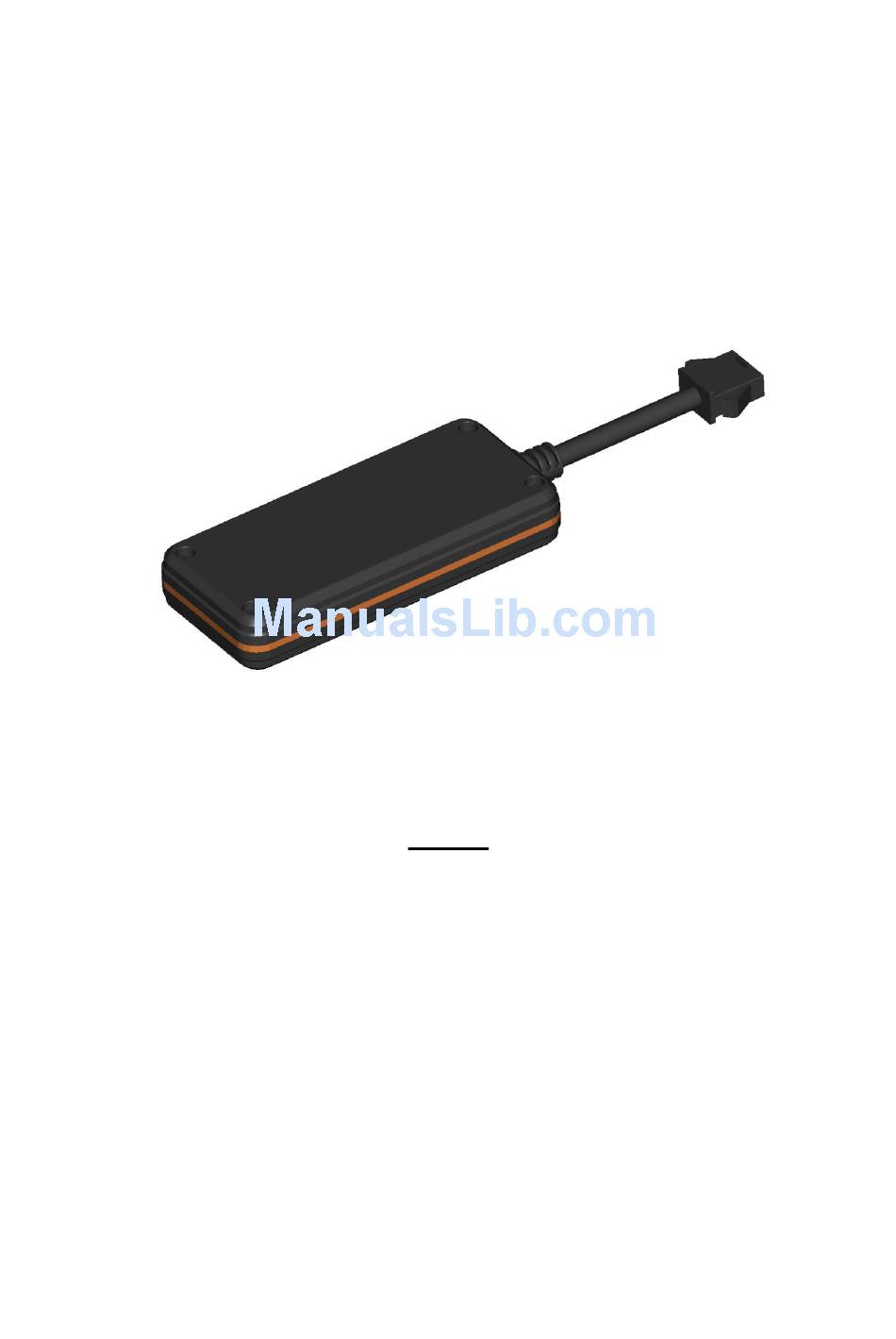

TK309 GPS Tracker User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully
before using this product. Please note that specification and information are
subject to changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes
no responsibility for any errors or omissions in this document.
Advertisement
Table of Contents
Related Manuals for COBAN GROUP TK309
Summary of Contents for COBAN GROUP TK309
- Page 1 GSM/GPRS/GPS TK309 GPS Tracker User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
-
Page 2: Specifications
◆Quick using 1）Open device case, proper insert GSM card, connect external power supply, Must turn on small switch inside SIM card hole. 2）Put device outside, around 30s three lights will keep lighting on stands for device can work normally. 3）Dialing device number, it will hang up and reply tracking message with valid Longitude and latitude. -
Page 3: Installation Instructions
◆Installation attentions NOTE: device front side towards the sky. When install in car, if the windscreen glued by metal thermal insulation layer or heating layer, it will reduce the GPS receive signal and lead to GPS work disorder. Device light description Light Represents yellow... - Page 4 Choose SIM card, need insert a GSM SIM card into the device, please refer to the suggestion of your supplier for SIM card choice. Notice: Please insert SIM card before turning the device power switch to on; The SIM card need open the GPRS function; Please make sure SIM card with full balance.
- Page 5 ◆Attentions ◆Device light 1）No yellow light: failed to read SIM card, need reinstall SIM card. 2）Blue light flash: no GPS signal, make sure device started outside. 3） Three lights off: lights entered sleep mode, make a call or move device can wake up. ◆Device failed located 1）...
-
Page 6: User Settings
3.User Settings 1.Initialization (initialize the settings) Text command Parameter Example Command #super# #super# Command Feedback super ok 2.Single Locating : Two ways make a call to device number, it will hang up and reply a real-time tracking 1.Dialing tracking message. 2.SMS tracking Send SMS command,it will reply your location. - Page 7 5.Set data to upload interval Text command Parameter Example Command #at#123456#10~600# #at#123456#10# Command Feedback at ok The data upload interval can be set as you need, 10~600 represents seconds Command description of data uploading interval, default as 10 seconds for real time tracking. 6.Device reboot Text command Parameter...
-
Page 8: Timezone Setting
8.Timezone Setting Text command Parameter Example Command #timezone#password#direction#time In UTC-6 example: zone value in hours#time zone in #timezone#123456#W#6#00# minutes# In UTC+5.30 #timezone#123456#E#5#30# Command Feedback timezone ok 9.Check vehicle state Text command Parameter Example Command #check#password# #check#123456# IMEI + Authorized number +Alarm mode + IP + GPS status + Data upload interval Command Feedback status + APN + Time zone + ACC status 10.Geo-fence... -
Page 9: Vibration Alarm
12.Vibration alarm Text command Parameter Description Command #vibrate#123456#1# 1 means Slight vibration level Command #vibrate#123456#2# 2 means medium vibration level Command #vibrate#123456#3# 3 means high sensitive level When the tracker detect the vibration,it will send “vibrate alarm + IMEI Command description +Google map link”... - Page 10 15.Power failure alarm If device was removed from car battery, device will end SMS “cut power Description alert! +IMEI number+Long&Lat” to the authorized number. Web based platform www.gpstky.net further details please contact manufacturer. 1.Setting APN 1.1 APN standards for Access Point Name and differs from country to country. For more information about the local APN, inquiry from your local GPRS network operator.
- Page 11 4.Cautions Please comply with the instructions to extend the unit life: 1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry. 2. Don’t use & store the unit in dusty places. 3. Don’t put the unit in overheated or overcooled places. 4.
