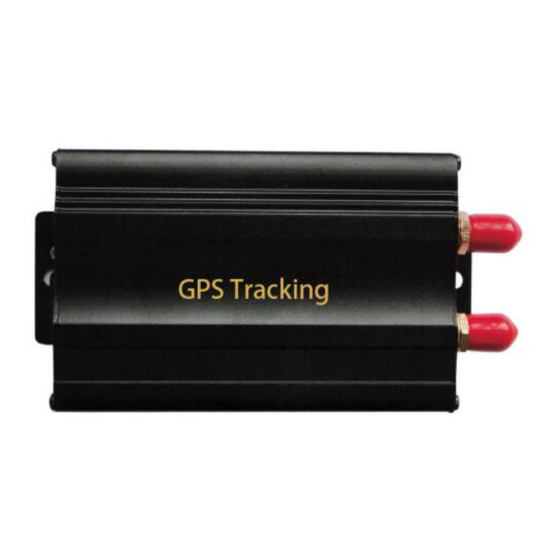

COBAN GROUP GPS103B User Manual

Gsm/gprs/gps vehicle tracker
Hide thumbs
Table of Contents

Advertisement

Quick Links

1
GSM/GPRS/GPS Vehicle Tracker
GPS103B User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully before
using this product. Please note that specification and information are subject to
changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes
no responsibility for any errors or omissions in this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS103B and is the answer not in the manual?

Questions and answers

Related Manuals for COBAN GROUP GPS103B

Summary of Contents for COBAN GROUP GPS103B

  • Page 1 GSM/GPRS/GPS Vehicle Tracker GPS103B User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Table Of Contents

    Contents Introduction ........................3 Hardware Description ......................3 Accessories Name ....................... 3 Specifications........................4 Operating Instructions ......................5 Function setting ........................7 Initialization ........................7 Change 123456 ........................ 7 Authorization ........................8 Single Tracking ....................... 8 Continuous Tracking Automatically ................8 LBS Tracking ........................

  • Page 3: Introduction

    1. Introduction This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet. 2.

  • Page 4: Specifications

    NAME PHOTOES NOTE GPS Antenna 3 meters GSM Antenna 3 meters Microphone 1.5 meters Power wire 10PIN Relay 12V/40A Remote control 4. Specifications Content specifications DIM. 81.8mm x 35.7mm x 60.3mm Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GSM/GPRS Module MT6260A GPS Module Ublox7020 GPS Sensitivity -159dBm...

  • Page 5: Operating Instructions

    Cold status 45s GPS Start time Warm status 35s Hot status 1s Voltage of car power 12 V-24V system Backup battery Chargeable changeable 3.7V 500mAh Li-ion battery Storage Temp. -40°C to +85°C Operation Temp. -20°C to +65°C Humidity 5%--95% non-condensing 5.
  • Page 6 Wiring diagram 5.1.5 Note: The blue wire can be connected to the original car alarm horn; 5.1.6 Know about the type of the door trigger is positive or negative trigger. Please connect the orange wire to the door control circuit if it is positive, and connect purple wire if it is negative.

  • Page 7: Function Setting

    confirm the SIM card in the right place. 5.2.2 Please make sure that the SIM card is able to execute the function of incoming calls display, no calls can be diverted and the PIN code is locked. The SMS format must be TXT format, and can’t recognize the PDU format.

  • Page 8: Authorization

    For example: send SMS “123456123456 888888” to the unit. If succeeded, “123456,CONFIG OK” will reply to your cell phone from the device tracker. 6.2.2 Make sure the new 123456 is in 6 digits, or else the tracker cannot recognize the 123456. 6.3 Authorization There are 5 numbers to be allowed to authorize in the tracker at most.

  • Page 9: Lbs Tracking

    at 10s time interval when vehicle is moving; 500s time interval when vehicle is static. 6.6 Cell ID Tracking 6.6.1 You must set up the APN of your local GSM network for the SIM card in tracker first before using this function, if there is user name and 123456 for GPRS login, Please refer to following to configure the APN, user name and 123456 for GPRS login.

  • Page 10: Alarms

    SD card on the basis of the pre-set condition, when GSM signals get back, all the event alerts will be auto-sent to the authorized numbers or monitoring platform (server), but the logged tracking data should be loaded to the monitoring platform via SMS command. ( Must insert TF card ) 6.9 Alarms Note: All Alarms will be sent to Central Number 6.9.1 Low battery alarm...

  • Page 11: Sos Alarm

    valid latitude/longitude before lost signal” 6.9.3.2 Send SMS “gsm+123456+space+1” to deactivate. 6.9.4 SOS alarm Long Press the SOS button for 3 seconds, （ press button on remote for 3 seconds）, the tracker device will send SMS “help controller me!+lat./long.” to all the central number. 6.9.5 Geo-fence alarm Set up a geo-fence for the tracker device to restrict its movements within a district.

  • Page 12: Overspeed Alarm

    OFF stands for closing movement alarm. (Note: this function must connect ACC wire ). 6.9.7 Overspeed alarm 6.8.7.1 Set up: Send SMS “speed+123456+space+80” to the unit(suppose the speed is 80km/h),and it will reply “speed OK!”. When the target moves exceeding 80km/h.the unit will send SMS “speed+Geo-info” to the central number.

  • Page 13: Set All Alarm Mode

    (1 is strongest level, 15 is lowest level) 6.9.10 Set all alarm mode Send SMS"KC +123456+space+0" to tracker to close the function. Send SMS"KC +123456+space+1" to tracker to choose alarm by SMS. Send SMS"KC +123456+space+2" to tracker to choose alarm by calling. 6.10 Cut off the Oil and Power System Send SMS command “DY+123456”...

  • Page 14: Function Of Remote Controller (Option)

    “DOOR+123456+1” when close the door and left. You will set up arm status fail if the engine is turned on (the ACC is high voltage). 6.10.2 Set up arm by remote controller (Option) Press button on the remote controller for 0.5 seconds, the car enters into armed state and the siren will beep one time, no SMS reply.

  • Page 15: Silent Mode

    and the SMS command will make the tracker device enter into disarmed state if the unit currently armed. 6.12.2 Disarm by remote control (Option) Press button on the remote control, the car enters into disarm state, and the siren will alarm two times, no SMS reply. 6.15 Silent Mode 6.13.1 Set up silent mode by SMS...

  • Page 16: Device Resetting

    imei: unique IMEI number for register in tracking platform. apn: APN info. Of SIM card. IP: server IP and Port number. Cnum: central number for receive alarms. GPS: 1 means GPS working, 0 means searching signal, -1 means GPS sleep for lower power consumption purpose.

  • Page 17: Time Setting

    E.g. Send SMS command "setimei123456 123456789012345" to the tracker device, it will reply SMS “SETIMEI,CONFIG OK”. 6.20 Time Setting 6.18.1 Send SMS command “timezone123456+space+time” to the tracker unit, If succeed, It will reply “time OK” 6.18.2 For example: Send SMS “timezone123456 8”, 8 is Chinese time zone, If your country time zone is minus, send SMS “time zone123456 -8”.

  • Page 18: Set Ip And Port

    123456” via a cell phone and if succeeded, the name+space+APN tracker will return the message “APN OK”. 6.22.1.3 E.g. Send SMS command “APN123456 CMNET”. If succeeded, it will reply SMS “APN OK” Notes: CMNET is the APN of one of china GPRS Network Operator (China mobile), it has no APN name and 123456.

  • Page 19: Faults & The Solutions

    1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry. 2. Don’t use & store the unit in dusty places. 3. Don’t put the unit in overheated or overcooled places. 4. Handle carefully. Don’t vibrate or shake it violently. 5.
