Summary of Contents for COBAN GROUP G05

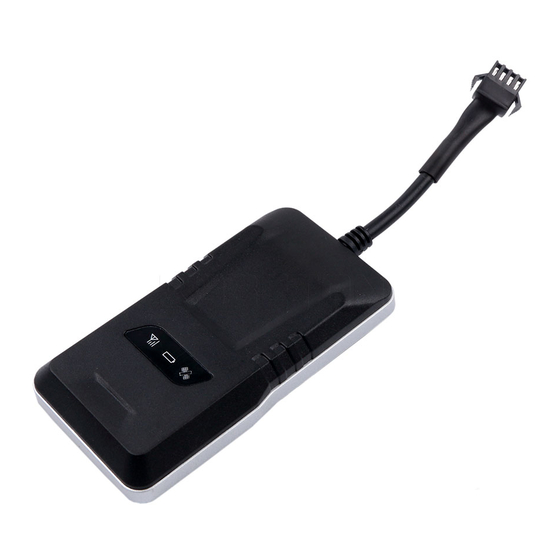

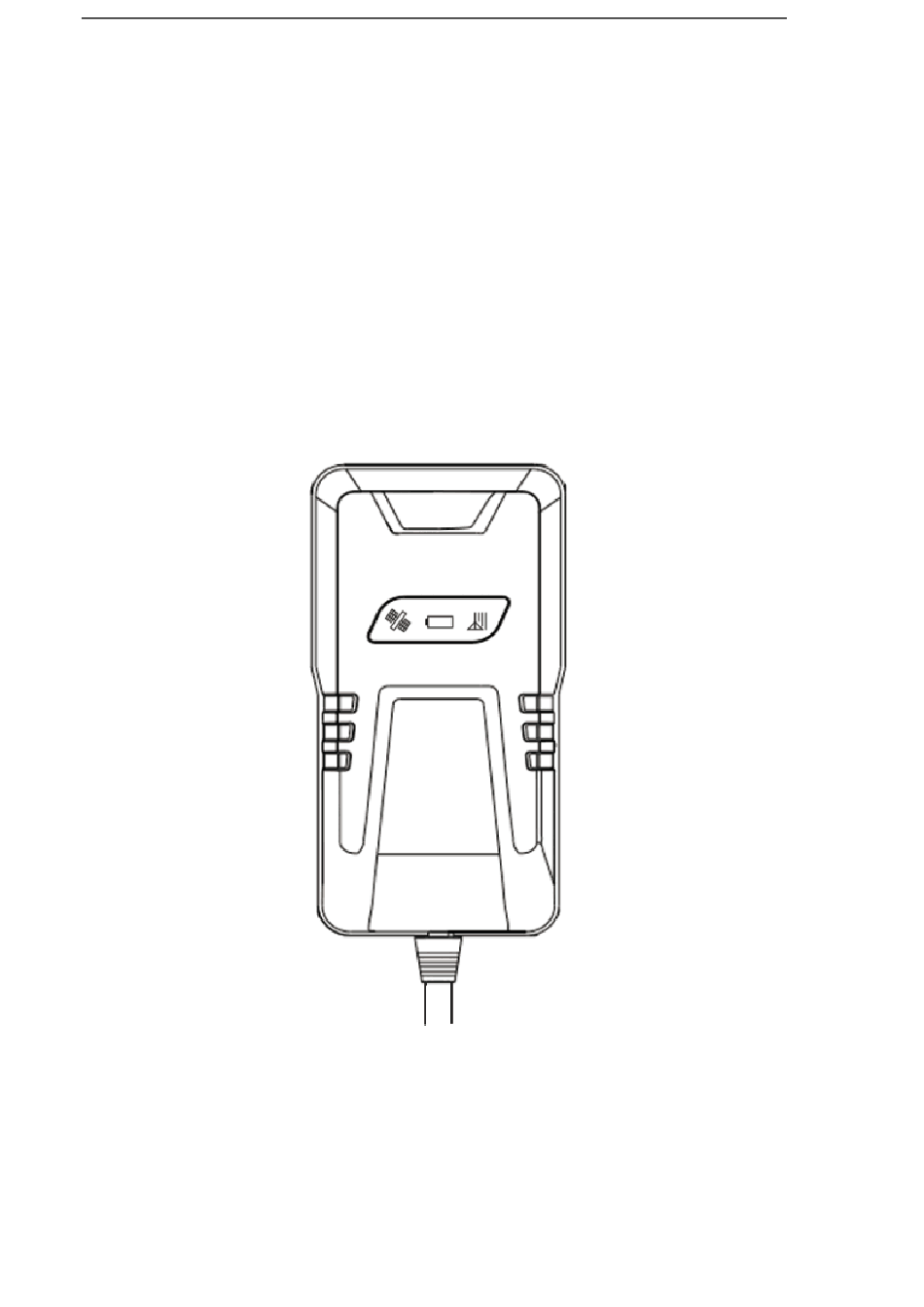

- Page 1 GSM/GPRS/GPS Tracker G05 User Manual...
-
Page 2: Table Of Contents
Contents ◆Quick using ....................... 3 ◆Installation attentions ..................3 1. Summary ......................4 2. Main functions ....................4 3.Specs........................4 4. Installation instructions ..................5 5. Wires connection .................... 6 6. Function setting ....................7 6.1 Initialization ....................7 6.2 Change Password .................... -
Page 3: Quick Using
◆Quick using 1）Proper insert GSM SIM card, connect to power supply 12V/24V, Must turn on small switch to “ON” place. 2） Put device outside, around 45-90s three lights will keep lighting on stands for device can work normally. 3）Dialing device number, it will hang up and reply tracking message with valid Long and lat to show location. -
Page 4: Summary
1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPRS. NOTE: Please turn on small switch inside SIM card hole after install SIM card 2. Main functions ·... -
Page 5: Installation Instructions
4. Installation instructions 4.1 Preparation: Choose SIM card, need insert a GSM SIM card into device. Please insert SIM card before turning the device power switch to on; The SIM card need open the GPRS function; Please make sure SIM card with full balance. -
Page 6: Wires Connection
① 4.2.3 Recommended installation place: The hidden place in the board below ② the front windscreen; The hidden place around former dashboard (nonmetal ③ material for skin); The hidden place in the board below the back windscreen. Notice: If the windscreen glued by metal thermal insulation layer or heating layer, it will reduce the GPS receive signal and lead to GPS work disorder, then please change the installation place. -
Page 7: Function Setting
6. Function setting 6.1 Initialization Send SMS “begin+password” to the unit, it will reply “BEGIN,CONFIG OK ” and initialize all the settings to default factory settings.（default password: 123456） For example: send SMS “begin123456”, it will reply “BEGIN,CONFIG OK ”. -
Page 8: Change Password
The “+” in the command, please don’t type “+”, space means press the space keyboard on your cell phone. 6.2 Change Password 6.2.1 Send SMS “password+old password+space+new password” to the unit to change the password. For example: send SMS “password123456 888888” to the unit. If succeeded, “PASSWORD,CONFIG OK”... -
Page 9: Single Tracking
messages of auto track by SMS will be set to this center number, if all alarms need to be sent to this number too, then this center number must be setup as authorized number. 6.4.2Cancel: Send “centernum+password” to tracker, it will reply “CENTERNUM,CONFIG OK”. -
Page 10: Cut Off The Oil And Power System
command "getimei123456" to the tracker device, an IMEI number in 15 digits will reply to your cell phone. 6.9 Cut off the Oil and Power System Send SMS command “DY+password+space+1” to the tracker device, it will reply “DY CONFIG OK” to your cell phone from the tracker device, and stop your car oil pump or elec as well. -
Page 11: Switch Gprs & Sms Mode
Set vibration level vibrate123456(space)1 Vibrate Level:1, 2 ,3 Close all alarm KC123456(space)0 Set SMS alarm KC123456(space)1 Default mode Set calling alarm KC123456(space)2 6.12 Switch GPRS & SMS mode Send SMS"GPRS +password+space+0" to tracker to close the GPRS function. Send SMS"GPRS +password+space+1"... -
Page 12: Time Setting
GSM: 100 means GSM signal value normal. ITV: moving time interval is default 20s,static time interval is 500s. TZ: time zone is default GMT 0. OS: overspeed alarm, 0 means deactivate, 1 means activate. GF: 500,1,0: Geo-fence function, 500meters, 0,0 close alarm; 1,0 out fence alarm Vib: vibration level.. -
Page 13: Set Ip(Domain) And Port
mobile), it has no APN name and Password. 6.16.2 Set IP(Domain) and Port number”, If Send SMS: “adminip+password+space+IP Address+space+port succeeded, it will reply “ADMINIP, CONFIG OK”. E.g. Send SMS: “adminip123456 121.201.109.14 6969” to the tracker device, (121.201.109.14 is IP, 6969 is port). 6.17 Web platform GPS tracking software Web based platform www.secumore1818.com, Use IMEI login, default password 123456. -
Page 14: Faults & The Solutions
7 . Faults & the Solutions Faults Solution Its failed to read SIM card, need re-install SIM card; after inserting yellow light flashing SIM card, then turn on power GPS not located, check if working outside not in room; install blue light flashing place has no metal cover Lights will enter sleep after stable lighting on 3 minutes and not... - Page 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 16 Guarantee Card User Name Phone Address Model No IMEI No Purchase Date Invoice No Seller Name Address Seller Contact 1.Within warranty period, if any damage caused by the product's own quality, user can bring the purchasing invoice and warranty card to supplier to arrange repair. 2.Those machines that has refitted or added other functions by user own will not be accepted to repair.
