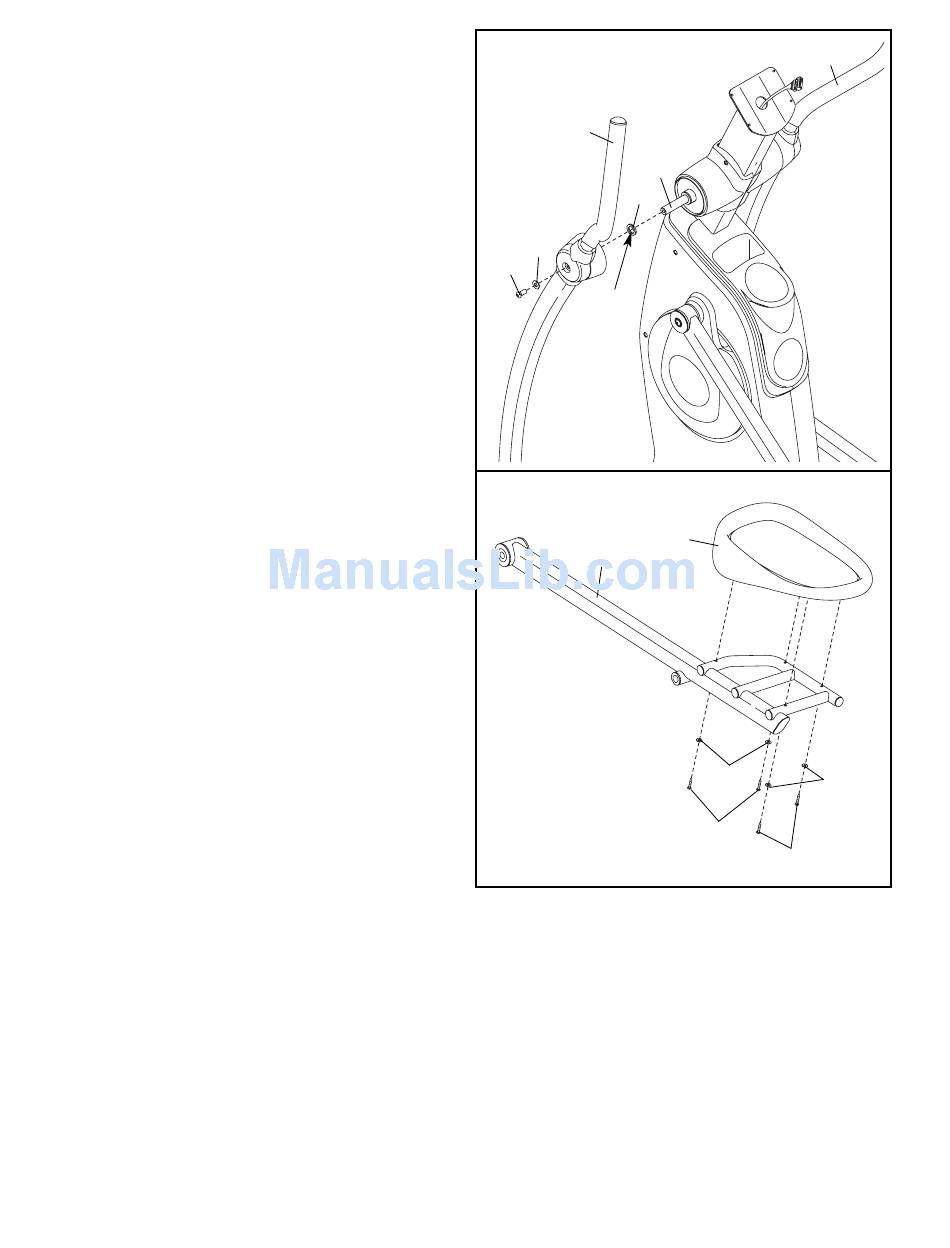

9. Apply a small amount of grease to both sides of
a Wave Washer (98). Slide the Wave Washer
onto the left side of the Pivot Axle (65). Next,
slide the Left Handlebar (8) onto the Pivot Axle
as shown.
Attach the Left Handlebar (8) with an M10 x
23mm Shoulder Screw (80) and an M10 x 20mm
x 1mm Washer (81).
Repeat this step to attach the Right
Handlebar (9) to the Pivot Axle (65).
10. Identify the Left Pedal (13) and the Left Pedal
Leg (14), which are marked with "Left" stickers,
and orient them as shown.
Attach the Left Pedal (13) to the Left Pedal Leg
(14) with four M6 x 35mm Phillips Screws (87)
and four M6 Split Washers (88). Start all four
Phillips Screws before tightening them.
Repeat this step to attach the Right Pedal
(not shown) to the Right Pedal Leg (not
shown).
9
8
98
81
80
Grease
10
14
9
9
65
13
88
88
87
87
