ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .

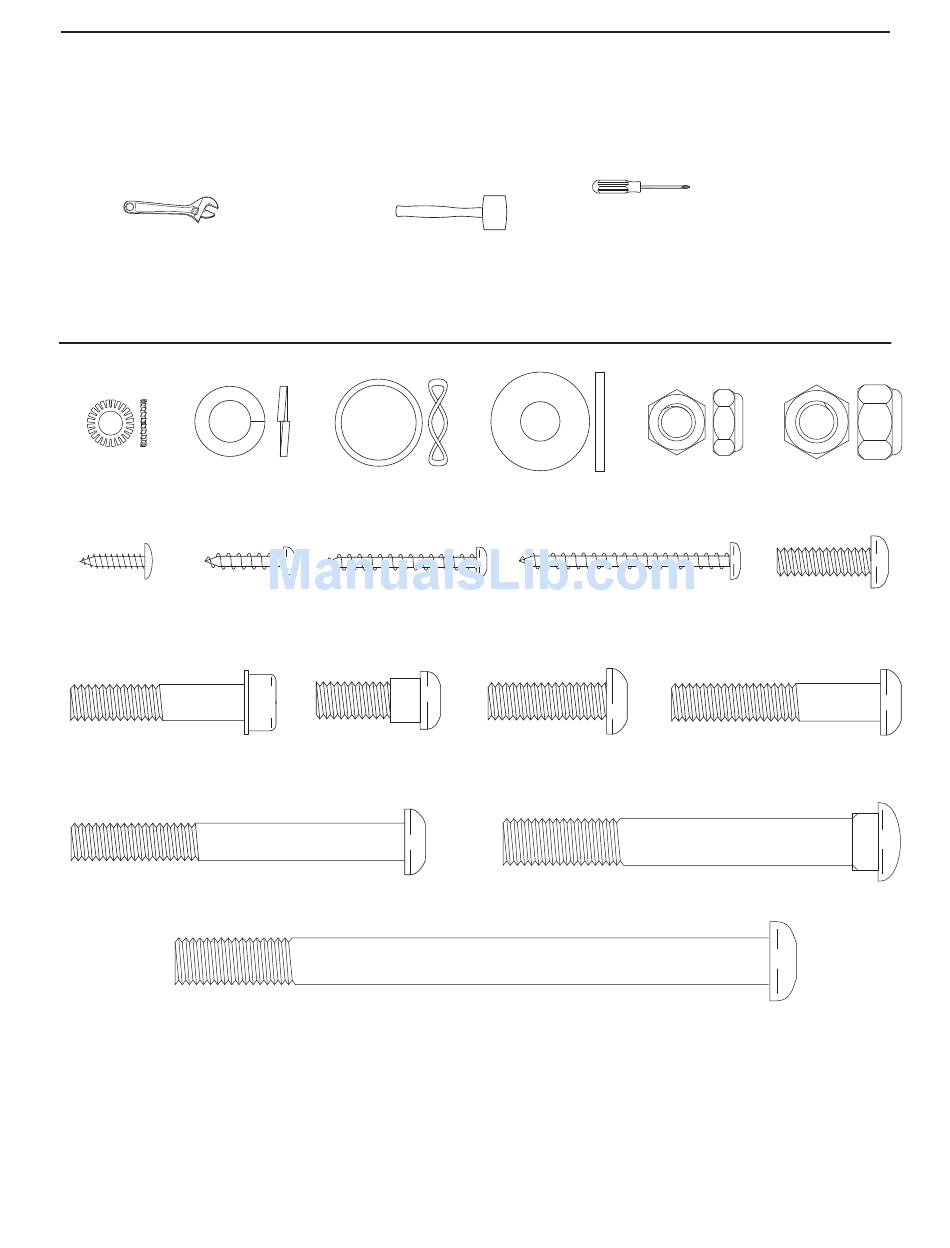

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 20 and 21. The second number
is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not
in the parts bag, check to see if it has been pre-assembled.
M8 Split
Star Washer M8 Washer M8 Jamnut M10 Nylon
Wave Washer
Washer (90)–3 (88)–6 (79)–5 Locknut (81)–2
(112)–8 (111)–2
M4 x 32mm
M4 x 16mm
Round Head M6 x 20mm Button
M4 x 14mm Round Head M4 x 45mm
Screw (104)–8 Screw (105)–6 Screw (108)–2 Screw (77)–4
Screw (101)–8
M8 x 23mm Shoulder M8 x 23mm Button M8 x 43mm Button
Hub Screw (87)–8
Bolt (78)–4
Screw (115)–4 Screw (84)–4
M10 x 80mm Carriage
M8 x 69mm Button
Bolt (80)–1 Bolt (82)–2
M10 x 127mm Button Screw (83)–2
5
