ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver
wrench , and a rubber mallet

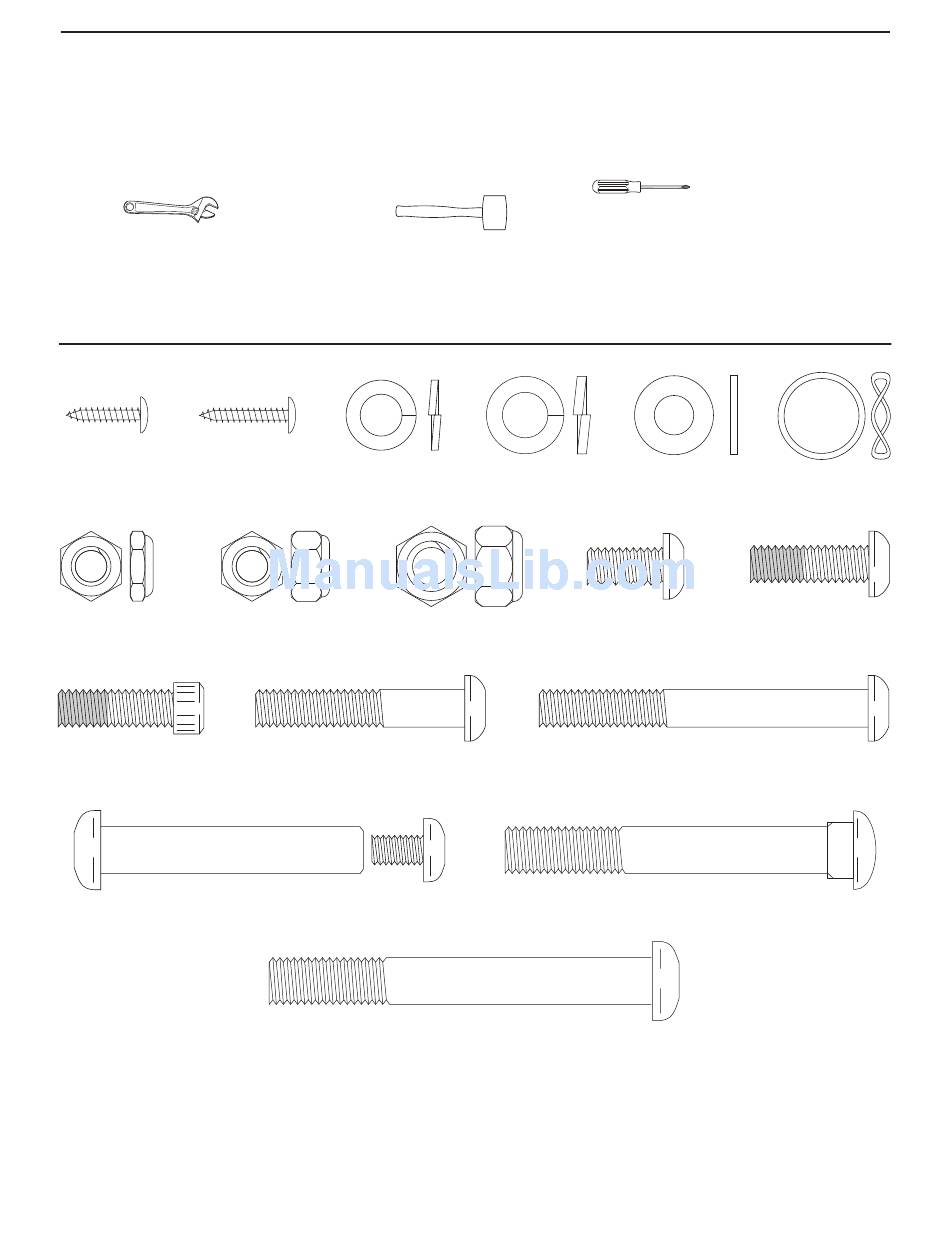

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 17. The number following the
parentheses is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a
part is not in the parts bag, check to see if it has been preassembled.
M4 x 16mm M4 x 22mm
Screw (66)–8 Screw (76)–2
M8 Jamnut
(80)–4 Locknut (46)–6
Cover Screw
(82)–4
M10 x 59mm Bolt Set (27)–2
M8 Split
Washer (83)–2
M8 Nylon
Locknut (29)–2
M8 x 45mm Button
Bolt (50)–4
M10 x 83mm Button Screw (63)–2
.
M10 Split
Washer (94)–2
M10 Nylon M8 x 16mm Button
Screw (84)–4
M10 x 75mm Carriage Bolt (34)–2
5
, an adjustable
M8 Washer
(53)–6
M8 x 25mm Patch
Screw (22)–2
M8 x 70mm Button Bolt (67)–2
Wave Washer
(91)–2
