Omni 3600
Installation Guide
VeriFone Part Number 22060 Revision A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Omni 3600 and is the answer not in the manual?

Questions and answers

Summary of Contents for VeriFone Omni 3600

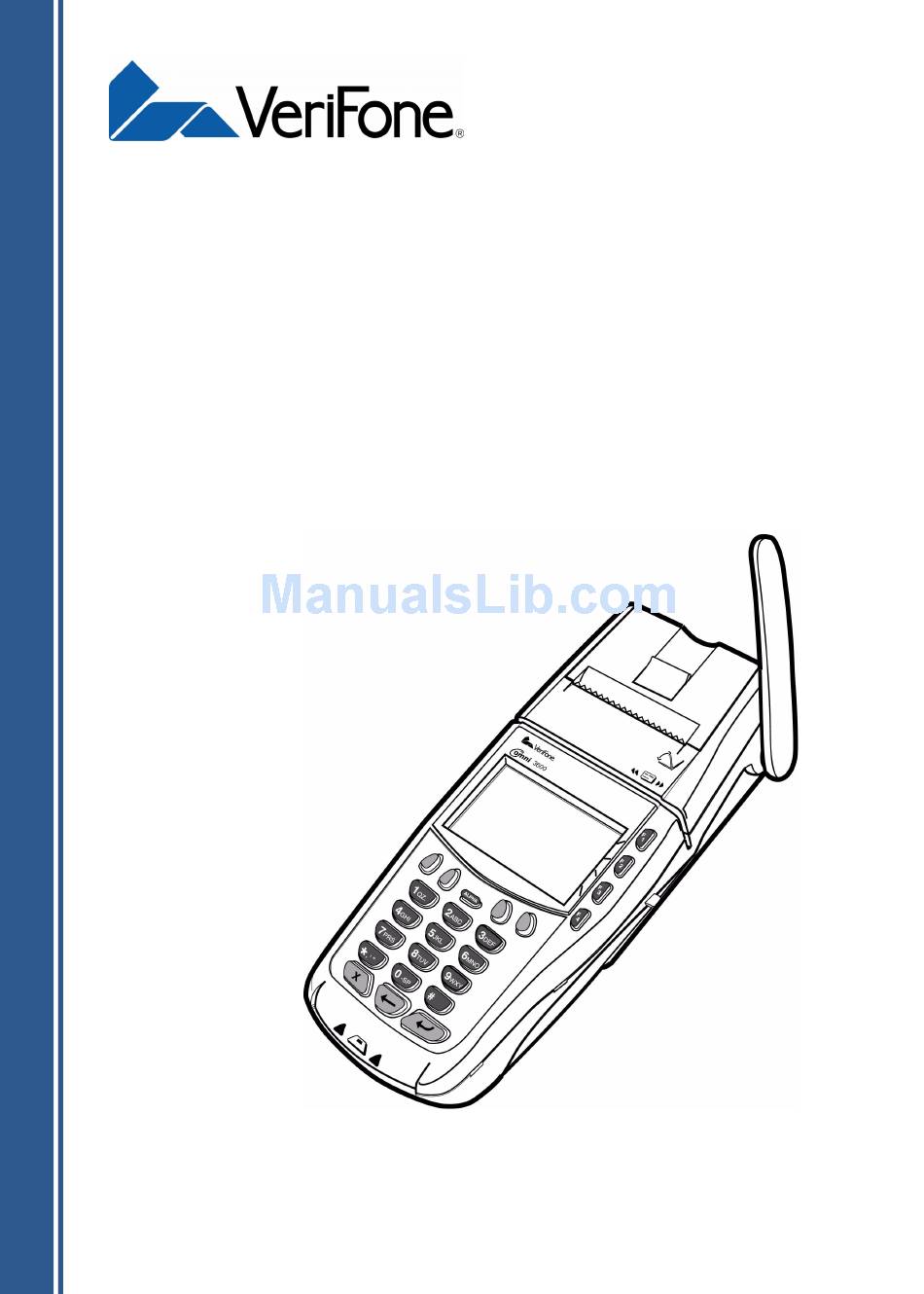

  • Page 1 Omni 3600 Installation Guide VeriFone Part Number 22060 Revision A...
  • Page 2 Lithium Battery Caution The Random Access Memory (RAM) contents in Omni 3600 terminals are protected by a lithium battery. Do not, under any circumstances, attempt to replace this battery. Failure to comply may void the product warranty. Document Title: Omni 3600 Installation Guide VeriFone Part Number 22060, Revision A Copyright ©...
  • Page 3 Omni 3600 Terminal ........
  • Page 4 Environmental ......... 56 Omni 3600 Terminal Dimensions ......57...
  • Page 5 Thermal Printer Paper ........59 VeriFone Cleaning Kit ........59 Documentation .
  • Page 6 Spare Smart Battery Docking ..... .40 Figure 25 Omni 3600 Base Connection Ports ....41 Figure 26 Direct Connection .
  • Page 7: Select A Location

    Environment Convenience sections. Omni 3600 Base A prime location for the Omni 3600 base is a counter or other flat surface that provides easy access to a power outlet and phone jack. Also, follow the rules established in the Environment Convenience sections.
  • Page 8 Do not use the Omni 3600 terminal or Omni 3600 base • where there is moisture or high humidity, chemicals or oils, or excessive heat or dust. Avoid locations near electrical appliances or other devices •...
  • Page 9: Omni 3600 Terminal

    Locate the Omni 3600 base so that you can readily dock the Omni 3600 terminal on the cradle for recharging and downloading. Again, for safety, ensure that the power cable readily reaches the Omni 3600 base unit, so as not to trip or interfere in any way in a busy location.
  • Page 10: Smart Battery

    Omni 3600 Installation Guide Omni 3600 Terminal This section discusses the features of the Omni 3600 terminal, including providing power to the Omni 3600 terminal, • charging the smart battery, • installing paper, • installing the antenna, • installing MSAM cards, and •...
  • Page 11: Installation

    • Roll of thermal printer paper • Battery pack • Antenna (if unattached; wireless models only) Remove all plastic wrap from the Omni 3600 terminal and components. Remove the clear protective film from the display lens. WARNING Do not use a damaged or tampered with Omni 3600...
  • Page 12 Omni 3600 Installation Guide Terminal Features Figure 2 illustrates the physical features of the Omni 3600 terminal. ANTENNA PRINTER DOOR RELEASE INTERNAL THERMAL PRINTER CARD SWIPE FUNCTION DISPLAY KEYS PROGRAMMABLE FUNCTION KEYS ALPHA KEY KEYPAD CANCEL/OFF ENTER/ON KEY BACKSPACE SMART CARD...
  • Page 13 Omni 3600 Installation Guide Notice the following features of the Omni 3600 terminal shown Figure The display • Four types of keys: • • A 12-key, telephone-style keypad • Eight function keys: four function keys, labeled F1 to F4, right of the display; four unlabeled, programmable function (PF) keys above the keypad •...
  • Page 14 VeriFone distributor or service provider. Power Port On the back of the Omni 3600 is one port—the power port—identified by the lightning bolt icon shown at right. Use this port to connect the Omni 3600 to the power...
  • Page 15 WARNING Do not plug the power pack into an outdoor outlet. Smart Battery The Omni 3600 wireless terminal uses an Li-ion smart battery (P/N 22044-01). The internal logic of the smart battery prevents both overcharging and undercharging (a fault condition in which the battery level goes well below the minimum acceptable charge and the battery becomes unusable).
  • Page 16: Spare Smart Battery Pack

    It make take several attempts to reset the safety circuit when charging a smart battery that has reached a critically low charge state. Refer to Spare Smart Battery Pack for smart battery instructions for the Omni 3600 terminal on the Omni 3600 base.
  • Page 17: Smart Battery

    Smart Battery Charging You must charge smart battery prior to initial use. After unpacking your Omni 3600 terminal, install the battery and connect the power pack to the unit. It is recommended that the battery receive a periodic full discharge.
