3.3.1 Install Wind Vane

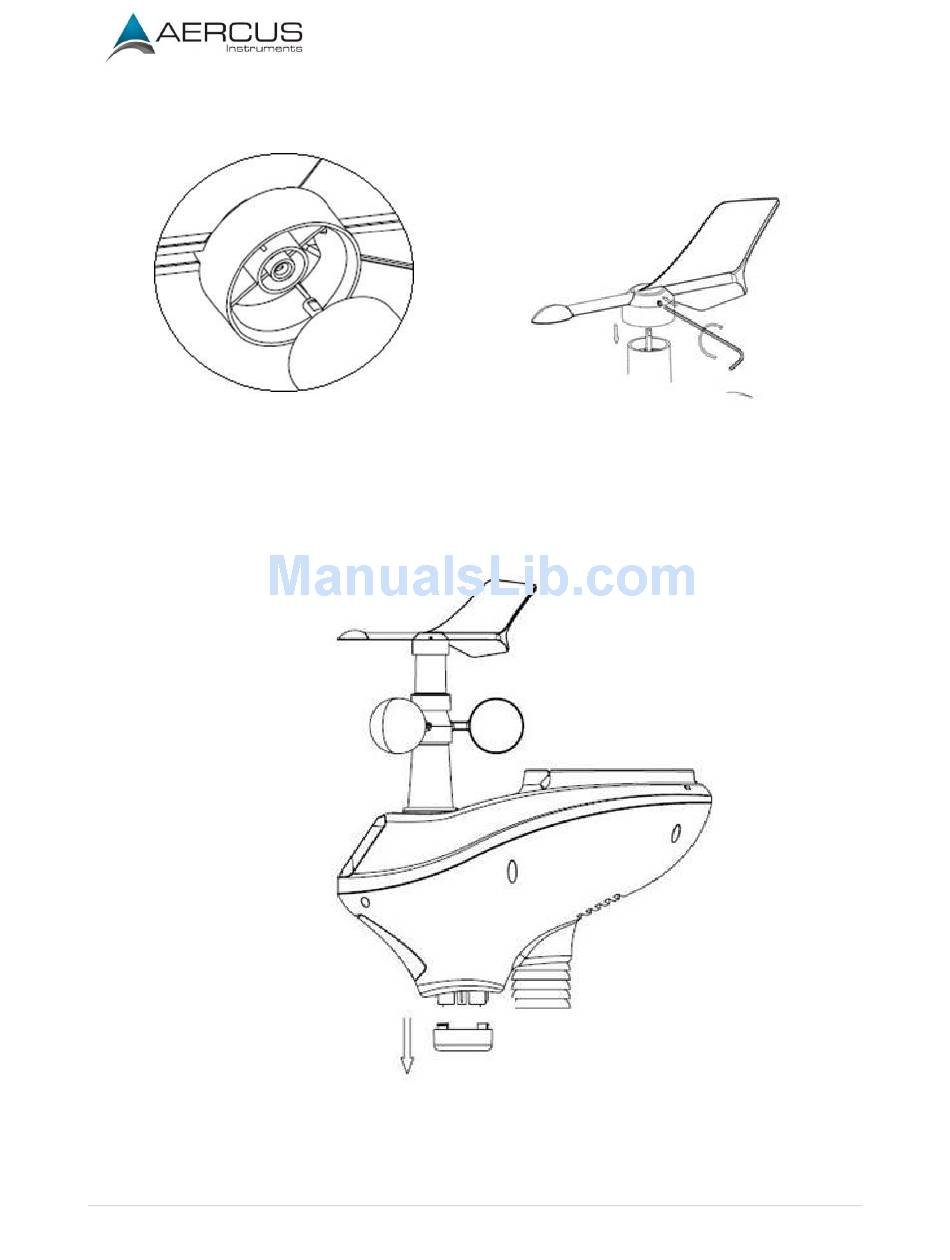

Reference Figure 2.(a) Locate and align the flat key on the wind vane shaft to the flat key on the wind
vane and push the vane on to the shaft. (b) Tighten the set screw with the Allen key (included).
(a)
3.3.2 Install Mounting Pole
Reference Figure 3. Remove the mounting pole collar by rotating anti-clockwise.
Aercus Instruments™ - WeatherSleuth®
Figure 2
Figure 3
(b)
