3.6.3 WeatherSleuth® Connections
Connect the WeatherSleuth® receiver power jack to AC power with the power adapter (included), as
shown in Figure 15, reference 10.
Connect the WeatherSleuth® receiver to your router using the Ethernet cable (included), as shown in
Figure 15, reference 8.
Place the sensor array and indoor thermo-hygrometer transmitter about 1.5 to 3m from the
WeatherSleuth® receiver and wait several minutes for the remote sensors to synchronise with the
receiver. Once synchronised, the Indoor blue LED (Figure 14, reference 2) and Outdoor blue LED
(Figure 14, reference 3) will be illuminated.
Ref LED
1 RF
2 Indoor
3 Outdoor
4 Server
5 ACT
6 Link
7 Power
Aercus Instruments™ - WeatherSleuth®

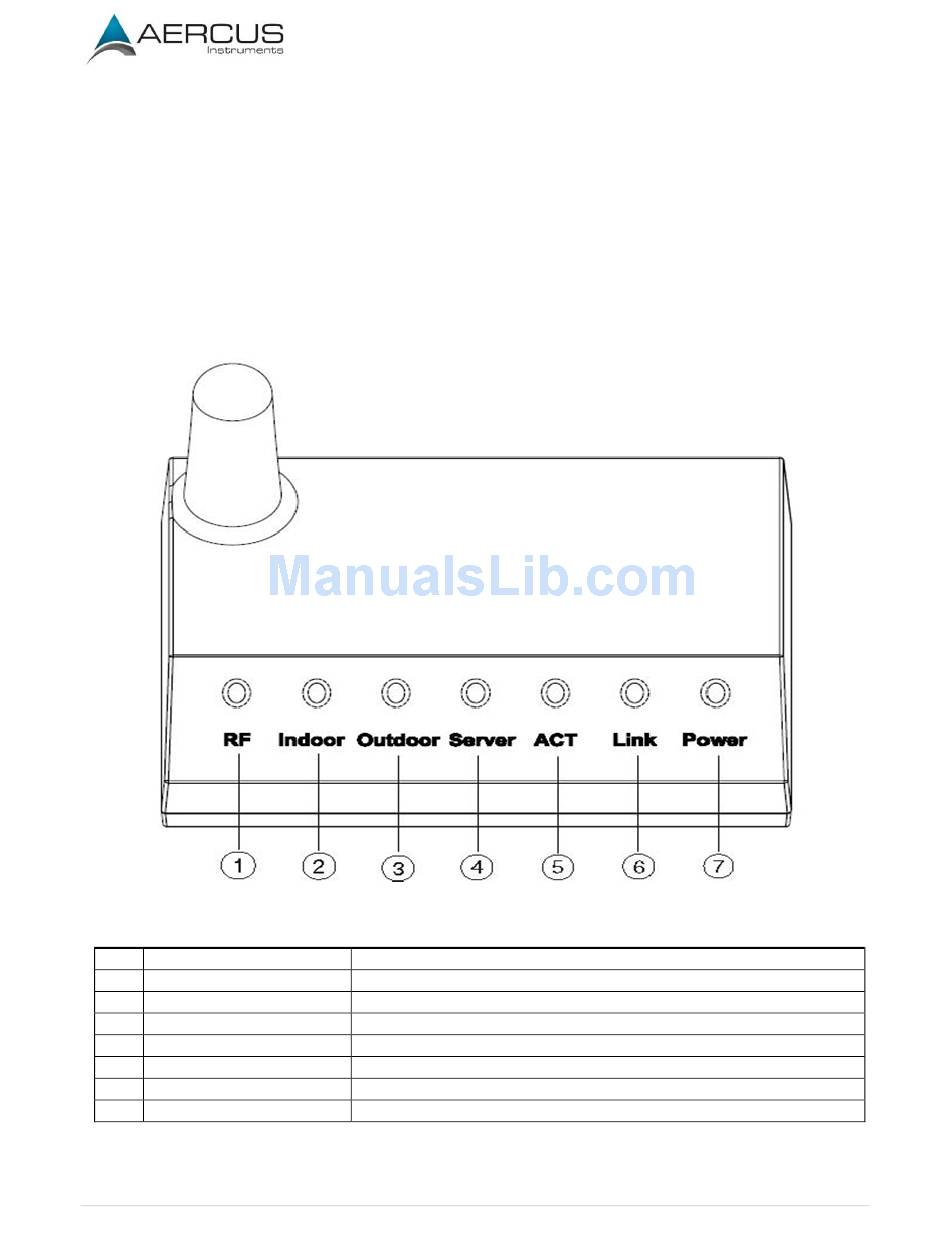

Figure 14
On when radio frequency receiver is operating properly
On when indoor sensor received
On when outdoor sensor array received
On when connected to Wunderground.com internet hosting service
Flashes when there is internet activity
Connected to the Internet (or router)
AC Power connected
Description
