Aercus Instruments WeatherSleuth Manual page 34

3. Connect to the WeatherSleuth® as per 3.6.4. Select the Update button to begin the firmware upgrade
(see Figure 30a). As shown in Figure 30a, the IP address of the WeatherSleuth® is 192.168.0.7.
Make a note of your IP address (your results will vary).
4. Reference Figure 30b. Select the Choose File button, and browse to the location of the file you
downloaded in Step 1.
5. Select the Update button. Reference Figure 30c. A progress bar will provide you with the upgrade
status. Reference Figure 30d. There will also be reference information shown in the dialog box.
DO NOT OPERATE THE MOUSE OR KEYBOARD WHEN UPGRADING to prevent
interruption of the upgrade.
Aercus Instruments™ - WeatherSleuth®

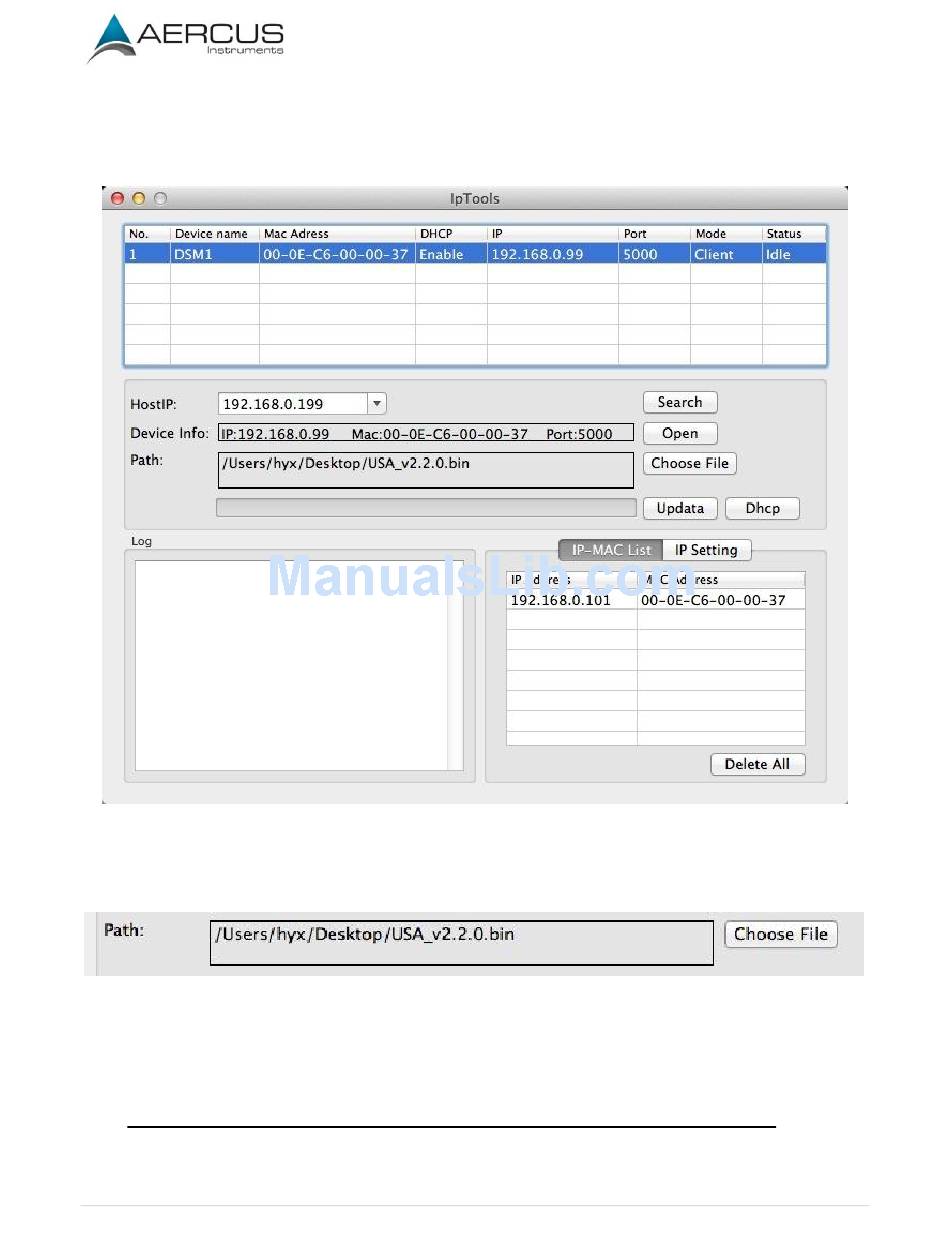

Figure 30a
Figure 30b
34 | P a g e
