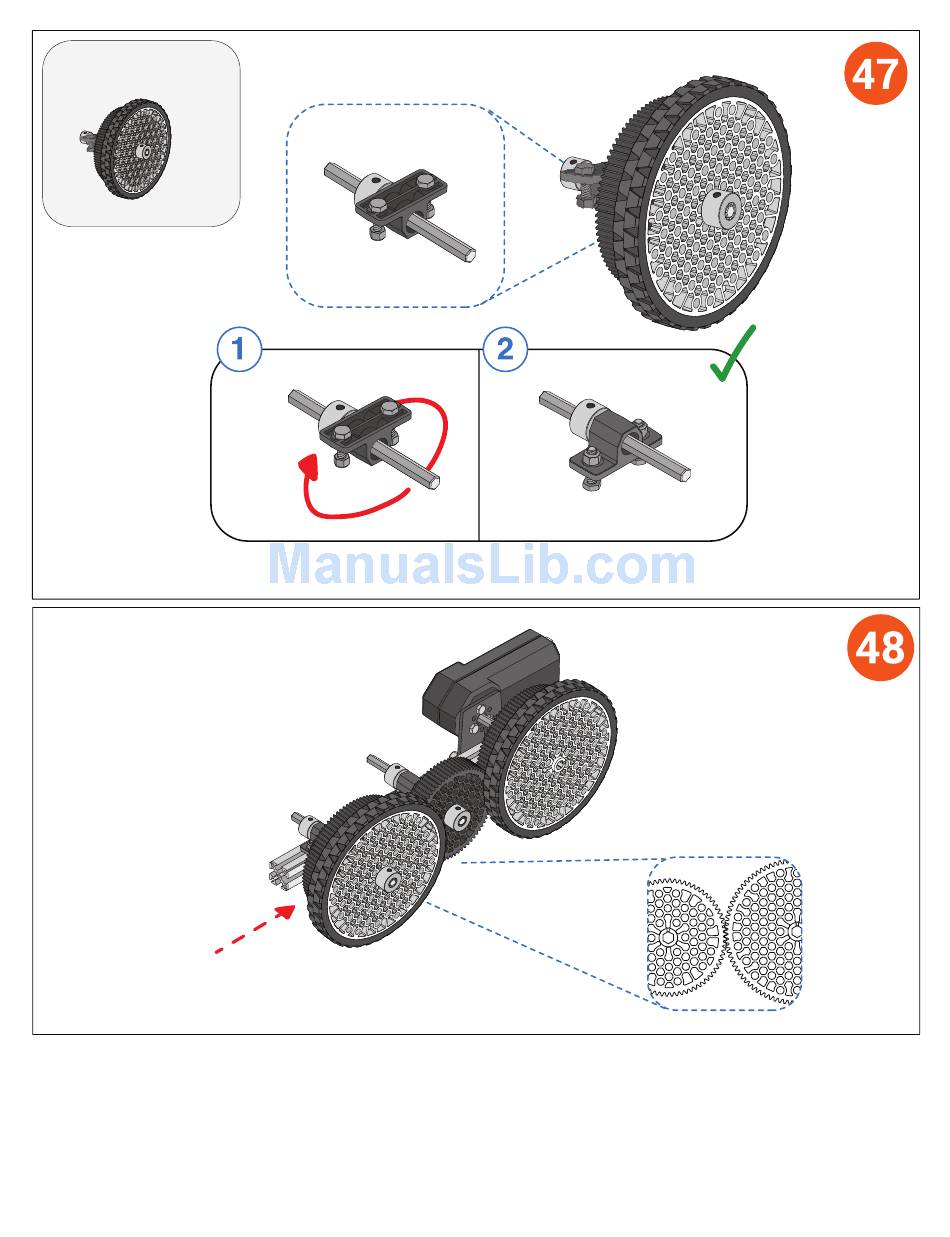

Front Axel
x 1
Flip/spin the pillow bracket, so that
the screw heads are now facing down
Slide the Front Axel on,
to the point that the two gears mesh
Page 17
Mini Bot Guide
Copyright 2017 REV Robotics
