REV Robotics MINI BOT Assembly Manual page 15

x 4

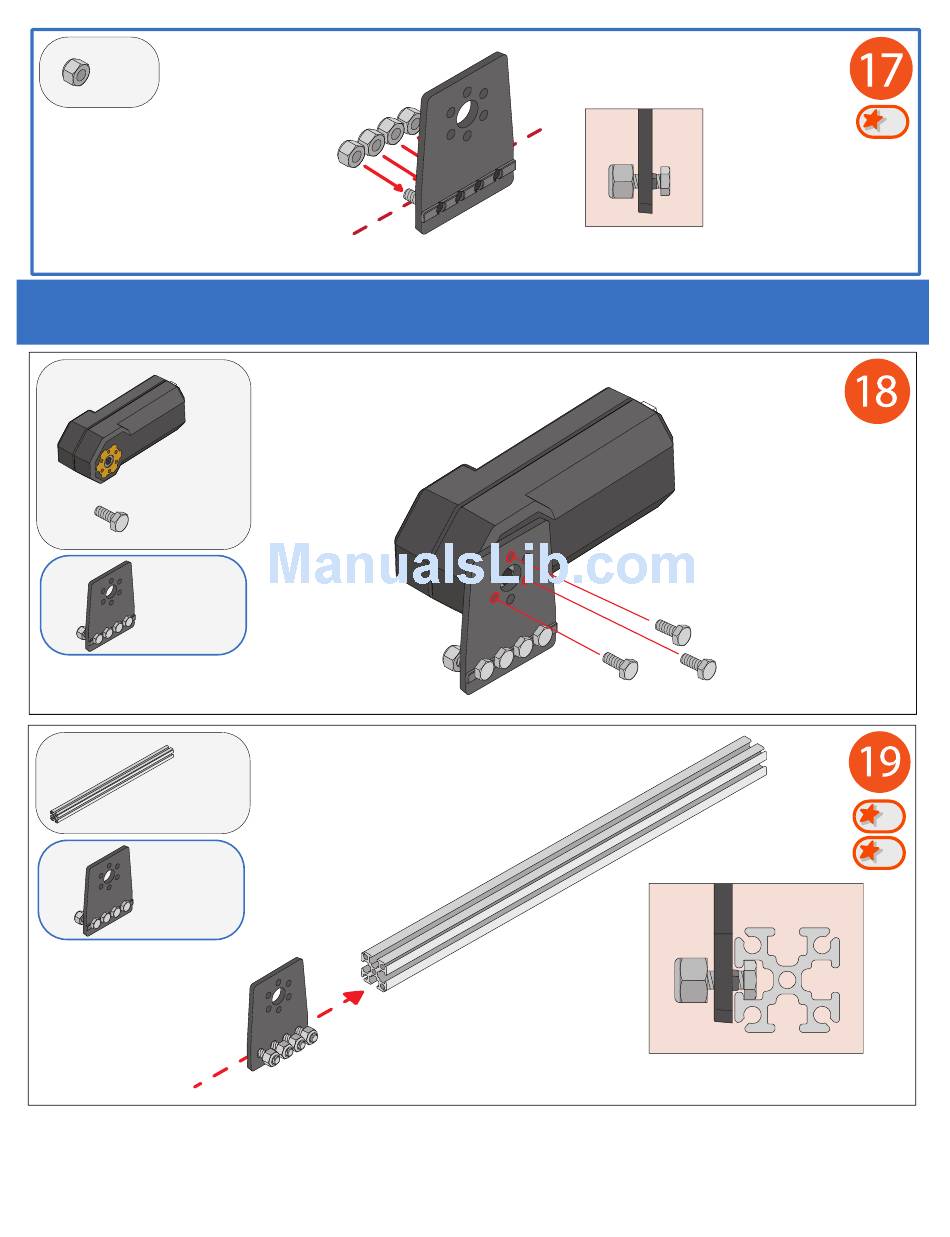

Finger start the screws
After completing steps 16 and 17, set the completed part aside
and repeat the steps again to assemble a second part, identical to the first
x 3
x 1
x 1
x 1
Load
Mini Bot Guide
x 1
Copyright 2017 REV Robotics
3
2
4
Page 6
