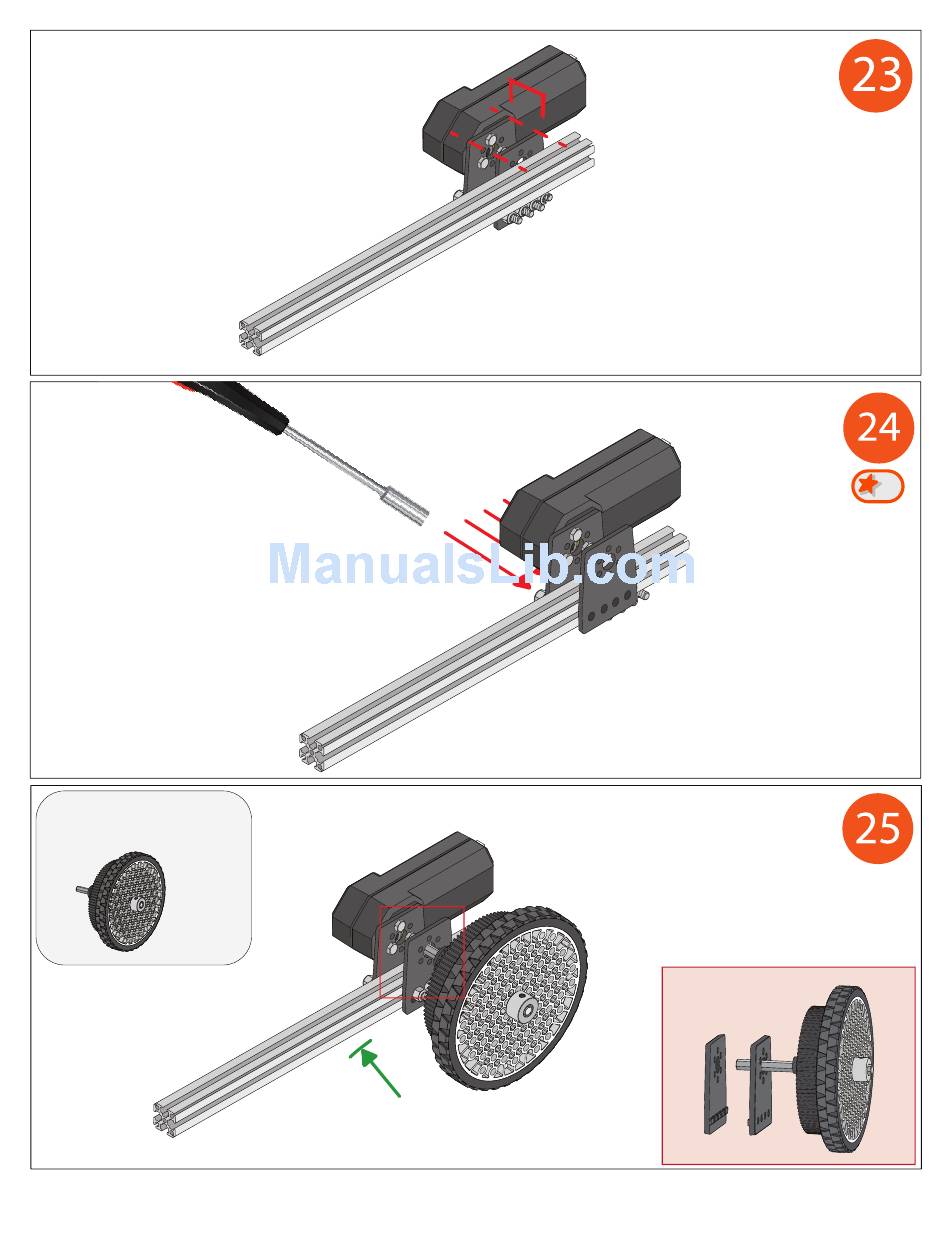

Align the Brackets
Tighten screws
1
Tighten the screws only until "firm." Do not over tighten.
(previously assembled
part from Step 15)
Insert shaft through the first motion bracket,
then stop and hold
x 1
Mini Bot Guide
Copyright 2017 REV Robotics
Page 8
