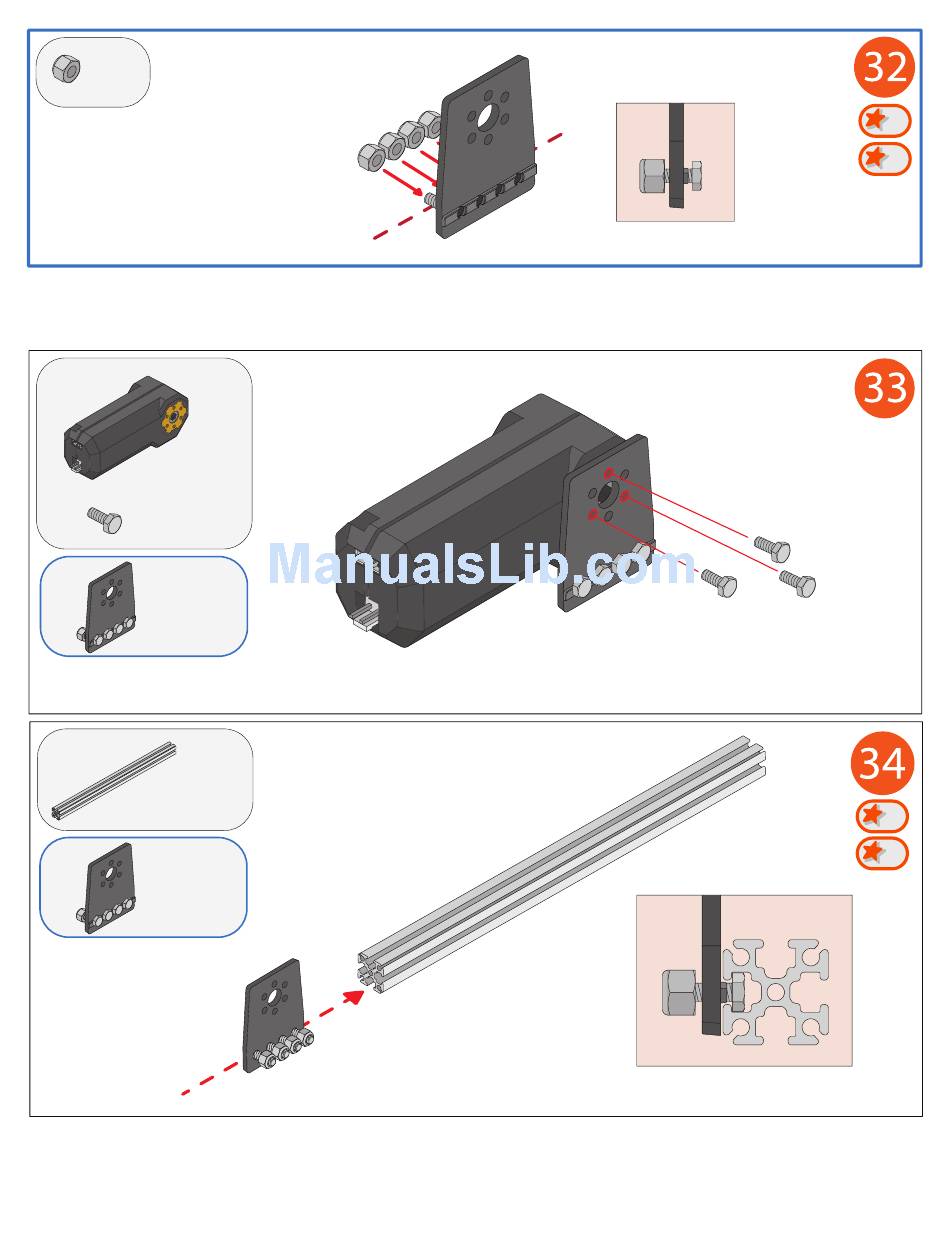

x 4
Finger start the screws
After completing steps 31 and 32, set the completed part aside
and repeat the steps again to assemble a second part, identical to the first
x 1
x 3
x 1
x 1
x 1
Load
Mini Bot Guide
Copyright 2017 REV Robotics
2
3
3
4
Page 11
