RIGHT SIDE ASSEMBLY
Middle Axel
x 1

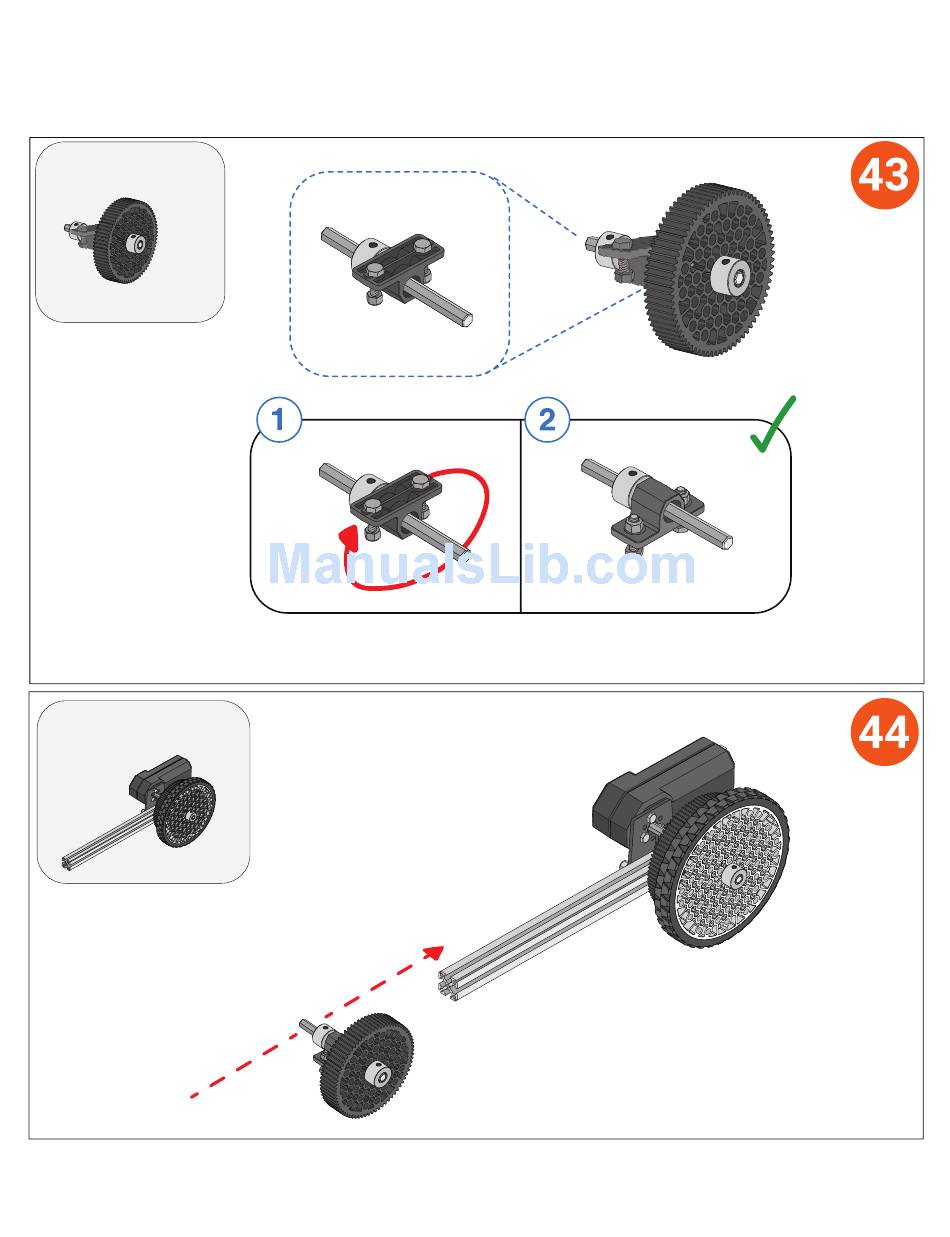

Flip/spin the pillow bracket, so that
the screw heads are now facing down
Right Side Axel Motor
Use the screw heads on the pillow bracket,
to load the axle onto the extrusion
Mini Bot Guide
Copyright 2017 REV Robotics
Page 15
