- Page 1 Relays/Valves Lock-Up Valve IL201/211/220 Series EMC.IL201-211-220-01A-UK...

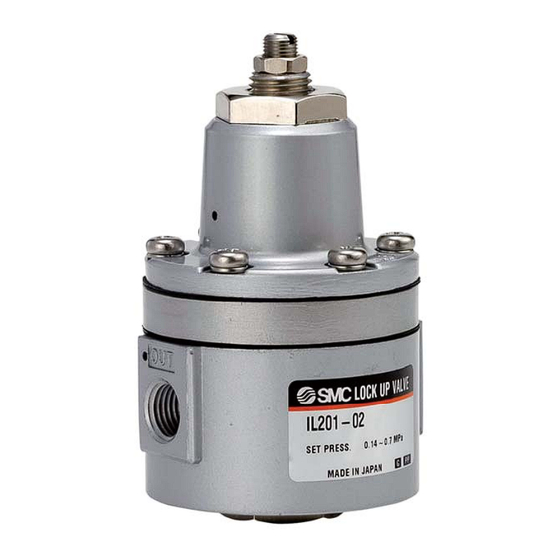

- Page 2 Lock-Up Valve IL 201/211/220 Series ¡ The lock-up valve is used if any air source or air supply piping line failure occurs in the air operated process control line. Single acting, Double acting: Retains pressure at the operating area as emergency operation until the air source is recovered to its normal state.
- Page 3 IL201/211/220 Series Lock-Up Valve Construction IL201 IL211 OUT1 OUT2 IL220 Component Parts Replacement Parts Description Material Note Model Order no. Contents IL201 Set of left nos. u, i, o, !2 , !3 , !6 , !7 , !8 , !9 Body Aluminium alloy Silver baking fi...
- Page 4 IL201/211/220 Series Dimensions IL201 Ø 14.5 Panel fitting dimension Panel 2 x Ø 6.6 Ø 2 3 x Rc 1/4 Ø 60 IL211 Ø 14.5 Panel fitting dimension Panel 2 x Ø 6.6 OUT1 Ø 2 OUT2 5 x Rc 1/4 Ø...
-
Page 6: Safety Instructions
Therefore, SMC products cannot be used for business or certification ordained by the If anything is unclear, contact your nearest sales branch. metrology (measurement) laws of each country. Safety Instructions Be sure to read “Handling Precautions for SMC Products” (M-E03-3) before using. SMC Corporation (Europe) Austria +43 (0)2262622800 www.smc.at office@smc.at Lithuania +370 5 2308118 www.smclt.lt...
