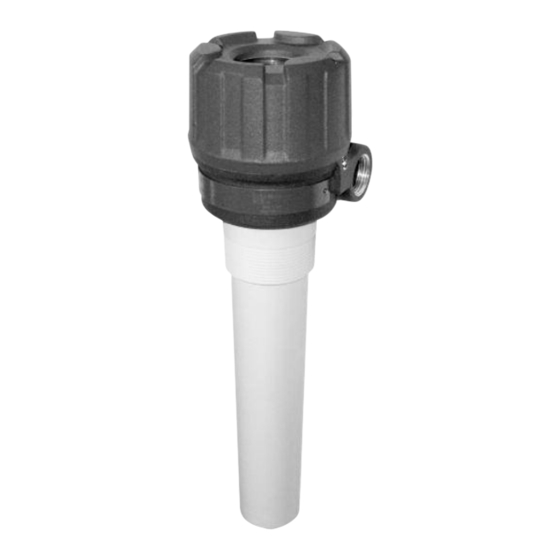

Pulse burst radar level transmitter

Advertisement

Model R82
R82 software
v1.0a
Installation and Operating Manual
Pulse Burst Radar
Level Transmitter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R82 and is the answer not in the manual?

Questions and answers

Summary of Contents for Magnetrol R82

  • Page 1 Model R82 R82 software v1.0a Installation and Operating Manual Pulse Burst Radar Level Transmitter...
  • Page 2 Read this Manual Before Installing radio or television reception, which can be determined by turning This manual provides information on the R82 Radar transmitter. It is the equipment off and on, the use is encouraged to try to correct the...
  • Page 3 R82 Pulse Burst Radar Level Transmitter Table of Contents 1.0 QuickStart Installation 2.6.4 Menu Traversal ..........18 1.1 Getting Started............4 2.6.4.1 Navigating Menu........18 1.1.1 Equipment and Tools ........4 2.6.4.2 Entering Character Data ......18 1.1.2 Configuration Information......5 2.6.4.3 Entering numeric data using Digit Entry 19 1.2 QuickStart Mounting..........6...
  • Page 4: Getting Started

    QuickStart Installation The QuickStart Installation procedures provide the key steps for mounting, wiring, and configuring the R82 radar level transmitter. These procedures are intended for experi- enced installers of electronic level measurement instruments. See Complete Installation, Section 2.0, for detailed installa- tion instructions.
  • Page 5: Configuration Information

    1.1.2 Configuration Information Some key information is needed to configure the R82 radar transmitter. Complete the following operating parameters table before beginning configuration. NOTE: The transmitter will already be configured if this information was provided with the order. Display Question...
  • Page 6: Quickstart Mounting

    QuickStart Wiring Beam Orientation with #9 Launcher Position NOTE: Make sure the electrical wiring to the R82 radar transmitter is complete and in compliance with all regulations and codes. 1. Remove the cover of the wiring compartment. 2. Attach a conduit fitting and mount the conduit plug in the spare opening.
  • Page 7: Quickstart Configuration

    ENTER arrow enters a branch of the menu or accepts entered value If a PASSWORD is requested, enter it now. The Default=0 (no password necessary). The last character in the first line of the display changes to an exclamation point (!). 58-610 Model R82 Radar Transmitter...
  • Page 8 Enter the Level Offset; the distance Enter the maximum level (100%) for Level Offset Set 20mA xxx.x at the bottom of the vessel where xx.x the 20 mA point. measurement may be unreliable due to heating coils, irregular bottom, etc. 58-610 Model R82 Radar Transmitter...
  • Page 9 • Record the model and serial numbers for future reference when ordering parts. Electrostatic Discharge (ESD) Handling Procedure Magnetrol’s electronic instruments are manufactured to the highest quality standards. These instruments use electronic components that may be damaged by static electricity pres- ent in most work environments.
  • Page 10: Before You Begin

    Before You Begin 2.3.1 Site Preparation Each R82 Radar transmitter is built to match the specific physical specifications of the required installation. Make sure the antenna connection is correct for the threaded or flanged mounting on the vessel or tank where the transmit- ter will be placed.
  • Page 11: Problematic Applications Gwr Alternative

    • Tanks heavily cluttered with false targets (mixers, pumps, ladders, pipes, etc.) • During times of very low liquid levels of low dielectric media, the metal tank bottom may be detected deteriorating per- formance. 58-610 Model R82 Radar Transmitter...
  • Page 12: Mounting

    > 10" 2.4 Mounting (25 cm) Radius The R82 Radar transmitter can be mounted to a vessel using a variety of process connections. Generally, either a threaded or flanged connection is used. 2.4.1 Installing the Antenna Before installing, make sure: •...
  • Page 13: Obstructions

    See Figure The narrow beam width of the 26 GHz, R82 does allow mounting so that the antenna can be recessed inside the nozzle. Optimally, the recessed dimension should never exceed 2× the nozzle diameter.
  • Page 14: Standpipes And Stillwells

    2.4.1.5 Standpipes and Stillwells The R82 can be mounted in a standpipe or stillwell but certain considerations should be given: • Metal stillwells only: 2" (Sched 40 max.) to 4" (50–100 mm). • Diameter must be consistent throughout length; no reducers.
  • Page 15: Initial Installation

    Figure X • At the poorest Echo Strength slowly rotate the launcher xxxx 1–2 notches. Allow the unit to stabilize for approximately one minute. Repeat this process until the Echo Strength is optimized. 58-610 Model R82 Radar Transmitter...
  • Page 16: Wiring

    Wiring Caution The R82 Radar transmitter operates at voltages of 16–36 VDC (GP) and 16-28.6 VDC (IS). Higher voltage will dam- age the transmitter. Wiring between the power supply and the Radar transmitter should be made using 18–22 AWG shielded twisted pair instrument cable.
  • Page 17: Configuring The Transmitter

    250 Ω line load resistance is required. See the HART communicator manual for more information. 2.6.3 Transmitter Display and Keypad The R82 transmitter has a local user interface consisting of Launcher a 2-line by 16-character liquid-crystal display (LCD) and...
  • Page 18: Menu Traversal

    Back is exited without changing the original tag characters. Moves the cursor forward to the right. If the Enter cursor is at the rightmost position, then the new tag is saved. 58-610 Model R82 Radar Transmitter...
  • Page 19: Entering Numeric Data Using Digit Entry

    10 times. Returns to the previous menu without changing Back the original value, which is immediately redis- played. Accepts the displayed value and returns to the Enter previous menu. 58-610 Model R82 Radar Transmitter...
  • Page 20 NOTE: If the password is not known, the menu item New Password (Section 2.6.6.1, item #39) displays an encrypted value repre- senting the present password. Call the factory with this encrypted value to determine the actual password. 58-610 Model R82 Radar Transmitter...
  • Page 21: Menu: Step-By-Step Procedure

    Use of the included PACTware ™ PC program is highly recommended and invaluable for troubleshooting and advanced calibration. A HART RS232 or USB modem (purchased separately) is required. See Magnetrol PACTware ™ bulletin 59-101. Sensor Reference Point Sensor Offset (+)
  • Page 22: Radar Transmitter User Menu

    Select the metallic tank top structure Flat, Horizontal Cylinder, Enter the shape/type of tank Tank Top Dome, Irregular, or Other (non-metallic). (select) Tank Height is distance from the bottom to the top of the tank. Tank Height Enter the Tank Height. xxx.xx units 58-610 Model R82 Radar Transmitter...
  • Page 23 SENSOR OFFSET, TANK HEIGHT, BLOCKING DISTANCE, DIELECTRIC, TURBULENCE, FOAM - The NO FALSE TARGET REJECTION message will be displayed if this algorithm is DISABLED. continued on next page 58-610 Model R82 Radar Transmitter...
  • Page 24 Attach a mA meter to the output. If the output does not equal 4.00 mA, adjust the value on the display until meter reads Trim 4 mA Fine tune the 4mA point. 4.00 mA. This is not for setting the 4mA point (refer to #24). 58-610 Model R82 Radar Transmitter...
  • Page 25 English, Espanol, Deutsch and Francais. Local Tag can be a maximum of 12 characters. Input Local Tag Enter Local Tag. (enter) Shows Magnetrol Serial Number for reference. Magnetrol S/N Transmitter Display Base Model Number with Communication type (HT = HART) Model R82 version...
  • Page 26: Radar Transmitter Factory Menu

    Target Distance None, do not adjust Diagnostic factory setting Conversion Factor None, do not adjust Diagnostic factory setting Scale Offset None, do not adjust Diagnostic factory setting System Gain None, do not adjust Diagnostic factory setting 58-610 Model R82 Radar Transmitter...
  • Page 27: Hart Menu

    24 NSPValue 5 Poll Address 25 Factory Calibration 1 Enter Password 6 Magnetrol S/N 2 Window 7 Device ID 3 Target Distance 8 Final asmbly num 4 Conversion Factor 5 Scale Offset 6 System Gain 58-610 Model R82 Radar Transmitter...
  • Page 28 2 Warning 4 3 LowVDC@20mA 4 Warning 3 5 NoEchoRej 6 EchoRejCrpt 7 EchoRejInvl 8 EchoRejDisable 9 Warning 2 10 ElecTemp Hi 11 Elec Temp Low 12 Rate Of Change 13 Warning 1 14 System Code 58-610 Model R82 Radar Transmitter...
  • Page 29: Theory Of Operation

    3.1 Description The Model R82 is a two-wire, 24 VDC level transmitter based on the concept of pulse burst radar operating at 26GHz. The electronics are mounted in a metal or plastic housing with an innovative, internal launcher orientation mechanism.
  • Page 30: Equivalent Time Sampling

    The exact level measurement is extracted from false echo reflections and other background noise via the use of sophis- ticated signal processing. The new R82 circuitry is extreme- ly energy efficient so no duty cycling is necessary to accom- plish effective measurement. For this reason, the R82 can track high rates of change that were heretofore impossible with existing loop-powered radar transmitters.
  • Page 31: Troubleshooting

    Troubleshooting The Model R82 transmitter is designed and engineered for trouble-free operation over a wide range of operating conditions. Common transmitter problems are discussed in terms of their symptoms and recommended corrective actions. WARNING! Explosion hazard. Do not remove covers unless power has been switched off or the area is known to be non- hazardous.
  • Page 32: Error Messages

    3.3.2 Error Messages The Model R82 Radar transmitter utilizes a 3-section hierarchy for reporting diagnostic conditions: FAULTS, WARNINGS, and INFORMATION. This information will be shown in the Home screen when the message is active. A chronological listing of messages can be viewed in the HISTORY screen.
  • Page 33 Reduce exposure of transmitter to low tempera- Elec Temp Lo2 Electronics temperature presently below -40°C ture to avoid damage Rate of level change has exceeded user setting RateOfChange Increase Rate of Change setting for ROC. 58-610 Model R82 Radar Transmitter...
  • Page 34 Echo processing module detected actual or Transmitter detecting echoes other than valid Dist Jump impending discontinuity in distance measurement liquid level and may jump to erroneous level Target distance uncertain due to abnormal shape Target?? Consult Factory of location 58-610 Model R82 Radar Transmitter...
  • Page 35: Agency Approvals

    120 mA 0.82 w Canada 26 Ghz 5.5 nF Europe RTTE 370 µH Model R82 1 as 1oo1 Instrument Type 73.7% 9.72E-04 PFDavg FITS Annual Fail Dangerous Undetected 1.94E-03 Fail Dangerous Detected 2.70E-03 Safe 2.75E-03 58-610 Model R82 Radar Transmitter...
  • Page 36 3.4.1 Agency (FM/CSA) Drawing and Entity Parameters << Drawing pending approval >> 58-610 Model R82 Radar Transmitter...
  • Page 37: Parts

    Housing Cover, Aluminum GP/IS 036-4410-010  Housing Cover, Lexan GP/IS 003-1226-003 3.5.2 Recommended Spare Parts Description Part Number Electronic Module – 26 GHz Aluminum Housing 89-9124-001 Lexan Housing 89-9124-002 Ž    Œ Œ 58-610 Model R82 Radar Transmitter...
  • Page 38: Specifications

    Œ RTTE: European approval, FCC & IC: North American approval 1200 36 V 1000 Ω 1000 General Purpose & Ω 28.6 V 630 Ω Explosion Proof Intrinsically Safe @ 20 mA (350 @ 22 mA) 58-610 Model R82 Radar Transmitter...
  • Page 39: Performance

    Response Time < 1 second Warm-up Time 30 seconds Ambient Temp. Effect 0.05% per 10° C Process Dielectric Effect < 0.3 inch within selected range Maximum Rate of Change 180 inches (450 cm)/minute Minimum Dielectric: 58-610 Model R82 Radar Transmitter...
  • Page 40: Functional

    3.6.4 Antenna Pressure / Temperature Ratings Both the Polypropylene and Tefzel antennas are rated from full vacuum to 200psig (-14.5 to 13.8 bar) across the entire temperature range of -40 to +200F (-40 to +93C). 58-610 Model R82 Radar Transmitter...
  • Page 41: Physical

    ® Housing Top View Top View 3.31 2.27 4.06 (84) (58) 3.25 (103) 5.82 (83) (148) 5.04 (128) 2.98 2.98 (76) (76) 8.98 8.98 (228) (228) Aluminum Housing Lexan ® Housing Side View Side View 58-610 Model R82 Radar Transmitter...
  • Page 42: Model Numbers

    Model Numbers 3.7.1 Model R82 Radar Transmitter BASIC MODEL NUMBER RADAR Level Transmitter OPERATING FREQUENCY 26 GHz TRANSMITTER MODEL Economical POWER/SIGNAL 24 VDC, Two-wire; 4-20 mA with HART ® AGENCY CLASSIFICATION Integral, General Purpose/Non-incendive (cFMus) Integral, Intrinsically Safe (cFMus) Integral, General Purpose (ATEX)
  • Page 43: Glossary

    2.) density of the Sensor Reference Point to the material in a vessel; compliment foam (bubble size), 3.) amount of foam above the liquid and, to of Level. a lesser extent, 4.) wall thickness of the bubbles. 58-610 Model R82 Radar Transmitter...
  • Page 44 LevlOfst Level Offset The distance above the tank bottom where radar level measurement is impossible due to heating coils, baf- QuickStart The essential information needed for the R82 radar fles, angled or curved tank bottoms, etc. The mA output will transmitter and antenna to be installed, wired, and calibrated.
  • Page 45 Tank Top The 100% point in a vessel. Also considered for the type of tank top; e.g. flat, dome, etc., which affects the develop- ment of multiple echoes during high level conditions. Multiple echoes can appear as an invalid Level signal. 58-610 Model R82 Radar Transmitter...
  • Page 46 Lvl ROC per Min HART Poll Address Max ROC per Min New Password Language Max Distance Jump Boundary State Serial Number Loop Fdbk AtoD Model R82 VerX.XXX Empty State Delay NSP Value HART Device ID 58-610 Model R82 Radar Transmitter...
  • Page 47 Notes 58-610 Model R82 Radar Transmitter...
  • Page 48 No claims for misapplication, labor, direct or consequen- tial damage will be allowed. 5300 Belmont Road • Downers Grove, Illinois 60515-4499 • 630-969-4000 • Fax 630-969-9489 • www.magnetrol.com 145 Jardin Drive, Units 1 & 2 • Concord, Ontario Canada L4K 1X7 • 905-738-9600 • Fax 905-738-1306 Heikensstraat 6 •...
