Magnetrol Pulsar Foundation fieldbus R96 Operating Manual

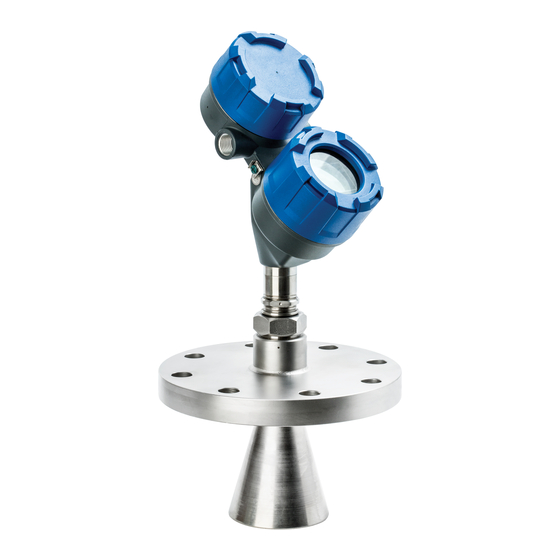

High performance pulse burst radar level transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation & Maintenance Instructions
MAGNETROL PULSAR
MODEL R96 RADAR LEVEL TRANSMITTER
Registered Address
ABLE Instruments & Controls Ltd
Cutbush Park, Danehill, Lower Earley,
Reading, Berkshire, RG6 4UT. UK.
Reading
Tel: +44 (0)118 9311188 | Email: info@able.co.uk
Aberdeen
Tel: +44 (0)1224 725999 | Email: ab@able.co.uk
Web
able.co.uk
E-commerce
247able.com
Registered in England No. 01851002. VAT No. GB 417 2481 61

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulsar Foundation fieldbus R96 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Magnetrol Pulsar Foundation fieldbus R96

Summary of Contents for Magnetrol Pulsar Foundation fieldbus R96

  • Page 1 Installation & Maintenance Instructions MAGNETROL PULSAR MODEL R96 RADAR LEVEL TRANSMITTER Registered Address Reading Tel: +44 (0)118 9311188 | Email: info@able.co.uk able.co.uk ABLE Instruments & Controls Ltd Cutbush Park, Danehill, Lower Earley, Aberdeen E-commerce Tel: +44 (0)1224 725999 | Email: ab@able.co.uk 247able.com...
  • Page 2 Pulsar Model R96 ® fieldbus ™ oundation operating Manual Software Version 1.x High Performance Pulse Burst Radar Level Transmitter 2014/68/EU...
  • Page 3 Magnetrol will repair or replace the control at no cost to Safety Messages the purchaser (or owner) other than transportation.

  • Page 4: Table Of Contents

    ® Pulsar Model R96 Pulse Burst Radar Transmitter with F fieldbus Output OUNDATION ™ Table of Contents 1.0 F fieldbus ™ 4.2.1 Navigating the Menu ........31 OUNDATION 1.1 Overview..............4 4.2.2 Data Selection ..........31 1.2 Device Description (DD)..........5 4.2.3 Entering Numeric Data Using 1.2.1 F fieldbus DD Revision Table ..5...

  • Page 5: Foundation Fieldbus

    fieldbus ™ OUND TION Overview fieldbus is a digital communications system ™ OUNDATION that serially interconnects devices in the field. A Fieldbus system is similar to a Distributed Control System (DCS) with two exceptions: • Although a F fieldbus system can use the ™...

  • Page 6: Device Description (Dd)

    Device Description (DD) An important requirement of Fieldbus devices is the concept of interoperability, defined as “the ability to operate multiple devices in the same system, regardless of manufac- turer, without loss of functionality.” Device Description (DD) technology is used to achieve this interoperability.

  • Page 7: Intrinsic Safety

    Intrinsic Safety The H1 physical layer supports Intrinsic Safety (IS) applica- tions with bus-powered devices. To accomplish this, an Intrinsically Safe barrier or galvanic isolator is placed between the power supply in the safe area and the device in the hazardous area. H1 also supports the Fieldbus Intrinsically Safe Concept (FISCO) model which allows more field devices in a net- work.

  • Page 8: Standard Function Blocks

    Standard Function Blocks Overview The function of a F fieldbus device is deter- ™ OUNDATION mined by the arrangement of a system of blocks defined by the Fieldbus foundation. The types of blocks used in a typi- cal User Application are described as either Standard or Advanced.

  • Page 9: Universal Fieldbus Block Parameters

    2.1.1 universal fieldbus Block Parameters The following are general descriptions of the parameters common to all function blocks. Additional information for a given parameter may be described later in a section that describes the specific block. ST_REV: a read only parameter that gives the revision level of the static data associated with the block.

  • Page 10: Resource Block (Rb)

    Under normal operating conditions, it should be “On-Line.” DD_RESOURCE: A string identifying the tag of the resource that contains the Device Description for this device. MANUFAC_ID: Contains Magnetrol International’s fieldbus ™ manufacturer’s ID number, which is OUNDATION 0x000156.
  • Page 11 FEATURES: A list of the features available in the transmit- ter, such as Reports and Soft Write Lock. FEATURES_SEL: Allows the user to turn Features on or off. CYCLE_TYPE: Identifies the block execution methods that are available. CYCLE_SEL: Allows the user to select the block execution method.

  • Page 12: Additional Resource Block Parameters

    WRITE_LOCK: When set to LOCKED, will prevent any external change to the static or non-volatile data base in the Function Block Application of the transmitter. Block con- nections and calculation results will proceed normally, but the configuration will be locked. UPDATE_EVT (Update Event): Is an alert generated by a write to the static data in the block.
  • Page 13 FD_M INT_ CTIVE: For error conditions that have been selected for the MAINT alarm category, this parameter reflects those that have been detected as active. FD_CHECK_ CTIVE: For error conditions that have been selected for the CHECK alarm category, this parame- ter reflects those that have been detected as active.

  • Page 14: Transducer Block (Tb)

    SERI L_NUMBER: Manufacturer specific read-only para- meter that corresponds to “Magnetrol Serial Number” in the Transducer Block. SOFTW RE_REV: Read-only parameter that corresponds to “Firmware Version” in the Transducer Block.

  • Page 15: Tb Parameters

    2.3.1 transducer Block Parameters The first six parameters in the TRANSDUCER Block are the universal parameters discussed in section 2.1.1. After the universal parameters, six additional parameters are required for Transducer Blocks. The most notable of these parame- ters are UPD TE_EVT and BLOCK_ LM. It should be noted that these six additional parameters must exist but do not have to be implemented.

  • Page 16: Configuration Parameters

    On the other hand, part of the advantage of F OUNDATION fieldbus is to provide the ability to monitor changes and ™ make adjustments to a transmitter. The Fieldbus concept ™ allows a user to make adjustments if deemed necessary. 2.3.4 PuLSaR Model R96 FF device-Specific Configuration Parameters Refer to PULSAR Model R96 I/O Manual 58-602 for...
  • Page 17 MODE_BLK: a structured parameter composed of the actual mode, the target mode, the permitted mode(s), and the normal mode of operation of a block. • Target: The mode to “go to” • Actual: The mode the “block is currently in” •...
  • Page 18 LOW_CUT: Limit used in square root processing. PV_FTIME: Time constant of a single exponential filter for the PV, in seconds. FIELD_VAL: Raw value of the field device in % of PV range, with a status reflecting the Transducer condition before signal characterization (L_TYPE) or filtering (PV_FTIME).

  • Page 19: Ai Block Diagnostics

    BLOCK_ERR_DESC: Reports more specific details regard- ing some errors reported through BLOCK_ERR. The MODE_BLK parameter (within both the TB and AI Blocks) must be set to AUTO to pass the PV Value through the AI to the network. Transducer scaling, called XD_SCALE is applied to the PV from the CHANNEL to produce the FIELD_VAL in per- cent.

  • Page 20: Ai Out Display Screens

    NOTE: There are many reasons that AI block Out values can deviate from the measurement value originating in the Transducer block, and because the keypad and local display will only pro- vide access to Transducer block parameters, there is no way to change (or view) the other fieldbus configuration items affecting the AI block output using the keypad and LCD.

  • Page 21: Ai Block Configuration

    2.4.4 ai Block Configuration Below are examples of various typical AI Block configurations. Example 1: Configuration standard configuration Tank Height Transducer for transmitter AI Block Output Block + Bottom Blocking Distance with tank height [To FF segment] LCD Level TH inches or XD Scale EU at 0% 60 [in / cm] 100%...

  • Page 22: Simulation Feature

    2.4.5 Simulation Feature The PULSAR Model R96 with F fieldbus ™ OUNDATION supports the Simulate feature in the Analog Input block. The Simulate feature is typically used to exercise the opera- tion of an AI block by simulating a TRANSDUCER block input.
  • Page 23 BKCAL_IN: The analog input value and status for another blocks BKCAL_OUT output. BKCAL_HYS: The amount the output must change away from its output limit before the limit status is turned off, expressed as a percent of the span of the output. BKCAL_OUT: The value and status required by the BKCAL_IN input for another block.
  • Page 24 IN: The connection for the PV input from another block. LO_ALM: The LO alarm data. LO_LIM: The setting for the alarm limit used to detect the LO alarm condition. LO_LO_ALM: The LO _LO alarm data. LO_LO_LIM: The setting for the alarm limit used to detect the LO_LO alarm condition.

  • Page 25: Advanced Function Blocks

    STATUS_OPTS: Allows one to select options for status handling and processing. STRATEGY: Can be used to identify grouping of blocks. ST_REV: The revision level of the static data associated with the function block. TAG_DESC: The user description of the intended applica- tion of the block.
  • Page 26 ST_REV: The revision level of the static data associated with the function block. The revision value will increment each time a static parameter value in the block is changed. TAG_DESC: The user description of the intended applica- tion of the block. STRATEGY: The strategy field can be used to identify grouping of blocks.
  • Page 27 RANGE_LO: Constant value below which the range exten- sion has switch to the high range transmitter. BIAS_IN_1: The bias value for IN_1. GAIN_IN_1: The proportional gain (multiplier) value for IN_1. BIAS_IN_2: The bias value for IN_2. GAIN_IN_2: The proportional gain (multiplier) value for IN_2.

  • Page 28: Input Selector Block (Isel)

    Input Selector Block (IS) The Input Selector (IS) function block can be used to select the first good, maximum, minimum, or average of as many as four input values and place it at the output. The block supports signal status propagation. (There is no process alarm detection in the Input Selector function block.) ST_REV: The revision level of the static data associated with the function block.

  • Page 29: Signal Characterizer Block (Sc)

    IN_2: The block input value and status. IN_3: The block input value and status. IN_4: The block input value and status. DISABLE_1: Parameter to switch off the input from being used 0- Use, 1 - Disable. DISABLE_2: Parameter to switch off the input from being used 0- Use, 1 - Disable.
  • Page 30 TAG_DESC: The user description of the intended applica- tion of the block. STRATEGY: The strategy field can be used to identify grouping of blocks. This data is not checked or processed by the block. ALERT_KEY: The identification number of the plant unit.

  • Page 31: Model R96 Transmitter Configuration

    Model R96 Transmitter Configuration Although the PULSAR Model R96 transmitter can be delivered pre-configured from the factory, it can also be eas- ily reconfigured in the shop or at the installation using the local LCD/Keypad. Bench configuration provides a conve- nient and efficient way to set up the transmitter before going to the tank site to complete the installation.

  • Page 32: Menu Transversal And Data Entry

    Menu Traversal and Data Entry The four push buttons offer various forms of functionality for navigation and data entry. The Model R96 user interface is hierarchical in nature, best described as a tree structure. Each level in the tree contains one or more items.

  • Page 33: Entering Numeric Data Using Digit Entry

    4.2.3 Entering Numeric Data Using Digit Entry This method is used to input numeric data, e.g., Tank Height. Push button Keystroke Action Moves up to the next highest digit (0,1,2,3,..,9 or decimal point). If held down the digits scroll until the push button is released. Moves up to the next lowest digit (0,1,2,3,..,9 or Down decimal point).

  • Page 34: Enter Character Data

    4.2.5 Entering Character Data This method is used for parameters requiring alphanumeric character entry, such as for entering tags, etc. General Menu Notes: Push button Keystroke Action Moves to the previous character (Z...Y...X...W). If held down, the characters scroll until the push button is released.

  • Page 35: Model R96 Menu: Step-By-Step Procedure

    This password will be provided, when necessary, by Factory technical support. Factory Password Calibration-related and other factory settings are further protected by a Factory Password. Model R96 Menu: Step-By-Step Procedure The following tables provide a complete explanation of the software menus displayed by the PULSAR transmitter. The menu layout is similar between the local Keypad/LCD interface, the DD, and the DTM.
  • Page 36 M IN MENU Pressing any key on the Home Screen will present the Main Menu, consisting of three basic menu labels shown in all capital letters. DEVICE SETUP DI GNOSTICS ME SURED V LUES As shown, the reverse video represents a cursor identifying the selected item, which will appear in reverse video on the LCD.

  • Page 37: Model R96 Configuration Menu: Device Setup

    Above 10 RAB-x PolyP Rod RAC-x Halar Rod RA3-x 3" Horn RA4-x 4" Horn RA6-x 6" Horn Model (read only) Home Screen Magnetrol S/N (read only) Hardware Rev. (read only) Main Menu Firmware Rev. (read only) Physical Dev Tag Device Setup...
  • Page 38 Model R96 onfiguration Menu — Device Setup Home Screen Main Menu Device Setup Quick Start Identity Measurement Type: Basic Config Volume Config Level Only Volume and Level Display Config Advanced Config SYSTEM UNITS Factory Config Level Units: Antenna Model: Stillwell I.D.: ECHO REJECTION: 1.6 to 19.7 inches Inches...
  • Page 39 Model R96 onfiguration Menu — Device Setup Home Screen Main Menu Device Setup Quick Start Identity Basic Config Language: Display Config English Advanced Config Factory Config French German Spanish Russian Portuguese Physical Dev Tag: Hide View Level: Hide View Volume: (Volume and Level mode only) Hide View...
  • Page 40 Model R96 onfiguration Menu — Device Setup Home Screen Main Menu Device Setup Quick Start Sensitivity: Target Thresh Mode: Identity 50 to 200 Automatic Basic Config Fixed Value Display Config Top Blocking Distance: Advanced Config 12 to 120 inches Target Thresh Value: Factory Config (30 cm to 3 meters) 0-99...

  • Page 41: Troubleshooting And Diagnostics

    5.0 Troubleshooting and Diagnostics The PULSAR Model R96 transmitter is designed and engi- neered for trouble-free operation over a wide range of oper- ating conditions. The transmitter continuously runs a series of internal self-tests and displays helpful messages on the large graphic liquid crystal display (LCD) when attention is required.

  • Page 42: Diagnostics (Namur Ne 107)

    While changing any transmitter parameters using the local display or through a system configuration tool (with the MODE_BLK in OOS), the output might be inaccurate because of the changing parameters. When the device is set to OOS, the TRANSDUCER BLOCK will still output level but the QUALITY will be shown as “Bad”...
  • Page 43 In essence, this approach ensures that the correct diagnostic information is available to the correct person-at the correct time. In addition, it allows diagnostics to be applied, as most appropriate, for a particular plant application (such as process control engineering or asset management mainte- nance).

  • Page 44: Diagnostic Indication Simulation

    Unrecoverable error occurred in stored Failure program. RAM Error Failure RAM (read/write) memory failing. ADC Error Failure Analog-to-digital converter failing. Contact MAGNETROL Technical Support. EEPROM Error Failure Non-volatile parameter storage failing. Analog Board Error Failure Unrecoverable hardware failure. Spare Indicator Reserved for future use.
  • Page 45 default Priority indicator name Explanation Remedy Category Spare Indicator 3 Reserved for future use. No Fiducial The fiducial pulse is not located where Increase Fid Gain. Adjust Window to Failure expected, or the fiducial amplitude is obtain Fid Ticks of 100-400. not in the expected range.
  • Page 46 Sequence Record If desired, report Sequence Record A Sequence Record number has been number to MAGNETROL Technical stored in Event Log. Support. The PULSAR Model R96 offers the ability to do Trending and Echo Curve analysis via the local graphical LCD or by using PACTware and the Model R96 DTM.

  • Page 47: Diagnostic Help

    ITEMS from the top level of the DIAGNOSTICS tree. When Present Status is highlighted, the highest MAGNETROL priority active diagnostic indicator (numer- ically lowest in Table 5.1.3) is displayed on the bottom LCD line as shown above. Pressing the ENTER key moves...

  • Page 48: Diagnostic Parameters

    ECHO HISTORY SETUP – The Model R96 contains the unique and powerful feature that allows waveforms to be automatically captured based on Diagnostic Events, Time or both. This menu contains those parameters that configure that feature. Eleven waveforms can be saved directly into the transmitter. •...
  • Page 49 diagnostic/Condition Process Variables Quality Sub-status Limit ADC Failure All PVs Device Failure Constant limited EEPROM Error All PVs Device Failure Constant limited All PVs except No Fiducial Device Failure Constant limited Elec Temperature All PVs except Too Many Echoes Device Failure Constant limited Elec Temperature All PVs except...

  • Page 50: Foundation

    fieldbus Segment Checklist OUND TION There can be several reasons for a F fieldbus ™ OUNDATION installation to be in a faulty condition. In order to ensure that communication can be established, the following requirements must be met. • Device supply voltage must be higher than 9 VDC with a maximum of 32 VDC.

  • Page 51: Reference Information

    6.0 Reference Information These units are in compliance with the EMC-directive 2014/30/EU, gency pprovals the PED-directive 97/23/EC and the ATEX directive 2014/34/EU. IEC 60079-0: 2001 IEC 60079-15: 2010 IEC 60079-26: 2006 6.1.1 agency approvals Chart Explosion Proof non- incendive uS/Canada: uS/Canada: Class I, Div 1, Group B, C, D, T4 Class I, II, III, Div 2, Group A, B, C, D, E, F, G, T4...

  • Page 52: Agency Specifications

    6.1.2 Agency Specifications – Explosion Proof Installation Factory Sealed: This product has been approved by Factory Mutual Research (FM) and Canadian Standards Association (CSA) as a Factory Sealed device. NOTE: Factory Sealed: No Explosion Proof conduit fitting (EY seal) is required within 18" of the transmitter. However, an Explosion Proof conduit fitting (EY seal) is required between the hazardous and safe areas.

  • Page 53: Specifications

    Specifications 6.2.1 Functional – transmitter 58-640 PULSAR Model R96 Pulse Burst Radar Transmitter - F fieldbus ™ Instruction Manual OUNDATION...

  • Page 54: Model Number

    6.3 Model Number 6.3.1 transmitter 1 | BaSiC ModEL nuMBER and oPERatinG FREQuEnCY Through-Air Radar Level Transmitter- 6 GHz Pulse Radar 4 | PowER 24 VDC, Two-wire 5 | SiGnaL outPut 4–20 mA with HART fieldbus OUNDATION 6 | SaFEtY oPtionS None (F fieldbus only) (5th digit = 2) OUNDATION...

  • Page 55: Antenna - Dielectric Rod

    6.3 Model Number 6.3.2 antenna — dielectric Rod tECHnoLoGY / oPERatinG FREQuEnCY PULSAR radar antennas / 6 GHz ConFiGuRation / StYLE TFE (Material of Construction codes A, B, C, and K only) Polypropylene (Material of Construction codes A, G, K, and L only) MatERiaL oF ConStRuCtion 316/316L stainless steel Hastelloy...

  • Page 56: Antenna - Horn

    6.3 Model Number 6.3.3 antenna — Horn tECHnoLoGY / oPERatinG FREQuEnCY PULSAR radar antennas / 6 GHz ConFiGuRation / StYLE 3" horn (for Standpipe/Stillwell use only; Materials of Construction codes A & K only 4" horn 6" horn MatERiaL oF ConStRuCtion 316/316L stainless steel Hastelloy C 316/316L SS;...

  • Page 57: Replacement Parts

    6.4 Parts 6.4.1 Replacement Parts CURRENT LOOP Electronics: Digit: Part Number: Serial Number: 7 7 7 7 0 6 7 7 7 See nameplate, always provide complete part number and X = product with a non-standard customer requirement serial number when ordering spares. (1) Electronic Module (6) Housing Cover digit 5...
  • Page 58 ppendix Level transducer Block table item Parameter name Parameter Label BLOCK_STRUCTURE BLOCK STRUCT ST_REV Static Revision TAG_DESC Tag Description STRATEGY Strategy ALERT_KEY Alert Key MODE_BLK Block Mode BLOCK_ERR Block Error UPDATE_EVT Update Event BLOCK_ALM Block Alarm TRANSDUCER_DIRECTORY Transducer Directory TRANSDUCER_TYPE Transducer Type XD_ERROR Transducer Error...
  • Page 59 BOTTOM_BLOCKING_DISTANCE Bottom Blocking Distance SAFETY_ZONE_ALARM Safety Zone Alarm SAFETY_ZONE_HEIGHT Safety Zone Height RESET_SAFETY_ZONE_LATCH Reset SZ Latch ECHO_LOSS_DELAY Echo Loss Delay ALARM_DELAY Failure Alarm Delay LEVEL_TRIM Level Trim TARGET_ALGORITHM Target Algorithm TARGET_THRESH_MODE Target Threshold Mode TARG_AUTO_THRESH_VALUE Target Auto Threshold Value TARG_FIXED_THRESH_VALUE Target Fixed Threshold Value BASE_THRESHOLD Base Threshold...
  • Page 60 TVG Divisor FACTORY_PARAMETER_1 Factory Parameter 1 FACTORY_PARAMETER_2 Factory Parameter 2 FACTORY_PARAMETER_3 Factory Parameter 3 FACTORY_PARAMETER_4 Factory Parameter 4 MAGNETROL_SERIAL_NUMBER Magnetrol S/N DATE_CODE Date Code CONFIG_CHANGED_MODE TB Config Chgd Mode RESET_CONFIG_CHANGED Reset Config Changed USER_PASSWORD New User Password LOCAL_DISP_MEAS_VALUES Local Disp Meas Values...
  • Page 61 HIST_ENTRY10 Event History 10 RESET_HISTORY Reset History ECHO_HIST_TRIGGER_MODE Echo Hist Trigger Mode ECHO_HIST_TIME_TRIGGERS Echo Hist Time Triggers ECHO_HIST_EVENT_TRIGGERS Echo Hist Event Triggers ECHO_REJECTION_LOG Echo Rejection ECHO_REFERENCE_LOG Echo Reference ECHO_HISTORY_LOG1 Echo History 1 ECHO_HISTORY_LOG2 Echo History 2 ECHO_HISTORY_LOG3 Echo History 3 ECHO_HISTORY_LOG4 Echo History 4 ECHO_HISTORY_LOG5...
  • Page 62 ECHO_LIST_ENTRY8 Echo List 8 ECHO_LIST_ENTRY9 Echo List 9 ECHO_LIST_ENTRY10 Echo List 10 ECHO_LIST_ENTRY11 Echo List 11 ECHO_LIST_ENTRY12 Echo List 12 ECHO_LIST_ENTRY13 Echo List 13 ECHO_LIST_ENTRY14 Echo List 14 ECHO_LIST_ENTRY15 Echo List 15 Volume transducer Block table item Parameter name Parameter Label BLOCK_STRUCTURE BLOCK STRUCT ST_REV...
  • Page 63 LEVEL_INPUT_SOURCE Level Input Source VOLUME_TABLE_LENGTH Volume Table Length VOLUME_TABLE_PT_01 Volume Table Pt 01 VOLUME_TABLE_PT_02 Volume Table Pt 02 VOLUME_TABLE_PT_03 Volume Table Pt 03 VOLUME_TABLE_PT_04 Volume Table Pt 04 VOLUME_TABLE_PT_05 Volume Table Pt 05 VOLUME_TABLE_PT_06 Volume Table Pt 06 VOLUME_TABLE_PT_07 Volume Table Pt 07 VOLUME_TABLE_PT_08 Volume Table Pt 08 VOLUME_TABLE_PT_09...
  • Page 64 STATUS_INDICATORS _2 Indicators Group 2 STATUS_INDICATORS _3 Indicators Group 3 STATUS_INDICATORS _4 Indicators Group 4 STATUS_INDICATORS _5 Indicators Group 5 TREND_VOLUME_VALUE Volume 58-640 PULSAR Model R96 Pulse Burst Radar Transmitter - F fieldbus ™ Instruction Manual OUNDATION...
  • Page 65 QuaLitY & SERViCE CoSt LESS Service Policy Return Material Procedure Owners of MAGNETROL may request the return of a So that we may efficiently process any materials that are control or any part of a control for complete rebuilding or returned, it is essential that a “Return Material...
