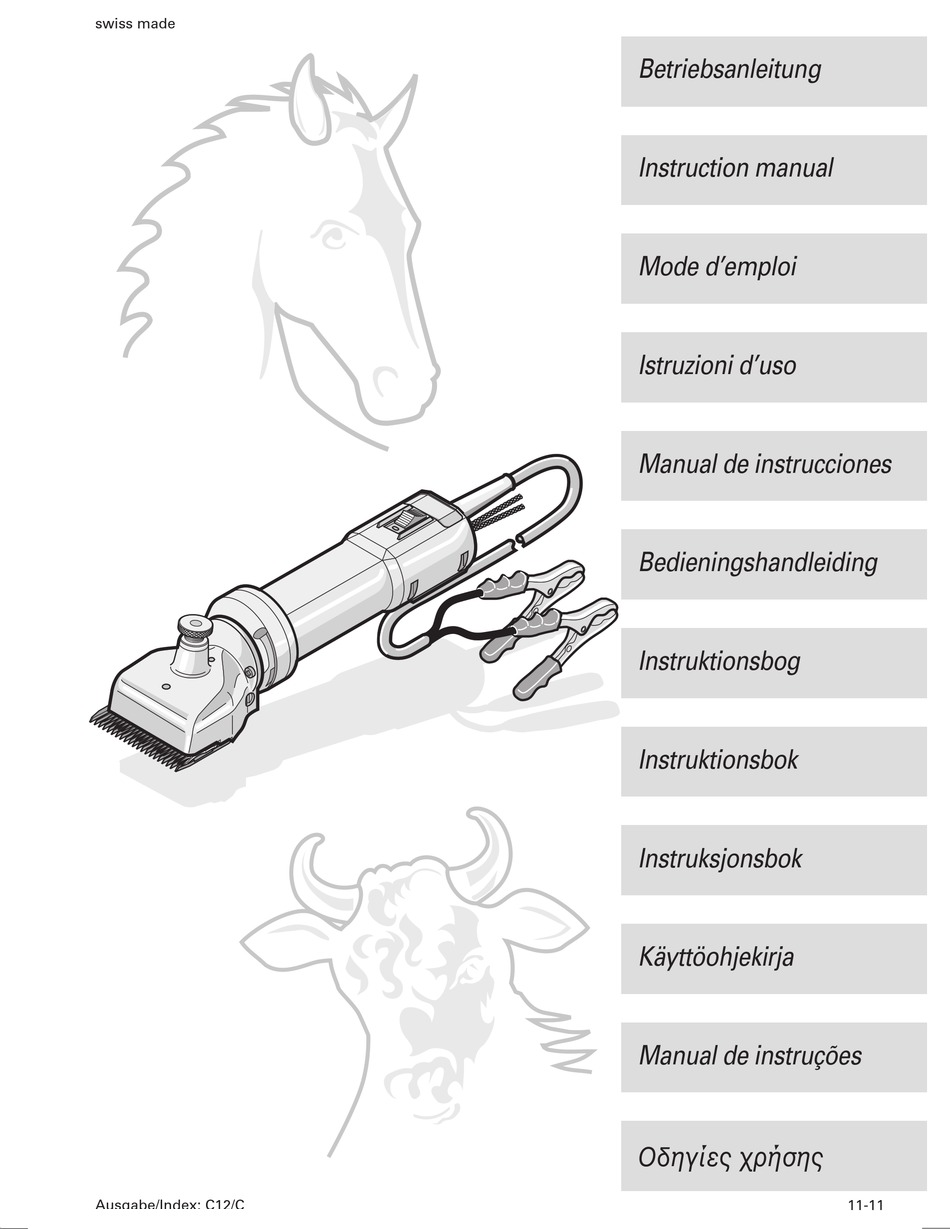

- Page 1 Betriebsanleitung Instruction manual Mode d’emploi Istruzioni d’uso Manual de instrucciones Bedieningshandleiding Instruktionsbog Instruktionsbok Instruksjonsbok Käyttöohjekirja Manual de instruções δηγίες ρήσης Ausgabe/Index: C12/C 11-11...
- Page 2 4.5 Changing the Clipper/Shear Head (Option) 4.6 Storing the Clipping Machine 5 Repairs 5.1 Introduction 5.2 Malfunction Lists 6 Environmental Protection and Disposal 6.1 Introduction 6.2 Material Categories 7 Contact Addresses Illustrations: at the end of the instructions Instruction manual C12...
-
Page 3: Proper Use
T-wire 1.5mm² red with flat connector Distance screw USV/HANDY/CORDLESS/ Airflow guide 12V DELTA1/PROGRESS T-wire 1.5mm² blue with flat connector Pressure plate Motor housing 12V Heiniger grey Centering bush Anti-kink sleeve VS84/HANDY/12V USA Pressure spring Cord hanger HANDY/12V Laminated spring Cable with terminals 12V... -
Page 4: Intended Use
79 mm x 72 mm x 290 mm Weight, excluding cable: 1230 g Max. Ambient Temperature: 0°C - 40°C Max. Air Humidity: 10% - 90% (relative) Noise Emission (L 84.3 dB(A) (DIN-45635-1/04.84 + BG-PAS 26) Acceleration (a 4,6 m/sec (EN-28662-1/01.93) Instruction manual C12... -
Page 5: Equipment Items
If preventive action is not taken, death or very serious injury could result. Caution indicates a potentially dangerous situation. If preventive action is not taken, the consequences could be slight or minor injuries. Instruction manual C12... -
Page 6: Proper Use
2.4.2 Servicing and Checking Requirement Only operate the clipping machine if it is undamaged and in a proper condition. Any defects to the housing or the electrical cable should be rectified by a repair or service agent. Instruction manual C12... -
Page 7: Noise Emission / Personal Protective Equipment
Any liquid which has got into the machine will lower the electrical insulation. There is then the danger of an electric shock or short circuit. Only clean the machine when dry using a brush or the cleaning brush provided. Instruction manual C12... -
Page 8: Putting Into Operation
Hair may collect between the clipper blades if they are insufficiently tensioned at the start of clipping. This will have an adverse effect on further clipping progress or make it quite impossible. If this happens, the clipper blades must be disassembled, cleaned, oiled and re-fitted as described at 4.2. Instruction manual C12... -
Page 9: Lubrication
Always use the slide switch (Illustration 2) when switching the machine on and off. Check the position of the switch before connecting the terminal clamps. 3.5 Malfunctions See the list of malfunctions in Section 5, “Repairs”, for the rectification of malfunctions. Instruction manual C12... -
Page 10: Servicing
4.3 Resharpening the Clipper Blades Only work with sharp clipper blades. Replace blunt blades or those with missing teeth. Proper resharpening can only be done with a special machine and by a trained technician contactable through your service centre. Instruction manual C12... -
Page 11: Cleaning The Air Filter
It is designed to give longevity and high performance. If spare parts are used during the life of this product, please ensure that they are genuine Heiniger parts. Failure to use genuine Heiniger spares may reduce the performance of this precision engineered product and will void any warranty claim. - Page 12 (Illustration 5, and oil; then refit and increase Items 1+2) pressure Too much play in clipper head Have clipper head inspected Spacing between upper and Adjust spacing correctly lower clipper blades incorrectly (Illustration 10) adjusted Instruction manual C12...
-
Page 13: Repairs
Air filter blocked Clean or replace air filter Flat, wrong or too small storage Use fully charged, 12V lead storage battery with a min. battery being used of 45 Ah Faulty storage battery Replace storage battery Instruction manual C12... -
Page 14: Introduction
14 / 15 / 19 / 20 / 25 7 Contact Addresses Your purchasing point or the company shown on your guarantee certificate are authorised service centres or refer to the nearest service centre in your area. Instruction manual C12... - Page 15 23 24 32 33 23 24...
- Page 16 9 10 12 13...
- Page 17 1,5–2,0 mm...
- Page 18 Item Artikel Artículo Artikel Article Artikel Artikel Artikkel Articolo Tuote Προϊόν Artico Serial no. Serie nr. No. de serie Serie Nr. No. de série Serienr. Seriennummer Serie nummer No. di serie Sarjanro Αρ. σειράς No. de série Date of purchase Datum van aankoop Fecha de compra Købsdato...
