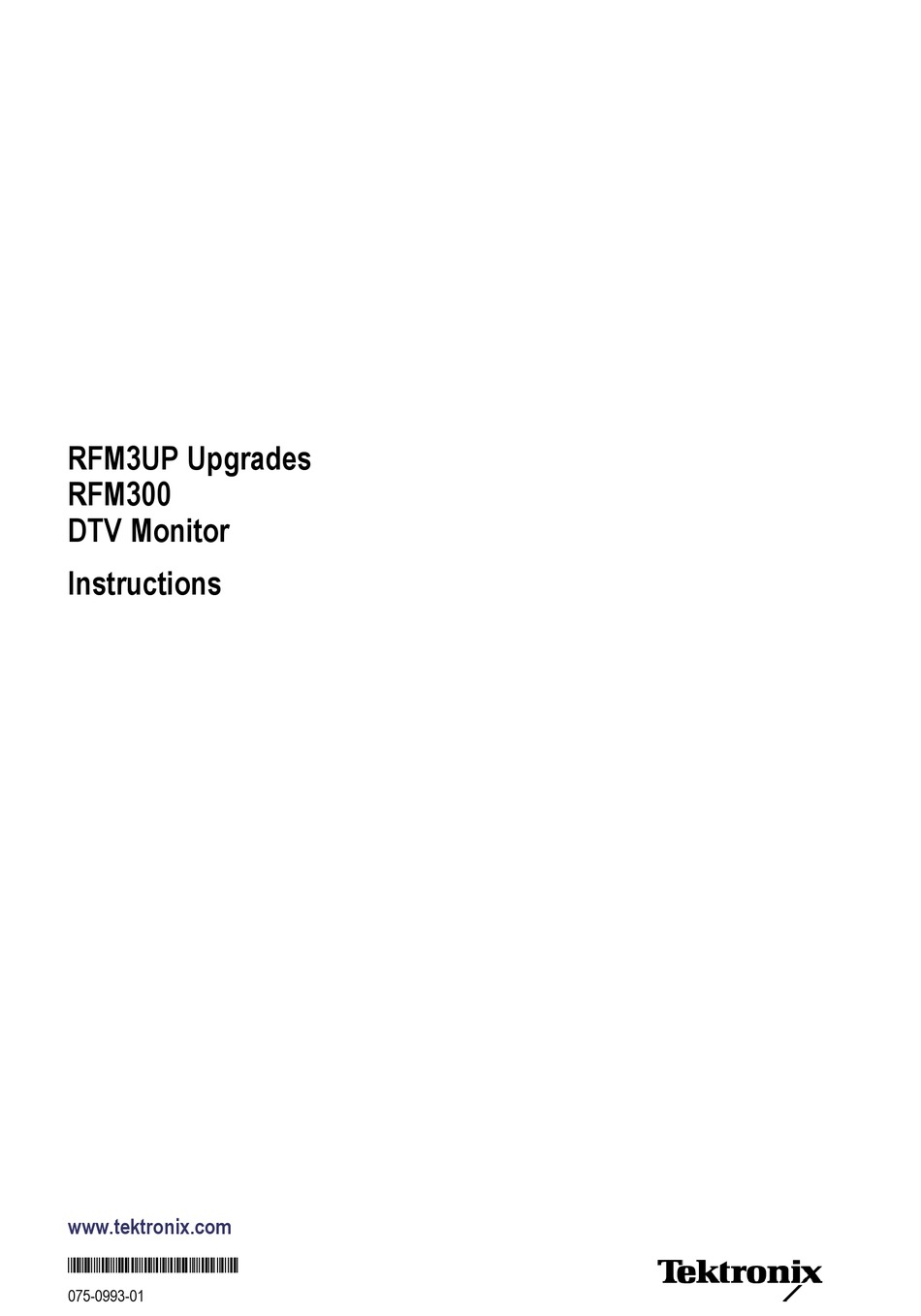

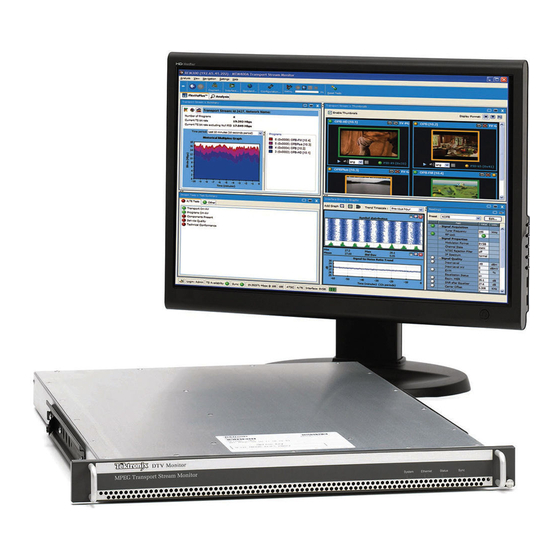

- Page 1 RFM3UP Upgrades RFM300 DTV Monitor Instructions www.tektronix.com *P075099301* 075-0993-01...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
- Page 3 Kit Description This document provides instructions for installing RFM3UP software upgrades into an existing RFM300 DTV Monitor. The RFM3UP upgrade kit contains a license upgrade certificate that allows you to enable the new options on the monitor. The RFM300 is supplied with an 8VSB interface card as a standard accessory. No hardware options are available.
- Page 4 MTM400A, RFM300, and IPM400A DTV Monitor Documentation CD 1 EA 063-4136-xx MTM400A, RFM300, and IPM400A Software Application 1 EA Option key document for a specified RFM300 DTV monitor 1 EA Product Upgrade identification sticker 1 EA 075-0993-01 RFM3UP Upgrades Instructions (This document) RFM3UP Upgrade Instructions...
- Page 5 Software Option Upgrade Software Option Upgrade The RFM3UP option upgrade requires that you apply a new option key to enable the new options. Option Keys Option keys are a unique string of alphanumeric characters of the form nnnnn-nnnnn-nnnnn-nnnnn. A single option key can enable one or more software options.
-
Page 6: Upgrading The Software
NOTE. This procedure uses Microsoft Internet Explorer to open the monitor RUI. You can also access the RUI using the Tektronix Web Monitoring Systems Manager (WebMSM). The instructions for using WebMSM are located in the WebMSM User Manual (Tektronix part number 077-0116-xx). - Page 7 8. Make a note of the software options that are currently enabled on the monitor. NOTE. After you upgrade the monitor, you will verify the upgrade by checking that the new option that you purchased has been enabled. RFM3UP Upgrade Instructions...
- Page 8 11. In the Upload License dialog box, enter the new option key that was supplied with this kit, and then click Upload. 12. Click Yes to confirm the upload in the Upload License message box. (See Figure 4.) RFM3UP Upgrade Instructions...
- Page 9 Upload License dialog box. (See page 8, Troubleshooting.) 14. Click Close to close the Upload License dialog box, and proceed to verify the software options. (See page 8, Verifying the Software Option Upgrade.) RFM3UP Upgrade Instructions...
-
Page 10: Troubleshooting
Unique ID number listed on the option key documentation supplied with the upgrade kit. If the upgrade is still unsuccessful, contact Tektronix Technical Support, ensuring that the following information is available: Serial Number of the DTV monitor... - Page 11 Be sure to apply the option key label from the Product Upgrade sticker. When it is necessary after a repair, the Tektronix service center uses the option key listed on the monitor label to reenable the software options for your monitor. If...
