Page 1: Installation Guide
H3C WA3600 Series Indoor Access Points Installation Guide Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Document version: APW100-20110926... - Page 2 SecPro, SecPoint, SecEngine, SecPath, Comware, Secware, Storware, NQA, VVG, V G, V G, PSPT, XGbus, N-Bus, TiGem, InnoVision and HUASAN are trademarks of Hangzhou H3C Technologies Co., Ltd. All other trademarks that may be mentioned in this manual are the property of their respective owners Notice The information in this document is subject to change without notice.
- Page 3 Preface The H3C WA3600 Series Indoor Access Points Installation Guide describes the hardware specifications, preparations before installation, installation procedure, cabling and grounding, and login procedure for the new generation WA3600 802.1 1n indoor APs. This preface includes: Audience • Conventions •...
-
Page 4: Obtaining Documentation
Obtaining documentation You can access the most up-to-date H3C product documentation on the World Wide Web at http://www.h3c.com. Click the links on the top navigation bar to obtain different categories of product documentation: [Technical Support & Documents > Technical Documents] –... - Page 5 Contents Product overview ·························································································································································· 1 Preparing for installation ············································································································································· 3 Safety recommendations ·················································································································································· 3 Examining the installation site ········································································································································· 3 Temperature and humidity requirements ················································································································ 3 Accessories provided with the AP ··································································································································· 3 User-supplied installation tools and equipment ·············································································································· 4 ...
-
Page 6: Product Overview

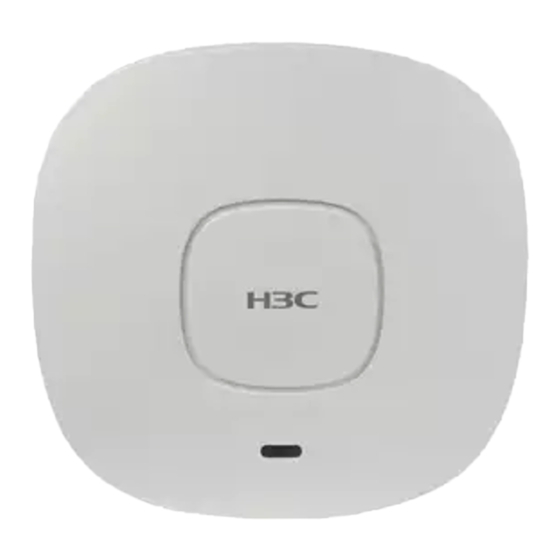

Product overview The H3C WA3600 Series Indoor Access Points (referred to as the WA3600 series hereinafter) includes the WA3610i-GN, WA3620i-AGN, and WA3628i-AGN. All of them have integrated antennas, and the WA3628i-AGN also supports external antennas. The WA3600 series can serve as fit APs to cooperate with wireless switches or access controllers to provide wireless access for WLAN users. -
Page 8: Preparing For Installation
Preparing for installation Safety recommendations WARNING! Only qualified personnel can install and remove a WA3600 series and its accessories. You must read all safety instructions supplied with the access points before installation and operation. To avoid possible bodily injury and equipment damage, read the following safety recommendations before you install a WA3600 series. -
Page 9: User-Supplied Installation Tools And Equipment
Console cable (provided with the fat Wall anchor kit MAC address label AP only) User-supplied installation tools and equipment When you install a WA3600 access point, you may need the following tools: RJ-45 crimping Level Marker Knife Wire stripper tool Percussion drill with Phillips Rubber hammer... -
Page 10: Installing The Ap
The WA3600 series is usually installed on a high position, such as a wall or ceiling, so the maintenance personnel cannot log in from the console port to maintain and debug the AP. H3C recommends that you log in to the AP through the console port to perform remote login (Telnet or web login) configuration, or log in through Telnet or web by using the default login information before you install the AP. -
Page 11: Determining The Installation Position
AP to the power line to protect the AP from being damaged by lightning strikes. Installing the AP NOTE: The WA3610i-GN, WA3620i-AGN, and WA3628i-AGN are installed in the same way. The following • uses a WA3628i-AGN as an example. The WA3600 series can only be used indoors. - Page 12 CAUTION: Connect the AP to the network by using an Ethernet cable, and then install the AP to the wall-mounting bracket when you mount the AP on a wall. To mount the AP on a wall: Fix the wall-mounting bracket to the wall: Use the wall-mounting bracket as a template to mark the locations of the mounting holes on the bracket.
- Page 13 Figure 6 Mounting keyholes (1) Hook (2) Clip (3) Tab (4) Mounting keyhole Mount the AP on the hook on the wall-mounting bracket. See callout 1 in Figure Pull down the AP with force until it clicks into place. See callout 2 in Figure Figure 7 Fix the AP onto the wall-mounting bracket...
-
Page 14: Mounting The Ap On A Wall Or Ceiling (Ii)
Mounting the AP on a wall or ceiling (II) NOTE: The wall or ceiling tiles must be less than 18 mm (0.71 in) thick, and the wall or the ceiling can bear a • weight of at least 5 kg (1 1.02 lb). Do not use this method to mount the AP to a location made of low-intensity materials such as a plaster •... -
Page 15: Mounting The Ap To A T-Rail
Figure 9 Mount the AP on a wall (1) Nut (2) Hex-head bolt (3) Wall-mounting bracket (4) Hook CAUTION: Check that the AP is secured to the mounting bracket to avoid falloff. Mounting the AP to a T-rail NOTE: • The width of the T-rail must be in the range of 14 mm to 24 mm (0.55 in to 0.94 in). - Page 16 Figure 10 T-rail holder (1) T-rail clip (2) M4 × 8 screw nut (3) Clip holder (4) T-rail holder (5) M3 × 6 screw nut (6) M4 × 8 screw (7) M3 × 6 screw (8) Mounting hook To mount the AP to a ceiling T-rail: Loosen the two M3 ×...
-
Page 17: Securing The Ap
Install the AP to the wall-mounting bracket. For more information, see “Mounting the AP on a wall (I).” Figure 12 Mount the AP to the T-rail (1) M4 × 8 screw (2) M3 × 6 screw (3) Hook (4) Mounting hook (5) Mounting clip Securing the AP NOTE:... -
Page 18: Connecting The Power Supply
Figure 13 Secure the AP (1) Security slot (2) Security lock (3) Security cable Connecting the power supply The WA3600 series can be powered by the local power or through 802.3af-compliant PoE. You can select one as needed. Check before power-on Check the following items before you power on the AP: The power supply is well grounded when the AP adopts local power supply. -
Page 19: Local Power Supply
Figure 14 PoE connection (1) Ethernet Port (2) Ethernet Cable (3) PoE switch Local power supply NOTE: No power adapter and power cable are shipped with the AP. Table 4 Power adapter specifications Item Description Input 100 VAC to 240 VAC Output +48V at 0.52 A... -
Page 20: Connecting The Ap To The Network
Check after power-on After powering on the AP, check the AP status LED. For more information about AP LEDs, see “Appendix LEDs and ports.” Connecting the AP to the network APs can access the Internet or metropolitan area network (MAN) through the Ethernet uplink interface. To implement Internet or MAN access, connect the Ethernet port of the AP to an Ethernet port of an Ethernet switch. -
Page 21: Logging In To The Fat Ap
Logging in to the fat AP NOTE: The WA3600 series is usually installed on a high position. H3C recommends that you log in to the AP to configure related settings before you install the AP. When the WA3600 series operates as a fat AP, you can log in to the AP through the console port, or through Telnet or web to configure the AP, but you must obtain the IP address of the AP first. -
Page 22: Setting Terminal Parameters
Figure 16 Connect the console cable Power on the AP. The AP’s startup information will be displayed. Setting terminal parameters To set terminal parameters, for example, on a Windows XP HyperTerminal: Select Start > All Programs > Accessories > Communications > HyperTerminal. The Connection Description dialog box appears. - Page 23 Figure 18 Set the serial port used by the HyperTerminal connection Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None, and click OK. Figure 19 Set the serial port parameters NOTE: To restore the default settings, click Restore Defaults.
-
Page 24: Logging In Through The Console Port
If the default IP address is changed, contact the administrator to get the new IP address, or use the display vlan 1 command to view the IP address after logging in to the AP from the console port. NOTE: H3C WA Series Access Points For more information about Telnet or web login configuration, see Configuration Guides... -
Page 25: Appendix Leds And Ports
(only available when the AP operates as a fit AP). A client is connected to the 5G port. Breathing NOTE: Not available on the WA3610i-GN. An initialization exception has occurred to Steady on the AP. Flashing at 1 Hz The AP cannot detect any radio interface. -
Page 26: Ports
Ports The WA3610i-GN and WA3620i-AGN provide the following external ports: A console port • A 10/100/1000 Mbps copper Ethernet port • A power supply port • The WA3628i-AGN provides the following external ports: Three 2.4 GHz antenna ports, and three 5 GHz antenna ports •... - Page 27 Port Standards and protocols Description The console port is used for configuration and Console port RS/EIA-232 management (for debugging when the AP operates as a fit AP). Figure 22 WA3628i-AGN ports (1) through (3) 5G antenna ports 1/2/3 (4) Local power port (5) 10/100/1000 Mbps copper Ethernet port 1 (6) 10/100/1000 Mbps copper Ethernet port 2 (7) Reset button...
-
Page 28: Index
Index A C D E I L P S U Accessories provided with the AP,3 LEDs,20 Logging in through Telnet or web,19 Logging in through the console port,16 Check before installation,5 Connecting the AP to the network,15 Connecting the power supply,13 Ports,21 Determining the installation... - Page 29 Compliance and Safety Manual...
- Page 30 Contents Safety Information Sicherheits informationen 安全信息 · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Overview Überblick 概述...
- Page 31 List of Tables Table 1 Safety symbol and description/Sicherheitssymbole und Beschreibung/安全标识和描述 ... 3 Table 2 Regulatory compliance standards ....................5 Table 3 Equipment may be operated in the following country: ............5...
- Page 32 Safety Information Sicherheits informationen 安全信息 Overview Überblick 概述 Warning Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of the Safety Instructions supplied with your equipment before installation and operation. Warnung Installation und Ausbau der Anlage und ihrer Zubehö...
- Page 33 Anmerkung Lesen Sie bitte alle Bedienungsanweisungen und Sicherheitvorschriften sorgfältig durch, bevor Sie das Gerät in Betrieb nehmen. Nur durch Beachtung dieser Hinweise lässt sich das Unfallrisiko minimieren. Die in anderen Handbü chern aufgefü hrten Anmerkungen, Achtungen, Warnungen und Gefahren beinhalten nicht alle zu beachtenden Sicherheitvorschriften.
- Page 34 Table 1 Safety symbol and description/Sicherheitssymbole und Beschreibung/安全标识和描述 Safety Symbol Description Symbole Erläuterung 安全标识 描述 Generic alarm symbol: To suggest a general safety concern. Alarm: Hinweis auf ein generelles Sicherheitsproblem. 一般注意标识：用于一般安全提示。 ESD protection symbol: To suggest electrostatic-sensitive equipment. ESD-Schutz: Hinweis auf ESD-gefährdete Bauteile. 防静电标识：用于表示静电敏感的设备。...
- Page 35 警告: 在进行线缆连接前，请确认线缆和线缆的标识与实际安装要求是一致的(参考电源线 表格)。 Caution: To ensure the equipment is mounted on the wall firmly, please use a screw at least 4.2 mm diameter and the screw head at least 8.0 mm diameter. Achtung: Um das Gerät an der Wand zu befestigen, benutzen Sie Nagel mit einem Mindestdurchmesser von 4.2 mm.
- Page 36 Regulatory Compliance Information Regulatory compliance standards Table 2 Regulatory compliance standards Discipline Standards FCC Part 15 (CFR 47) CLASS B ICES-003 CLASS B CISPR 22 CLASS B EN 55022 CLASS B AS/NZS CISPR22 CLASS B CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN60601-1-2 EN 301 489-1...
- Page 37 Hereby, H3C Company, declares that this Equipment is in compliance with the English essential requirements and other relevant provisions of Directive 1999/5/EC. Por medio de la presente H3C Company declara que el equipo cumple con Español los requisitos esenciales y cualesquiera otras disposiciones aplicables o [Spanish] exigibles de la Directiva 1999/5/CE.
- Page 38 övriga relevanta bestämmelser som [Swedish] framgår av direktiv 1999/5/EG. Í slenska Hér með lý sir H3C Company yfir því að búnaður er í samræ mi við grunnkröfur [Icelandic] og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. Norsk H3C Company erklæ...
- Page 39 This device must accept any interference received, including interference that may cause undesired operation. If the customer modifies the equipment without the authorization of H3C, which directly or indirectly contribute to the equipment incompliance with FCC requirements for Class B digital devices, H3C is not liable for such interference problem and the expenses incurred there from shall be covered by the customers.
- Page 40 Canada regulatory compliance ICES-003 This Class B digital apparatus complies with Canadian Standard ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. RF Compliance This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
