Advanced Gap Sensing

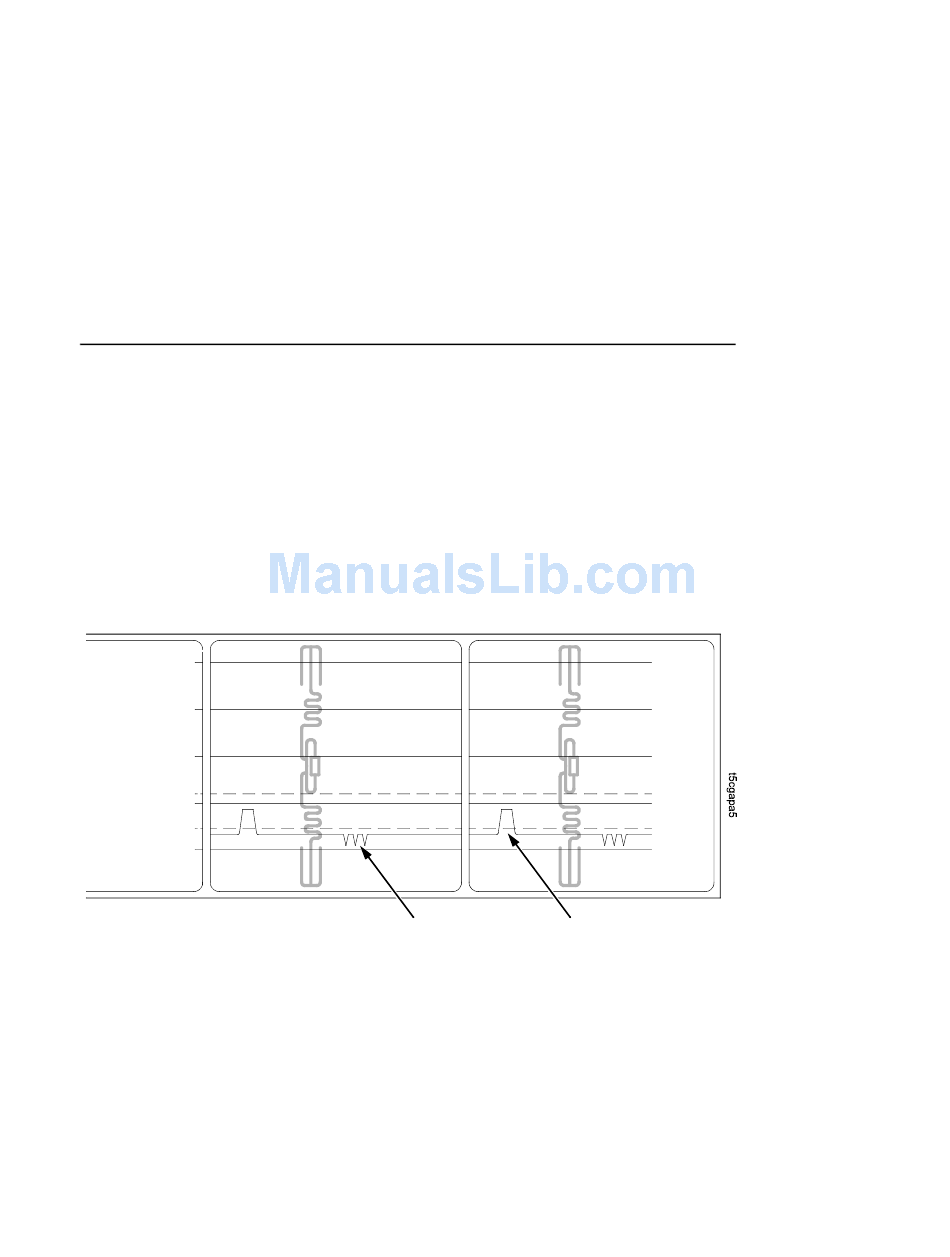

This figure shows a Media Profile printout of a smart label where

Gap/Mark Sensor is set to Advanced Gap in the CALIBRATE CTRL

menu.

In this example, the gap threshold value the printer selected

(represented by the Gap/Mark dotted line) is too close to the

amplitude of the antenna pulse. If there is an increase in noise or

the opacity of the liner or ribbon, the printer may falsely use the

antenna or noise as the gap (top-of-form).

255

191

127

Paper Out(075)

063

Gap/Mark(030)

000

Making A Media Profile Printout

Detected Amplitude

of the Antenna

of the Gap
