Printing Adjustments

Left
Pressure
Block
Left
Pressure
Block
Handle
Bold Mark
Printhead Cover/
Upper Media
Sensor
Pressure Block
Adjustment Scale

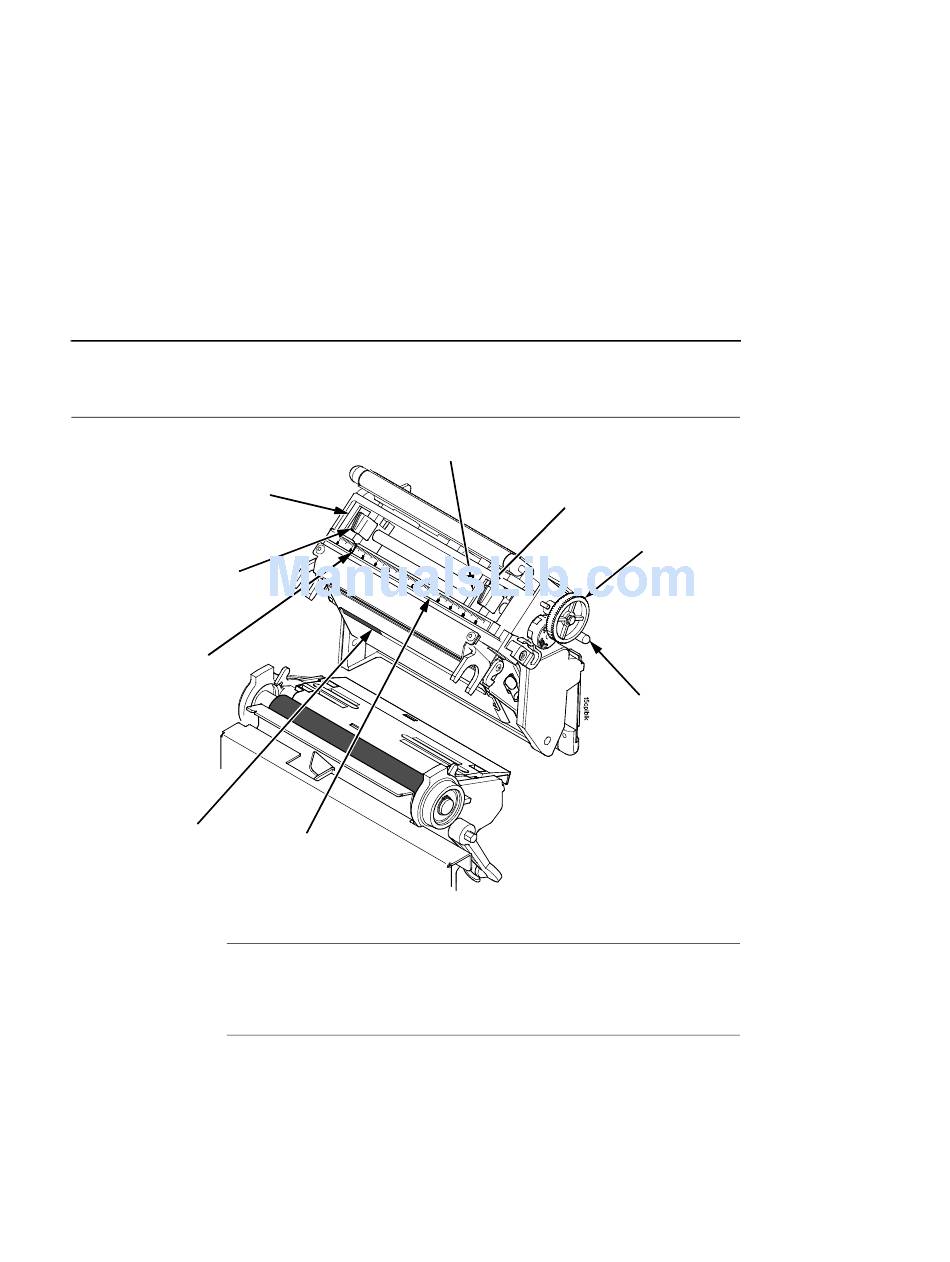

Printhead Pressure Adjustment

Adjust the printhead pressure to the setting of 4.

Printhead Pressure Block Adjustments

Left Pressure Block

Manually adjust the left pressure block so its handle is aligned with
the bold mark on the pressure block adjustment scale.

Right Pressure Block

Use the right pressure block adjustment wheel to position the right
pressure block with its pointer near the right edge of the media in
use.
Printhead Pressure Adjustment
Right Pressure
Block
Right Pressure
Block Pointer
Right
Pressure
Block
Adjustment
Wheel
Printhead Pressure
Adjustment Dial
27
