3.2 Instrument connection

10B

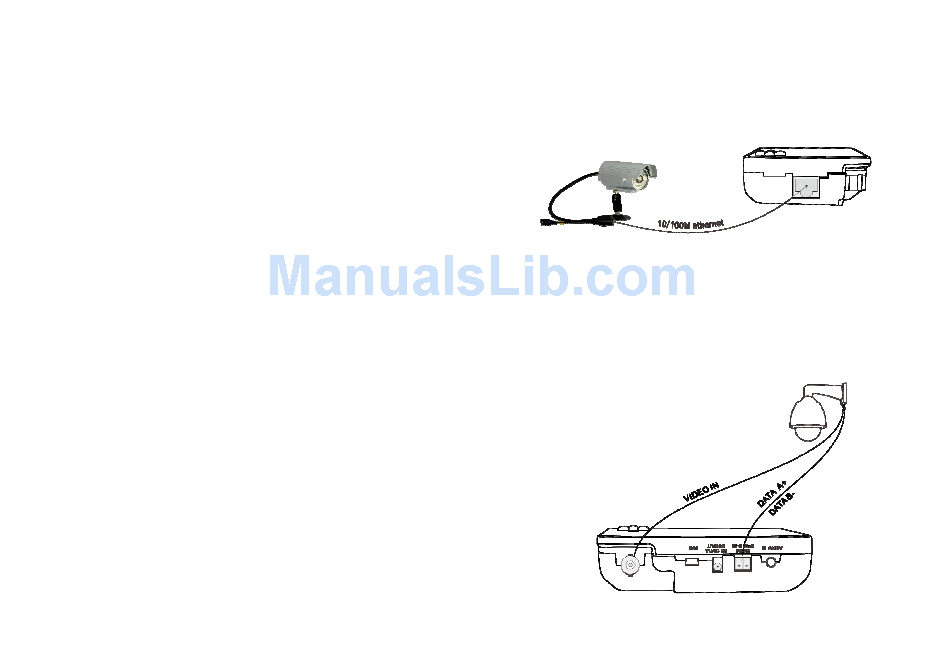

3.2.1 IP camera connection
34B
Power an IP camera with an independent power supply, then connect the IP camera to the IP tester's
LAN port, if the link indicator of the tester's LAN port is green and the data indicator flickers, it means
the IP camera and the IP tester are communicating. If the two indicators don't flicker, check if the IP
camera is powered on or the network cable is not functioning properly.
3.2.2 Analog camera connection
35B
Page.10.
