Summary of Contents for Trigon Elektronik Exxact

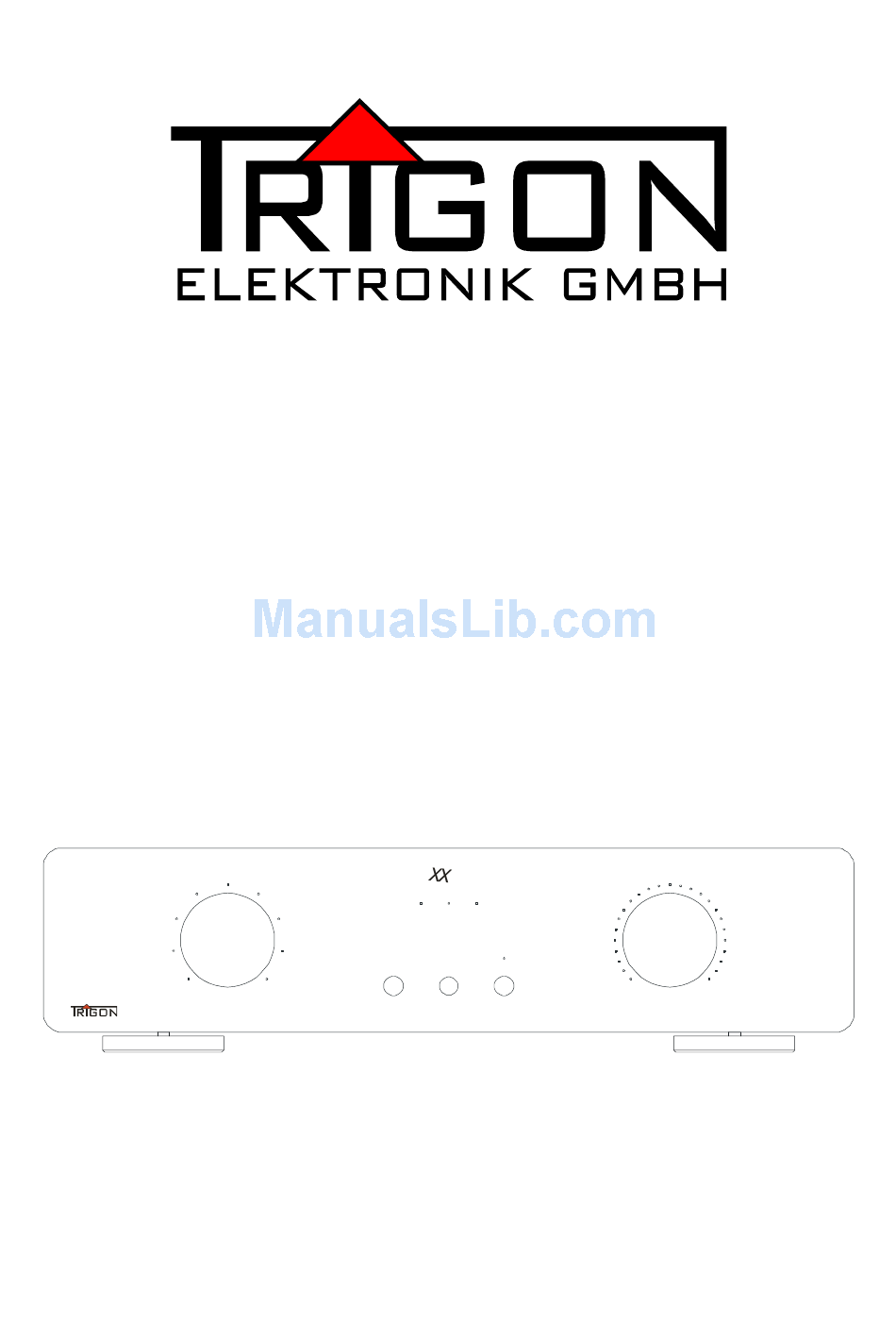

- Page 1 OPERATING MANUAL FOR INTEGRATED AMPLIFIER Exxact LINE 4 LINE 3 DIG ITAL 1 DIGITA L 2 LINE 2 BAL ANCED DIGITA L 3 PHONO / LINE 1 DIGITAL 4 PO WER PHONES INTEGRATED...
- Page 2 ____CONTENTS Introduction General Description Safety Information Installation Information Warranty and Service Information Initial Setup Front Panel Controls Rear Panel Connections Quick Start Manual Remote Control What to do, if ..unit doesn’t turn on? ... no sound is produced? ...
-
Page 3: General Description
Due to this elaborate cabinet construction, microphony sound effects are minimized. 2.1 Safety Information Trigon Elektronik GmbH will not assume any responsibility for damages occurred from unsafe handling of the product or from not adhering to the recommend safety instructions below. -
Page 4: Installation Information
Always make sure that your complete audio system is shut off before changing any cables or connecting any other components. Exxact power supply is set at the factory to be operated in 115V. Contact Trigon your local dealer or directly if you should need a different voltage version. -
Page 5: Initial Setup
After a short warm-up period, you will hear a quiet “clicking” sound from Relays within Exxact signalling that the unit is ready to be operated. At this time you... -
Page 6: Front View
13 14 CAUTION!!! Before you start with the wiring, however, you should switch off the Exxact as well as the other devices of your system, as always when working on the cabling! Avoid plugging into a UNBAL INPUT when the Exxact is switched ON. Unfortunately,... -
Page 7: Front Panel Controls
Behind this disc is the infrared remote control receiver. (3) On-Off button At this button the Exxact can be switched On or Off. The middle LED of the three LEDs (5) above this button flashes until the amplifier is switched on and then illuminates slightly brighter. -
Page 8: Rear Panel Connections
The LED above the headphone connector lights up and indicates that the loudspeakers are now switched off. To switch the speakers back on, press the input selector (1) again. The LED above the headphone socket switches off, the volume is reduced to the power-on volume, and the speakers are reconnected. - Page 9 NOTE: Switch off the connected devices at these output first before you switch of the Exxact to avoid a “Blop“ noise. (15) Analogue Inputs (LINE-2, 3, 4) Analogue high-level source devices can be connected to these sockets. (E.g., tuner, CD player, etc.)
- Page 10 (18) GROUND An earth cable can be connected here. This connection is, however, usually required only in conjunction with the PHONO preamplifier. 3.3 Quick Start Manual For the very impatient of you, who have already gained some experience with the use of high-end amplifiers, there is a short introduction to the speed-up.
- Page 11 Director 3.4 Remote Control Exxact Director. offers an optional IR Remote called the Bild 1 Bild 2 Bild 3 DEVICE ON/OFF DISPLA Y MODE SPLIT MONO Vol-10 Vol+10 MUTE VOL- VOL+ Director Figures 1 to 3 show the control panel of the Remote controller .
- Page 12 If you have switched off the LED´s completely, the LEDs always light up for a short moment when the Exxact is operated. Change e.g. the volume is displayed briefly the change and a short moment later the display switch off again.
-
Page 13: No Sound Is Produced
This charge can be transmitted to the preamplifier during normal use and may confuse the microprocessor used to control the Exxact . This is a common problem with many common computers as well. If Exxact... - Page 14 - Avoid direct sunlight! 4.5 ... unrealistic tests are carried out ? The Exxact integrated amplifier has been designed to operate under normal real conditions intended for audio amplifiers. Only in this way it will be able to produce high quality playback of audio signals.
-
Page 15: Technical Data
: 11,3Kg Dimensions : 440 x 110 x 380 mm ( BxWxD ) 10.2016 Specifications subject to change Designed and Manufactured by: Trigon Elektronik GmbH Crumbacher Str. 60 D-34277 Fuldabrück - Bergshausen Tel. +49 (0) 561/20753880 +49 (0) 561/20753888 e-mail: trigon@trigon-audio.de...
