Page 1: Operating Instructions

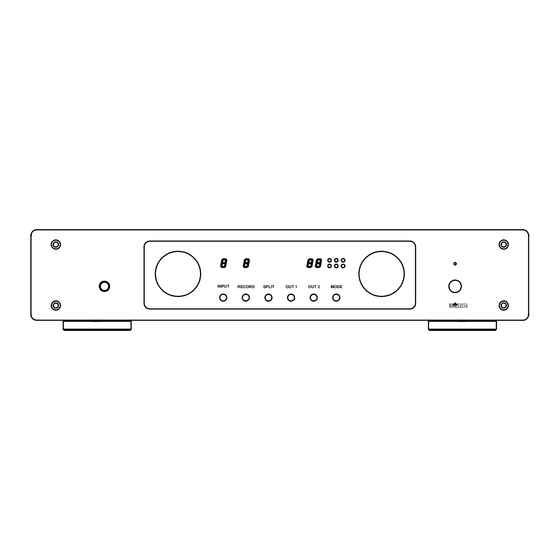

OPERATING INSTRUCTIONS FOR PRE AMPLIFIER TRV-100 INPUT RECORD SPLIT OUT 1 OUT 2 MODE... -
Page 2: Table Of Contents
Summary Preface General description of the equipment Security-advices Set-up advices Guarantee and service Starting The operating-elements on the front The connections on the back The Remote control Examples for connecting-possibilities Which equipment can be connected ? The inputs Connection of recording equipment (tape-recorder, cassette-recorder etc.) Possibilities for copying between two recording equipments The outputs Remote - socket... -
Page 3: Preface
Preface Dear TRIGON - client, Your made up your mind for the pre-amplifier TRV-100. This equipment was produced in response to severe production-controls and it is an excellent example for modern precision-technic. Even if you are already familiar to the handling of HIFI equipment you should study this instruction carefully and act according to the herein instructions. -
Page 4: Security-Advices
Before unplugging or installing connecting cable please switch off the unit in any case. The TRV-100 is prepared from factory for the use on 230 V supply . Should you have another voltage-supply, please contact your distributer or TRIGON in order to... -
Page 5: Guarantee And Service
Hum and noise are also caused by luminious discharge lamps so that therefrom should be a distance of about 1 m at least. . Avoid direct sunlight and install do not install the TRV-100 next to powerful heating units. -
Page 6: The Operating-Elements On The Front
Try to work with all operating-functions. You cannot destroy anything. If you tryed everthing and have understood the function of the TRV-100 you can start the connection of the cables. If you have already stored within the MODE-Function it is recommended to recall the storages (keep the MODE-key pressed for ca. - Page 7 3 - INPUT : If you strike this key with the SELECTOR-knob you will be able to choose the input which shall reproduce. The signal 9 shows the chosen channel. 4 - RECORD : If you strike this key, with the SELECTOR-knob you will be able to choose the input which shall be copied by a recorder (f.e.
-
Page 8: The Connections On The Back
The connections on the back 13 - MAIN POWER : The line-cable will be herein plugged 14 - 10V DC : The sockets are connected to a 10 - voltage DC-voltage to switch-on power amplifier or active-speakers from the distance. 15 - TR-LINK : nothing else 16 - OUTPUT 2 :... - Page 9 20 - UNBALANCED INPUTS : The socket-pairs INPUT 3 to INPUT 4 are unsymmetrical inputs. Any high level equipment like Tuner, CD-Player, Tape-Set etc. can be connected. Record-Players can't be connected as they need an additonal amplifier stage Nevertheless, special Phono-pre-amplifiers for record-players can be connected to these inputs.
-
Page 10: The Remote Control
The Remote-Control-Unit An IR remote-control-unit is attached to each TRIGON-pre-amplifier. This remote- control-unit is a system unit which can also be used in connection to further TRIGON- equipment. The buttons, which can be pre-adjusted to the respective equipment are marked by a graphical frame. First press the button PREAMP in order to use the TRV 100. -
Page 11: Examples For Connecting-Possibilities
Button OUT1 : With this button the output 1 can be switched-on and-off. Button OUT2/FREQ : With this button the output 2 can be switched on and - off Button SPLIT : With this button the SPLIT-Funktion can be switched on and -off. The remote-control-unit is run with two Mignon 1,5 voltage batteries. -
Page 12: The Outputs
Recording possibility between two recording-units In order to record between two recording units please connect the outputs of recording-unit A to the input 7 and the outputs of unit B to input 8. The recording- inputs of unit A should be connected to Tape outputs Rec-1 and of unit B to Tape outputs Rec-2. - Page 13 Connection to a surround-unit The TRV 100 offers the possibility to integrate a surrounddecoder into your HIFI- equipment in an easy manner. In the case of a surround-unit usually at least 5 independant speakers have to be steered. In order to use the two main-speakers of the right and left channel without disconnecting, you have to connect the surrounddecoder as follows: The input of the surrounddecoder has to be connected to the sockets of SPLIT OUTPUT (18).
-
Page 14: The Functionmode
Example: The Videorecorder is connected to the TRV 100 at INPUT 5. The surround-decoder is cabled as above. 1st step : switch the TRV-100 on SPLIT. 2st step: put the volume at TRV-100 to factor 73 3rd step: select input 5 at the TRV-100 4th step: switch the surround-decoder to input 1 5th step: adjust the unit according to the instruction of the surround-decoder. -
Page 15: Adjustment Of The Display-Brightness
Adjustment of the input-level Sometimes it can occure that the equipments connected to the TRV-100 have got a different volume and that there are volume-differe14nces if switching over. TheTRV- 100 offers the possibility to adjust the sensibility of each input individually. At the third position in the MODE-modus occures the function level. -
Page 16: Adjustment Of The Basic Volume
INPUT RECORD SPLIT OUT 1 OUT 2 MODE Input level adjustment: INPUT 3 is selected and lifted by „4“ (2dB) Having adjusted the level the MODE-button has to be pressed for some seconds (until the MODE-signal is twinkling again) .. That way the level-adjustment for the selected input is stored. -
Page 17: Dc-Remote Switch On/Off
If you want to stop the adjustments, the amplifiers leaves the MODE-menue automatically after 10 seconds. DC-Remote Switch-on and-off The TRV-100 has got the possibility to offer a 10 voltage DC-voltage for remote control Such a DC-voltage is demanded fron several power amplifier and active- speakers in order to get switched-on at the same time as the pre-amplifier. -
Page 18: What To Do If
Basic adjustment ex-factory Ex-factory the TRV-100 is supplied with a basic-position. If you are not satisfied with the adjustments in the MODE-menue and want to reproduce the ex-factory adjustment, please keep the MODE-button pressed for some seconds (but you shouldn't be in the MODE-menue, that means that the MODE-button is not twinkling at the moment). -
Page 19: There Is Not Remote-Signal
It is only humming if the tuner or the video-recorder or the television-set is connected to the pre-amplifier. -All these units are connected to the aerial which itself is earthed. So there is from time to time a humming loop which in this case can easily removed by the use of a AC-filter. -
Page 20: Technical Details
Technical Details Bandwith : 1Hz - 200kHz (+ - 3dB) Distortion : < 0.02 % Channel separation : < 80 dB ( 1kHz ) : < 98 dBA Input impedance : 47kOhm max. Output-voltage : 6.5 V eff Dimensions : 440 x 89 x 340 mm ( BxHxT) Weight : 8,1 kg Inputs...
