OPERATING MANUAL
FOR CD-PLAYER
Exxact
4
3
3 4
8 3
10.2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXXACT and is the answer not in the manual?

Questions and answers

Related Manuals for Trigon Elektronik EXXACT

Summary of Contents for Trigon Elektronik EXXACT

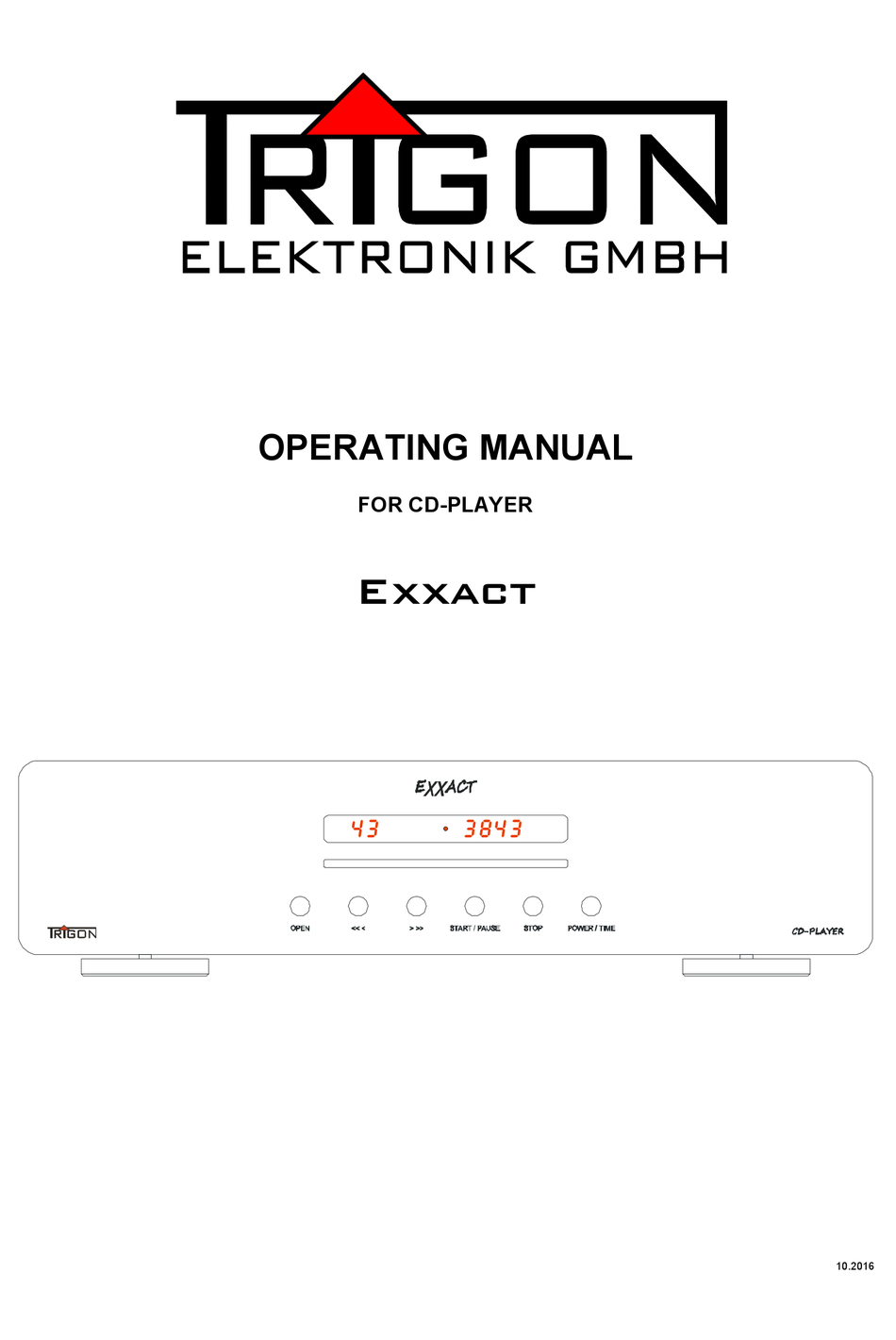

  • Page 1 OPERATING MANUAL FOR CD-PLAYER Exxact 10.2016...
  • Page 3 CONTENTS Introduction General Description Safety Information Installation Information Warranty and Service Information Initial Setup Front Panel Controls Rear Panel Connections Quick Start Manual Remote Control What to do, if ..unit doesn’t turn on? ... no sound is produced? ...

  • Page 4: Safety Notices

    1 Introduction Trigon Valued - Customer, Exxact We are excited that you have chosen to purchase the CD-Player. This unit was built using the highest quality control to insure utmost precision in manufacturing. Whether you are a beginner to Hi-Fi or advanced user, it is highly recommended that you read and understand this user’s manual thoroughly before using your new CD-Player.
  • Page 5 Any damage that results from improper handling or unauthorized repair attempts will void any possible warranty claim. Please always turn off your system’s device before changing and/or attaching cables. Exxact can operate at a voltage between 100V and 250V. Set-up Recommendations After unpacking the unit, examine the device first for possible transport damage.

  • Page 6: Guarantees And Service

    Guarantees and Service Exxact TRIGON is a high-quality and sophisticated product. We at try to TRIGON ensure the demands made of a -product are met via numerous quality tests TRIGON and strict goods control. If a problem should however occur, then ELEKTRONIK GmbH grants a 3-years warranty.
  • Page 7 [ 4 ] Key START / PAUSE Exxact If there is an audio-CD in the , the CD player can be started by pressing this key. By pressing the START-button during the rendering procedure the break function is switched on and the display show the word “PAUSE“.
  • Page 8 [ 6 ] Key POWER / TIME The four different time modes can be selected with this key. For further information see Exxact number [ ]. Long pressing switches off the (Standby mode). By short pressing of this key the CD player can be turned on again.
  • Page 9 3.2 The Connections on the Back handmade by MA IN POWER C D -P LAY ER CAUTION in GERMANY BA L-OUT-R BA L-OUT-L UNBA L-OUT S PDIF-OUTPUTS R-CH L-CH OP T COA X DISP LAY B RIGHTNES S CONS UMPTION <25 W 13 14 [ 11 ] Power Connection, Power Switch and Fuse...

  • Page 10: The Remote Control

    3.3 The Remote Control Director Exxact The IR-remote control is available as accessory for CD Player Director is a system remote control which is also Trigon compatible to other HiFi devices. The graphic on the Exxact left shows all keys, with which the can be served, in dark colour.
  • Page 11 SEARCH- SEARCH+ STOP VOL- VOL+ Director Exxact Button layout This key switches on – for a limited time - the 10th-keyboard, which allows direct selection Director of titles. If activated, the LED lights up at the and the display of...
  • Page 12 The rendition can be started with this key. STOP The rendition is stopped with this key. Keys VOL – and VOL+ Exxact These keys do not control any functionalities of . However, they will control the Trigon volume of a connected...

  • Page 13: One Hears Nothing

    Does the mains voltage rest against the used main plug socket, or has the home fuse maybe reacted? – Examine the home fuse..one hears nothing? Is the correct entrance at the amplifier selected? - Select the correct entrance. Exxact Exxact Does the supply at all a signal? – Attach the to another entrance and examine if it functions.
  • Page 14 The LED will shine. The remote control is activated now for the Exxact Are the batteries dead? - Insert new batteries. Is there too much distance? - Reduce the distance. The IR remote control has a limited range.

  • Page 15: Technical Data

    5. Technical Data Frequency response : 20Hz - 20kHz (+ - 1dB) Distortion factor : < 0.02 % Cross-talk attenuation : < -80 dB ( 1kHz ) Distance of weighted noise voltage : < -100 dBA Outputs : Analog - 1x Cinch, 1x balanced XLR : Digital - 1x BNC, 1x optical Toslink Output Impedance : 47 Ohm...
  • Page 16 Production and construction: Trigon Elektronik GmbH Crumbacher Straße 60 D-34277 Fuldabrück - Bergshausen Germany Tel. +49 (0) 561/20753880 +49 (0) 561/20753888 e-mail: trigon@trigon-audio.de web: www.trigon-audio.de...
