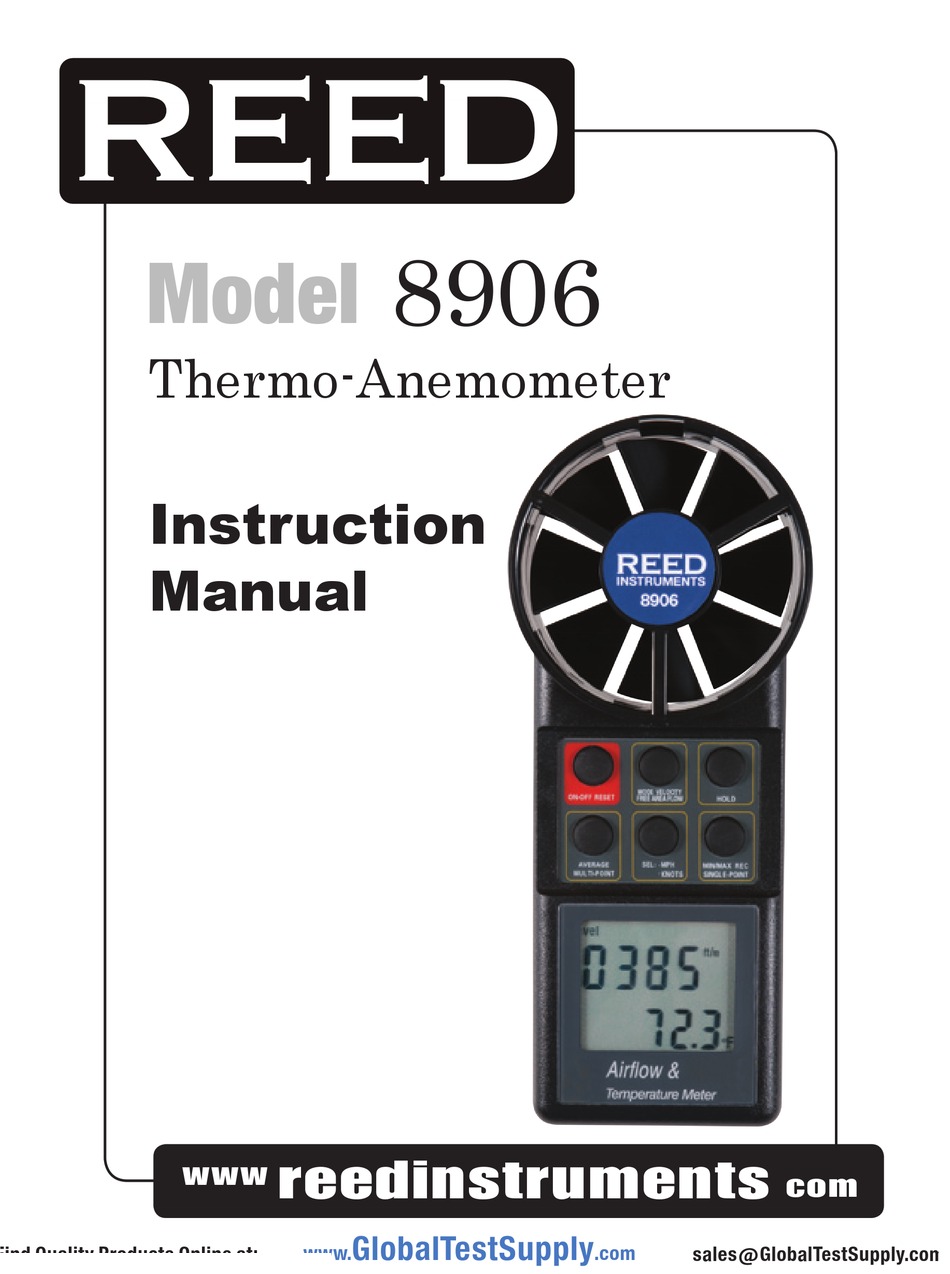

- Page 1 Rich Black - 20/20/20/100 8906 Model Thermo-Anemometer Only if you REALLY need them: Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Table of Contents Features ..................3 Specifications ................3 Instrument Description ..............4 Operating Instructions ..............5-10 Single Point Air Velocity (fpm)............5 Continuous Moving Average ............5 MIN/MAX/AVG Reading on a Single Point ........6 Multipoint Air Velocity Average ............ 6 Auto Power OFF ................. 7 Default unit setting (Imperial or Metric) ........
-
Page 3: Features
Features • Integral rotary vane sensor for one hand operation • Simultaneous display or air velocity and temperature • Continuous moving air velocity averaging of measurements for up to 2 hours • Displays Min/Max/Avg velocity with temperature values • Multi-point averaging up to 8 points •... -
Page 4: Instrument Description

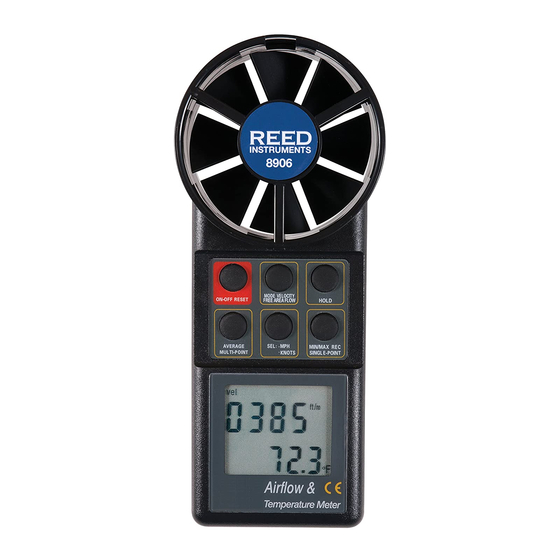

Instrument Description 1. Power Button 2. Mode Button 3. Hold Button 4. Average Button 5. Unit Button 6. Max. / Min. Button 7. Air Flow Sensor 8. LCD Display 9. Primary Readout: Air velocity/ Air volume/Free area 10. Secondary Readout: Temperature or Records number Symbol FunCTIon Air velocity... -
Page 5: Operating Instructions
operating Instructions For the best results when using your instrument, make sure the airstream and the sensor are aligned as shown (±20 degrees maximum) and wait 3 seconds for the reading to stabilize. Single Point Air Velocity (fpm) Press the Power button to turn the meter on. The meter will show the full display for the initial 5 seconds. -
Page 6: Min/Max/Avg Reading On A Single Point
MIN/MAX/AVG Reading on a Single Point Turn the power ON. Place the sensor in front of the air flow source. Press the Max. / Min. button. The unit will begin to record the readings. The meter displays the average velocity by default. Each press of the Max. -
Page 7: Auto Power Off
Press the Max. / Min. button, (you will hear a single beep), and release, (the display will show a digit 1-8). This number represents the point number which has been recorded. Repeat the above procedure until all desired points have been measured and recorded. A maximum of 8 points may be recorded at one time. -
Page 8: Default Unit Setting (Imperial Or Metric)
Default unit setting (Imperial or Metric) The default measuring units can be changed by following the steps below. The unit should be turned off before starting. Press and hold the Average button, then press the Power button once to turn the unit ON. -
Page 9: Rs232 Output
RS232 Output Following Step 3 of Default unit setting, you will see a "2400" (default) number on the screen. The 2400 is the default setting of Baud Rate for RS232 output. You can change the setting to "1200" by pressing the Hold button and to "2400"... -
Page 10: Multipoint Air Flow Average (Cfm)
Press the Average button to advance to next number. Follow Step 3 and repeat to input the free area size. Press the Mode button once all digits have been entered. The word "FLOW" will appear. The meter is now ready to measure air flow (cfm). -
Page 11: Battery Replacement
123 Yellow Red - 10/100/100/5 485 Red Yellow - 0/27/100/0 123 Yellow For service on this or any other REED product or information on other REED Blue - 100/80/30/5 534 Blue products, contact REED Instruments at info@reedinstruments.com reedinstruments Rich Black -... - Page 12 notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 534 Blue Yellow - 0/27/100/0 123 Yellow ________________________________________________ Red - 10/100/100/5 485 Red Yellow - 0/27/100/0 123 Yellow Blue - 100/80/30/5 534 Blue reedinstruments Rich Black -...
