Summary of Contents for REED MS2301

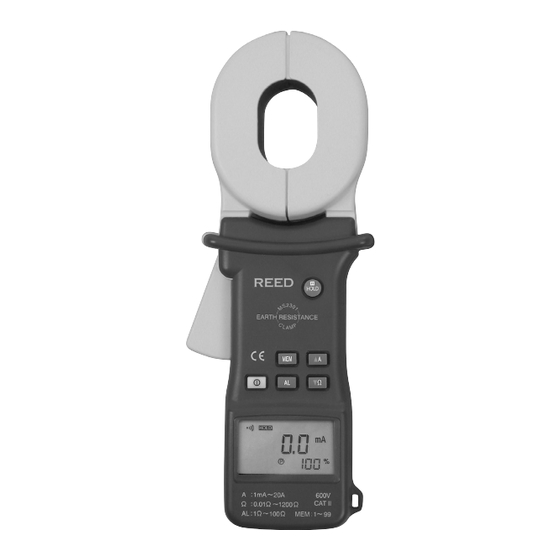

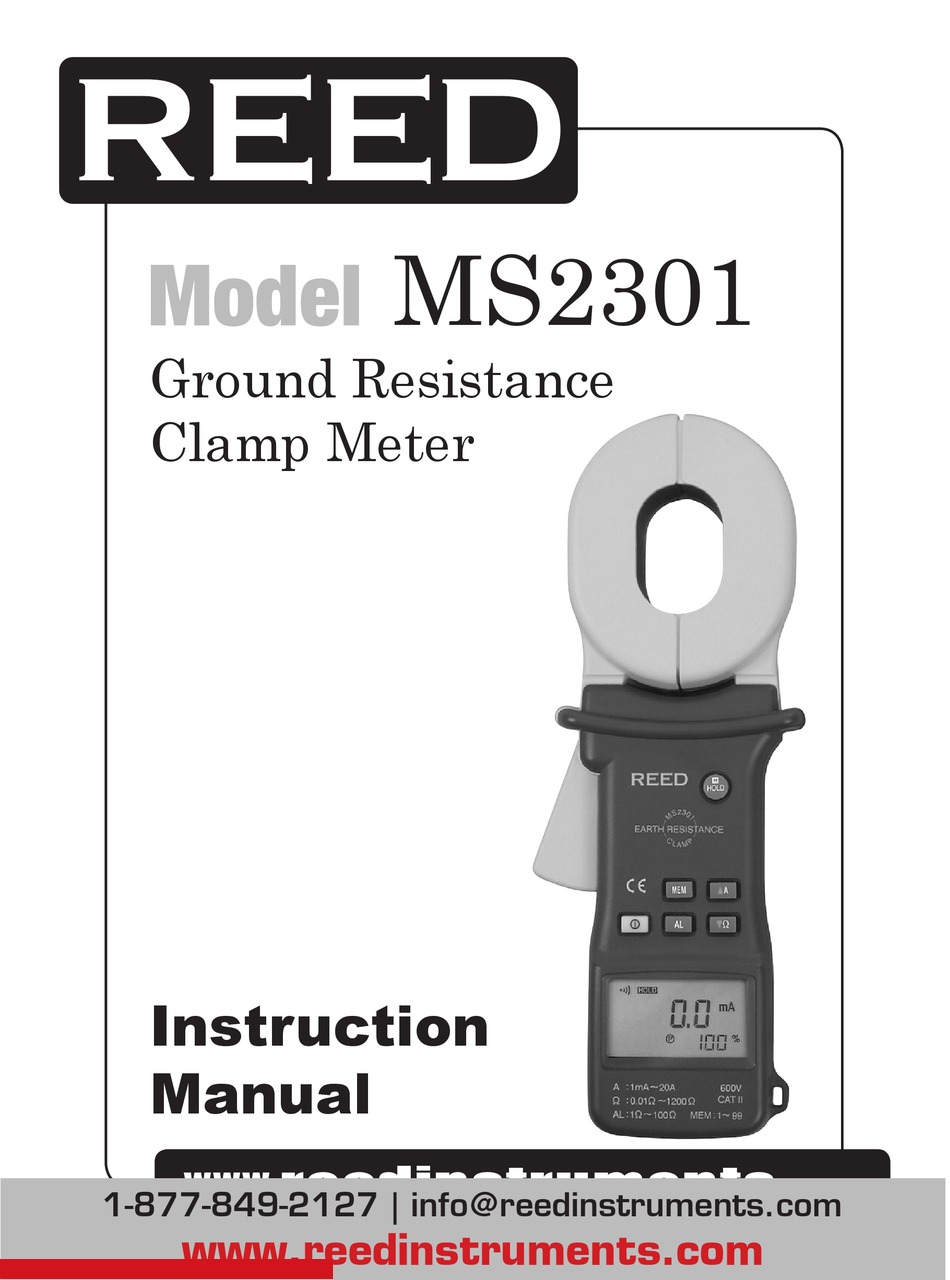

- Page 1 Black MS2301 Model Pantone 534 Blue - 100/80/30/5 Ground Resistance Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Clamp Meter Instruction Manual reedinstruments 1-877-849-2127 | info@reedinstruments.com www.reedinstruments.com...
-
Page 2: Table Of Contents
Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 For service on this or any other REED product or for information on other Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED products, contact REED Instruments at info@reedinstruments.com... -
Page 3: Safety
Safety To ensure safe operation and service of this meter, follow these instructions: • Before use take note that the metal objects and the conductors of this meter can be very dangerous • When testing the meter, pay extra attention to safety to prevent shock and arc blast injury where hazardous live conductors are exposed •... -
Page 4: Features
Features This ground resistance clamp meter is more advanced than the traditional testers. • Supplementary leads and other accessories are not required • Measure ground resistance safely and quickly by simply clamping the ground line • Measure current as well as resistance •... - Page 5 Testing Conditions: Temperature: 23°C ±3°C Humidity: 50% RH ±10% Battery Voltage: >7V External Magnetic Field: <40A/m External Electric Field: <1 V/m Testing Frequency of Current: 45 Hz to 65 Hz Operating Temperature: -10°C to 50°C (14°F to 122°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Max.
-
Page 6: Instrument Description/Function
Instrument Description/Function Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue 1-877-849-2127 | info@reedinstruments.com reedinstruments Black Rich Black - 20/20/20/100 www.reedinstruments.com Pantone 534 Blue - 100/80/30/5... - Page 7 Description Button Function 1 Jaws 2 Trigger 3 MEM Button Select/Set Memory Mode 4 Power Button ON/OFF/EXIT Set Mode 5 LCD Display 6 AL Button Select Alarm Mode Ω Measurement/Alarm ARROW Ω Value Decrease/Record Button Number Select ARROW A A Measurement/Alarm Value Button Increase/Record Number Select 9 HOLD Button...
-
Page 8: Lcd Display
LCD Display Note: When the meter is turned on, it performs a rapid auto-test of the entire display. All the symbols will show in the display for a short time. Symbol Description Function Buzzer The buzzer is ON HOLD Hold Holds the last measurement Indicates that the current in the grounding loop has... - Page 9 Indicates that the meter is WAIT Wait auto-calibrating Current Current unit of measure Resistance Resistance unit of measure Indicates the percentage of Battery Life battery power remaining Indicates the resistance value Alarm Threshold of the unit Indicates the value of Value the battery life or alarm threshold...
-
Page 10: Operating Instructions
Operating Instructions ON/OFF button switches the meter on and off. Press the button once to turn the meter on and then hold the button for two seconds to turn the meter off. Once the meter is on, it begins to auto-calibrate. While it’s calibrating, the display will go from CAL 9 to CAL 0. -
Page 11: Schematics Of Measurement
Schematics of Measurement Buzzer ON. Buzzer ON. A loop ground resistance of 68.7Ω A loop ground resistance The ground resistance value is of 36.2Ω. The battery life above the high alarm threshold of 50Ω, is at 87%. a beep will sound. Buzzer ON. -
Page 12: Current Measurement
Buzzer ON. Buzzer ON. A loop ground resistance of 93.7Ω. The current in the grounding loop has The battery life is at 18%. been disturbed, the reading is 55.2Ω, At less than 20% the batteries need however the resistance measurement to be replaced. -
Page 13: Alarm Operation
Alarm Operation 1. When in the resistance measurement mode, press the AL button, the AL symbol and the value of the alarm threshold will be displayed. 2. You can press the AL button several times to select one of three alarm modes: Low Alarm Mode: When the measurement is below the alarm threshold, a continuous beep will sound at low frequency. -
Page 14: Special Functions
Reading the recorded measurements Press the POWER + MEM buttons for 1 second, the MR and HOLD symbols will then appear on the display. The number of the reading and the value will be shown one at a time. To display the previous or following record simply press the A or Ω... -
Page 15: Battery Replacement
Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or for information on other Red - 10/100/100/5 Pantone 485 Red REED products, contact REED Instruments at info@reedinstruments.com Yellow - 0/27/100/0... -
Page 16: Field Applications
Field Applications This ground resistance clamp meter is designed to test the ground resistance of any loop system. In addition to measuring the ground resistance of electric power transportation conductors and communication circuitry, this meter also measures the ground resistance of electric equipment and lightning arresters. - Page 17 Distribution of Electric Power The distribution of electric power on the ground is transmitted by wire shelf, every wire post has it’s own ground protection. Measurement mode as follows: Configuration of Telecommunications System To protect telephone lines from being interfered, the telecom maintenance department uses conduction wires to insulate the telephone lines.
- Page 18 Faraday Cage Protection System The principle of the Faraday Cage is that the conduction wire is connected with the ambient ground of one instrument, a group of equipment or one building. It can’t be interfered with externally. Application of Gas Stations Testing of ground resistance is necessary for gas stations to prevent static electricity.
- Page 19 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow ________________________________________________ Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
- Page 20 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow ________________________________________________ Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
