- Page 1 Black LX-105 Model Pantone 534 Blue - 100/80/30/5 Pantone 485 Red - 10/100/100/5 Illuminometer Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments...
-
Page 2: Table Of Contents
Table of Contents Features ..................3 Specifications ................3-5 Instrument Description ..............6 Operating Instructions ..............7-11 Zero Adjustment ................. 7 Selecting Measuring Unit ............7 Selecting Maximum Range ............7 LCD Display ................8 Data Hold ................... 8 Relative % Light Measurements ..........8 Data Record (Max, Min and Average Reading) ...... -
Page 3: Features
Features • Simultaneous display of Foot Candles or Lux, plus four lighting types • Measuring Ranges: 200.0/2000/5000 Fc; 2000/20,000/50,000Lux • Microprocessor assures maximum accuracy • Super large 1.4” (1999 count) LCD display • Displays % differential from reference point • “ZERO” re-calibration •... - Page 4 Memory Recall: Records maximum, minimum and average readings with recall facilities Sample Time: Approximately 0.4 seconds Zero Adjustment: By push button Power Off: Manual off by push button, or auto shut off after 10 minutes Data Output: RS 232 PC serial interface Overload Indication: “- - - -”...
- Page 5 Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 REED products, contact REED Instruments at info@reedinstruments.com...
-
Page 6: Instrument Description

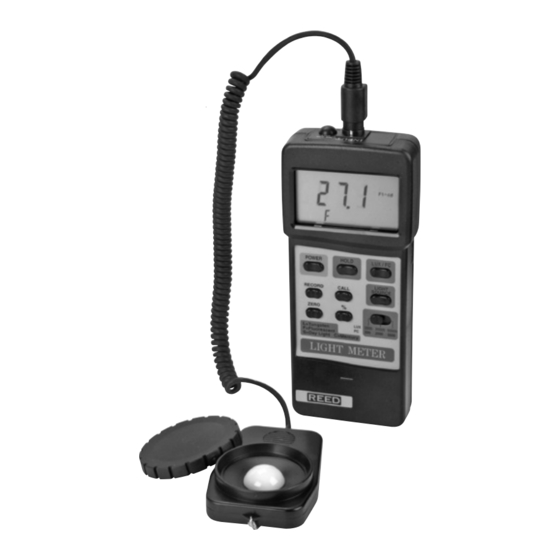

Instrument Description 1. Display 2. ON/OFF button 3. Data hold button 4. LUX/FC (Ft-cd) button 5. LCD contrast adjustment 6. Memory record button 7. Call button 8. Light source select button 9. Zero button 10. % button (Relativity) 11. Range switch 12. -
Page 7: Operating Instructions
Operating Instructions Press the ON/OFF button to turn the instrument on. Zero Adjustment • Cover the light sensor using the sensor cover provided • Slide the range switch to the 2000 LUX position • Press the zero button and the display will show a value of zero •... -
Page 8: Lcd Display
LCD Display On the 20000 LUX range the last digit will be shown on the lower line of LCD display. On the 50000 LUX range the last two digits will show on the lower line of LCD display. 1562 For example: On the 20000 range, if the display shows the above it means the real display is 15620 LUX Note: The digits on the lower display are multipliers only (i.e. -
Page 9: Data Record (Max, Min And Average Reading)
Data Record (Max, Min and Average Reading) The data record function displays the maximum, minimum and average readings. To start the data record function, press the record button once. A REC symbol will appear on the LCD display. With the “REC” symbol indicated on the display: •... -
Page 10: Contrast Adjustment
Contrast Adjustment The instrument features the ability to adjust the contrast of the display. This is achieved by controlling the LCD contrast adjustment. RS232 PC Interface The instrument features an RS232 output via 3.5mm terminal. The connector output is a 16 digit data stream which can be utilized to the user’s specific application. -
Page 11: Battery Replacement
Indicator for lower display 0=No symbol 1=°C 2=°F Reading polarity for the display 0=Both upper & lower display values are + 1=Upper -, lower + 2=Upper +, lower - 3=Both upper & lower display values are - Start word Battery Replacement 1) When the left corner of LCD display shows LBT you will need to replace the battery 2) Slide the battery cover away from the instrument and remove the... - Page 12 Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 REED products, contact REED Instruments at info@reedinstruments.com Pantone 485 Red Yellow - 0/27/100/0...
