To Connect the Copper Cables

Use any SFP+ direct attach twin-ax copper cables to attach devices to the HBA.
1. Insert one end of the copper cables into empty SFP+ cages on the HBA.
Ensure that the cables are fully inserted and secured.

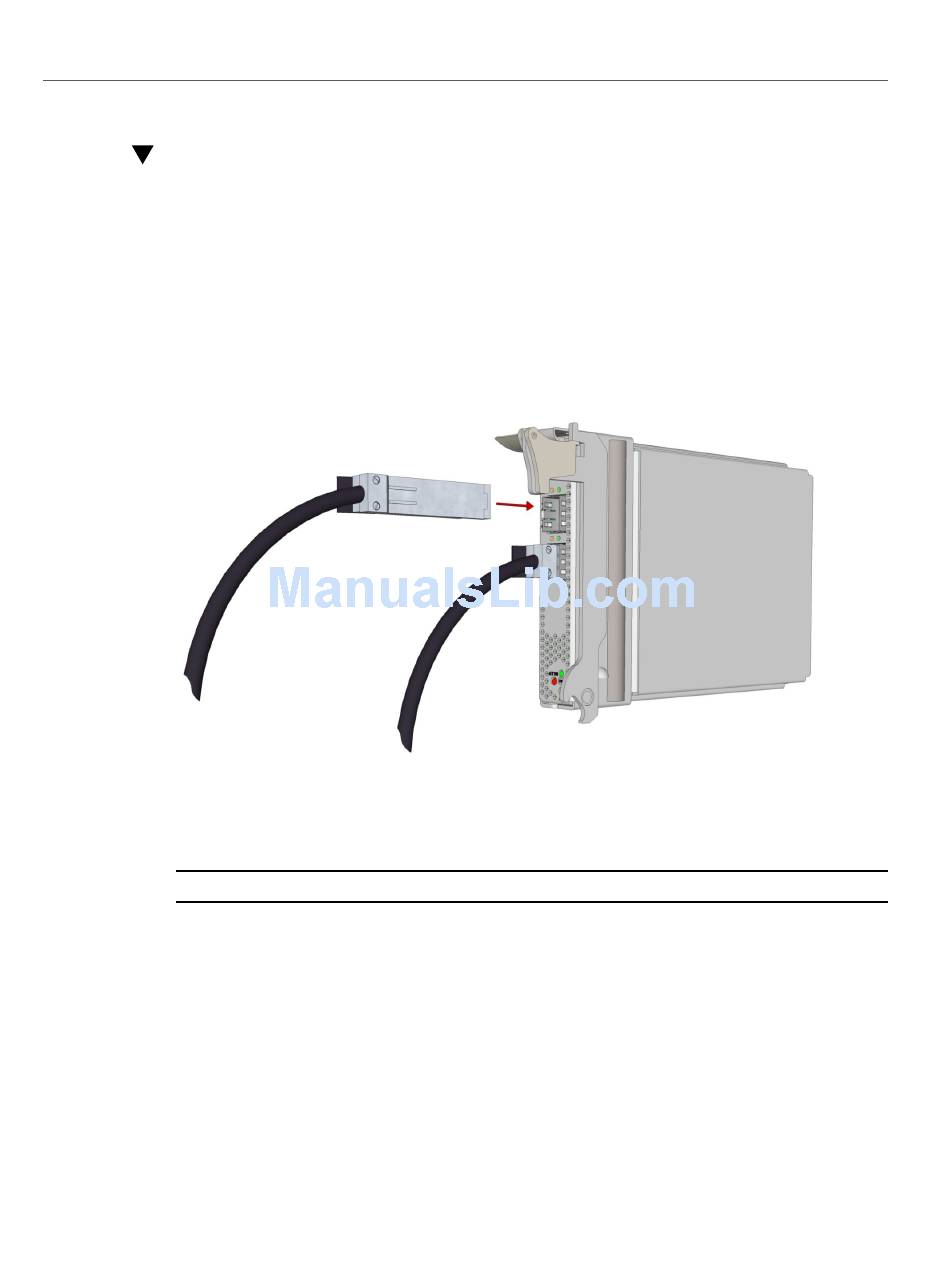

The following figure shows how to connect the HBA with a copper cable.
After the copper cables are connected to the HBA, insert the other end of the
2.
cables into the empty SFP+ cages on any FC supported switches.
Note -
Powering on the System
This section provides basic instructions on how to apply power to the system. For detailed
instructions, see your system documentation.
Link Aggregation Control Protocol (LACP) cannot be used on the same port as iSCSI.
Chapter 2 • HBA Installation, Configuration, and Removal
To Connect the Copper Cables
23
