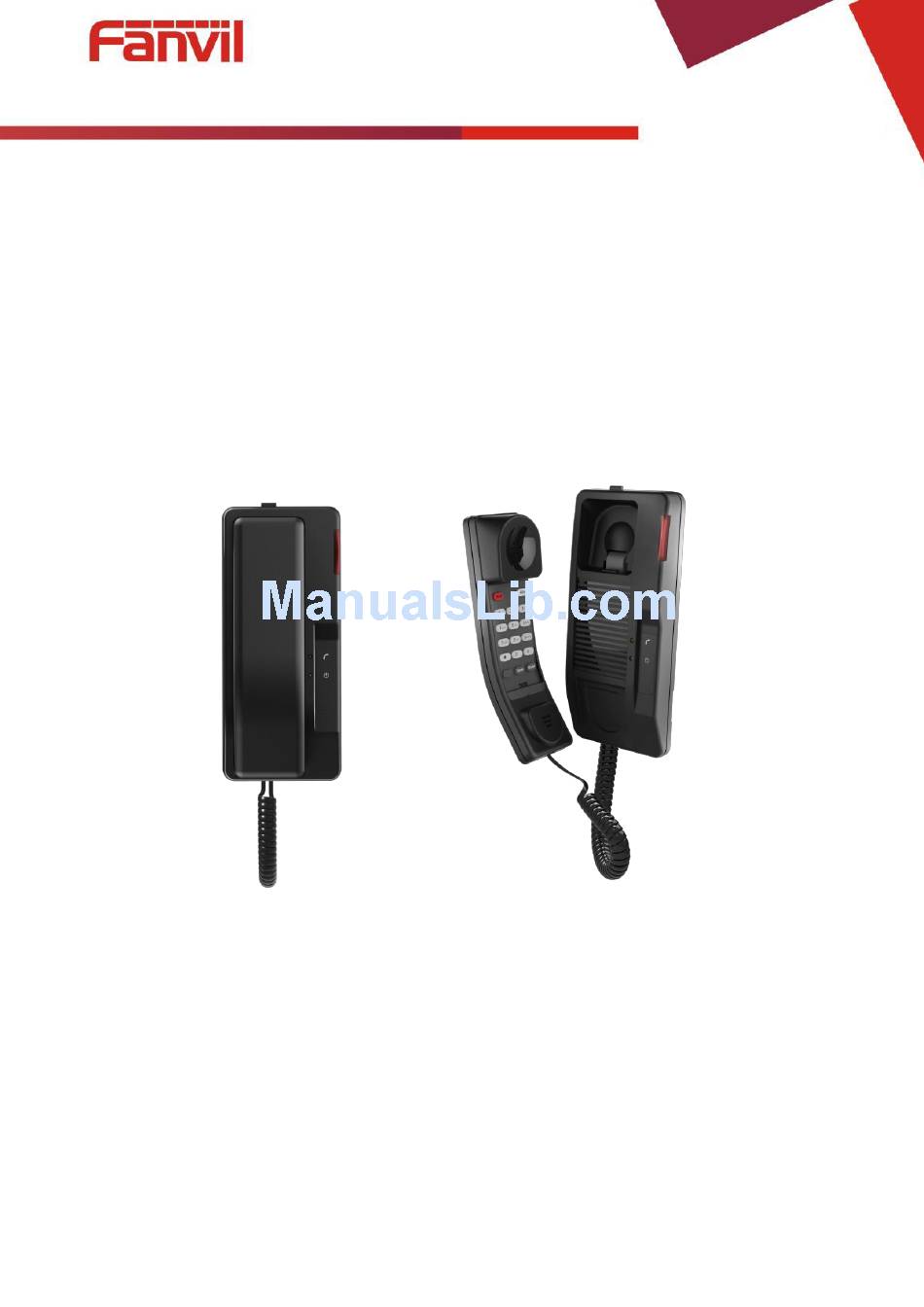

  • Page 1 <文档标题> H2S User Guide...
  • Page 2 <文档标题> Document VER Firmware VER Explanation Time V1.0 2.0.2.2809 Initial issue 20170609...
  • Page 3 <文档标题> Table of Content 1 The Appearance of Product ............4 1.1 Keypad instruction ............4 1.2 Wall mount setup ............6 2 Telephone Setting ............... 7 2.1 Getting IP address ............7 2.2 Checking IP address ............7 2.3 How to enter web setting interface ........... 7 2.4 How to set the memory key ..........

  • Page 4: The Appearance Of Product

    <文档标题> The Appearance of Product Keypad instruction A: Telephone LED Indicator The light flashes when the telephone rings for incoming calls. When the telephone system supports Messages Waiting Indication (MWI) function and there are some voice messages, the light will also flash. B: Hold Button Places a call on hold status.
  • Page 5 <文档标题> F: Dial Pad Dial the number you want. G: Programmable Button Stores phone numbers or feature access codes. H: Handset LED Indicator I: Power LED Indicator J: Cable trough K: Wan Port L: Headset Port Connect the headset cord. M: Handset Wire trough N: Wall Mount Hole O: Power Port...

  • Page 6: Wall Mount Setup

    <文档标题> 1.2 Wall mount setup Fix the device on the wall. Screw the embedded junction box on the wall Connect the cable from embedded junction box to the telephone. Hitch the telephone on the screw. Please refer the dimension when you want to screw the embedded junction box on the wall. Screw Wall 13.2cm...

  • Page 7: Telephone Setting

    <文档标题> Telephone Setting 2.1 Getting IP address DHCP is the default network setting, and telephone will get the IP address from DHCP server(Router) after the cable connected. 2.2 Checking IP address Pick up the handset and long press the “#” key, then you can hear the IP address voice information.

  • Page 8: How To Set The Memory Key

    <文档标题> 2.4 How to set the memory key Enter into the web setting interface, select Function Key->Function Key. Select the function and fill the number in the Value items. 2.5 Network setting Enter into the web setting interface, select Network->Basic, there are three mode of network. 1．...

  • Page 9: Sip Setting

    <文档标题> 2.6 SIP setting Enter into the web setting interface, select Line->SIP, and fill in the items below. 1． Server address 2． Account name 3． Phone number 4． Password Click the “Apply” button to save the config, you can dial out after the register status is “Registered”...

  • Page 10: Basic Operation

    <文档标题> Basic Operation 3.1 Making a call There are two ways to make a call, using dial pad or memory button. 1. Off-hook 2. Dial the number on the dial pad or press memory key, end with # as default. 3.

  • Page 11: Advanced Operation

    <文档标题> Advanced Operation 4.1 Call transfer Blind transfer During a call, you want to transfer the call to another one without talking with the one you transfer to. 1. Press “Transfer” key, you can get the second dial tone , and the first call is held automatically.
  • Page 12 <文档标题> 1. Line LIGHT indicator flashes, can’t make a call. Please check the SIP register status, and make sure the register information is correct. 2. Can’t hear the voice each other Please contact your administrator to confirm whether there is firewall in the network. 3.
