Magtrol 6200 User Manual

Open loop dynamometer controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

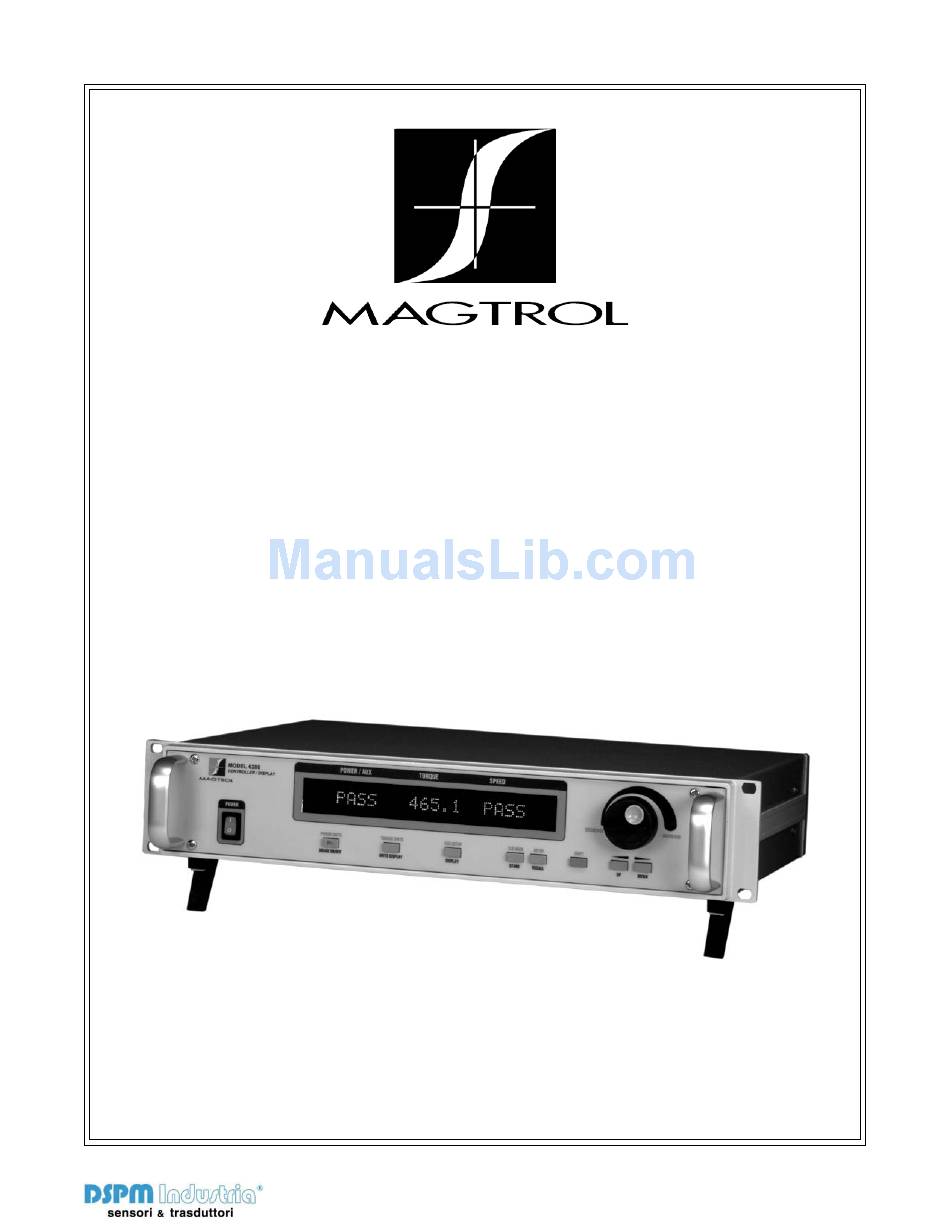

MODEL 6200
Open Loop
Dynamometer Controller
User's Manual
Via Paolo Uccello 4 - 20148 Milano
Tel +39 02 48 009 757 Fax +39 02 48 002 070
info@dspmindustria.it www.dspmindustria.it

Advertisement

Table of Contents
loading

Related Manuals for Magtrol 6200

Summary of Contents for Magtrol 6200

  • Page 1 MODEL 6200 Open Loop Dynamometer Controller User’s Manual Via Paolo Uccello 4 - 20148 Milano Tel +39 02 48 009 757 Fax +39 02 48 002 070 info@dspmindustria.it www.dspmindustria.it...
  • Page 2 While every precaution has been exercised in the compilation of this document to ensure the accuracy of its contents, Magtrol, Inc. assumes no responsibility for errors or omissions. Additionally, no liability is assumed for any damages that may result from the use of the information contained within this publication.
  • Page 3 Safety Precautions 1. Make sure that all Magtrol dynamometers and electronic products are earth-grounded, to ensure personal safety and proper operation. 2. Check line voltage before operating the 6200. 3. Make sure that dynamometers and motors under test are equipped with appropriate safety guards.
  • Page 4 Revisions To This Manual The contents of this manual are subject to change without prior notice. revision date 1st Edition rev. A – March 2014 table of revisions date edition Change section(s) 03/03/14 1st Edition - rev. A Torque Offset and Gain procedure updated. 6.3.2 03/03/14 1st Edition - rev.
  • Page 5 MANUAL oRgANIzATIoN ............................VII CoNVENTIoNS USED IN ThIS MANUAL ......................... VIII 1. introduCtion ..........................9 1.1 UNPACkINg YoUR 6200 ............................9 1.2 FEATURES oF ThE 6200 ............................. 9 1.3 DATA ShEET ................................10 2. Controls ............................12 2.1 FRoNT PANEL ................................12 2.1.1...
  • Page 6 Table of Contents Magtrol Model 6200 Open Loop Dynamometer Controller 5.1.1 Installing the gPIb (IEEE-488) Connector Cable ..................14 5.1.2 Changing the gPIb Primary Address ......................15 5.2 ChECkINg ThE 6200-To-PC CoNNECTIoN ......................15 5.3 PRogRAMMINg ................................ 16 5.4 6200 CoMMAND SET ..............................16 5.4.1...
  • Page 7 Magtrol Model 6200 Open Loop Dynamometer Controller Table of Contents table of figures 2. Controls ............................12 Figure 2–1 Front Panel ............................... 12 Figure 2–2 Secondary Function Menu ........................12 Figure 2–3 Rear Panel ..............................14 Figure 2–4 Dynamometer brake output ........................14 Figure 2–5 Accessory Torque-Speed output .......................

  • Page 8: Introduction

    Who should use this manual This manual is intended for bench test operators who are going to use the Model 6200 Dynamometer Controller in conjunction with any Magtrol hysteresis Dynamometer or auxiliary instrumentation. manual organization This section gives an overview of the structure of the manual and the information contained within it.
  • Page 9 Preface Magtrol Model 6200 Open Loop Dynamometer Controller Appendix C: SChEMATICS - For Encoder/Switch board, Power Supply, DSP & Memory and Analog I/o. Conventions used in this manual The following symbols and type styles may be used in this manual to highlight certain parts of the text: Note: This is intended to draw the operator’s attention to complementary...
  • Page 10 Closed box calibration of torque and auxiliary input - Eliminates need to open box for adjustments. The 6200 is designed to work with any personal computer using an IEEE-488 or an RS-232 interface, or as a stand-alone unit. In a computer-controlled environment, the 6200 provides the following motor testing capabilities: •...

  • Page 11: Data Sheet

    IEEE-488 interface. standard • Dynamometer Overload Protection pass/Fail motor testing • Internal Data Storage: Up to 100 data points The Model 6200 comes with an easy-to-use motor testing • Auxiliary ± 5 V DC Analog Input: For additional Pass/Fail feature. This feature is ideal for quick pass/fail transducer (go/no go) testing in production and incoming inspection •...
  • Page 12 Magtrol Model 6200 Open Loop Dynamometer Controller Chapter 1 – Introduction Specifications 6200 MEASUREMENT CHARACTERISTICS DIMENSIONS Maximum Torque 2000 units Width 19.0 in 483 mm Maximum Speed 99,999 rpm Height 3.5 in 89 mm Speed: 0.01% of reading from 10 rpm to 100,000 rpm Depth 12.4 in...
  • Page 13 2. Controls front panel The front panel provides a power switch, nine control buttons, a Decrease/Increase Dial, and Vacuum Fluorescent Display (VFD) model 6200 POWER/AUX TORQUE SPEED CONTROLLER/DISPLAY DECREASE INCREASE POWER POWER UNITS TORQUE UNITS AUX SETUP CLR MENU SETUP...
  • Page 14 Magtrol Model 6200 Open Loop Dynamometer Controller Chapter 2 – Controls PoWER UNITS, ToRQUE UNITS, AUx SETUP, CLR MEM oR SETUP 3. Press the ShIFT button again to exit the secondary function and return to main menu. 2.1.2 ow to...
  • Page 15 Chapter 2 – Controls Magtrol Model 6200 Open Loop Dynamometer Controller rear panel The rear panel provides connectors and receptacles for connecting to appropriate equipment. Refer to figures 3, 4 and 5 in this chapter for detailed drawings of the brake ...
  • Page 16 Magtrol Model 6200 Open Loop Dynamometer Controller Chapter 2 – Controls  DYNAMoMETER Connect dynamometer signal cable here. 1. N/C 8. COMMON 2. N/C 9. D.P. 3. ISOLATED +22 VDC 10. TACH. SIGNAL 4. ISOLATED -22 VDC 11. N/C 5. ISOLATED +22 VDC 12.
  • Page 17 7. Press RECALL to view memory contents; last in = first out. 8. Press ShIFT to exit. 2.3.2.2 Remote Control Refer to “6200 Command Set” in Chapter 4 - The 6200 with a PC for a list of commands recognized by the 6200. 2.3.2.3 Auxiliary Input 1.

  • Page 18: Installation

    3.1.1 etting nit For oltage The 6200 will operate with either of the following power sources: • 120 V 50/60 Hz • 240 V 50/60 Hz 1. Find the line cord receptacle on rear panel. The line cord is a detachable NEMA Standard 3 wire.

  • Page 19: Basic Test Setup

    2. Turn on 6200 power. 3.1.3 After turning the power on to the 6200, the display panel will show all segments of the VFD (series of rectangles), indicating that the 6200 is downloading the program. When the program download is complete, the message “MAGTROL 6200” appears.

  • Page 20: Manually Controlled Operation

    4. Manually Controlled Operation setting desired operating parameters Note: See Appendix b: Front Panel/Display Menu Flow Charts. 4.1.1 ower isPlay to esired nits atts P or 1. Press and release ShIFT. 2. Press PoWER UNITS. 3. Press UP  or DoWN  to scroll through choices. 4.

  • Page 21: Controls

    Chapter 4 – Manually Controlled Operation Magtrol Model 6200 Open Loop Dynamometer Controller 10. Press ShIFT. 11. Press UP  or DoWN  to turn oN or oFF Speed PASS/FAIL testing. 12. If oN, press ShIFT. 13. Use the UP  or DoWN  buttons and the Decrease/Increase Dial to adjust the high limit for Speed.

  • Page 22: Using Internal Memory

    Magtrol Model 6200 Open Loop Dynamometer Controller Chapter 4 – Manually Controlled Operation using internal memory 4.3.1 toring oints 1. Press and release SToRE. The VFD will indicate SToRE followed by a number. This indicates the memory location that contains the data.

  • Page 23: Computer Controlled Operation

    5. Computer Controlled Operation The 6200 can be used with a personal computer to control a dynamometer and to transmit data from motor testing directly to the computer. about the gpib interfaCe Magtrol instruments use the gPIb (IEEE-488 Standard) for computer-to-instrument interfacing because: •...

  • Page 24: Checking The 6200-To-Pc Connection

    Each instrument serviced by the gPIb has its own Primary Address code, which enables the computer to obtain readings from the instrument. The factory default setting on the 6200 is 15. Some PC interfaces can access from one to fifteen 4-bit primary addresses. other interfaces can access as many as thirty-one 5-bit primary addresses.

  • Page 25: Programming

    • All GPIB data acquisition systems requires the use of data termination characters. The 6200 uses the gPIb standard termination characters “Carriage Return (CR)-Line Feed (LF).” Provide them in that order. Codes for CR - LF basiC...
  • Page 26 Magtrol Model 6200 Open Loop Dynamometer Controller Chapter 5 – Computer Controlled Operation Command Command function explanation Category Code Communications Prompts to return to “Output Auxiliary” prompt to return auxiliary input data the value at the AUX INPUT x AUX string SCALING factor.

  • Page 27: Acquiring Speed-Torque Data

    Chapter 5 – Computer Controlled Operation Magtrol Model 6200 Open Loop Dynamometer Controller Command Command function explanation Category Code Setup Sets dynamometer note: For Hp and watts torque units to # calculations to be correct, the correct dynamometer torque units must be specified.

  • Page 28: Selecting The Baud Rate For The Rs-232 Interface

    2-Rx, 3-Tx, 4-DTR, 5-gND. No other pins are connected. Figure 5–2 Connector Pin-Out The 6200 is equipped with an RS-232 (serial) interface. To select the baud rate: 1. Press ShIFT and release. 2. Press SETUP button. 3. Press DoWN  twice.
  • Page 29 Chapter 5 – Computer Controlled Operation Magtrol Model 6200 Open Loop Dynamometer Controller To wire your own serial communications cable, use the following wiring diagram: A cable may also be purchased from your local electronics store. A Radio Shack #26-152 cable and #26-264 null modem adapter are known to work.

  • Page 30: Calibration

    6. Calibration Closed-box Calibration The 6200 features closed-box calibration. The advantage of closed-box calibration is that the user does not have to disassemble the case or make mechanical adjustments. however, the calibration of the Accessory Torque output must be done internally with offset and gain trim pots.
  • Page 31 Connect the function generator common to Pin 8 of the dynamometer input connector. c. Apply a square wave, TTL signal of 1000 hz. d. Verify the 6200 Speed readout displays 1000 +/- 0.01% of applied frequency. e. Apply several additional frequencies (10 khz, 50 khz) and verify the Speed readout...

  • Page 32: Alternate Calibration Procedure

    13. Record the A_gAIN correction factor for future reference. 14. Press the ShIFT button once to return to default display. alternate Calibration proCedure The 6200 can also be calibrated by using a certified dynamometer, calibration beam, and weight instead of an external voltage reference. Note: Magtrol suggests you do NoT use this method.

  • Page 33: Figure 6–1 Alternative Calibration

    Chapter 6 – Calibration Magtrol Model 6200 Open Loop Dynamometer Controller 1. Connect the chosen dynamometer to the 6200 using the 14-pin signal cable and the 2-pin brake cable. 2. Attach the calibration beam to the dynamometer shaft. 3. Enter the calibration mode.
  • Page 34 Magtrol Model 6200 Open Loop Dynamometer Controller Chapter 6 – Calibration 11. Repeat steps 5 through 10. 12. After completing calibration, press bRAkE oN/oFF button oFF to remove loading from the dynamometer. 13. Remove the calibration beam from the dynamometer shaft.

  • Page 35: Troubleshooting

    25% of the maximum torque rating of the dynamometer in use (if possible). Reduce output current to 0. If you require additional assistance, please contact Magtrol Customer Service at 1-716-668-5555.

  • Page 36: Appendix A: Labview Programming Examples

    Appendix A: LabVIEW Programming Examples Magtrol offers a comprehensive motor testing software program to satisfy most of your programming needs. To order your software, call Magtrol Sales at 1-716-668-5555. simple read...

  • Page 37: A.2 Current Stabilized

    Appendix A: LabVIEW Programming Examples Magtrol Model 6200 Open Loop Dynamometer Controller Current stabilized...

  • Page 38: Appendix B: Front Panel/Display Menu Flow Charts

    Appendix B: Front Panel/Display Menu Flow Charts The following flow charts are a reference for navigating through the key setup functions of the 6200 Open Loop Dynamometer Controller. For step-by-step setup instructions, refer to the corresponding chapters in this manual.

  • Page 39: B.2 Power Units Menu

    Appendix B: Front Panel/Display Menu Flow Charts Magtrol Model 6200 Open Loop Dynamometer Controller poWer units menu POWER UNITS: aux setup menu 0 - 10000 AUX SETUP: SCALE: UNITS/VOLT...

  • Page 40: B.4 Torque Units Menu

    Magtrol Model 6200 Open Loop Dynamometer Controller Appendix B: Front Panel/Display Menu Flow Charts torQue units menu N.cm N.mm kg.cm TORQUE g.cm UNITS: lb.ft. lb.in. oz.ft. oz.in.

  • Page 41: Appendix C: Schematics

    Appendix C: Schematics enCoder/sWitCh board (PB0) (PB1) (PB2) (PB3) (PB4) (PB5) (PB6) (PB7) (PB8) (PB9) (ROTARY ENCODER) (PB10) SW10 (AUDIO) (+ 5V) SPKR1 (GND) poWer supply +5VD +5VA LM340T5 PD05 4700 +25V 14A-30-515 PD05 5.1K 1000 -5VA 5.1K 1000 LM320T5 -25V +35V PE05...

  • Page 42: C.3 Dsp & Memory

    Magtrol Model 6200 Open Loop Dynamometer Controller Appendix C: Schematics dsp & memory...

  • Page 43: C.4 Analog I/O

    Appendix C: Schematics Magtrol Model 6200 Open Loop Dynamometer Controller analog i/o...
  • Page 44 Testing, Measurement and Control of Torque-Speed-Power • Load-Force-Weight • Tension • Displacement Via Paolo Uccello 4 - 20148 Milano Tel +39 02 48 009 757 Fax +39 02 48 002 070 info@dspmindustria.it www.dspmindustria.it...
