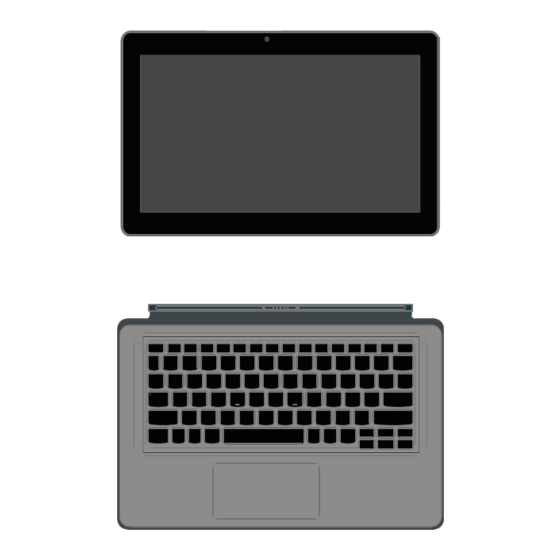

- Page 1 Instruction Manual 12.5“ Tablet with Keyboard...
- Page 2 Table of Content About these Instructions ................4 1.1. Symbols and Key words used in these Instructions ........4 1.2. Proper Use ......................... 5 Declaration of Conformity ................5 Information on trademarks ................ 6 Safety Instructions ..................6 4.1. Dangers for children and people with reduced ability to operate electronics .........................
- Page 3 11.2. Touchpad .........................27 Sound System..................... 27 12.1. External Audio Connections ................27 Network Operation ..................28 13.1. Wi-Fi (Wireless Network) ..................28 13.2. Bluetooth .........................28 13.3. Airplane Mode .......................29 microSD Card Reader ................. 29 14.1. Inserting a Memory Card ...................29 14.2. Removing Memory Cards ..................29 USB Port .....................
-
Page 4: About These Instructions
1. About these Instructions Before using the device for the first time, please read these operating instructions carefully, paying special attention to the safety notices. This device should only be used as designated and as described in these instructions. Please keep these instructions in a safe place for future reference. Always include these instructions if selling or giving away the device. -
Page 5: Proper Use
2. Declaration of Conformity This product is supplied with the following wireless features: • Wireless LAN • Bluetooth Medion AG hereby declares that this product conforms to the following European requirements: • R&TTE Directive 1999/5/EC • Ecodesign Directive 2009/125/EC •... -
Page 6: Safety Instructions
3. Information on trademarks Windows® is a registered trademark of Microsoft®. Intel, the Intel Logo, Intel Inside, Intel Core, device, and Core Inside are trademarks of Intel Corporation in the U.S. and/or other countries. ® , the HDMI logo and the name High-Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC. -
Page 7: Operational Safety
4.2. Operational Safety Please read this section carefully and follow all instructions given. The instructions will help you to operate the device reliably and increase its service life. • Never open the housing of the device, battery or AC adapter! This could result in an electric shock or even ignite a fire which will damage your device. -
Page 8: Never Carry Out Repairs Yourself
• To avoid damaging the screen, do not touch it with fingers or sharp objects. • Place the tablet unit carefully and centrally in the mounting fixtures on the base unit to avoid damage. • Should the below occur, switch the device off immediately/ do not switch the device on, disconnect the mains plug and contact customer services if −... -
Page 9: Environmental Requirements
4.5. Setup Location (in Notebook Mode) • Keep your device and all connected devices away from moisture and avoid dust, heat and direct sunlight. Non-compliance with these instructions can lead to faults or damage to the device. • Do not use the device outdoors because external elements, such as rain, snow, etc., could damage it. -
Page 10: Ergonomics
4.7. Ergonomics PLEASE NOTE! Avoid dazzle, reflections and a light-dark contrast that is too strong in order to protect your eyes. The device should never be placed next to a window because this is the brightest part of the room in daylight. This brightness can make it more difficult for the eyes to adjust to the darker display. -
Page 11: Connecting
4.8. Connecting Follow the instructions below to connect your device correctly and safely: 4.8.1. Power Supply CAUTION! Risk of electrical shock! There are live components inside this AC adapter. In the event of an unintentional short circuit of this AC adapter, there is a risk of electrical shock or fire! ` Do not open the housing of the AC adapter. -
Page 12: Cabling
WARNING! Impairment to hearing! Listening through earphones or headphones at excessive volume levels, as well as changes to the basic settings of the equaliser, drivers, software or operating system generates excessive acoustic pressure and can lead to loss of hearing. ` Before pressing play, set the volume to the lowest setting. -
Page 13: Information About The Touchpad
• In addition, when connecting your peripherals only use the connecting cables supplied with those devices. • Ensure that all connection cables are connected to their corresponding peripheral device to avoid any interference radiation. Disconnect any cables that are not required. •... -
Page 14: Notes On The Battery
4.11. Notes on the Battery WARNING! Risk of explosion! There is a risk of explosion if the battery is replaced incorrectly. ` Do not heat up the battery to a temperature greater than the maximum ambient temperature stated. ` Never open the battery. ` Do not throw the battery into an open fire. -
Page 15: Protecting The Display
4.12. Protecting the Display The display is the most sensitive component part of the device as it consists of thin glass. It can break if subjected to too much stress. • Do not scratch the cover of the device, because it will not be possible to remove any scratches. -
Page 16: Included With Your Device
5. Included with your Device Please check that the contents are complete and notify us within 7 days of purchase if any of the following components are missing: • device (tablet unit with keyboard) • AC Adapter AC/DC Adapter FSP Group, FSP 045-REBN2 Required Voltage 100 - 240 V~ 50/60 Hz AC Input... -
Page 17: Views
6. Views 6.1. Open Device... -
Page 18: Left Side
Webcam (Rear) Webcam Touchpanel Speaker (Rear) Connection contacts Connection plug to the tablet unit Keyboard Touchpad 6.2. Left Side Microphone USB 3.0 / HDMI (type C) Port Power Socket USB 3.0 Port (type A) microSD Card Slot 6.3. Right Side 14 15 16 17 USB 2.0 Port... -
Page 19: About This Device
7. About this Device Thanks to its removable display, this device is designed for use in notebook mode as well as tablet mode. 7.1. Setting up the Stand There is a stand on the rear of the device that can be folded out as required. ` Carefully fold out the stand, as indicated by the arrow, until you have achieved the desired angle. -
Page 20: Using The Device In Notebook Mode
7.2. Using the Device in Notebook Mode The tablet unit is transformed into a notebook thanks to the easy connection with the keyboard. ` Hold the tablet unit securely with both hands and insert it into the centre of the mounting fixture on the keyboard. -
Page 21: Separating The Tablet Unit And The Keyboard
7.3. Separating the Tablet Unit and the Keyboard ` In order to separate the tablet unit from the keyboard, carefully pull the tablet unit away from the keyboard. PLEASE NOTE! Ensure that you do not damage the plug connection when connecting or removing the tablet. 7.4. -
Page 22: Power Supply
8. Preparation for Starting-Up To operate your Device safety and ensure a long service life, you should read the “Operational safety” chapter at the beginning of this manual. All operating software is already fully preinstalled on the Device so there is no need for you to install any more drivers and you can get started right away. -
Page 23: Mains Power
9.2. Mains Power Your device comes with a universal mains adapter for alternating current which automatically adapts to the available power source. The following values are supported: AC 100 – 240 V~ 50/60 Hz. Observe the safety information concerning the power supply. Your battery will also be charged while you work on your device with the mains adapter connected. -
Page 24: Charging The Battery
PLEASE NOTE! In the first few days following the initial installation, Windows® may update and configure data (e.g. with new updates) which can result in delays in the notebook shutting down and starting up. For this reason, do not switch the device off prematurely. -
Page 25: Battery Performance
PLEASE NOTE! The charging process is interrupted if the battery voltage or temperature gets too high. 9.4.2. Discharging the Battery Operate the device on battery power until it turns itself off due to low battery charge. PLEASE NOTE! Be sure to save your open files promptly to prevent any data loss. -
Page 26: Touch Screen
10. Display 10.1. Touch Screen Your device is supplied with a touch-sensitive screen. Please follow the instructions below in order to optimise its use: 10.1.1. Operation • Do not touch the screen with sharp or pointed objects as these may damage the screen. •... -
Page 27: Sound System
Description Brightness down Reduces the brightness of the display. Brightness up Increases the brightness of the display. Insert 11.2. Touchpad PLEASE NOTE! Risk of damage! If unsuitable objects are used to control the device, this could permanently damage the touchpad. ` Do not use any sharp objects (e.g. -
Page 28: Network Operation
13. Network Operation 13.1. Wi-Fi (Wireless Network) This function enables you to establish a network connection to a corresponding remote station. Please read about the necessary requirements. The Wi-Fi function is enabled and disabled via the Windows ® menu and is activated by default. PLEASE NOTE! Do not operate the Wi-Fi function in locations (e.g.: hospitals, airplanes, etc.) where there is sensitive... -
Page 29: Airplane Mode
The Bluetooth wireless technology data transfer speed can vary depending on the device or environmental factors. Data can be transferred through walls, jacket pockets and briefcases using a Bluetooth device. The transfer between Bluetooth devices occurs at the high frequency of 2.4 Gigahertz (GHz). PLEASE NOTE! Do not operate the Bluetooth function in locations (e.g.: hospitals, aeroplanes, etc.) where there is sensitive... -
Page 30: Usb Port
15. USB Port The universal serial bus is a standard for connecting input devices, scanners and other peripherals. The USB 3.0 ports are fully backwards compatible. Your device has 1 USB 3.0 / HDMI (type C) port, 1 USB 3.0 port (type A) and 1 USB 2.0 port. -
Page 31: Resetting The System To Its Factory Settings
17. Resetting the System to its Factory Settings Depending on the features of your system, use either Cyberlink PowerRecover or the Windows system recovery options if your system fails to respond as normal and a system recovery becomes necessary. 17.1. System Recovery with PowerRecover (optional) In the event of problems with the installation or other software problems which make it necessary to reinstall the software, Windows®... -
Page 32: System Restore With Windows Recovery Options
PLEASE NOTE! Data loss! Always perform any type of recovery using AC power. The recovery process takes a long time when you select the option to back up user data. Only the data located in the folder C:\USERS will be backed up. All other data will be deleted. - Page 33 17.2.1. How to refresh your device ` Open the start menu. ` Tap or click on the option All apps. ` Select the Settings app from the list. ` Tap or click on Update & Security. ` Tap or click on the menu option Recovery. ` Tap or click on Get started.
-
Page 34: Uefi Configuration
18. UEFI Configuration The UEFI configuration (basic hardware configuration of your system) provides you with a number of options for the configuration and operation of your system. For example, you can modify the operating mode for interfaces, security features or power supply management. The system has already been configured by the manufacturer to ensure optimum operation. -
Page 35: Faqs – Frequently Asked Questions
19. FAQs – Frequently Asked Questions How do I activate Windows ® ® • Windows is activated automatically as soon as an Internet connection is established. When is restoring factory settings recommended? • This method should only be selected as a last resort. Read about the alternatives in the system recovery section. -
Page 36: Customer Service
You’ve checked through the suggestions in the previous section and you’re still having problems with your device? Then call our hotline or contact us at www.medion.com. We’ll be glad to help you. Before contacting your technology centre, however, prepare the following information: •... -
Page 37: Transport
20.5. Transport Please note the following information if you wish to transport the device: ` Switch the device off. ` After transporting the device, wait until the appliance has reached room temperature before switching it on. Large changes in temperature or fluctuations in humidity can cause moisture build-up within the device due to condensation. -
Page 38: Recycling And Disposal
21. Upgrading/Modifying and Repair Upgrades and modifications to your system should only be carried out by qualified specialists. If you do not have the necessary qualifications, have the work carried out by a qualified service technician. Please contact your customer service department if you have technical problems with your system. -
Page 39: European En Iso 9241-307 Class Ii Standard
However, these approaches were mostly very complicated and varied from one manufacturer to the next. When handling warranty issues for all of its display products, MEDION therefore adheres to the strict and transparent requirements of the standard EN ISO 9241-307, Class II; which has been briefly summarised below. - Page 40 Pixel defect types: • Type 1: permanently illuminated pixel (bright, white dot) even when not activated. A white pixel occurs due to the illumination of all three sub-pixels. • Type 2: non-illuminated pixel (dark, black dot) even when activated. • Type 3: abnormal or faulty red, green or blue sub-pixel (e.g.
-
Page 41: Legal Notice
Germany The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/. You can also scan the QR code above and download the operating manual onto your mobile device via the service portal. -
Page 42: Index
25. Index Operational Safety ........7 Battery Mode ..........24 Pixel Defect Types........40 Battery Performance ......25 Power Management (Power Options) 25 Bluetooth ............28 Power Supply ..........22 Mains Power ..........23 Card Reader On/Off Switch ......... 22 Inserting a Memory Card ....29 Preparation for Starting-Up ....
