ControlOMatic MegaChlor Operating Instructions Manual page 5

MegaChlor is equipped with a 110/220 VAC Auto-Sensing Power Supply allowing MegaChlor to be installed
on almost any pool or spa. Please follow the installation instructions below. The power supply is not an
outdoor supply and needs to have protection from the environment.
Input Requirements: 100 to 240 VAC, 1.8A, 50-60 HZ. Output 12 VDC 5.0A, 60 Watts Maximum

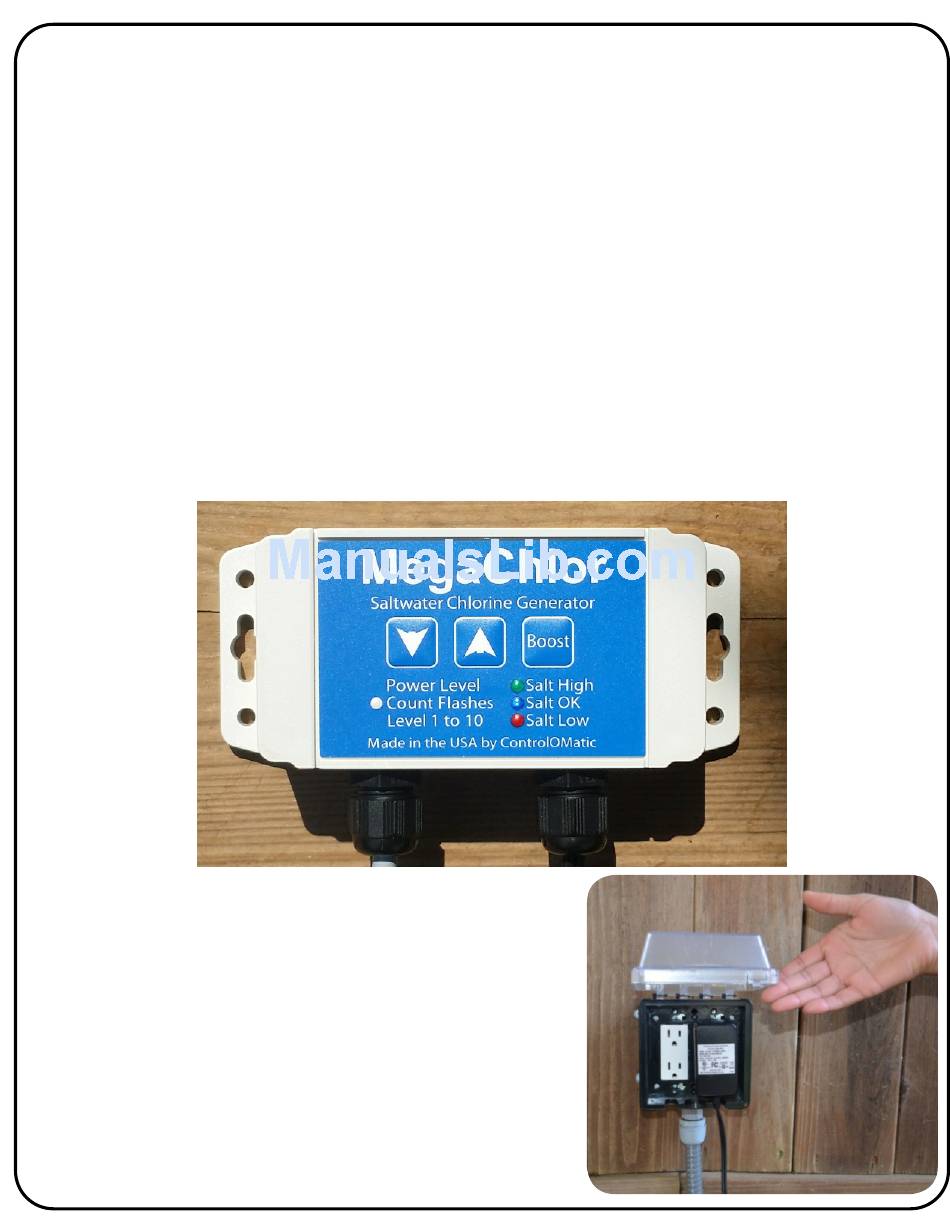

Control Box
Locate a suitable location for the control box meeting the following conditions:
1. Close enough to the water for the cell cable to reach the water
2. Close enough to a GFCI protected outlet
3. Not in direct sunlight. If in direct sunlight that may shorten the life of the controller
4. When the cables are routed, they should not be in a path were people walk or can be damaged by
equipment such as a lawn mower.
5. A hard vertical surface for mounting the control box.
6. Mount the control box with the supplied screws using the mounting holes on the flange. There is no need
to open the control box. The only time the control box needs to be opened is if the electrode needs to be
replaced.
Power Supply Location
The power supply location must meet the following requirements.
1. 110 or 220 VAC
2. Water protective cover. The 12 Vdc supply may require a larger
protective cover.
3. NOT IN DIRECT SUNLIGHT. The power supply will heat up
during operation and if in sunlight it may overheat.
4. The power cable should have a routing path to the control box
where the cable is protected from people tripping on it and lawn
mowers.
MegaChlor Installation
