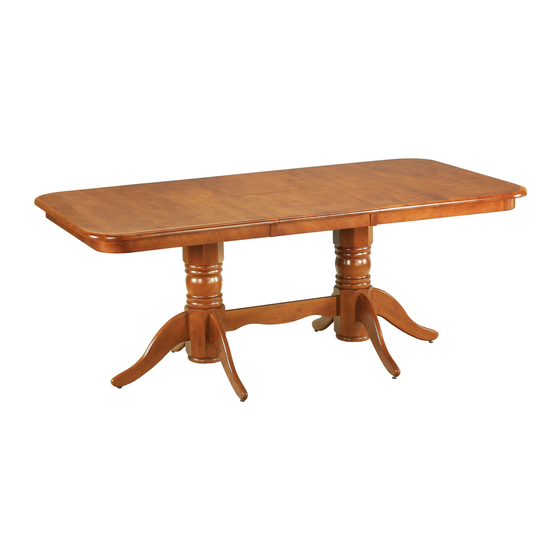

Napoleon rectangular dining table top with butterfly leaf

Advertisement

Quick Links

ASSEMBLY INSTRUCTIONS
SKU: NAT
Description:
NAPOLEON RECTANGULAR DINING TABLE TOP WITH BUTTERFLY LEAF
Dimension : 40"Wx60"/78"Lx30"H
Cube size :62.5"x42"x6.3"
(Top)
Cube size :24.9"x18.5"x7.4"
Pedestal)
(
NAPOLEON RECTANGULAR DINING TABLE TOP WITH BUTTERFLY LEAF
NW : 96.8 LBS
GW :105.6 LBS
NW : 26.4 LBS
GW : 30.8 LBS
- 1 -
250 Canal Street,
Lawrence, MA 01840
Email:
info@eastwestfurniture.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAT and is the answer not in the manual?

Questions and answers

Summary of Contents for East West Furniture NAT

  • Page 1 ASSEMBLY INSTRUCTIONS SKU: NAT 250 Canal Street, Lawrence, MA 01840 Email: info@eastwestfurniture.net Description: NAPOLEON RECTANGULAR DINING TABLE TOP WITH BUTTERFLY LEAF Dimension : 40”Wx60”/78”Lx30”H Cube size :62.5”x42”x6.3” NW : 96.8 LBS (Top) GW :105.6 LBS Cube size :24.9”x18.5”x7.4” NW : 26.4 LBS Pedestal) GW : 30.8 LBS...
  • Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take the time to read and follow the assembly instructions carefully. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please separate, identify, and count all parts and metal hardware.
  • Page 3 STEP 1 Attach crossbar (D) and legs (C) to pedestals (B) with nuts (1), washers (2) and (3) as shown below. Tighten with wrench (4). STEP 2 Use the Allen key (5) to loosen the bolts and washer and take of the mounting plate underneath of the table top (A). NAPOLEON RECTANGULAR DINING TABLE TOP WITH BUTTERFLY LEAF - 3 -...
  • Page 4 STEP 3 Put the plates on top of the pedestals (B) with Bolts (6), washers (7) and (8) as shown below. Tighten with Allen key (5). STEP 4 Carefully put the base (from Step 3) on the bottom side of top (A). Attach mounting plates to top (A) with bolts and washers from Step 2.
  • Page 5 STEP 5 Unlock the table top from both sides underneath of the top. Pull the 2 parts of the table top apart. STEP 6 Place the butterfly leaves in the center of the open table top. Push the table top closed lock the table top mechanism underneath as shown below.
