Installation
1. Make all connections to the meter's terminal block before connecting the terminal block to the unit.
Keep hands away from the terminal block when applying power to the meter.
2. As the final DC connection, insert a fuse into the in-line fuse holder on the wire to the positive (+) battery terminal.

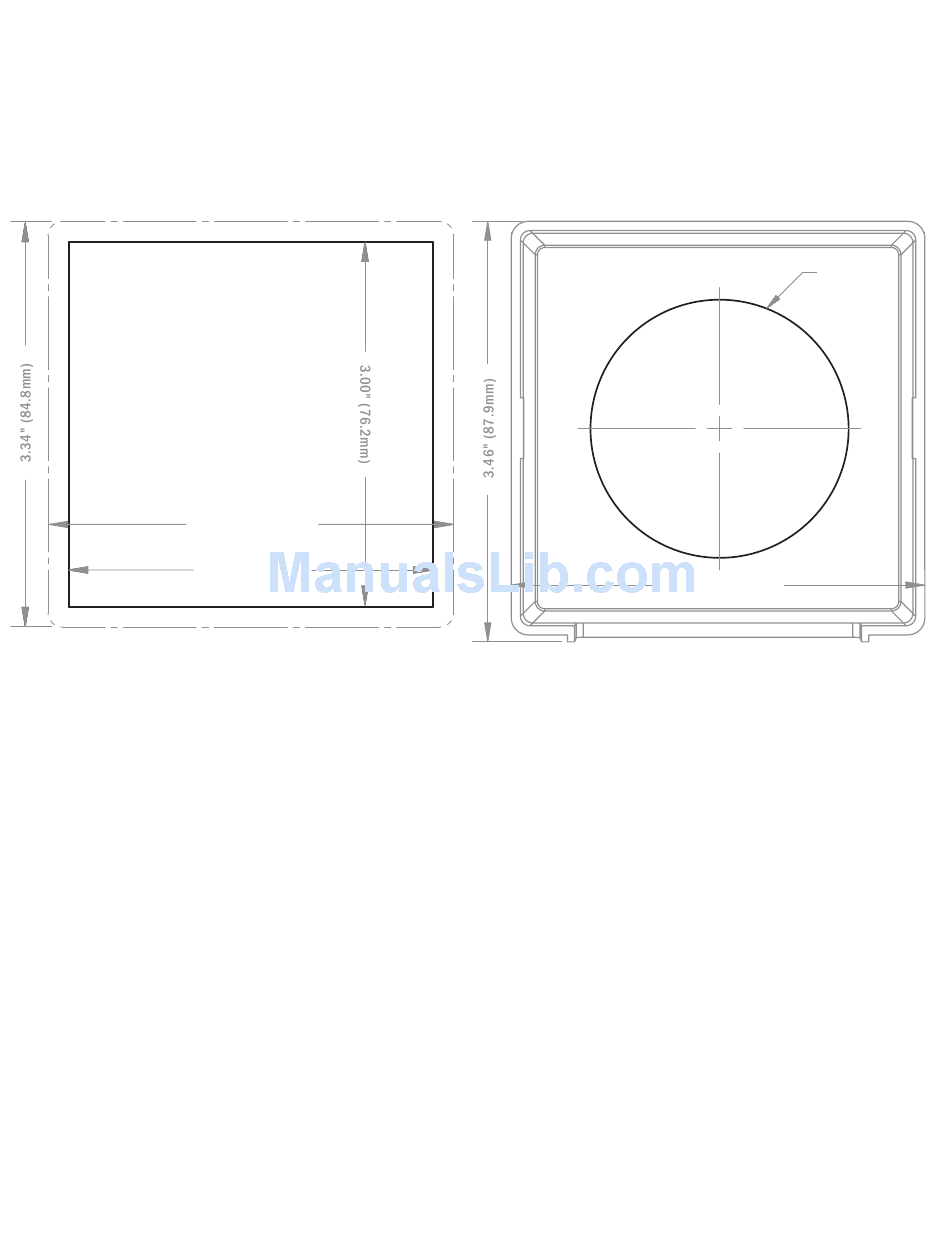

Mounting Templates
Flat Mount Surface Mount
Ø2.125"
(54mm)
3.34" (84.8mm)
3.00" (76.2mm)
3.40" (86.5mm)

Mounting Considerations

M2 Digital Meters have three mounting methods: surface mount, flat panel mount, and 360 panel mount. When surface mounted per instructions the
unit face is waterproof to IP66. Flat panel and 360 panel mounting systems are not waterproof. The unit should not be flat panel or 360 panel mounted
if used in an exposed location. For all mountings, the back of the unit is not waterproof and must be kept dry.
