Dwyer Instruments LUX-01 Installation And Operating Instructions

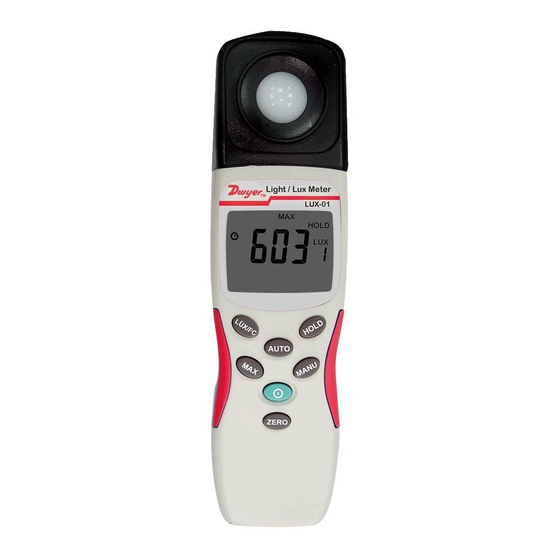

Model LUX-01 Digital Light Meter is able to measure the intensity of
fluorescent, metal halide, high-pressure sodium, and incandescent light
sources. This meter shows readings on a 3-1/2 digit LCD and can record
measurement up to 200,000 lux and up to 20,000 foot-candles. The
silicon photodiode sensor allows for use in high temperatures and has a
strong angular correction for a highly accurate reading. Model LUX-01
also includes a protective cap for the sensor, ensuring that the meter is
always zero calibrated. Applications include HVAC, medical facilities,
photography, and cinematography.

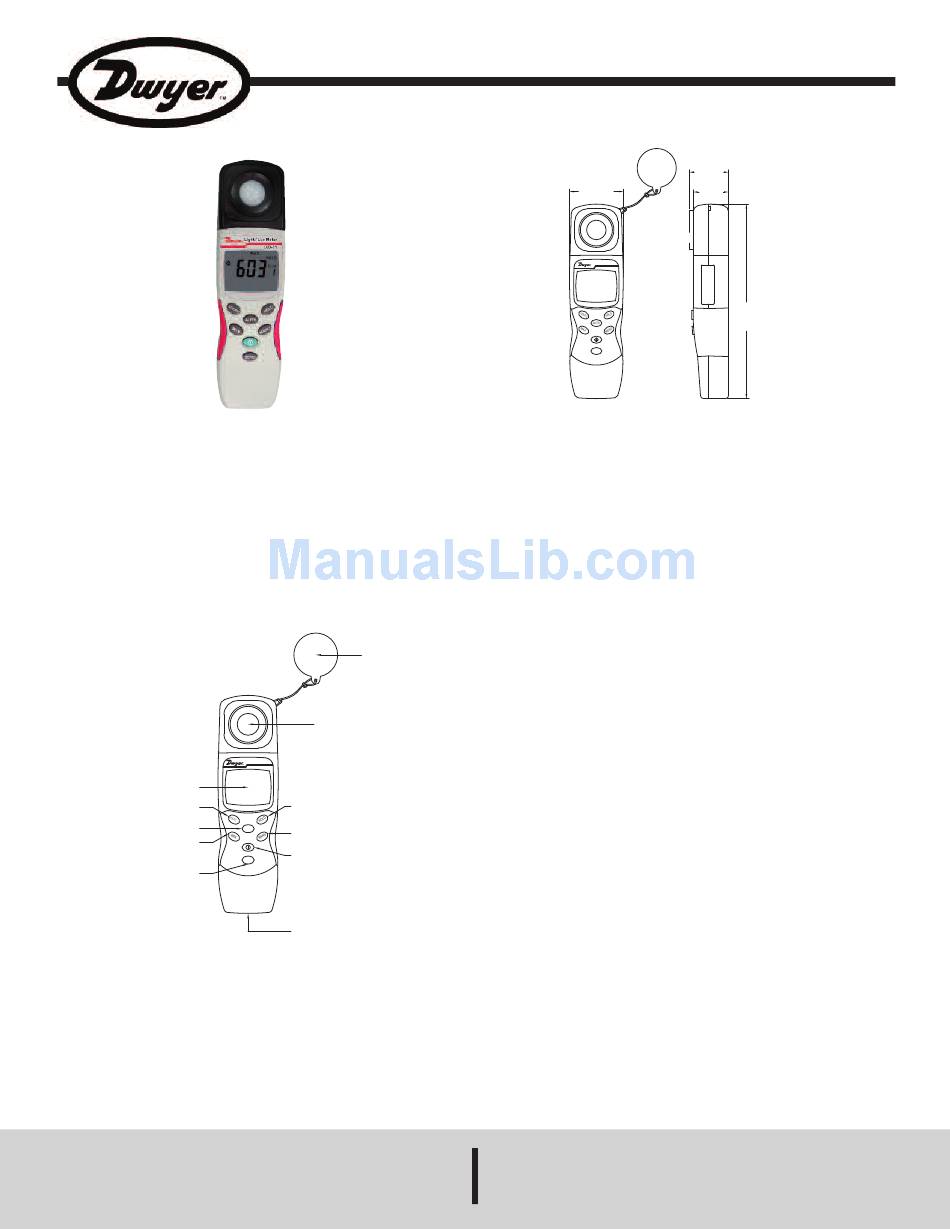

PRODUCT OVERVIEW
1
2
3
4
5
1. LCD Screen
2. Lux/FC button
3. Auto Range Button
4. Max/Min Button
5. Zero Adjustment
6. Light Sensor Cap
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Model LUX-01 Digital Light Meter
Specifications - Installation and Operating Instructions
6
7
Light/Lux Meter
LUX-01
8
AUTO
9
10
ZERO
11
Figure 1
7. Photo Detector
8. Data Hold Button
9. Manual Range Button
10. Power Button
11. Battery Compartment Cover
2-1/8
[54.88]
Light/Lux Meter
LUX-01
ZERO
SPECIFICATIONS:
Range: Up to 200,000 lux; up to 20,000 foot-candles.
Accuracy: ±3% of reading (Calibrated to standard incandescent lamp
4681°F (2583°C)) or ±6% other visible light source.
Display: 3-1/2 digit LCD.
Resolution: 1.0 lux; 1.0 foot-candle.
Sensor: Silicon photodiode and filter.
Angle Deviation from Cosine Characteristics: 10° ±0.5%, 30° ±2%,
50° ±3%, 60° ±6%, 80° ±25%.
Temperature Limits:
Operating: 14 to 122°F (-10 to 50°C);
Storage: 14 to 122°F (-10 to 50°C).
Power Requirements: 9 V carbon zinc battery, included, user
replaceable.
Battery Life: 200 hours.
Weight: 22.4 oz (635 g).
Agency Approvals: CE, RoHS.
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin TE-LUX-01
1-5/8
[40.08]
1-3/8
[36.12]
7-7/8
[198.72]
www.dwyer-inst.com
e-mail: info@dwyermail.com
