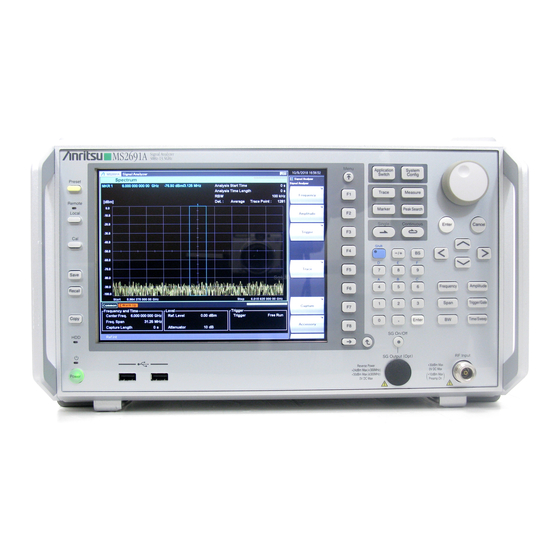

MS2690A/MS2691A/MS2692A

and MS2830A/MS2840A

Signal Analyzer

Operation Manual

Signal Analyzer Function

Remote Control

32th Edition

• For safety and warning information, please read this

manual before attempting to use the equipment.

• Additional safety and warning information is provided

within the MS2690A/MS2691A/MS2692A Signal

Analyzer Operation Manual (Mainframe Operation),

MS2830A Signal Analyzer Operation Manual

(Mainframe Operation) or MS2840A Signal Analyzer

Operation Manual (Mainframe Operation). Please also

refer to this document before using the equipment.

• Keep this manual with the equipment.

ANRITSU CORPORATION

Document No.: M-W2853AE-32.0

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the MS2690 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anritsu MS2690

Page 1: Remote Control
Analyzer Operation Manual (Mainframe Operation), MS2830A Signal Analyzer Operation Manual (Mainframe Operation) or MS2840A Signal Analyzer Operation Manual (Mainframe Operation). Please also refer to this document before using the equipment. • Keep this manual with the equipment. ANRITSU CORPORATION Document No.: M-W2853AE-32.0...
Page 2: Safety Symbols
Ensure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this manual.
Page 3 Notes On Export Management This product and its manuals may require an Export License/Approval by the Government of the product's country of origin for re-export from your country. Before re-exporting the product or manuals, please contact us to confirm whether they are export-controlled items or not. When you dispose of export-controlled items, the products/manuals need to be broken/shredded so as not to be unlawfully used for military purpose.
Page 5: About This Manual
About This Manual  Operation manual configuration The operation manual configuration of the MS2690A/MS2691A/MS2692A, MS2830A and MS2840A Signal Analyzer is shown below. MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Main Frame Operation) MS2830A Signal Analyzer Operation Manual (Main Frame Operation) MS2840A Signal Analyzer Operation Manual (Main Frame Operation) MS2690A/MS2691A/MS2692A and MS2830A/MS2840A Signal Analyzer Operation Manual (Main Frame Remote Control)
Page 6  Signal Analyzer Operation Manual (Mainframe Operation)  Signal Analyzer Operation Manual (Mainframe Remote Control) Description of basic operations, maintenance procedures, common functions and common remote functions of the mainframe  Signal Analyzer Operation Manual (Signal Analyzer Function)  Signal Analyzer Operation Manual (Signal Analyzer Function Remote Control) <This document>...
Page 7: Table Of Contents
Table of Contents About This Manual........Chapter 1 Overview ........Overview ..............1-2 Chapter 2 SCPI Device Message Details .. Frequency Settings ............ 2-19 Level Settings ............2-45 Trigger Settings............2-60 Capture Setting ............2-86 Marker Settings ............2-110 Signal Search Settings ..........2-161 Trace Settings ............
Page 8 Chapter 3 Native Device Message List ..IEEE488.2 Common Device Messages ....3-2 Application Common Device Messages ....3-4 Frequency/Time Settings ........... 3-7 Level Settings ............3-8 Measurement/Trigger Settings ........3-9 Common Settings for Each Trace......3-10 Spectrum Trace Settings ........... 3-11 Power vs Time Trace Settings ........
Page 9: Chapter 1 Overview
Chapter 1 Overview This chapter provides an overview of the remote control of the Spectrum Analyzer function (hereinafter, referred to as “this application”). Overview ..............1-2...
Page 10 Chapter 1 Overview 1.1 Overview Automatic measurement can be performed by using this instrument in connection with an external controller (PC). This instrument is standardly equipped with GPIB, Ethernet, and USB interfaces. You can also select a remote control command from the SCPI mode, which is a command format defined by the SCPI Consortium, and Native mode, which is our unique format.
Page 11: Chapter 2 Scpi Device Message Details
Chapter 2 SCPI Device Message Details This chapter provides detailed specifications of SCPI Remote Control Command to execute the functions of this application by functions. Refer MS2690A/MS2691A/MS2692A and MS2830A/MS2840A Signal to the Analyzer Operation Manual (Mainframe Remote Control) for detailed specifications on IEEE488.2 common device message and application common device messages.
Page 12 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF| FRAMe .......................... 2-62 :TRIGger[:SEQuence]:SOURce? ..................... 2-63 :TRIGger[:SEQuence]:SLOPe POSitive|NEGative ..............2-64 :TRIGger[:SEQuence]:SLOPe? ....................2-65 :TRIGger[:SEQuence]:DELay <time> ..................2-66 :TRIGger[:SEQuence]:DELay? ....................2-67 :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic] <level> ............ 2-68 :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic]? ............... 2-69 :TRIGger[:SEQuence]:VIDeo:LEVel:LINear <level> ..............2-69 :TRIGger[:SEQuence]:VIDeo:LEVel:LINear? ................2-70 :TRIGger[:SEQuence]:VIDeo:SLOPe POSitive|NEGative ............
Page 13 Chapter 2 SCPI Device Message Details :MMEMory:STORe:IQData:STARt? ..................2-93 :MMEMory:STORe:IQData:STARt:SAMPle <sample> ............2-94 :MMEMory:STORe:IQData:STARt:SAMPle? ................2-95 :MMEMory:STORe:IQData:LENGth <time> ................2-96 :MMEMory:STORe:IQData:LENGth? ..................2-97 :MMEMory:STORe:IQData:LENGth:SAMPle <sample> ............2-98 :MMEMory:STORe:IQData:LENGth:SAMPle? ................. 2-99 :MMEMory:STORe:IQData <filename>,<device> ..............2-100 :MMEMory:STORe:IQData:CANCel..................2-100 :MMEMory:STORe:IQData:RATE <freq> ................2-101 :MMEMory:STORe:IQData:RATE? ..................
Page 14 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? ..............2-150 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> .......... 2-151 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? ............2-153 :CALCulate:MARKer:TABLe[:STATe] OFF|ON|0|1 ..............2-154 :CALCulate:MARKer:TABLe[:STATe]? .................. 2-155 :CALCulate:MARKer:SLINe[:STATe] OFF|ON|0|1 ..............2-155 :CALCulate:MARKer:SLINe[:STATe]? ................... 2-156 :CALCulate:MARKer:COUPle:ZONE[:STATe] OFF|ON|0|1 ..........2-157 :CALCulate:MARKer:COUPle:ZONE[:STATe] ? ..............2-158 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:TYPE ZONE|SPOT ......... 2-159 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:TYPE? .............
Page 15 Chapter 2 SCPI Device Message Details :CALCulate:ATIMe:GMODe:RANGe:STARt <time_1>,<time_2>,<time_3> ......2-200 :CALCulate:ATIMe:GMODe:RANGe: STARt? ............... 2-200 :CALCulate:ATIMe:GMODe:RANGe:STOP <time_1>,<time_2>,<time_3>......2-201 :CALCulate:ATIMe:GMODe:RANGe: STOP? ................ 2-201 :INITiate:CALCulate ....................... 2-202 [:SENSe]:SWEep:POINts? ..................... 2-204 :TRACe:SWEep:COUNt? ....................... 2-205 :DISPlay[:WINDow]:TRACe:X[:SCALe]:CENTer <freq> ............2-206 :DISPlay[:WINDow]:TRACe:X[:SCALe]:CENTer? ..............2-207 :DISPlay[:WINDow]:TRACe:X[:SCALe]:WIDTh <freq> ............2-208 :DISPlay[:WINDow]:TRACe:X[:SCALe]:WIDTh? ..............
Page 16 Chapter 2 SCPI Device Message Details :CALCulate:FILTer:FOFFset? ....................2-241 :CALCulate:FILTer:BANDwidth:AUTO ON|OFF|1|0 .............. 2-242 :CALCulate:FILTer:BANDwidth:AUTO? ................. 2-242 :DISPlay[:WINDow]:TRACe:Y[:SCALe]:RANGe D2|D5|D10|D25 .......... 2-243 :DISPlay[:WINDow]:TRACe:Y[:SCALe]:RANGe? ..............2-244 :DISPlay[:WINDow]:TRACe:Y[:SCALe]:WIDTh? ..............2-245 :UNIT:FREQuency HZ|DHZ ....................2-245 :UNIT:FREQuency? ....................... 2-246 :CALCulate:CCDF|:PSTatistic:METHod CCDF|APD ............. 2-246 :CALCulate:CCDF|:PSTatistic:METHod?................2-247 :CALCulate:CCDF|:PSTatistic:THReshold:STATe ON|OFF|1|0 ..........2-247 :CALCulate:CCDF|:PSTatistic:THReshold:STATe? ..............
Page 17 Chapter 2 SCPI Device Message Details :CALCulate:TMARker[1]|2:X <time> ..................2-282 :CALCulate:TMARker[1]|2:X? ....................2-283 :CALCulate:TMARker:COUPle:ZONE[:STATe] OFF|ON|0|1 ..........2-284 :CALCulate:TMARker:COUPle:ZONE[:STATe]? ..............2-284 :CALCulate:ANALyze:SPECtrum ................... 2-285 :CALCulate:ANALyze:SPGRam ..................... 2-285 :CALCulate:TMARker[1]|2:PEAK:X? ..................2-286 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:OFFSet <real> .......... 2-287 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:OFFSet? ........... 2-287 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:MODE <mode> ........2-288 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:MODE? .............
Page 18 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CORRection:NOISe[:AUTO]? ............. 2-318 [:SENSe]:ACPower:OFFSet[1]:BANDwidth[:INTegration] <bandwidth> ........ 2-318 :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration] <bandwidth> ......2-319 [:SENSe]:ACPower:OFFSet[1]:BANDwidth[:INTegration]? ........... 2-319 :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration]? ..........2-320 [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] <bandwidth> ..... 2-321 :CALCulate:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] <bandwidth> ....2-322 [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration]? ......... 2-323 :CALCulate:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration]? ........2-324 [:SENSe]:ACPower:CARRier[1]:RCFRequency <freq> ............2-325 :CALCulate:ACPower:CARRier[1]:RCFRequency <freq>...
Page 19 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:OFFSet[1]:FILTer:TYPE? ..............2-348 :DISPlay:ACPower:RESult:TYPE CARRier|OFFSet .............. 2-349 :DISPlay:ACPower:RESult:TYPE?..................2-350 [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> ..........2-351 :CALCulate:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> ..........2-352 [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa? ............2-353 :CALCulate:ACPower:CARRier[1]:LIST:FILTer:ALPHa? ............2-354 [:SENSe]:ACPower:FILTer[:RRC]:ALPHa <real> ..............2-354 :CALCulate:ACPower:FILTer[:RRC]:ALPHa <real> ............... 2-355 [:SENSe]:ACPower:FILTer[:RRC]:ALPHa? ................2-356 :CALCulate:ACPower:FILTer[:RRC]:ALPHa? ................
Page 20 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:DETector[:FUNCtion] NORMal|POSitive|NEGative|AVERage ..2-376 [:SENSe]:ACPower:DETector[:FUNCtion]? ................2-376 :CALCulate:ACPower:DETector[:FUNCtion]? ................ 2-377 [:SENSe]:ACPower:FREQuency:SPAN <freq> ..............2-377 [:SENSe]:ACPower:FREQuency:SPAN? ................2-377 [:SENSe]:ACPower:SWEep:POINts? ..................2-378 [:SENSe]:ACPower:SWEep:TIME <time> ................2-378 [:SENSe]:ACPower:SWEep:TIME?..................2-378 [:SENSe]:ACPower:SWEep:TIME:AUTO OFF|ON|0|1 ............2-379 [:SENSe]:ACPower:SWEep:TIME:AUTO? ................2-379 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition| DELTa|FIXed|OFF ......................
Page 21 Chapter 2 SCPI Device Message Details :FETCh:CHPower:DENSity? ....................2-401 :READ:CHPower[n]? ......................2-401 :READ:CHPower:CHPower? ....................2-402 :READ:CHPower:DENSity? ....................2-402 :MEASure:CHPower[n]? ......................2-402 :MEASure:CHPower:CHPower? .................... 2-403 :MEASure:CHPower:DENSity? ....................2-403 :CALCulate:CHPower:MARKer:AOFF ................... 2-403 :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum ..........2-404 :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time>|<sample>|<dist> ..2-404 :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? ............2-405 :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? ............
Page 22 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition| DELTa|FIXed|OFF ...................... 2-419 :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? ..........2-419 :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> ......2-420 :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? ........2-420 2.11 Occupied Bandwidth Measurement Settings ................. 2-421 [:SENSe]:OBWidth[:STATe] ON|OFF|1|0 ................2-423 :CALCulate:OBWidth[:STATe] ON|OFF|1|0 ................2-423 [:SENSe]:OBWidth[:STATe]? ....................2-424 :CALCulate:OBWidth[:STATe]? ..................... 2-424 [:SENSe]:OBWidth:METHod NPERcent|XDB ................
Page 23 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:AVERage:COUNt <integer> ..............2-442 [:SENSe]:OBWidth:AVERage:COUNt? .................. 2-443 [:SENSe]:OBWidth:AVERage[:STATe] ON|OFF|1|0.............. 2-443 [:SENSe]:OBWidth:AVERage[:STATe]? ................2-443 [:SENSe]:OBWidth:BANDwidth[:RESolution] <freq> ............. 2-444 :CALCulate:OBWidth:BANDwidth[:RESolution] <freq>............2-444 [:SENSe]:OBWidth:BANDwidth[:RESolution]? ............... 2-445 :CALCulate:OBWidth:BANDwidth[:RESolution]? ..............2-445 [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 ......... 2-446 :CALCulate:OBWidth:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 ........2-446 [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO?............
Page 24 Chapter 2 SCPI Device Message Details :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> ........................2-465 :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision ? ..... 2-465 :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> ..2-466 :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? ....2-467 :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF ..........2-467 :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? ............2-468 [:SENSe]:BPOWer|:TXPower:AVERage:COUNt <integer> ........... 2-468 [:SENSe]:BPOWer|:TXPower:AVERage:COUNt? ..............2-469 [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] ON|OFF|1|0 ..........2-469 [:SENSe]:BPOWer|:TXPower:AVERage[:STATe]? ............... 2-469 [:SENSe]:BPOWer|:TXPower:SWEep:TIME <time>...
Page 25 Chapter 2 SCPI Device Message Details [:SENSe]:DIGRf3g:TARGet? ....................2-487 [:SENSe]:DIGRf3g:ADRange <volt> ..................2-488 [:SENSe]:DIGRf3g:ADRange? ....................2-489 [:SENSe]:DIGRf3g:IQSign SIGNbit|TWOComp ..............2-490 [:SENSe]:DIGRf3g:IQSign? ....................2-490 [:SENSe]:DIGRf3g:MEASch PRIMary|DIVersity ..............2-491 [:SENSe]:DIGRf3g:MEASch? ....................2-492 [:SENSe]:SWEep:SAMPle <point> ..................2-493 [:SENSe]:SWEep:SAMPle? ....................2-494 :CALCulate:ATIMe:STARt:SAMPle<point> ................2-495 :CALCulate:ATIMe:STARt:SAMPle? ..................
Page 26 Chapter 2 SCPI Device Message Details :CALCulate:STRace:ATIMe:STARt? ..................2-520 :CALCulate:STRace:ATIMe:STARt:SAMPle <integer> ............2-521 :CALCulate:STRace:ATIMe:STARt:SAMPle? ................ 2-522 :CALCulate:STRace:ATIMe:LENGth <time> ................. 2-523 :CALCulate:STRace:ATIMe:LENGth? ................... 2-524 :CALCulate:STRace:ATIMe:LENGth:SAMPle <integer> ............2-525 :CALCulate:STRace:ATIMe:LENGth:SAMPle? ..............2-526 :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LOGarithmic <rel_ampl> ..2-527 :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LOGarithmic? ......2-528 :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LINear <percent> ....2-529 :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LINear? ........
Page 27 Chapter 2 SCPI Device Message Details :STATus:QUEStionable:PTRansition <integer> ..............2-561 :STATus:QUEStionable:PTRansition? ................... 2-561 :STATus:QUEStionable:MEASure[:EVENt]? ................. 2-562 :STATus:QUEStionable:MEASure:CONDition? ..............2-562 :STATus:QUEStionable:MEASure:ENABle <integer> ............2-563 :STATus:QUEStionable:MEASure:ENABle? ................. 2-563 :STATus:QUEStionable:MEASure:NTRansition <integer> ............ 2-564 :STATus:QUEStionable:MEASure:NTRansition? ..............2-564 :STATus:QUEStionable:MEASure:PTRansition <integer> ............ 2-565 :STATus:QUEStionable:MEASure:PTRansition? ..............2-565 2.20 OPERation Status Register ....................
Page 28 Chapter 2 SCPI Device Message Details [:SENSe]:FMCW:CHIRp:SLOPe? ..................2-594 2-18...
Page 29: Frequency Settings
Frequency Settings 2.1 Frequency Settings Table 2.1-1 lists device messages for setting frequency. Table 2.1-1 Device messages for setting frequency Function Device Message [:SENSe]:FREQuency:CENTer <freq> Center Frequency [:SENSe]:FREQuency:CENTer? [:SENSe]:FREQuency:CENTer:STEP[:INCRement] <freq> Frequency Step Size [:SENSe]:FREQuency:CENTer:STEP[:INCRement]? [:SENSe]:FREQuency:STARt <freq> Start Frequency [:SENSe]:FREQuency:STARt? [:SENSe]:FREQuency:STOP <freq> Stop Frequency [:SENSe]:FREQuency:STOP? [:SENSe]:FREQuency:SPAN <freq>...
Page 30 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:CENTer <freq> Center Frequency Function This command sets the center frequency. Command [:SENSe]:FREQuency:CENTer <freq> Parameter Center frequency <freq> Range [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 6 GHz (MS2690A) 0 Hz to 13.5 GHz (MS2691A) 0 Hz to 26.5 GHz (MS2692A) With MS269xA-077/177/078/178, and frequency span >...
Page 31 Frequency Settings [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 3.6 GHz (Option 040) 0 Hz to 6.0 GHz (Option 041) 0 Hz to 26.5 GHz (Option 044) 0 Hz to 44.5 GHz (Option 046) With MS2840A-077/177/078/178, and frequency span ≤ 31.25 MHz 300 MHz to 3.6 GHz (Option 040) 300 MHz to 6.0 GHz (Option 041) With MS2840A-077/177/078/178, without MS2840A-067/167,...
Page 32 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:CENTer? Center Frequency Query Function This command queries the center frequency. Query [:SENSe]:FREQuency:CENTer? Response <freq> Parameter Center frequency <freq> Range [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 6 GHz (MS2690A) 0 Hz to 13.5 GHz (MS2691A) 0 Hz to 26.5 GHz (MS2692A) With MS269xA-077/177/078/178, and frequency span >...
Page 33 Frequency Settings 300 MHz to 26.5 GHz (Option 044) 300 MHz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 3.6 GHz (Option 040) 0 Hz to 6.0 GHz (Option 041) 0 Hz to 26.5 GHz (Option 044) 0 Hz to 44.5 GHz (Option 046) With MS2840A-077/177/078/178, and frequency span ≤...
Page 34 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:CENTer:STEP[:INCRement] <freq> Frequency Step Size Function This command sets the step size of the center, start and stop frequency. Command [:SENSe]:FREQuency:CENTer:STEP[:INCRement] <freq> Parameter Step size <freq> Range [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤ 31.25 MHz 1 Hz to 6 GHz (MS2690A) 1 Hz to 13.5 GHz (MS2691A) 1 Hz to 26.5 GHz (MS2692A)
Page 35 Frequency Settings [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤ 31.25 MHz 1 Hz to 3.6 GHz (Option 040) 1 Hz to 6.0 GHz (Option 041) 1 Hz to 26.5 GHz (Option 044) 1 Hz to 44.5 GHz (Option 046) With MS2840A-077/177/078/178, and frequency span ≤ 31.25 MHz 1 Hz to 3.6 GHz (Option 040) 1 Hz to 6.0 GHz (Option 041) With MS2840A-077/177/078/178, without MS2840A-067/167,...
Page 36 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:CENTer:STEP[:INCRement]? Frequency Step Size Query Function This command queries the step size of the center, start and stop frequency. Query [:SENSe]:FREQuency:CENTer:STEP? Response <freq> Parameter Step size <freq> Range [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤ 31.25 MHz 1 Hz to 6 GHz (MS2690A) 1 Hz to 13.5 GHz (MS2691A) 1 Hz to 26.5 GHz (MS2692A)
Page 37 Frequency Settings 1 Hz to 6 GHz (Option 045) With MS2830A-077/078, with MS2830A-067/167, and frequency span > 31.25 MHz 1 Hz to 26.5 GHz (Option 044) 1 Hz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤ 31.25 MHz 1 Hz to 3.6 GHz (Option 040) 1 Hz to 6.0 GHz (Option 041) 1 Hz to 26.5 GHz (Option 044)
Page 38 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:STARt <freq> Start Frequency Function This command sets the start frequency. Command [:SENSe]:FREQuency:STARt <freq> Parameter Start frequency <freq> Range Range subtracting Frequency Span/2 from any of the following center frequency ranges: [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 6 GHz (MS2690A) 0 Hz to 13.5 GHz (MS2691A) 0 Hz to 26.5 GHz (MS2692A)
Page 39 Frequency Settings 300 MHz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 3.6 GHz (Option 040) 0 Hz to 6.0 GHz (Option 041) 0 Hz to 26.5 GHz (Option 044) 0 Hz to 44.5 GHz (Option 046) With MS2840A-077/177/078/178, and frequency span ≤...
Page 40 Chapter 2 SCPI Device Message Details Example of Use To set the start frequency to 1 GHz. FREQ:STAR 1GHZ [:SENSe]:FREQuency:STARt? Start Frequency Query Function This command queries the start frequency. Query [:SENSe]:FREQuency:STARt? Response <freq> Parameter Start frequency <freq> Range Range subtracting Frequency Span/2 from any of the following center frequency ranges: [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤...
Page 41 Frequency Settings and frequency span > 31.25 MHz 300 MHz to 6 GHz (Option 044) 300 MHz to 6 GHz (Option 045) With MS2830A-077/078, with MS2830A-067/167, and frequency span > 31.25 MHz 300 MHz to 26.5 GHz (Option 044) 300 MHz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤...
Page 42 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:STOP <freq> Stop Frequency Function This command sets the stop frequency. Command [:SENSe]:FREQuency:STOP <freq> Parameter Stop frequency <freq> Range Range adding Frequency Span/2 to any of the following center frequency ranges: [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 6 GHz (MS2690A) 0 Hz to 13.5 GHz (MS2691A) 0 Hz to 26.5 GHz (MS2692A)
Page 43 Frequency Settings 300 MHz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 3.6 GHz (Option 040) 0 Hz to 6.0 GHz (Option 041) 0 Hz to 26.5 GHz (Option 044) 0 Hz to 44.5 GHz (Option 046) With MS2840A-077/177/078/178, and frequency span ≤...
Page 44 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:STOP? Stop Frequency Query Function This command queries the stop frequency. Query [:SENSe]:FREQuency:STOP? Response <freq> Parameter Stop frequency <freq> Range Range adding Frequency Span/2 to any of the following center frequency ranges: [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 6 GHz (MS2690A) 0 Hz to 13.5 GHz (MS2691A) 0 Hz to 26.5 GHz (MS2692A)
Page 45 Frequency Settings With MS2830A-077/078, with MS2830A-067/167, and frequency span > 31.25 MHz 300 MHz to 26.5 GHz (Option 044) 300 MHz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 3.6 GHz (Option 040) 0 Hz to 6.0 GHz (Option 041) 0 Hz to 26.5 GHz (Option 044) 0 Hz to 44.5 GHz (Option 046)
Page 46 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:SPAN <freq> Span Frequency Function This command sets the span frequency. Command [:SENSe]:FREQuency:SPAN <freq> Parameter Span frequency <freq> Range/Resolution 1000, 2500, 5000, 10000, 25000, 50000, 100000, [MS269xA] 250000, 500000, 1000000, 2500000, 5000000, 10000000, 25000000, 31250000 50000000* , 62500000* , 100000000*...
Page 47 Frequency Settings 50000000, 62500000 Option 078/178 In addition to the *2, the following frequency spans are available when the 125 MHz option is Analysis Bandwidth Extension to installed: 100000000, 125000000 The following frequency spans are not available when the Frequency Band Mode is Spurious.
Page 48 Chapter 2 SCPI Device Message Details To set the span frequency to 1 kHz. FREQ:SPAN 1KHZ Related Command This command has the same function as the following commands: [:SENSe]:ACPower:FREQuency:SPAN [:SENSe]:CHPower:FREQuency:SPAN [:SENSe]:OBWidth:FREQuency:SPAN 2-38...
Page 49 Frequency Settings [:SENSe]:FREQuency:SPAN? Span Frequency Query Function This command queries the span frequency. Query [:SENSe]:FREQuency:SPAN? Response <freq> Parameter Span frequency <freq> Range/Resolution 1000, 2500, 5000, 10000, 25000, 50000, 100000, [MS269xA] 250000, 500000, 1000000, 2500000, 5000000, 10000000, 25000000, 31250000 50000000* , 62500000* , 100000000* 125000000* [MS2830A], [MS2840A]...
Page 50 Chapter 2 SCPI Device Message Details Option 078/178 In addition to the *2, the following frequency spans are available when the Analysis Bandwidth Extension to 125 MHz option is installed: 100000000, 125000000 [MS2830A], [MS2840A] MS2830A-005/105/007/009/109 MS2840A-005/105/009/109 The following frequency spans are available when the Analysis 31.25 MHz option is installed: Bandwidth Extension to...
Page 51 Frequency Settings [:SENSe]:FREQuency:BAND:MODE NORMal|SPURious Frequency Band Mode Function This command sets the frequency band path. The frequency at which the path is switched to the preselector band or a path that does not pass through the preselector can be set with this function. Command [:SENSe]:FREQuency:BAND:MODE <mode>...
Page 52 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:BAND:MODE? Frequency Band Mode Query Function This command queries the frequency band path. The frequency at which the path is switched to the preselector band or a path that does not pass through the preselector can be set with this function. Query [:SENSe]:FREQuency:BAND:MODE? Response...
Page 53 Frequency Settings [:SENSe]:FREQuency:SYNThesis[:STATe] BPHase|NORMal|FAST Switching Speed Function This command selects the switching speed of frequency. Command [:SENSe]:FREQuency:SYNThesis[:STATe] <mode> Parameter Frequency switching speed <mode> The operation is done so as to improve the phase BPHase noise characteristic rather than the frequency switching speed.
Page 54 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:SYNThesis[:STATe]? Switching Speed Query Function This command queries the switching speed of frequency. Query [:SENSe]:FREQuency:SYNThesis[:STATe]? Response Frequency switching speed <mode> Parameter Frequency switching speed <mode> The operation is done so as to improve the phase BPHase noise characteristic rather than the frequency switching speed.
Page 55: Level Settings
Level Settings 2.2 Level Settings Table 2.2-1 lists device messages for setting a level. Table 2.2-1 Device messages for setting level Function Device Message :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? [:SENSe]:POWer[:RF]:ATTenuation <rel_ampl> RF Attenuator [:SENSe]:POWer[:RF]:ATTenuation? [:SENSe]:POWer[:RF]:ATTenuation:AUTO ON|OFF|1|0 RF Attenuator Auto/Manual [:SENSe]:POWer[:RF]:ATTenuation:AUTO? :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:SPACing LINear|LOGarithmic Scale Mode :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:SPACing?
Page 56 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level Function This command sets the reference level. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Parameter Reference level <real> Range Value equivalent to −120 to +50 dBm (regardless of the ATT and Pre-Amp settings when the Replay function is executed) Resolution 0.01 dB (When scale unit settings are dB-system...
Page 57 Level Settings Related Command This command has the same function as the following commands. :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCAL e]:RLEVel 2-47...
Page 58 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Reference Level Query Function This command queries the reference level. Query :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Response <real> Parameter Reference level <real> Range Value equivalent to −120 to +50 dBm Resolution 0.01 dB (When scale unit settings are dB-system units) 0.01 pV (When scale unit settings are V-system units)
Page 59 Level Settings [:SENSe]:POWer[:RF]:ATTenuation <rel_ampl> RF Attenuator Function This command sets the attenuator. Command [:SENSe]:POWer[:RF]:ATTenuation <rel_ampl> Parameter Attenuator value <rel_ampl> Range 0 to 60 dB Resolution 2 dB [MS269xA] [MS2830A], [MS2840A] 2 dB or 10 dB Refer to “Table 2.3.2-3 Resolution of Input MS2830A/MS2840A Signal Attenuator”...
Page 60 Chapter 2 SCPI Device Message Details [:SENSe]:POWer[:RF]:ATTenuation? RF Attenuator Query Function This command queries the attenuator. Query [:SENSe]:POWer[:RF]:ATTenuation? Response <rel_ampl> Parameter Attenuator value <rel_ampl> Range 0 to 60 dB Resolution 2 dB [MS269xA] [MS2830A] , [MS2840A] 2 dB or 10 dB Refer to “Table 2.3.2-3 Resolution of Input MS2830A/MS2840A Signal Attenuator”...
Page 61 Level Settings [:SENSe]:POWer[:RF]:ATTenuation:AUTO ON|OFF|1|0 RF Attenuator Auto/Manual Function This command enables/disables the automatic attenuation setting function. Command [:SENSe]:POWer[:RF]ATTenuation:AUTO <switch> Parameter Automatic attenuation setting function On/Off <switch> Disables the automatic attenuation setting 0|OFF function. Enables the automatic attenuation setting 1|ON function (Default). Details This command is not available while the Replay function is being executed.
Page 62 Chapter 2 SCPI Device Message Details [:SENSe]:POWer[:RF]:ATTenuation:AUTO? RF Attenuator Auto/Manual Query Function This command queries the On/Off state of the automatic attenuation setting function. Query [:SENSe]:POWer[:RF]ATTenuation:AUTO? Response <switch> Parameter Automatic mode On/Off <switch> Example of Use To query the On/Off state of the automatic attenuation setting function. POW:ATT:AUTO? >...
Page 63 Level Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:SPACing LINear|LOGarithmic Scale Mode Function This command switches the scale mode. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:SPACing<mode> Parameter Scale mode <mode> Log scale (Default) LOGarithmic Linear scale LINear Details This command is not available when Trace Mode is set to Spectrogram or No Trace.
Page 64 Chapter 2 SCPI Device Message Details :UNIT:POWer DBM|DBMV|V|W|DBUV|DBUVE|DBUVM Log Scale Unit Function This command sets the level display unit system in Log scale mode. Command :UNIT:POWer <unit> Parameter Level display unit in Log scale mode <unit> dBm (Default) dBmV DBMV dBµV DBUV dBµV (emf)
Page 65 Level Settings :UNIT:POWer? Log Scale Unit Query Function This command queries the level display unit system in Log scale mode. Query :UNIT:POWer? Response <unit> Parameter Level display unit in Log scale mode <unit> dBmV DBMV dBµV DBUV dBµV (emf) DBUVE dBµV/m DBUVM Example of Use...
Page 66 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet <rel_ampl> Ref.Level Offset Value Function This command sets the offset value of the reference level offset function. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet <rel_ampl> Parameter Reference Level Offset Value <rel_ampl> Range −100.00 to +100.00 dB Resolution 0.01 dB Suffix code dB is used when omitted.
Page 67 Level Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet? Ref.Level Offset Value Query Function This command queries the offset value of the reference level offset function. Query :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet? Response <rel_ampl> Parameter Reference level offset value <rel_ampl> Range −100.00 to +100.00 dB Resolution 0.01 dB Suffix code DB is used even if the suffix code is omitted.
Page 68 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet:STATe ON|OFF|1|0 Reference Level Offset Mode Function This command enables/disables the reference level offset function. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEvel:OFFSet:STATe <switch> Parameter Reference level offset function On/Off <switch> Enables the reference level offset function. ON|1 Disables the reference level offset function OFF|0 (Default) Details...
Page 69 Level Settings [:SENSe]:POWer[:RF]:GAIN[:STATe] ON|OFF|1|0 Pre Amp Function This command sets the pre-amplifier to On/Off. Command [:SENSe]:POWer[:RF]:GAIN[:STATe] <switch> Parameter Pre-amplifier On/Off <switch> Sets Pre-amplifier to On. ON|1 Sets Pre-amplifier to Off (Default value). OFF|0 Details This command is turned off and thus invalid when Option 008/108 6 GHz [MS269xA] Preamplifier is NOT installed.
Page 70: Trigger Settings
Chapter 2 SCPI Device Message Details 2.3 Trigger Settings Table 2.3-1 lists device messages for setting triggers. Table 2.3-1 Device messages for setting trigger Function Device Message :TRIGger[:SEQuence][:STATe] ON|OFF|1|0 Trigger Switch :TRIGger[:SEQuence][:STATe]? :TRIGger[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF Trigger Source |FRAMe :TRIGger[:SEQuence]:SOURce? :TRIGger[:SEQuence]:SLOPe POSitive|NEGative Trigger Slope :TRIGger[:SEQuence]:SLOPe? :TRIGger[:SEQuence]:DELay <time>...
Page 71 Trigger Settings :TRIGger[:SEQuence][:STATe] ON|OFF|1|0 Trigger Switch Function This command sets the trigger to On/Off. Command :TRIGger[:SEQuence][:STATe] <switch> Parameter Trigger On/Off <switch> Sets trigger to off (Default value). OFF|0 Sets trigger to on. ON|1 Details This command is not available while the Replay function is being executed.
Page 72 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF|FRAMe Trigger Source Function This command selects the trigger source. Command :TRIGger[:SEQuence]:SOURce <source> Parameter Trigger signal source <source> External input (External) EXTernal[1] [MS269xA] Free run IMMediate Wideband IF detection (Wide IF Video) WIF|RFBurst Video detection (Video) (Default value) VIDeo SG Marker...
Page 73 Trigger Settings Related Command This command has the same function as the following commands. :TRIGger:ACPower[:SEQuence]:SOURce :TRIGger:CHPower[:SEQuence]:SOURce :TRIGger:OBWidth[:SEQuence]:SOURce :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce :TRIGger:CCDF|:PSTatistic[:SEQuence]:SOURce :TRIGger[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source type. Query :TRIGger[:SEQuence]:SOURce? Response <source> Parameter Trigger signal source type <source>...
Page 74 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:SLOPe POSitive|NEGative Trigger Slope Function This command sets the trigger detection mode (rising/falling). Command :TRIGger[:SEQuence]:SLOPe <mode> Parameter Trigger detection mode <mode> Detects at the rising edge (Default value). POSitive Detects at the falling edge. NEGative Details This command is not available while the Replay function is being...
Page 75 Trigger Settings :TRIGger[:SEQuence]:SLOPe? Trigger Slope Query Function This command queries the trigger detection method (rising/falling). Query :TRIGger[:SEQuence]:SLOPe? Response <mode> Parameter Trigger detection mode <mode> Detects at the rising edge. Detects at the falling edge. Example of Use To query the trigger detection mode. TRIG:SLOP? >...
Page 76 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:DELay <time> Trigger Delay Function This command sets the delay from trigger input to start of waveform capturing. Command :TRIGger[:SEQuence]:DELay <time> Parameter Delay time. <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation)
Page 77 Trigger Settings :TRIGger[:SEQuence]:DELay? Trigger Delay Query Function This command queries the delay from trigger input to start of waveform capturing. Query :TRIGger[:SEQuence]:DELay? Response <time> Parameter Delay time <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details.
Page 78 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic] <level> Log Scale Video Trigger Level Function This command sets the threshold at the level to start the capture against the video trigger in Log scale mode. Command :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic] <level> Parameter Threshold at the level to start the capture <level>...
Page 79 Trigger Settings :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic]? Log Scale Video Trigger Level Query Function This command queries the threshold at the level to start the capture against the video trigger in Log scale mode. Query :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic]? Response <level> Parameter Threshold at the level to start the capture <level>...
Page 80 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:VIDeo:LEVel:LINear? Linear Scale Video Trigger Level Query Function This command queries the threshold at the level to start the capture against the video trigger in Linear scale mode. Query :TRIGger[:SEQuence]:VIDeo:LEVel:LINear? Response <level> Parameter Threshold at the level to start the capture <level>...
Page 81 Trigger Settings :TRIGger[:SEQuence]:VIDeo:SLOPe? Video Trigger Slope Query Function This command sets the detection method of the trigger (rising/falling). Refer to : TRIGger[:SEQuence]:SLOPe? . Related Command This command has the same function as the following commands. :TRIGger[:SEQuence]:SLOPe? :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe? :TRIGger[:SEQuence]:EXTernal[1]:SLOPe? :TRIGger[:SEQuence]:VIDeo:DELay <time> Video Trigger Delay Function This command sets the delay from trigger input to start of waveform...
Page 82 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute <ampl> Wide IF Trigger Level Function This command sets the threshold at the level to start the capture against the Wide IF Video trigger. Command :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute <ampl> Parameter Threshold at the level to start the capture <level>...
Page 83 Trigger Settings :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute? Wide IF Trigger Level Query Function This command queries the threshold at the level to start the capture against the Wide IF Video trigger. Query :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute? Response <level> Parameter Threshold at the level to start the capture <level>...
Page 84 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe POSitive|NEGative Wide IF Trigger Slope Function This command sets the trigger detection mode (rising/falling). Refer to : TRIGger[:SEQuence]:SLOPe . Related Command This command has the same function as the following commands. :TRIGger[:SEQuence]:SLOPe :TRIGger[:SEQuence]:VIDeo:SLOPe :TRIGger[:SEQuence]:EXTernal[1]:SLOPe :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe? Wide IF Trigger Slope Query...
Page 85 Trigger Settings :TRIGger[:SEQuence]:WIF|:RFBurst:DELay? Wide IF Trigger Delay Query Function This command queries the delay from trigger input to start of waveform capturing. Refer to :TRIGger[:SEQuence]:DELay? . Related Command This command has the same function as the following commands. :TRIGger[:SEQuence]:DELay? :TRIGger[:SEQuence]:VIDeo:DELay? :TRIGger[:SEQuence]:EXTernal[1]:DELay? :TRIGger[:SEQuence]:EXTernal[1]:SLOPe POSitive|NEGative External Trigger Slope...
Page 86 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:EXTernal[1]:DELay <time> External Trigger Delay Function This command sets the delay from trigger input to start of waveform capturing. Refer to :TRIGger[:SEQuence]:DELay . Related Command This command has the same function as the following commands. :TRIGger[:SEQuence]:DELay :TRIGger[:SEQuence]:VIDeo:DELay :TRIGger[:SEQuence]:WIF|RFBurst:DELay...
Page 87 Trigger Settings :TRIGger[:SEQuence]:HOLDoff <time> Trigger Hold Function This command sets the fixed amount of time trigger input is disabled between the first trigger input and the next trigger input. Command :TRIGger[:SEQuence]:HOLDoff <time> Parameter Specified time <time> Range 0 to 1 s Resolution 10 ns Suffix code...
Page 88 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:HOLDoff? Trigger Hold Query Function This command queries the fixed amount of time trigger input is disabled between the first trigger input and the next trigger input. Query TRIGger[:SEQuence]:HOLDoff? Response <time> Parameter Specified time <time>...
Page 89 Trigger Settings :TRIGger[:SEQuence]:HOLDoff:STATe OFF|ON|0|1 Trigger Hold On/Off Function This command sets the function for disabling trigger input between the first trigger input and the next trigger input for a fixed amount of time to On or Off. Command :TRIGger[:SEQuence]:HOLDoff:STATe <switch> Parameter Trigger Hold On/Off <switch>...
Page 90 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:HOLDoff:STATe? Trigger Hold On/Off Query Function This command queries whether the function for disabling trigger input between the first trigger input and the next trigger input for a fixed amount of time is On or Off. Query :TRIGger[:SEQuence]:HOLDoff:STATe? Response...
Page 91 Trigger Settings :TRIGger[:SEQuence]:FRAMe:PERiod <time> Frame Trigger Period Function This command sets the period for frame trigger generation. Command :TRIGger[:SEQuence]:FRAMe:PERiod <time> Parameter Frame trigger <time> Range 1 µs to 1 s Resolution 10 ns Suffix code NS,US,MS,S S is used when the suffix code is omitted. Default 10 ms Details...
Page 92 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:FRAMe:SYNC EXTernal[1]|IMMediate|Off|WIF|RFBurst Frame Sync Source Function This command selects the synchronization signal source for starting a frame trigger. Command :TRIGger[:SEQuence]:FRAMe:SYNC <sync> Parameter Sync signal source <sync> External input (Default) EXTernal[1] Free run IMMediate|Off Wideband IF detection (Wide IF Video) WIF|RFBurst Details This command is not available for MS269x Series.
Page 93 Trigger Settings :TRIGger[:SEQuence]:FRAMe:SYNC? Frame Sync Source Query Function This command queries the synchronization signal source for starting a frame trigger. Query :TRIGger[:SEQuence]:FRAMe:SYNC? Response <sync> Parameter Sync signal source <sync> External input (Default) Free run Wideband IF detection (Wide IF Video) Details This command is not available for MS269x Series.
Page 94 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:FRAMe:OFFSet <time> Frame Sync Offset Function This command sets the offset time between when the signal source for generating a frame trigger is input and when the frame trigger is generated. Command :TRIGger[:SEQuence]:FRAMe:OFFSet <time> Parameter Specified time <time>...
Page 95 Trigger Settings :TRIGger[:SEQuence]:FRAMe:OFFSet? Frame Sync Offset Query Function This command queries the offset time between when the signal source for generating a frame trigger is input and when the frame trigger is generated. Query :TRIGger[:SEQuence]:FRAMe:OFFSet? Response <time> Parameter Offset time <time>...
Page 96: Capture Setting
Chapter 2 SCPI Device Message Details 2.4 Capture Setting Table 2.4-1 lists device messages for setting capture. Table 2.4-1 Device messages for setting capture Function Device Message :INITiate:CONTinuous OFF|ON|0|1 Continuous :INITiate:CONTinuous? Measurement :INITiate:MODE:CONTinuous Single :INITiate:MODE:SINGle Measurement Initiate :INITiate[:IMMediate] :MMEMory:STORe:IQData:MODE FULL|ATIMe|MANual Time Range :MMEMory:STORe:IQData:MODE? :MMEMory:STORe:IQData:STARt <time>...
Page 97 Capture Setting :INITiate:CONTinuous OFF|ON|0|1 Continuous Measurement Function This command switches the capture mode between Single and Continuous. Command :INITiate:CONTinuous <switch> Parameter Capture mode <switch> Single measurement 0|OFF Continuous measurement (Default value) 1|ON Details This command is set to Continuous and starts the capture, when it is set to On.
Page 98 Chapter 2 SCPI Device Message Details :INITiate:CONTinuous? Continuous Measurement Query Function This command queries the capture mode. Query :INITiate:CONTinuous? Response <switch> Parameter Capture mode <switch> Single measurement Continuous measurement Example of Use To query the capture mode. INIT:CONT? > 0 :INITiate:MODE:SINGle Single Measurement Function...
Page 99 Capture Setting :INITiate:MODE:CONTinuous Continuous Measurement Function This command starts continuous measurement. Command :INITiate:MODE:CONTinuous Details Note that this command does not support synchronized control in Continuous mode. This command is not available while the Replay function is being executed. Example of Use To execute continuous measurement.
Page 100 Chapter 2 SCPI Device Message Details :MMEMory:STORe:IQData:MODE FULL|ATIMe|MANual Time Range Function This command sets the range of IQ data to be saved when executing Save Captured Data. Command :MMEMory:STORe:IQData:MODE <mode> Parameter Range over which IQ data is saved. <mode> Full range (Default) FULL Range set in Analysis Time.
Page 101 Capture Setting :MMEMory:STORe:IQData:MODE? Time Range Query Function This command queries the set range of IQ data to be saved when executing Save Captured Data. Query :MMEMory:STORe:IQData:MODE? Response <mode> Parameter Range over which IQ data is saved. <mode> Full range FULL Range set in Analysis Time.
Page 102 Chapter 2 SCPI Device Message Details :MMEMory:STORe:IQData:STARt <time> Start Time Function This command sets the start position of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Command :MMEMory:STORe:IQData:STARt <time> Parameter Start position <time>...
Page 103 Capture Setting :MMEMory:STORe:IQData:STARt? Start Time Query Function This command queries the start position IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Query :MMEMory:STORe:IQData:STARt? Response <time> Parameter Start position <time> (When the Replay function is not executed) Range 0 to Capture Time Length –...
Page 104 Chapter 2 SCPI Device Message Details :MMEMory:STORe:IQData:STARt:SAMPle <sample> Start Sample Function This command uses the number of samples to set the start position of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Command :MMEMory:STORe:IQData:STARt:SAMPle <sample>...
Page 105 Capture Setting :MMEMory:STORe:IQData:STARt:SAMPle? Start Sample Query Function This command uses the number of samples to query the start position of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Query :MMEMory:STORe:IQData:STARt:SAMPle? Response <sample> Parameter Start position <sample>...
Page 106 Chapter 2 SCPI Device Message Details :MMEMory:STORe:IQData:LENGth <time> Time Length Function This command sets the time length of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Command :MMEMory:STORe:IQData:LENGth <time> Parameter Time length <time>...
Page 107 Capture Setting :MMEMory:STORe:IQData:LENGth? Time Length Query Function This command queries the time length of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Query :MMEMory:STORe:IQData:LENGth? Response <time> Parameter <time> Time length Range Time Resolution to Capture Time Length – Start Time Resolution Time Resolution...
Page 108 Chapter 2 SCPI Device Message Details :MMEMory:STORe:IQData:LENGth:SAMPle <sample> Sample Length Function This command sets the sample length of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Command :MMEMory:STORe:IQData:LENGth:SAMPle <sample> Parameter Sample length <sample>...
Page 109 Capture Setting :MMEMory:STORe:IQData:LENGth:SAMPle? Sample Length Query Function This command queries the sample length of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Query :MMEMory:STORe:IQData:LENGth:SAMPle? Response <sample> Parameter Sample length <sample> Range Time Resolution to Capture Time Length – Start Time Resolution Time Resolution...
Page 110 This function results in an error if a parameter requires re-capturing of waveform after execution of waveform capturing. Files are saved in the following directory of the specified drive. \Anritsu Corporation\Signal Analyzer\User Data\Digitized Data\Signal Analyzer Up to 1000 files can be saved in the folder.
Page 111 Capture Setting :MMEMory:STORe:IQData:RATE <freq> Output Rate for Save Captured Data Function This command sets the output rate when executing Save Captured Data. Command :MMEMory:STORe:IQData:RATE <freq> Parameter Output rate <freq> Range Refer to the table below. Resolution Same as above. Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ Hz is used when omitted.
Page 112 Chapter 2 SCPI Device Message Details This can be set when the Option 004/104 (Wideband Analysis Hardware) or Option 077/177 (Analysis Bandwidth Extension to 125 MHz) is installed. For MS2830A, MS2840A: This can be set when the MS2830A-005/105/007/009/109, MS2840A-005/105/009/109 (Analysis Bandwidth Extension to 31.25 MHz) is installed.
Page 113 Capture Setting :MMEMory:STORe:IQData:RATE? Output Rate for Save Captured Data Function This command queries the output rate when executing Save Captured Data. Query :MMEMory:STORe:IQData:RATE? Response <freq> Parameter Output rate <freq> Range Refer to the table below. Resolution Refer to the table below. No suffix code.
Page 114 Chapter 2 SCPI Device Message Details This can be set when the Option 004/104 (Wideband Analysis Hardware) or Option 078/178 (Analysis Bandwidth Extension to 125 MHz) is installed. For MS2830A. MS2840A: This can be set when the MS2830A-005/105/007/009/109 MS2840A-005/105/009/109 (Analysis Bandwidth Extension to 31.25 MHz) is installed.
Page 115 No more files can be saved if numbers up to 99 are already used. Files are saved to the following directory in the specified drive. \Anritsu Corporation\Signal Analyzer\User Data\Trace Data\Signal Analyzer Up to 100 files can be saved in a folder.
Page 116 Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:TIME:AUTO ON|OFF|1|0 Capture Time Auto/Manual Function This command selects auto or manual setting for waveform capture time (Capture Time). Command [:SENSe]:SWEep:TIME:AUTO <switch> Parameter Auto/manual mode for capture time <switch> Auto ON|1 Manual OFF|0 Details The minimum waveform capture time (Capture Time) required for measurement is set, when set to Auto.
Page 117 Capture Setting [:SENSe]:SWEep:TIME:AUTO? Capture Time Auto/Manual Query Function This command queries Auto/Manual setting of waveform capture time (Capture Time). Query [:SENSe]:SWEep:TIME:AUTO? Response <switch> Parameter Auto/manual setting of capture time <switch> Automatic Manual Related Command This command has the same function as the following commands. [:SENSe]:ACPower:SWEep:TIME:AUTO? [:SENSe]:CHPower:SWEep:TIME:AUTO? [:SENSe]:OBWidth:SWEep:TIME:AUTO?
Page 118 Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:TIME <time> Capture Time Length Function This command sets waveform capture time. Command [:SENSe]:SWEep:TIME <time> Parameter Capture time <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details.
Page 119 Capture Setting [:SENSe]:SWEep:TIME? Capture Time Length Query Function This command queries the waveform capture time. Query [:SENSe]:SWEep:TIME? Response <time> Parameter Capture time <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details.
Page 120: Marker Settings
Chapter 2 SCPI Device Message Details 2.5 Marker Settings Table 2.5-1 lists device messages for setting a marker. Table 2.5-1 Device messages for setting marker Function Device Message All Marker Off :CALCulate:MARKer:AOFF :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? Marker Query :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y:DELTa? Marker Phase :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y:PHASe? Query :CALCulate:PHASe:STATe ON|OFF|1|0 Calculate Phase Spectrum...
Page 121 Marker Settings Table 2.5-1 Device messages for setting marker(Cont’d) Function Device Message :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE POSitive|NORMal|DELTa|FIXed|OFF Marker Mode :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Relative To :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? :CALCulate:MARKer:TABLe[:STATe] OFF|ON|0|1 Marker List :CALCulate:MARKer:TABLe[:STATe]? :CALCulate:MARKer:SLINe[:STATe] OFF|ON|0|1 Spot Line :CALCulate:MARKer:SLINe[:STATe]? :CALCulate:MARKer:COUPle:ZONE[:STATe] OFF|ON|0|1 Couple Zone :CALCulate:MARKer:COUPle:ZONE[:STATe] ? :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:TYPE ZONE|SPOT Zone Width Type :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:TYPE? 2-111...
Page 122 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:AOFF All Marker Off Function This command sets all markers to Off. Command :CALCulate:MARKer:AOFF Example of Use To set all markers to Off. CALC:MARK:AOFF Related Command This command has the same function as the following commands. :CALCulate:ACPower:MARKer:AOFF :CALCulate:CHPower:MARKer:AOFF :CALCulate:OBWidth:MARKer:AOFF...
Page 123 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? Marker Query Function This command queries the marker value at the marker point of the main trace. Query :CALCulate:MARKer[n][:PEAK]:Y? Response <power> (Spectrum, Power vs Time, Spectrogram trace) <freq> (Frequency vs Time trace) <degree> (At Phase vs Time) <prob>...
Page 124 Chapter 2 SCPI Device Message Details Marker value of the target marker <power> (When marker level display units are dB-system units) No suffix code, in units specified by Scale Unit, 0.001 dB resolution –999.0 is returned when no measurement is performed or an error has occurred.
Page 125 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y:DELTa? Marker Query Function This command queries the delta marker value on the main trace. Query :CALCulate:MARKer[n][:PEAK]:Y:DELTa? Response <rel_ampl_spe> (For Spectrum trace) <ratio_spe> (For Spectrum trace, when Scale Mode is Linear and Marker Result is Peak (Fast) or Peak (Accuracy).) <rel_ampl_pvt>...
Page 126 Chapter 2 SCPI Device Message Details (At Power vs Time, Frequency vs Time, Phase vs Time trace) Marker number <n> Markers 1 and 2 When omitted: Markers 1 and 2 Ratio between the marker selected by n and the <rel_ampl_spe> marker specified by Relative To.
Page 127 Marker Settings (CCDF) Marker Number <n> Marker set in Marker Axis (CCDF) When omitted Marker set in Marker Axis (CCDF) Marker position of the target marker <prob> No suffix code. Value is returned in % units. –999.0 is returned at no measurement or error <prob_result_gauss>...
Page 128 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y:PHASe? Marker Phase Query Function Returns phase spectrum [rad] θ when marker position Fourier coefficient is π θ π − < ≤ However, Query :CALCulate:MARKer[n][:PEAK]:Y:PHASe? Response <phase> Parameter Marker Number marker Specifies marker 1 Specifies marker 2 Specifies marker 3 Specifies marker 4...
Page 129 Marker Settings Details 999.0 returned when – Returns phase spectrum of Zone Center position when Marker Result setting is Integration or Density Returns phase spectrum for marker positions in zone when Marker Result is Peak (Fast) or Peak (Accuracy) and Zone Type is Zone This function can be used in the following cases: ●...
Page 130 Chapter 2 SCPI Device Message Details :CALCulate:PHASe:STATe ON|OFF|1|0 Calculate Phase Spectrum Function This command sets phase spectrum calculation On and Off Command :CALCulate:PHASe:STATe <switch> Parameter Sets phase spectrum calculation On and Off <switch> Does not execute phase spectrum calculation 0|OFF (default setting) Executes phase spectrum calculation 1|ON...
Page 131 Marker Settings :CALCulate:PHASe:STATe? Calculate Phase Spectrum Query Function This command queries phase spectrum calculation On and Off Query :CALCulate:PHASe:STATe? Response <switch> Parameter Phase spectrum calculation On and Off <switch> Does not execute phase spectrum calculation Executes phase spectrum calculation Example of Use To query phase spectrum calculation On and Off CALC:PHAS:STAT? >...
Page 132 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:SET]:CENTer Marker to Center Frequency Function This command sets the marker to the center frequency. Command :CALCulate:MARKer[n][:SET]:CENTer Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Details This command is available when the following trace is active: ●...
Page 133 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:SET]:RLEVel Marker to Reference Level Function This command sets the marker level to the reference level. Command :CALCulate:MARKer[n][:SET]:RLEVel Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Details This command is available when the following trace is active: ●...
Page 134 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:ZOOM Zoom Function This command expands the trace in the range specified by the marker. Command :CALCulate:MARKer[n]:ZOOM Parameter (For Spectrum trace) Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 (At Power vs Time, Frequency vs Time, Phase vs Time trace)
Page 135 Marker Settings Details This command reflects the zone range of the active marker to the display frequency range when the main trace is Spectrum. This command can be executed when the target marker is Normal or Delta. This command reflects the time range of Marker1 and Marker2 to the analysis range when the main trace is Power vs Time, Frequency vs Time, or Phase vs Time.
Page 136 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:ZOUT Zoom Out Function This command compresses the display range of the horizontal axis scale to the range specified by the marker. Command :CALCulate:MARKer[n]:ZOUT Parameter (For Spectrum trace) Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6...
Page 137 Marker Settings Details This command compresses the display frequency range to the range specified by the zone width of the active marker when the main trace is Spectrum. This command can be executed when the target marker is Normal or Delta. This command compresses the analysis time range to the range between Markers 1 and 2 when the main trace is Power vs Time or Frequency vs Time.
Page 138 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:STATe ON|OFF|1|0 Marker State Function This command sets the main trace marker to On/Off. Command :CALCulate:MARKer[n]:MODE <switch> Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Marker mode <switch>...
Page 139 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:STATe? Marker State Query Function This command queries the On/Off state of the main trace marker. Query :CALCulate:MARKer[n]:STATe? Response <switch> Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Marker mode <switch>...
Page 140 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:ACTive OFF|ON|0|1 Active Marker Function This command specifies active marker of the main trace. Command :CALCulate:MARKer[n]:ACTive <switch> Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Active marker <switch>...
Page 141 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:ACTive? Active Marker Query Function This command queries the active marker of the main trace. Query :CALCulate:MARKer[n]:ACTive? Response <switch> Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Active marker <switch>...
Page 142 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:RESult INTegation|TOTal|DENSity|AVERage|PEAK|PACCuracy Marker Result Function This command sets the type of the marker display value of the main trace. Command :CALCulate:MARKer:RESult <mode> Parameter Type of marker value <mode> Integral power in zone INTegration Same as above TOTal Power density in zone DENSity...
Page 143 Marker Settings :CALCulate:MARKer:RESult? Marker Result Function This command queries the type of the marker display value of the main trace. Query :CALCulate:MARKer:RESult? Response <mode> Parameter Type of marker value <mode> Total power in zone band Power per 1 Hz in zone band DENS Peak power in zone PEAK...
Page 144 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time>|<sample>|<dist> Marker Frequency Function This command moves the center marker to the specified frequency (time). Command :CALCulate:MARKer[n]:X <freq> (Spectrum, Spectrogram trace) :CALCulate:MARKer[n]:X <time> (Power vs Time, Frequency vs Time, Phase vs Time trace) :CALCulate:MARKer[n]:X <sample>...
Page 145 Marker Settings Marker center frequency <freq> Range/Resolution In the frequency range of trace display MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details. Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ Hz is used when omitted.
Page 146 Chapter 2 SCPI Device Message Details addition, the marker position is shared among Power vs Time, Frequency vs Time, Phase vs Time. In CCDF, Marker Axis is changed to Distribution. For querying the marker value after this command has been executed, use *WAI commands to perform synchronized control.
Page 147 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X? Marker Frequency Query Function This command queries the center of the marker. Query :CALCulate:MARKer[n]:X? Response <freq> (Spectrum, Spectrogram trace) <time> (At Power vs Time, Frequency vs Time, Phase vs Time trace) <sample> (Power vs Time, Frequency vs Time trace, also Terminal is DigRF 3G (only for MS269x Series)) <dist>...
Page 148 Chapter 2 SCPI Device Message Details Center frequency of marker <freq> Range/Resolution In the frequency range of trace display MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details.
Page 149 Marker Settings Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details. Value is returned in dB units, without suffix code. dB is used when omitted. –999.0 is returned when no measurement is performed or an error has occurred. Details If the marker position is changed during a Spectrum trace, the target marker becomes the active marker.
Page 150 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:DELTa <freq> Marker Frequency Function This command moves the center of the marker to the frequency specified by relative value. Command :CALCulate:MARKer[n]:X ： DELTa <freq> Parameter <n> Marker number Specifies marker 1 Specifies marker 2 Specifies marker 3 Specifies marker 4 Specifies marker 5...
Page 151 Marker Settings Example of Use To move the center of Marker 1 to the position of Marker 2 –100 MHz, and query the marker value. CALC:MARK:X:DELT -100MHZ *WAI CALC:MARK:Y:DELT? :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:DELTa? Marker Frequency Query Function This command queries the center of marker in relative value. Query :CALCulate:MARKer[n]:X:DELTa? Response...
Page 152 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:PEAK:X? Marker Frequency Query Function This command queries the frequency at the marker point. When Marker Mode is Delta, this command queries the frequency difference between the delta marker and the marker specified by Relative To. Query :CALCulate:MARKer[n]:PEAK:X? Response...
Page 153 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh <freq> Marker Width Function This command sets the zone width of the marker in frequency. Command :CALCulate:MARKer[n]:WIDTh <freq> Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Frequency marker width <freq>...
Page 154 Chapter 2 SCPI Device Message Details Example of Use To set a marker value by setting the width of the marker 1 to 100 kHz. CALC:MARK:WIDT 100KHZ *WAI CALC:MARK:Y? :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh? Marker Width Query Function This command queries the zone marker width. Query :CALCulate:MARKer[n]:WIDTh? Response...
Page 155 Marker Settings :CALCulate:MARKer:PTPeak[:STATe] ON|OFF|1|0 Display Peak to Peak Value On/Off Function This command sets the peak to peak measurement On/Off. Command :CALCulate:MARKer:PTPeak[:STATe] <switch> Parameter Peak to Peak measurement function On/Off <switch> ON|1 OFF|0 Details This command is available when the following traces are active: ●...
Page 156 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:PTPeak[:STATe]? Display Peak to Peak Value On/Off Query Function This command queries the On/Off state of Peak to Peak measurement. Query :CALCulate:MARKer:PTPeak[:STATe]? Response <switch> Parameter Peak to Peak measurement function On/Off <switch> Details This command is available when the following traces are active: ●...
Page 157 Marker Settings :CALCulate:MARKer:PTPeak:RESult? Peak to Peak Value Query Function This command queries the result of the peak to peak measurement. Query :CALCulate:MARKer:PTPeak:RESult? Response <pos>,<neg>,<p-p>,<avg> Parameter Result of peak to peak measurement + Peak value <pos> Values in % units will be returned when Terminal is DigRF 3G (only for MS269x Series) and the Input Source is Complex.
Page 158 Chapter 2 SCPI Device Message Details Average value <avg> Returns a value in V units without a suffix code (Power vs Time). No suffix code. Value is returned in Hz units. (Frequency vs Time). –999999999999 is returned when no measurement is performed or an error has occurred.
Page 159 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE POSitive|NORMal|DELTa|FIXed|OFF Marker Mode Function This command sets the marker mode. Command :CALCulate:MARKer[n]:MODE <mode> Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Marker mode <mode> Normal POSition|NORMal Delta DELTa Fixed FIXed Default value...
Page 160 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? Marker Mode Query Function This command queries the marker mode. Query :CALCulate:MARKer[n]:MODE? Response <mode> Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Marker mode <mode>...
Page 161 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Relative To Function This command sets the reference marker when Marker Mode is set to Delta. Command :CALCulate:MARKer[n]:REFerence <integer> Parameter Target marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Reference marker number <integer>...
Page 162 Chapter 2 SCPI Device Message Details Related Commands This command has the same function as the following commands. :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc 2-152...
Page 163 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? Relative To Query Function This command queries the reference marker when Marker Mode is set to Delta. Query :CALCulate:MARKer[n]:REFerence? Response <integer> Parameter Target marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Reference marker number <integer>...
Page 164 Chapter 2 SCPI Device Message Details Related Command This command has the same function as the following commands. :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:MARKer:TABLe[:STATe] OFF|ON|0|1 Marker List Function This command sets the marker list display to On/Off. Command :CALCulate:MARKer:TABLe[:STATe] <switch> Parameter Marker list display On/Off <switch>...
Page 165 Marker Settings :CALCulate:MARKer:TABLe[:STATe]? Marker List Query Function This command queries the On/Off state of the marker list display. Query :CALCulate:MARKer:TABLe[:STATe]? Response <switch> Parameter Marker list display On/Off <switch> Marker list display On. Marker list display Off. Details This command is available when the following trace is active: ●...
Page 166 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:SLINe[:STATe]? Spot Line Query Function This command queries the On/Off state of the marker line display for spot marker. Query :CALCulate:MARKer:SLINe[:STATe]? Response <switch> Parameter Marker line display On/Off <switch> Marker line is displayed. Marker line is hidden. Details This function can be set when the following trace is active: ●...
Page 167 Marker Settings :CALCulate:MARKer:COUPle:ZONE[:STATe] OFF|ON|0|1 Couple Zone Function This command enables or disables the Zone Width shared setting. Command :CALCulate:MARKer:COUPle:ZONE[:STATe] <switch> Parameter Zone Width shared setting On/Off <switch> Sets the shared setting to On. ON|1 Sets the shared setting to Off. OFF|0 Details This command is available when the following trace is active:...
Page 168 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:COUPle:ZONE[:STATe] ? Couple Zone Query Function This command queries whether the Zone Width shared setting is enabled/disabled. Query :CALCulate:MARKer:COUPle:ZONE[:STATe]? Response <switch> Parameter Zone Width shared setting On/Off <switch> Details This command is available when the following trace is active: ●...
Page 169 Marker Settings :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:TYPE ZONE|SPOT Zone Width Type Function This command sets the zone type of the marker. Command :CALCulate:MARKer[n]:WIDTh:TYPE <zone_type> Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Zone type of marker <zone_type>...
Page 170 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:TYPE? Zone Width Type Query Function This command queries the zone type of the marker. Query :CALCulate:MARKer[n]:WIDTh:TYPE? Response <zone_type> Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10 When omitted: Marker1 Zone type of marker <zone_type>...
Page 171: Signal Search Settings
Signal Search Settings 2.6 Signal Search Settings Table 2.6-1 lists device messages for setting signal search. Table 2.6-1 Device messages for setting signal search Function Device Message Peak Search :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Next Peak Search :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:NEXT :CALCulate:MARKer:SIGNal:RESolution|:EXCursion Signal Search <rel_ampl>|<percent>|<freq> Resolution :CALCulate:MARKer:SIGNal:RESolution|:EXCursion? :CALCulate:MARKer:SIGNal:THReshold:STATe ON|OFF|1|0 Signal Search Threshold Level...
Page 172 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the maximum level point of the main trace and moves the marker point. Command :CALCulate:MARKer[n]:MAXimum Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5 Marker6 Marker7 Marker8 Marker9 Marker10...
Page 173 Signal Search Settings Related Command This command has the same function as the following commands. :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: MAXimum 2-163...
Page 174 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:NEXT Next Peak Search Function This command searches for the feature point of the main trace and moves the marker point to a lower peak point. Command :CALCulate:MARKer[n]:MAXimum:NEXT Parameter Marker number <n> Marker1 Marker2 Marker3 Marker4 Marker5...
Page 175 Signal Search Settings :CALCulate:MARKer:SIGNal:RESolution|:EXCursion <rel_ampl>|<percent>|<freq> Signal Search Resolution Function This command sets the search resolution of the search point. Command :CALCulate:MARKer:SIGNal:RESolution|:EXCursion <rel_ampl> (For Spectrum trace, when Result Mode is Integration or Density; or for Spectrum trace, when Result Mode is Peak (Fast) or Peak (Accuracy) and Scale Mode is Log Scale.
Page 176 Chapter 2 SCPI Device Message Details Example of Use To set the resolution to 20 dB. CALC:MARK:SIGN:RES 20DB 2-166...
Page 177 Signal Search Settings :CALCulate:MARKer:SIGNal:RESolution|:EXCursion? Signal Search Resolution Query Function This command queries the search resolution at the search point. Query :CALCulate:MARKer:SIGNal:RESolution|:EXCursion? Response <rel_ampl> (For Spectrum trace, when Result Mode is Integration or Density; or for Spectrum trace, when Result Mode is Peak (Fast) or Peak (Accuracy) and Scale Mode is Log Scale.
Page 178 Chapter 2 SCPI Device Message Details Details This command is available when any one of the following traces is active: ● Spectrum ● Power vs Time ● Frequency vs Time Example of Use To query the search resolution. CALC:MARK:SIGN:RES? > 20.00 2-168...
Page 179 Signal Search Settings :CALCulate:MARKer:SIGNal:THReshold:STATe ON|OFF|1|0 Signal Search Threshold Level Function This command sets the threshold condition to search for the search point in the main trace. Command :CALCulate:MARKer:SIGNal:THReshold:STATe <switch> Parameter Threshold when searching for the peak point <switch> Sets the threshold to Off (Default value) 0|OFF Sets the threshold to On.
Page 180 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:SIGNal:THReshold:STATe? Signal Search Threshold Level Query Function This command returns the On/Off state of the threshold to search for the search point in the main trace. Query :CALCulate:MARKer:SIGNal:THReshold:STATe? Response <switch> Parameter On/Off of threshold to search for the peak point <switch>...
Page 181 Signal Search Settings :CALCulate:MARKer:SIGNal:THReshold:MODE ABOVe|BELow Signal Search Mode Function This command sets the threshold condition to search for the search point in the main trace. Command :CALCulate:MARKer:SIGNal:THReshold:MODE <mode> Parameter Search method for threshold <mode> Searches for only the upper side of threshold ABOVe (Default value) Searches for only the lower side of threshold...
Page 182 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:SIGNal:THReshold:MODE? Signal Search Mode Query Function This command queries the threshold condition to search for the search point in the main trace. Query :CALCulate:MARKer:SIGNal:THReshold:MODE? Response <mode> Parameter Search method for threshold <mode> Searches for only the upper side of threshold. ABOV Searches for only the lower side of threshold.
Page 183 Signal Search Settings :CALCulate:MARKer:SIGNal:THReshold <ampl>|<freq> Signal Search Threshold Level Function This command sets the threshold to search for the peak point. Command :CALCulate:MARKer:SIGNal:THReshold <ampl> (Spectrum, Power vs Time trace) :CALCulate:MARKer:SIGNal:THReshold <freq> (Frequency vs Time trace) Parameter Threshold to search for the search point <ampl>...
Page 184 Chapter 2 SCPI Device Message Details Threshold to search for the search point <freq> Range Range of Vertical Scale of the main trace Resolution 1 Hz Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ Hz is used when omitted. Details This command is available when any one of the following traces is active: ●...
Page 185 Signal Search Settings :CALCulate:MARKer:SIGNal:THReshold? Signal Search Threshold Level Query Function This command queries the threshold to search for the peak point. Query :CALCulate:MARKer:SIGNal:THReshold? Response <ampl> (For Spectrum, Power vs Time trace) <freq> (For Frequency vs Time trace) Parameter Threshold to search for the search point <ampl>...
Page 186 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2:MINimum Dip Search Function This command searches for the minimum level point of the main trace and moves the marker point. Command :CALCulate:MARKer[n]:MINimum Parameter Marker number <n> Marker 1 Marker 2 When omitted: Marker 1 Details This command is available when the following trace is active: ●...
Page 187 Signal Search Settings :CALCulate:MARKer[1]|2:MINimum:NEXT Next Dip Search Function This command searches for the characteristics of the main trace and moves the marker point to the peak point at which the marker value of a smaller level than the presently set marker level becomes the smallest. Command :CALCulate:MARKer[n]:MINimum:NEXT Parameter...
Page 188 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:PEAK:SORT:Y Search Peaks Sort Y Function This command sorts as many markers as the number set in Search Peaks Number by level on the trace. Command :CALCulate:MARKer:PEAK:SORT:Y Details This command is available on the following trace: ●...
Page 189 Signal Search Settings :CALCulate:MARKer:PEAK:SORT:X Search Peaks Sort X Function This command sorts as many markers as the number set in Search Peaks Number by frequency on the trace. Command :CALCulate:MARKer:PEAK:SORT:X Details This command is available on the following trace: ● Spectrum This command is not available when Marker Result is Integration or Density.
Page 190 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:PEAK:SORT:COUNt <integer> Search Peaks Number Function This command sets the number of searches when Search Peaks Sort Y/X is executed. Command :CALCulate:MARKer:PEAK:SORT:COUNt <integer> Parameter Number of searches <integer> Range 1 to 10 Resolution Default value Details This command is available when the following trace is active: ●...
Page 191 Signal Search Settings :CALCulate:MARKer:READout? Marker Readout Query Function This command queries all marker values. Query :CALCulate:MARKer:READout? Response <freqs_1>,<power_1>,<freqs_2>,<power_2>,..., <freqs_10>,<power_10> (For Spectrum trace) <time_1>,<power_1>,<time_2>,<power_2> (For Power vs Time trace) <sample_1>,<power_1>,<sample_2>,<power_2> (When Terminal is DigRF 3G (only for MS269x Series)) (For Power vs Time trace) <time_1>,<freqf_1>,<time_2>,<freqf_2>...
Page 192 Chapter 2 SCPI Device Message Details has occurred, or marker is Off. (When marker level display units are W-system units) No suffix code/W units/0.01 yW resolution –999.0 is returned when no measurement is performed, an error has occurred, or marker is Off. When marker level display units are X-multiple-system units) No suffix code/0.0001 resolution.
Page 193: Trace Settings
Trace Settings 2.7 Trace Settings Table 2.7-1 lists device messages for setting a trace. Table 2.7-1 Device messages for setting a trace Function Device Message :TRACe:MODE SPECtrum|PVTime|FVTime|PHASe|CCDF|SPGRam|NONE Change Trace :TRACe:MODE? :CALCulate:ATIMe:AUTO OFF|ON|0|1 Analysis Time Auto/Manual :CALCulate:ATIMe:AUTO? Analysis Time :CALCulate:ATIMe:LENGth <time> Length :CALCulate:ATIMe:LENGth? :CALCulate:ATIMe:STARt <time>...
Page 194 Chapter 2 SCPI Device Message Details Table 2.7-1 Device messages for setting a trace (Cont’d) Function Device Message [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO ON|OFF|1|0 Resolution [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? Bandwidth :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO ON|OFF|1|0 Auto/Manual :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO? [:SENSe]:DETector[:FUNCtion] NORMal|POSitive|NEGative|SAMPle|AVERage [:SENSe]:DETector[:FUNCtion]? Detection Mode :CALCulate:DETector[:FUNCtion] NORMal|POSitive|NEGative|SAMPle|AVERage :CALCulate:DETector[:FUNCtion]? :TRACe:STORage:MODE OFF|MAXHold|LAVerage|MINHold Storage Mode :TRACe:STORage:MODE? [:SENSe]:AVERage:COUNt <integer>...
Page 195 Trace Settings Table 2.7-1 Device messages for setting a trace (Cont’d) Function Device Message :CALCulate:FILTer:BANDwidth:AUTO ON|OFF|1|0 Filter Auto/Manual :CALCulate:FILTer:BANDwidth:AUTO? Zoom :DISPlay[:WINDow]:TRACe:Y[:SCALe]:RANGe D2|D5|D10|D25 Width/Vertical :DISPlay[:WINDow]:TRACe:Y[:SCALe]:RANGe? Scale Width Maximum Frequency Range :DISPlay[:WINDow]:TRACe:Y[:SCALe]:WIDTh? Query :UNIT:FREQuency HZ|DHZ Frequency Scale Unit :UNIT:FREQuency? :CALCulate:CCDF|:PSTatistic:METHod CCDF|APD Measure Method :CALCulate:CCDF|:PSTatistic:METHod? :CALCulate:CCDF|:PSTatistic:THReshold:STATe ON|OFF|1|0 Threshold On/Off...
Page 196 Chapter 2 SCPI Device Message Details Table 2.7-1 Device messages for setting a trace (Cont’d) Function Device Message Power Distribution :DISPlay:WINDow[1]:TRACe:X[:SCALe]:PDIVision <rel_ampl> Scale :DISPlay:WINDow[1]:TRACe:X[:SCALe]:PDIVision? :CALCulate:MARKer:AXIS PROB|DSTRbt Marker Axis :CALCulate:MARKer:AXIS? Reset Result Every [:SENSe]:CCDF|:PSTatistic:ERESet[:STATe] ON|OFF|1|0 Capture [:SENSe]:CCDF|:PSTatistic:ERESet[:STATe]? CCDF Configure :CONFigure:CCDF|:PSTatistic CCDF Initiate :INITiate:CCDF|:PSTatistic CCDF Fetch :FETCh:CCDF|:PSTatistic[n]?
Page 197 Trace Settings Table 2.7-1 Device messages for setting a trace (Cont’d) Function Device Message :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:OFFSet <real> Phase Offset :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:OFFSet? :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:MODE <mode> Phase Mode :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:MODE? :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:PDIVision <real> Scale Division :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:PDIVision? :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:REFerence <time> Phase Reference :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:REFerence? :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:REFerence:MODE <mode> Phase Reference Mode :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:REFerence:MODE? 2-187...
Page 198 Chapter 2 SCPI Device Message Details :TRACe:MODE SPECtrum|PVTime|FVTime|PHASe|CCDF|SPGRam|NONE Change Trace Function This command sets the main trace type. Command :TRACe:MODE <trace> Parameter Trace type <trace> Spectrum SPECtrum Power vs Time PVTime Frequency vs Time FVTime Phase vs Time PHASe CCDF CCDF Spectrogram SPGRam...
Page 199 Trace Settings :TRACe:MODE? Change Trace Query Function This command queries the main trace type. Command :TRACe:MODE? Response <trace> Parameter Trace type <trace> Spectrum SPEC Power vs Time Frequency vs Time Phase vs Time PHAS CCDF CCDF Spectrogram SPGR Example of Use To query the main trace type.
Page 200 Chapter 2 SCPI Device Message Details Example of Use To set the analysis time of the main trace manually. CALC:ATIM:AUTO OFF :CALCulate:ATIMe:AUTO? Analysis Time Auto/Manual Query Function This command queries the auto/manual mode for the analysis time of the main trace. Query :CALCulate:ATIMe:AUTO? Response...
Page 201 Trace Settings :CALCulate:ATIMe:LENGth <time> Analysis Time Length Function This command sets the analysis time length for the main trace. Command :CALCulate:ATIMe:LENGth <time> Parameter Time Analysis time length <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details.
Page 202 Chapter 2 SCPI Device Message Details :CALCulate:ATIMe:LENGth? Analysis Time Length Query Function This command queries the analysis time length for the main trace. Query :CALCulate:ATIMe:LENGth? Response <time> Parameter Analysis time length <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation)
Page 203 Trace Settings :CALCulate:ATIMe:STARt <time> Analysis Start Time Function This command sets the analysis start time for the main trace. Command :CALCulate:ATIMe:STARt <time> Parameter Analysis time length <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details.
Page 204 Chapter 2 SCPI Device Message Details :CALCulate:ATIMe:STARt? Analysis Start Time Query Function This command queries the analysis start time for the main trace. Query :CALCulate:ATIMe:STARt? Response <time> Parameter Parameter Analysis time length <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation)
Page 205 Trace Settings :CALCulate:ATIMe:GMODe OFF|ON|0|1 Gate Mode On/Off Function When the main trace is CCDF, this command selects whether or not to use the GateMode for analysis of only the specified section in the Analysis Time. Command CALCulate:ATIMe:GMODe <switch> Parameter Gate Mode Status <switch>...
Page 206 Chapter 2 SCPI Device Message Details :CALCulate:ATIMe:GMODe:PERiod <time> Period Function When GateMode is On, this command sets the Period setting for each range. Command :CALCulate:ATIMe:GMODe:PERiod <time> Parameter Range setting cycle <time> Range/Resolution Same as Analysis Time Length MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation...
Page 207 Trace Settings :CALCulate:ATIMe:GMODe:PERiod? Period Query Function When GateMode is On, this command queries the Period setting for each range. Query :CALCulate:ATIMe:GMODe:PERiod? Response Range setting cycle <time> Range/Resolution Same as Analysis Time Length MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation)
Page 208 Chapter 2 SCPI Device Message Details :CALCulate:ATIMe:GMODe:RANGe:STATe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, Range State Function This command sets each range On/Off. Command :CALCulate:ATIMe:GMODe:RANGe:STATe <switch_n> Parameter Range n On/Off <switch_n> Sets range to On ON|1 Sets range to Off OFF|0 Default Range1 Range2 to 3 Details This function cannot set all segments to Off.
Page 209 Trace Settings :CALCulate:ATIMe:GMODe:RANGe: STATe? Range State Query Function This command queries the range for setting parameter. Query :CALCulate:ATIMe:GMODe:RANGe:STATe? Response Range On/Off <switch_n> Details This command is available when the CCDF trace is active. Example of Use To query the range On/Off: CALC:ATIM:GMOD:RANG:STAT? >...
Page 210 Chapter 2 SCPI Device Message Details :CALCulate:ATIMe:GMODe:RANGe:STARt <time_1>,<time_2>,<time_3> Range Start Time Function This command sets the start time for each range. Command :CALCulate:ATIMe:GMODe:RANGe:STARt <time_n> Parameter Start time for each range <time_n> Range 0 to (Range setting period (Period)—Resolution) Resolution Same as Analysis Time Length MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal...
Page 211 Trace Settings :CALCulate:ATIMe:GMODe:RANGe:STOP <time_1>,<time_2>,<time_3> Range Stop Time Function This command set the stop time for each range. Command :CALCulate:ATIMe:GMODe:RANGe:STOP <time_n> Parameter Stop time for each range <time_n> Range Resolution to Range setting period (Period) Resolution Same as Analysis Time Length MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal...
Page 212 Chapter 2 SCPI Device Message Details :INITiate:CALCulate Calculate Function This command executes waveform analysis without capturing and is used to re-analyze the same captured waveform with different parameters. Command :INITiate:CALCulate Details This function can be executed only when the waveform capture time (Capture Time) is set to Manual.
Page 213 Trace Settings Example of Use To execute waveform analysis. TRAC:MODE SPEC Displays Spectrum trace Sets the waveform capture time SWE:TIME:AUTO OFF manually SWE:TIME 100MS Sets the waveform capture time to 100 ms Obtains IQ data INIT:MODE:SING Waits until end of query *WAI Sets the analysis time length to 10 ms CALC:ATIM:LENG 10MS...
Page 214 Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:POINts? Trace Point Query Function This command queries the number of data points of the main trace. Query [:SENSe]:SWEep:POINts? Response <integer> Parameter The number of trace points <n> The number of time axis trace points The number of frequency axis trace points Number of trace data points <integer>...
Page 215 Trace Settings :TRACe:SWEep:COUNt? Measurement Count Query Function This command queries the current storage count of the main trace. Query :TRACe:SWEep:COUNt? Response <integer> Parameter Storage count <integer> Range 0 to 9999 Resolution Details This command is available when any one of the following traces is active: ●...
Page 216 Chapter 2 SCPI Device Message Details :DISPlay[:WINDow]:TRACe:X[:SCALe]:CENTer <freq> Zoom Center Function This command sets the center frequency of the display frequency axis scale. Command :DISPlay[:WINDow]:TRACe:X[:SCALe]:CENTer <freq> Parameter Scale center frequency <freq> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation)
Page 217 Trace Settings :DISPlay[:WINDow]:TRACe:X[:SCALe]:CENTer? Zoom Center Query Function This command queries the center frequency of the display frequency axis scale. Query :DISPlay[:WINDow]:TRACe:X[:SCALe]:CENTer? Response <freq> Parameter Scale center frequency <freq> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details.
Page 218 Chapter 2 SCPI Device Message Details :DISPlay[:WINDow]:TRACe:X[:SCALe]:WIDTh <freq> Zoom Width/Vertical Scale Width Function This command sets the frequency width of the display frequency axis scale. Command :DISPlay[:WINDow]:TRACe:X[:SCALe]:WIDTh <freq> Parameter Scale frequency width <freq> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation)
Page 219 Trace Settings :DISPlay[:WINDow]:TRACe:X[:SCALe]:WIDTh? Zoom Width/Vertical Scale Width Query Function This command queries the frequency width of the display frequency axis scale. Query :DISPlay[:WINDow]:TRACe:X[:SCALe]:WIDTh? Response <freq> Parameter Scale frequency width <freq> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation)
Page 220 Chapter 2 SCPI Device Message Details [:SENSe]:BANDwidth|:BWIDth[:RESolution] <bandwidth> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Command [:SENSe]:BANDwidth|:BWIDth[:RESolution] <bandwidth> Parameter Resolution bandwidth (RBW) <bandwidth> Range/Resolution 1 Hz to 10 MHz (1-3 Sequence) Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ Hz is used when omitted.
Page 221 Trace Settings [:SENSe]:BANDwidth|:BWIDth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). Query [:SENSe]:BANDwidth|:BWIDth[:RESolution]? Response <bandwidth> Parameter Resolution bandwidth (RBW) <bandwidth> Range/Resolution 1 Hz to 10 MHz (1-3 Sequence) No suffix code. Value is returned in Hz units. Details This command is available when the following trace is active: ●...
Page 222 Chapter 2 SCPI Device Message Details :CALCulate:BANDwidth|:BWIDth[:RESolution] <bandwidth> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution] . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution] [:SENSe]:ACPower:BANDwidth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] [:SENSe]:OBWidth:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]...
Page 223 Trace Settings :CALCulate:BANDwidth|:BWIDth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]? . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]? [:SENSe]:ACPower:BANDwidth[:RESolution]? :CALCulate:ACPower:BANDwidth[:RESolution]? [:SENSe]:CHPower:BANDwidth[:RESolution]? :CALCulate:CHPower:BANDwidth[:RESolution]? [:SENSe]:OBWidth:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]? 2-213...
Page 224 Chapter 2 SCPI Device Message Details [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the automatic resolution bandwidth (RBW) setting function. Command [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO <switch> Parameter Automatic resolution bandwidth setting function <switch> On/Off Disables the automatic resolution bandwidth 0|OFF setting function. Enables the automatic resolution bandwidth 1|ON setting function (Default value).
Page 225 Trace Settings [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic resolution bandwidth (RBW) setting function. Query [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? Response <switch> Parameter Automatic resolution bandwidth setting function <switch> On/Off Disables the automatic resolution bandwidth setting function . Enables the automatic resolution bandwidth setting function.
Page 226 Chapter 2 SCPI Device Message Details :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the automatic resolution bandwidth (RBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO...
Page 227 Trace Settings :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic resolution bandwidth (RBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO? :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO? [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO? :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO?
Page 228 Chapter 2 SCPI Device Message Details [:SENSe]:DETector[:FUNCtion] NORMal|POSitive|NEGative|SAMPle|AVERage Detection Mode Function This command selects the detection mode for waveform pattern. Command [:SENSe]:DETector[:FUNCtion] <mode> Parameter Detection mode <mode> Simultaneous detection for positive and negative NORMal peaks Positive peak detection POSitive Negative peak detection NEGative Sample detection SAMPle...
Page 229 Trace Settings [:SENSe]:DETector[:FUNCtion]? Detection Mode Query Function This command queries the detection mode for waveform pattern. Query [:SENSe]:DETector[:FUNCtion]? Response <det> Parameter Detection mode selection <det> Simultaneous detection for positive and negative NORM peaks Positive peak detection Negative peak detection Sample detection SAMP Average value detection AVER...
Page 230 Chapter 2 SCPI Device Message Details :CALCulate:DETector[:FUNCtion] NORMal|POSitive|NEGative|SAMPle|AVERage Detection Mode Function This command selects the detection mode for waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion] . Related Command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion] [:SENSe]:ACPower:DETector[:FUNCtion] :CALCulate:ACPower:DETector[:FUNCtion] [:SENSe]:CHPower:DETector[:FUNCtion] :CALCulate:CHPower:DETector[:FUNCtion] [:SENSe]:OBWidth:DETector[:FUNCtion] :CALCulate:OBWidth:DETector[:FUNCtion]...
Page 231 Trace Settings :TRACe:STORage:MODE OFF|MAXHold|LAVerage|MINHold Storage Mode Function This command sets the storage mode for active trace data. Command :TRACe:STORage:MODE <mode> Parameter Storage mode <mode> Does not store data (Default value) Stores the maximum value. MAXHold Stores the average value. LAVerage Stores the minimum value.
Page 232 Chapter 2 SCPI Device Message Details :TRACe:STORage:MODE? Storage Mode Query Function This command queries the storage mode for active trace data. Command :TRACe:STORage:MODE <mode> Response <mode> Parameter Storage mode <mode> Does not store data. Stores the maximum value. MAXH Stores the average value Stores the minimum value.
Page 233 Trace Settings [:SENSe]:AVERage:COUNt <integer> Storage Count Function This command sets the storage count. Command [:SENSe]:AVERage:COUNt <integer> Parameter Storage count <integer> Range 2 to 9999 Default value Details This command is available when any one of the following traces is active: ●...
Page 234 Chapter 2 SCPI Device Message Details [:SENSe]:AVERage:COUNt? Storage Count Query Function This command queries the storage count. Query [:SENSe]:AVERage:COUNt? Response <integer> Parameter Storage count <integer> Range 2 to 9999 Details This function can be set when any one of the following traces is active: ●...
Page 235 Trace Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision[:LOGarithmic] <rel_ampl> Log Scale Range Function This command sets the Y-axis scale range when Scale Mode is set to Log. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision[:LOGarithmi c] <rel_ampl> Parameter Y axis scale range <rel_ampl> 0.1 dB/div 0.2 dB/div 0.5 dB/div 1 dB/div 2 dB/div 5 dB/div 10 dB/div...
Page 236 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision[:LOGarithmic]? Log Scale Range Query Function This command queries the Y-axis scale range when Scale Mode is set to Log. Query :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision[:LOGarithmi Response <rel_ampl> Parameter Y axis scale range <rel_ampl> 0.1 dB/div 0.2 dB/div 0.5 dB/div 1 dB/div 2 dB/div...
Page 237 Trace Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision:LINear <percent> Linear Scale Range Function This command sets the Y-axis scale range when Scale Mode is set to Linear. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision:LINear <percent> Parameter Y axis scale range <percent> 1%/div 2%/div 5%/div 10%/div Default value 10%/div Details This command is available when either of the following traces is active: ●...
Page 238 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision:LINear? Linear Scale Range Query Function This command queries the Y-axis scale range when Scale Mode is set to Linear. Query :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision:LINear? Response <percent> Parameter Y-axis scale range <percent> 1%/div 2%/div 5%/div 10%/div Default value 10%/div Details This command is available when either of the following traces is active:...
Page 239 Trace Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINE[:LOGarithmic] <line> Log Scale Line Function This command sets the number of Y-axis scale segments in Log scale mode. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINE[:LOGarithmic] <line> Parameter Number of Y-axis scale segments <line> 10 segments (Default value) 12 segments Details This command is available only in Log scale mode. This command is available when either of the following traces is active: ●...
Page 240 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINE[:LOGarithmic]? Log Scale Line Query Function This command queries the number of Y-axis scale segments in Log scale mode. Query :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINE[:LOGarithmic]? Response <line> Parameter Number of Y-axis scale segments <line> 10 segments 12 segments Details This command is available only in Log scale mode.
Page 241 Trace Settings :CALCulate:SMOothing[:STATe] OFF|ON|0|1 Smoothing Function This command sets the main trace smoothing On/Off. Command :CALCulate:SMOothing[:STATe] <switch> Parameter Smoothing ON/OFF <switch> ON|1 OFF|0 Details This command is available when either of the following traces is active. ● Power vs Time ●...
Page 242 Chapter 2 SCPI Device Message Details :CALCulate:SMOothing:LENGth <time> Smoothing Time Length Function This command sets the main trace smoothing time length. Command :CALCulate:SMOothing:LENGth <time> Parameter Smoothing time length <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details.
Page 243 Trace Settings :CALCulate:SMOothing:LENGth? Smoothing Time Length Query Function This command queries the main trace smoothing time length. Query :CALCulate:SMOothing:LENGth? Response <time> Parameter Smoothing time length <time> MS2690A/MS2691A/MS2692A Range/Resolution Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation) details.
Page 244 Chapter 2 SCPI Device Message Details :CALCulate:FILTer:TYPE OFF|RECT|GAUSsian|NYQuist|RNYQuist Filter Type Function This command selects filter type for the main trace. Command :CALCulate:FILTer:TYPE <filter> Parameter Filter type <filter> No filtering Rectangle filter RECT Gauss filter GAUSsian Nyquist filter NYQuist Root Nyquist filter RNYQuist Details This command is available when either of the following traces is active:...
Page 245 Trace Settings :CALCulate:FILTer:TYPE? Filter Type Query Function This command queries filter type for the main trace. Query :CALCulate:FILTer:TYPE? Response <filter> Parameter Filter type <filter> No filtering Rectangle filter RECT Gauss filter GAUS Nyquist filter Root Nyquist filter RNYQ Details This command is available when either of the following traces is active: ●...
Page 246 Chapter 2 SCPI Device Message Details :CALCulate:FILTer:ALPHa <real> Rolloff Factor Function This command sets the filter rolloff factor. Command :CALCulate:FILTer:ALPHa <real> Parameter Filter rolloff factor <real> Range 0.01 to 1.00 Resolution 0.01 Suffix code None Details This command is available when the following trace is set to active: ●...
Page 247 Trace Settings :CALCulate:FILTer:ALPHa? Rolloff Factor Query Function This command queries the filter rolloff factor. Command :CALCulate:FILTer:ALPHa? Response <real> Parameter Filter rolloff factor <real> Range 0.01 to 1.00 Resolution 0.01 Suffix code None Details This command is available set when the following trace is set to active: ●...
Page 248 Chapter 2 SCPI Device Message Details :CALCulate:FILTer:BANDwidth <bandwidth> Filter Bandwidth Function This command sets the filter bandwidth of the main trace. Command :CALCulate:FILTer:BANDwidth <bandwidth> Parameter Filter bandwidth <bandwidth> Range/Resolution Limited by settings for Frequency Span and Filter Type. MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation...
Page 249 Trace Settings :CALCulate:FILTer:BANDwidth? Filter Bandwidth Query Function This command queries the filter bandwidth of the main trace. Query :CALCulate:FILTer:BANDwidth? Response <bandwidth> Parameter Filter bandwidth <bandwidth> Range/Resolution Limited by settings for Frequency Span and Filter Type. MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal Analyzer Function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer function Operation)
Page 250 Chapter 2 SCPI Device Message Details :CALCulate:FILTer:FOFFset <freq> Filter Frequency Offset Function This command sets the frequency offset of the main trace. Command :CALCulate:FILTer:FOFFset <freq> Parameter Channel width <freq> Range −1 × frequency span to Frequency span Hz Resolution 1 Hz Suffix code HZ , KHZ , KZ , MHZ , MZ , GHZ , GZ Hz is used when omitted.
Page 251 Trace Settings :CALCulate:FILTer:FOFFset? Filter Frequency Offset Query Function This command queries the frequency offset of the main trace. Query :CALCulate:FILTer:FOFFset <freq> Response <freq> Parameter Channel width <freq> Range −1 × frequency to Frequency span Hz Resolution 1 Hz No suffix code. Value is returned in Hz units. Details This command is available when either of the following traces is active: ●...
Page 252 Chapter 2 SCPI Device Message Details :CALCulate:FILTer:BANDwidth:AUTO ON|OFF|1|0 Filter Auto/Manual Function This command switches between auto and manual mode for filter bandwidth. Command :CALCulate:FILTer:BANDwidth:AUTO <switch> Parameter Auto/manual filter bandwidth setting <switch> Sets filter bandwidth automatically. ON|1 Sets filter bandwidth manually. OFF|0 Details This command is available when the following trace is active:...
Page 253 Trace Settings :DISPlay[:WINDow]:TRACe:Y[:SCALe]:RANGe D2|D5|D10|D25 Zoom Width/Vertical Scale Width Function This command sets the frequency width of the display frequency axis scale. Command :DISPlay[:WINDow]:TRACe:Y[:SCALe]:RANGe <scale> Parameter Scale frequency width <scale> Frequency bandwidth/2 Frequency bandwidth/5 Frequency bandwidth /10 Frequency bandwidth /25 Details This command is available when the following trace is active: ●...
Page 254 Chapter 2 SCPI Device Message Details :DISPlay[:WINDow]:TRACe:Y[:SCALe]:RANGe? Zoom Width/Vertical Scale Width Query Function This command queries the frequency width of the display frequency axis scale. Query :DISPlay[:WINDow]:TRACe:Y[:SCALe]:RANGe? Response <scale> Parameter Scale frequency width <scale> Frequency bandwidth /2 Frequency bandwidth /5 Frequency bandwidth /10 Frequency bandwidth /25 Details...
Page 255 Trace Settings :DISPlay[:WINDow]:TRACe:Y[:SCALe]:WIDTh? Maximum Frequency Range Query Function This command queries the maximum value of the frequency display range. Query :DISPlay[:WINDow]:TRACe:Y[:SCALe]:WIDTh? Response <freq> No suffix code. Value is returned in Hz units. Details This command is available when the following trace is active: ●...
Page 256 Chapter 2 SCPI Device Message Details :UNIT:FREQuency? Frequency Scale Unit Query Function This command queries the display unit system of the frequency axis. Query :UNIT:FREQuency? Response <unit> Parameter Display unit system of the frequency axis <unit> ∆Hz Details This command is available when the following trace is active: ●...
Page 257 Trace Settings :CALCulate:CCDF|:PSTatistic:METHod? Measure Method Query Function This command queries the measurement method for CCDF trace. Query :CALCulate:CCDF|:PSTatistic:METHod? Response <mode> Parameter Measurement method for CCDF trace <mode> APD measurement CCDF measurement CCDF Details This command is available when the following trace is active: ●...
Page 258 Chapter 2 SCPI Device Message Details :CALCulate:CCDF|:PSTatistic:THReshold:STATe? CCDF Threshold On/Off Function This command queries On/Off the minimum level setting for the CCDF measurement. Query :CALCulate:CCDF|:PSTatistic:THReshold:STATe? Response Threshold On/Off <switch> Sets Threshold to On Sets Threshold to Off Details This command is available when the CCDF trace is active. This command is not available in the following case when Terminal is selected DigRF 3G (only for MS269x Series).
Page 259 Trace Settings :CALCulate:CCDF|:PSTatistic:THReshold <ampl> CCDF Threshold Function This command sets the minimum level of the input signal for the CCDF measurement. Command :CALCulate:CCDF|:PSTatistic:THReshold <ampl> Parameter Minimum level of input signal <ampl> Range −170 to reference level (Reference Level)dBm When the reference level offset value is On, it is added to the range.
Page 260 Chapter 2 SCPI Device Message Details :CALCulate:CCDF|:PSTatistic:THReshold? CCDF Threshold Query Function This command queries the minimum level of the input signal for the CCDF measurement. Query :CALCulate:CCDF|:PSTatistic:THReshold? Response <ampl> Parameter Minimum level of input signal <ampl> Range −170 to reference level (Reference Level)dBm When the reference level offset value is On, it is added to the range.
Page 261 Trace Settings :CALCulate:CCDF|:PSTatistic:MODE TIME|COUNt CCDF Meas Mode Function This command sets the specified method of the measurement target for the CCDF trace. Command :CALCulate:CCDF|:PSTatistic:MODE <mode> Parameter Specified method for CCDF trace to be measured <mode> Analyses Range data specified at Time Length TIME Measures until specified data count reached COUNT...
Page 262 Chapter 2 SCPI Device Message Details :CALCulate:CCDF|:PSTatistic:MODE? CCDF Meas Mode Query Function This command queries the specified method of the measurement target for the CCDF trace. Command :CALCulate:CCDF|:PSTatistic:MODE? Response Specified method for CCDF trace to be measured <mode> Analyses Range data specified at Time Length TIME Measures until specified data count reached COUN...
Page 263 Trace Settings :CALCulate:CCDF|:PSTatistic:COUNts <sample> Data Count Function This command specifies the measurement target data count of the CCDF trace. Command :CALCulate:CCDF|:PSTatistic:COUNts <sample> Parameter Data count for measurement target <sample> Range 100 to 2000000000 Resolution 1 sample Default 10000000 Details This command is available when the CCDF trace is active. This command is not available in the case when Terminal is selected DigRF 3G (only for MS269x Series).
Page 264 Chapter 2 SCPI Device Message Details :CALCulate:CCDF|:PSTatistic:COUNts? Data Count Query Function This command queries the measurement target data count of the CCDF trace. Command :CALCulate:CCDF|:PSTatistic:COUNts? Response Measurement target data count <sample> Details This command is available when the CCDF trace is active. This command is not available in the case when Terminal is selected DigRF 3G (only for MS269x Series).
Page 265 Trace Settings :CALCulate:CCDF|:PSTatistic:STORe:REFerence Store Reference Trace Function This command records the current CCDF/APD waveform data in the internal memory as user-defined reference trace data. Command :CALCulate:CCDF|:PSTatistic:STORe:REFerence Details This function can be set when the CCDF trace is active. Example of Use To record the current measurement result in the reference data.
Page 266 Chapter 2 SCPI Device Message Details [:SENSe]:CCDF|:PSTatistic:RTRace[:STATe]? Reference Trace Query Function This command queries the display status of reference trace data during CCDF measurement. Query [:SENSe]:CCDF|:PSTatistic:RTRace[:STATe]? Response <switch> Parameter Reference trace setting <switch> Displays the reference trace data. Does not display the reference trace data. Example of Use To query the display setting for a reference trace.
Page 267 Trace Settings [:SENSe]:CCDF|:PSTatistic:GAUSsian[:STATe]? Gaussian Trace Query Function This command queries the display status of Gaussian trace data during CCDF measurement. Query [:SENSe]:CCDF|:PSTatistic:GAUSsian[:STATe]? Response <switch> Parameter Gaussian trace setting <switch> Displays Gaussian trace Does not display Gaussian trace Example of Use To query the display setting for a Gaussian trace.
Page 268 Chapter 2 SCPI Device Message Details function Operation) for details. Suffix code None. Value is returned in dB unit. Difference from the Gaussian trace at the <dist_result_gauss> marker position Range/Resolution Within the trace-display power deviation range MS2690A/MS2691A/MS2692A Signal Refer to the Analyzer Operation Manual (Signal Analyzer Function Operation) MS2830A/MS2840A Signal...
Page 269 Trace Settings :DISPlay:WINDow[1]:TRACe:X[:SCALe]:PDIVision <rel_ampl> Power Distribution Scale Function This command sets power distribution axis scale. Command :DISPlay:WINDow[1]:TRACe:X[:SCALe]:PDIVision <rel_ampl> Parameter Power distribution axis scale <rel_ampl> 5 dB 10 dB 20 dB 50 dB Details This command is available when the CCDF trace is active. Example of Use To set the power distribution axis scale to 10 dB: DISP:WIND:TRAC:X:PDIV 10...
Page 270 Chapter 2 SCPI Device Message Details :CALCulate:MARKer:AXIS PROB|DSTRbt Marker Axis Function This command specifies the marker movement axis for the main trace. Command :CALCulate:MARKer:AXIS <mode> Parameter Marker movement axis <mode> Probability distribution direction (vertical axis) PROB Power distribution direction (horizontal axis) DSTRbt Details This command is available when the CCDF trace is active.
Page 271 Trace Settings [:SENSe]:CCDF|:PSTatistic:ERESet[:STATe] ON|OFF|1|0 Reset Result Every Capture Function This command sets whether to reset the result after each CCDF measurement. Command [:SENSe]:CCDF|:PSTatistic:ERESet[:STATe] <switch> Parameter <switch> Resets the result after each measurement ON|1 Does not reset the result after each OFF|0 measurement Details...
Page 272 Chapter 2 SCPI Device Message Details [:SENSe]:CCDF|:PSTatistic:ERESet[:STATe]? Reset Result Every Capture Query Function This command queries whether to reset the result after each CCDF measurement. Query [:SENSe]:CCDF|:PSTatistic:ERESet[:STATe]? Response <switch> Parameter <switch> Resets the result after each measurement. Does not reset the result after each measurement Details This function can be set when the following trace is active:...
Page 273 Trace Settings :INITiate:CCDF|:PSTatistic CCDF Initiate Function This command performs CCDF measurement once. Command :INITiate:CCDF|:PSTatistic Details When this function is executed, CCDF trace is set to On and single measurement is executed. This command is not available in the following cases: ●...
Page 274 Chapter 2 SCPI Device Message Details :FETCh:CCDF|:PSTatistic[n]? CCDF Fetch Function This command queries the result for CCDF measurement. Query :FETCh:CCDF|:PSTatistic[n]? Response When Result Mode is “A”. <mean_power>,<peak_power_dbm>,<crest> (n = 1 or when omitted) <rel_ampl_1>,<rel_ampl_2>,<rel_ampl_3>,<rel_ampl_4>, <rel_ampl_5>,<rel_ampl_6> (n = 2) <percent_1>,<percent_2>,<percent_3>,<percent_4>, <percent_5> (n = 3) [Measure method is CCDF] <meas_per_1>,<meas_per_2>,...<...
Page 275 Trace Settings [Measure Method is CCDF] <meas_per_ range_1_1>,<meas_per_ range_1_2>,... <meas_per_ range_1_5001> [Measure Method is APD] <meas_per_ range_1_1>,<meas_per_ range_1_2>,... <meas_per_ range_1_10001> (n=11) [Measure Method is CCDF] <ref_per_range_1_1>,<ref_per_range_1_2>,... <ref_per_range_1_5001> [Measure Method is APD] <ref_per_range_1_1>,<ref_per_range_1_2>,... <ref_per_range_1_10001> (n=13) <count_range_1> (n=14) <mean_power_range_2>,<peak_power_dbm_range_2>, <crest_range_2> ( n=15 ) <rel_ampl_range_2_1>,<rel_ampl_range_2_2>, <rel_ampl_range_2_3>,<rel_ampl_range_2_4>, <rel_ampl_range_2_5>,<rel_ampl_range_2_6>...
Page 276 Chapter 2 SCPI Device Message Details <mean_power_range_3>,<peak_power_dbm_range_3>, <crest_range_3> (n=22) <rel_ampl_range_3_1>,<rel_ampl_range_3_2>, <rel_ampl_range_3_3>,<rel_ampl_range_3_4>, <rel_ampl_range_3_5>,<rel_ampl_range_3_6> (n=23) <percent_range_3_1>,<percent_range_3_2>, <percent_range_3_3>,<percent_range_3_4>, <percent_range_3_5> (n=24) [Measure Method is CCDF] <meas_per_range_3_1>,<meas_per_range_3_2>,... <meas_per_range_3_5001> [Measure Method is APD ] <meas_per_range_3_1>,<meas_per_range_3_2>,... <meas_per_range_3_10001> (n=25) [Measure Method is CCDF] <ref_per_range_3_1>,<ref_per_range_3_2>,... <ref_per_range_3_5001> [Measure Method is APD] <ref_per_range_3_1>,<ref_per_range_3_2>,...
Page 277 Trace Settings Measurement result type Parameter Average power <mean_power> Maximum power <peak_power dbm> Returns a value in dBm units without a suffix code. −999.0 is returned when no measurement is performed or an error has occurred. Each of them indicates its probability <percent_n>...
Page 278 Chapter 2 SCPI Device Message Details Each value indicates the power deviation of the <ref_percent_n> reference trace in the probability distributions below. ● –50.00, –49.99, ...,49.99, 50.00 dB (APD) ● 00.00, 00.01, ...,49.99, 50.00 dB (CCDF) A percentage value without a suffix code that has a resolution of 0.0001% is returned.
Page 279 Trace Settings Displays probability distribution for <percent_range_m _n> each of following Range m measured power deviation. ● 1, 2, 3, 4, 5 dB (For 5 dB Horizontal Scale setting) ● 2, 4, 6, 8, 10 dB (For 10 dB Horizontal Scale setting) ●...
Page 280 Chapter 2 SCPI Device Message Details Displays power deviation for each of <rel_ampl_range_m _n> following Range m probability distribution ● 10, 1, 0.1, 0.01, 0.001, 0.0001% Enabled when Gate Mode = On with Range m On. Returns “–999.0” at Unmeasured/Error/Disabled. Details This function queries the measurement result of the CCDF measurement performed last.
Page 281 Trace Settings :READ:CCDF|:PSTatistic[n]? CCDF Read Function This command performs CCDF measurement and queries the result. This command has the same function as the following commands executed in this order: :INITiate:CCDF|:PSTatistic :FETCh:CCDF|:PSTatistic[n]? :MEASure: CCDF|:PSTatistic [n]? CCDF Measure Function This command performs CCDF measurement and outputs the result. This command has the same function as the following commands executed in this order: :CONFigure:CCDF|:PSTatistic...
Page 282 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]:Y <prob> Marker Frequency Function This command moves the center of the marker to the specified probability. Command :CALCulate:MARKer[n]:Y <prob> Parameter Marker position <dist> Range/Resolution In the probability distribution range of trace display MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal Analyzer function Operation)
Page 283 Trace Settings :TRACe:STORage:STOP Storage Stop Function This command stops capturing the waveform which is in execution. It functions when Storage Mode of the main trace is Lin Average, Max. Hold, or Min Hold. Command :TRACe:STORage:STOP Details This command is not available while the Replay function is being executed.
Page 284 Chapter 2 SCPI Device Message Details :TRIGger:CCDF|:PSTatistic[:SEQuence]:SOURce? CCDF Trigger Source Query Function This command queries the trigger source. Refer to TRIGger[:SEQuence]:SOURce? . Related Command This command has the same function as the following commands. TRIGger[:SEQuence]:SOURce? TRIGger:ACPower[:SEQuence]:SOURce? TRIGger:CHPower[:SEQuence]:SOURce? TRIGger:OBWidth[:SEQuence]:SOURce? TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? 2-274...
Page 285 Trace Settings :TRACe[:DATA]? [<start>[,<length>]] Query Trace Data Function This command queries the trace data. Query :TRACe[:DATA]? [<start>[,<length>]] Response <data_1>,<data_2>,... If REAL,32 is set for FORMat[:DATA] , the output of “# (ASCII format)” is followed by the output of “Range of character string indicating byte length of binary data (ASCII format”, “Byte length of binary data (ASCII format)”, and “Trace data string (binary format)”, in this order.
Page 286 Chapter 2 SCPI Device Message Details For Spectrum or Power vs Time, Spectrogram trace Resolution (In Log scale) 0.001 dBm (In Linear scale) { Voltage (V) / Reference level (V) } × 10000 Reference level is 10000. –999.0 is returned when no measurement is performed or an error has occurred.
Page 287 Trace Settings For CCDF trace Resolution 0.0001% resolution/Hz units –999.0 is returned when no measurement is performed or an error has occurred. Data range Returns a value in the range of −50 to 50 dB in APD. Returns a value in the range of 0 to 50 dB in CCDF.
Page 288 Chapter 2 SCPI Device Message Details :TRACe[:DATA]:NEGative? [<start>[,<length>]] Query Negative Trace Data Function This command queries the trace data. Query :TRACe[:DATA]:NEGative? [<start>[,<length>]] Response <data_1>,<data_2>,... Parameter Starting point to read out <start> Range 0 to Number of trace points – 1 Resolution When omitted: Query length...
Page 289 Trace Settings For Phase vs Time trace Resolution 0. 01 degree resolution Unit: degree –999.0 is returned if there is no measurement or an error. Data range Returns a value within the range of Analysis Start Time to Analysis Start Time + Analysis Time Length.
Page 290 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision:RANGe <rel_ampl> Level Full Scale Function This command sets the level-axis scale range. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision:RANGe <rel_ampl> Parameter Y-axis scale <rel_ampl> Resolution 10 dB Data Range 10 to 150 dB Default value 100 dB Details This command is available in the following trace: ●...
Page 291 Trace Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision:RANGe? Level Full Scale Query Function This command queries the level-axis scale range. Query :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision:RANGe? Response <rel_ampl> Parameter Y-axis scale <rel_ampl> Resolution 10 dB Data Range 10 to 150 dB Default value: 100 dB Details This command is available in the following trace: ●...
Page 292 Chapter 2 SCPI Device Message Details :CALCulate:TMARker[1]|2:X <time> Time Marker Position Function This command moves Time Marker to the specified time. Command :CALCulate:TMARker[n]:X <time> Parameter Marker number <n> Marker 1 Marker 2 When omitted: Marker 1 Marker position <time> (When Marker Type is Spot, or when Marker Type is Zone and when Couple Time 1 and 2 is Off) Range Analysis Start Time to Analysis Start Time +...
Page 293 Trace Settings :CALCulate:TMARker[1]|2:X? Time Marker Position Query Function This command queries the time of Time Marker. Command :CALCulate:TMARker[n]:X? Response <time> Parameter Marker number <n> Marker 1 Marker 2 When omitted: Marker 1 Marker position <time> (When Marker Type is Spot or when Marker Type is Zone and when Couple Time 1 and 2 is Off) Range Analysis Start Time to Analysis Start Time +...
Page 294 Chapter 2 SCPI Device Message Details :CALCulate:TMARker:COUPle:ZONE[:STATe] OFF|ON|0|1 Couple Time Marker 1 and 2 Function This command enables/disables sharing of the Time Marker setting. Command :CALCulate:TMARker:COUPle:ZONE[:STATe] <switch> Parameter Shared setting of Time Marker On/Off <switch> Sets the shared setting to On. ON|1 Sets the shared setting to Off.
Page 295 Trace Settings :CALCulate:ANALyze:SPECtrum Analyze with Spectrum Trace Function This command analyzes the range selected in Time 1 and Time 2 by using Spectrum trace. Command :CALCulate:ANALyze:SPECtrum Details This command is available when the following trace is active: ● Spectrogram This command is not available when Marker is set to Off. Example of Use CALC:ANAL:SPEC :CALCulate:ANALyze:SPGRam...
Page 296 Chapter 2 SCPI Device Message Details :CALCulate:TMARker[1]|2:PEAK:X? Time Marker Peak Query Function This command queries the time of the peak at Time Marker. Query :CALCulate:TMARker[n]:PEAK:X? Resposne <time> Parameter Marker number <n> Marker 1 Marker 2 When omitted: Marker 1 (When Marker Type is Spot, or when Marker Type is Zone and when Couple Time 1 and 2 are Off) Range Analysis Start Time to Analysis Start Time +...
Page 297 Trace Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:OFFSet <real> Phase Offset Function This command adds the Offset value to the measurement waveform in Phase vs Time measurement. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:OFFSet <real> Parameter <real> Range –100 M to +100 M Unit degree Default Example of Use To set 15 degrees as Phase Offset. DISP:WIND:TRAC:Y:PHAS:OFFS 15 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:OFFSet? Phase Offset Query...
Page 298 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:MODE <mode> Phase Mode Function This command sets whether the phase is displayed with limitation by ±180 degrees or without the limitation in Phase vs Time measurement. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:MODE <mode> Parameter <mode> Displays with the limitation by ±180 degrees. WRAP Displays without the limitation.
Page 299 Trace Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:PDIVision <real> Scale Division Function This command sets the value of degree/DIV of the graph in Phase vs Time measurement. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:PDIVision <real> Parameter <real> Range 0.01 to +200G Unit deg/Div Default 36.00 Example of Use To set 180 as deg./Div. DISP:WIND:TRAC:Y:PHAS:PDIV 180 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:PDIVision? Scale Division Query...
Page 300 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:REFerence <time> Phase Reference Function This command sets the reference time value for Phase vs. Time measurement. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:REFerence <time> Parameter <real> Range 0 to 2000 Unit Suffix code NS, US, MS, S s is used when the suffix code is omitted. Default Example of Use To set 10 s as Phase Reference.
Page 301 Trace Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:REFerence:MODE <switch> Phase Reference Mode Function This command sets whether to use the Reference value in Phase vs Time measurement. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:REFerence:MIDE <switch> Parameter <switch> Do not use OFF|0 Use (Default) ON|1 Example of Use To set the Phase Ref Mode to ON. DISP:WIND:TRAC:Y:PHAS:REF:MODE ON :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PHASe:REFerence:MODE? Phase Reference Mode Query...
Page 302: Measure Common Function Settings
Chapter 2 SCPI Device Message Details 2.8 Measure Common Function Settings Table 2.8-1 lists device messages for common setting of the Measure function. Table 2.8-1 Device messages for common setting of Measure function Function Device Message [:SENSe]:RADio:STANdard[:SELect] OFF|WCDMADN|WCDMAUP|MWIMAX|3GLTE_DL|3GLTE_UL|ETC_DSRC|TDSCDMA| Select Standard XGPHS|CDMA2KFWD|EVDOFWD|3GLTE_TDD_DL|3GLTE_TDD_UL|ISDBTMM [:SENSe]:RADio:STANdard[:SELect]? Measurement Off...
Page 303 Measure Common Function Settings [:SENSe]:RADio:STANdard[:SELect] OFF|WCDMADN|WCDMAUP|MWIMAXDL|MWIMAXUL|3GLTE_DL| 3GLTE_UL|ETC_DSRC|TDSCDMA|XGPHS|CDMA2KFWD|EVDOFWD| 3GLTE_TDD_DL|3GLTE_TDD_UL|ISDBTMM Select Standard Function This command selects a type of the parameter setting of the Measure function using the communication standard. Command [:SENSe]:RADio:STANdard[:SELect] <standard> Parameter Communication standard <standard> 3GPP W-CDMA Downlink WCDMADN 3GPP W-CDMA Uplink WCDMAUP Mobile WiMAX (IEEE802.16e) Downlink MWIMAXDL...
Page 304 Chapter 2 SCPI Device Message Details [:SENSe]:RADio:STANdard[:SELect]? Select Standard Query Function This command queries the setting of the communication standard. Query [:SENSe]:RADio:STANdard[:SELect]? Response <standard> Parameter Communication standard <standard> 3GPP W-CDMA Downlink WCDMADN 3GPP W-CDMA Uplink WCDMAUP Mobile WiMAX (IEEE802.16e) Downlink MWIMAXDL Mobile WiMAX (IEEE802.16e) Uplink MWIMAXUL...
Page 305 Measure Common Function Settings :CONFigure:SANalyzer Measurement Off Function This command disables currently running measurement function. No operation is made if no measurement function is running. Command :CONFigure:SANalyzer Example of Use To disable the currently running measurement function. CONF:SAN :CONFigure? Current Measurement Query Function This command queries the names of the current Measure function.
Page 306 Chapter 2 SCPI Device Message Details [:SENSe]:RADio:STANdard:LOAD <function>[,<pattern>] Load Standard Parameter Function This command selects the parameter of Measure. The selectable parameters vary depending on the setting of Standard. Command [:SENSe]:RADio:STANdard:LOAD <function>[,<pattern>] Parameter Measure function <function> ACP measurement Burst Average Power measurement BRSTAVGPWR OBW measurement Channel Power measurement...
Page 307 Measure Common Function Settings When Standard is set to W-CDMA Downlink (ACP measurement): Parameter to be set <pattern> 3GPP W-CDMA Downlink, ACP DOWNLINK measurement(Single Carrier) 3GPP W-CDMA Downlink, ACP SINGLECARR measurement(Single Carrier) 3GPP W-CDMA Downlink (2 Carriers) 2CARR When omitted: 3GPP W-CDMA Downlink, ACP measurement(Single Carrier) When Standard is set to W-CDMA Downlink (Burst Average Power...
Page 308 Chapter 2 SCPI Device Message Details When Standard is set to LTE Uplink/Downlink (ACP measurement) Parameter to be set <pattern> 1.4MHz BW (UTRA 5 MHz) 1M4BW_UTRA5MHZ 1.4MHz BW (E-UTRA 1.4 MHz) 1M4BW_EUTRA1M4HZ 3MHz BW (UTRA 5 MHz) 3MBW_UTRA5MHZ 3MHz BW (E-UTRA 3 MHz) 3MBW_EUTRA3MHZ 5MHz BW (UTRA 5 MHz) 5MBW_UTRA5MHZ...
Page 309 Measure Common Function Settings When Standard is set to LTE Uplink/Downlink, LTE TDD Uplink/Downlink (Channel Power measurement) Parameter to be set <pattern> Mean Power 1.4MHz BW MEAN_1M4BW Mean Power 3MHz BW MEAN_3MBW Mean Power 5MHz BW MEAN_5MBW Mean Power 10MHz BW MEAN_10MBW Mean Power 15MHz BW MEAN_15MBW...
Page 310 Chapter 2 SCPI Device Message Details When Standard is set to ETC_DSRC (Burst Average Power measurement) Parameter to be set <pattern> Mean Power MEAN When omitted: Mean Power When Standard is set to TD-SCDMA (ACP measurement) Parameter to be set <pattern>...
Page 311 Measure Common Function Settings When Standard is set to EV-DO Forward Link (ACP, Channel Power, OBW setting) Parameter to be set <pattern> EV-DO Forward Link EVDOFWD When omitted: EV-DO Forward Link When Standard is set to EV-DO Forward Link (Burst Average Power measurement) Parameter to be set <pattern>...
Page 312 Chapter 2 SCPI Device Message Details [:SENSe]:RADio:STANdard:LOAD? <function> Load Standard Parameter Query Function This command queries the Measure function parameter. The parameter selected for the Standard setting differs. Query [:SENSe]:RADio:STANdard:LOAD? <function> Response <pattern> Parameter Refer to [:SENSe]:RADio:STANdard:LOAD <function>[,<pattern>] Details If the Standard parameter is not selected or is set to Off, *** is returned. Example of Use To query ACP measurement parameter.
Page 313 Measure Common Function Settings [:SENSe]:FREQuency:SYNThesis:LPHase:STATe? Low Phase Noise Performance Status Query Function This command queries the state of Low Phase Noise function with the current measurement conditions. Query [:SENSe]:FREQuency:SYNThesis:LPHase:STATe? Response State of Low Phase Noise function <status> Parameter State of Low Phase Noise function <status>...
Page 314: Adjacent Channel Power Measurement Settings
Chapter 2 SCPI Device Message Details 2.9 Adjacent Channel Power Measurement Settings Table 2.9-1 lists device messages for Adjacent Channel Power measurement. Table 2.9-1 Device messages for Adjacent Channel Power Function Device Message [:SENSe]:ACPower[:STATe] ON|OFF|1|0 [:SENSe]:ACPower[:STATe]? Measure Adjacent Channel Power :CALCulate:ACPower[:STATe] ON|OFF|1|0 :CALCulate:ACPower[:STATe]? [:SENSe]:ACPower:CARRier[1]:RCARrier <integer>...
Page 315 Adjacent Channel Power Measurement Settings Table 2.9-1 Device messages for Adjacent Channel Power measurement (Cont’d) Function Device Message [:SENSe]:ACPower:CARRier[1]:COUNt <integer> Adjacent Channel [:SENSe]:ACPower:CARRier[1]:COUNt? Power Carrier :CALCulate: ACPower:CARRier[1]:COUNt <integer> Number :CALCulate: ACPower:CARRier[1]:COUNt? [:SENSe]:ACPower:CARRier[1]:LIST:WIDTh <bandwidth> Adjacent Channel [:SENSe]:ACPower:CARRier[1]:LIST:WIDTh? Power Carrier :CALCulate:ACPower:CARRier[1]:LIST:WIDTh <bandwidth> Spacing :CALCulate:ACPower:CARRier[1]:LIST:WIDTh? [:SENSe]:ACPower:OFFSet[1]:LIST:STATe...
Page 316 Chapter 2 SCPI Device Message Details Table 2.9-1 Device messages for Adjacent Channel Power measurement (Cont’d) Function Device Message DISPlay:ACPower:RESult:TYPE CARRier|OFFSet Adjacent Channel Power Result Type DISPlay:ACPower:RESult:TYPE? [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa? Adjacent Channel Power Rolloff Ratio :CALCulate:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> :CALCulate:ACPower:CARRier[1]:LIST:FILTer:ALPHa? [:SENSe]:ACPower:FILTer[:RRC]:ALPHa <real> Adjacent Channel [:SENSe]:ACPower:FILTer[:RRC]:ALPHa? Power Offset...
Page 317 Adjacent Channel Power Measurement Settings Table 2.9-1 Device messages for Adjacent Channel Power measurement (Cont’d) Function Device Message [:SENSe]:ACPower:AVERage:COUNt <integer> Average Count [:SENSe]:ACPower:AVERage:COUNt? [:SENSe]:ACPower:AVERage[:STATe] ON|OFF|1|0 Storage Mode [:SENSe]:ACPower:AVERage[:STATe]? [:SENSe]:ACPower:BANDwidth[:RESolution] <freq> [:SENSe]:ACPower:BANDwidth[:RESolution]? Resolution Bandwidth :CALCulate:ACPower:BANDwidth[:RESolution] <freq> :CALCulate:ACPower:BANDwidth[:RESolution]? [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO? Bandwidth :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Auto/Manual...
Page 318 Chapter 2 SCPI Device Message Details [:SENSe]:ACPower[:STATe] ON|OFF|1|0 Measure Adjacent Channel Power Function This command sets Adjacent Channel Power measurement On/Off. Command [:SENSe]:ACPower[:STATe] <switch> Parameter ACP measurement On/Off <switch> Sets ACP measurement to On. ON|1 Sets ACP measurement to Off (Default value) OFF|0 Details This command is available when the following trace is active;...
Page 319 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower[:STATe]? Measure Adjacent Channel Power Query Function This command queries the setting for Adjacent Channel Power measurement. Command [:SENSe]:ACPower[:STATe]? Parameter ACP measurement On/Off <switch> Details This command is available when the following trace is active: ●...
Page 320 Chapter 2 SCPI Device Message Details :CALCulate:ACPower[:STATe]? Measure Adjacent Channel Power Query Function This command queries the setting of Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower[:STATe]? . Related Command This command has the same function as the following command. [:SENSe]:ACPower[:STATe]? [:SENSe]:ACPower:CARRier[1]:RCARrier <integer>...
Page 321 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:CARRier[1]:RCARrier <integer> Adjacent Channel Power Reference Carrier Select Function This command sets the reference carrier number for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCARrier. Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCARrier [:SENSe]:ACPower:CARRier[1]:RCARrier? Adjacent Channel Power Reference Carrier Select Query...
Page 322 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:RCARrier? Adjacent Channel Power Reference Carrier Select Query Function This command queries the reference carrier number for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCARrier? . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCARrier? 2-312...
Page 323 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod STOTal|CTOTal|BSIDes|CSELect Adjacent Channel Power Reference Function This command sets the reference of the relative level display for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod <method> Parameter Reference method for the relative level display of <method> ACP measurement Sets the integral power on the whole screen to STOTal...
Page 324 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:RCARrier:METHod STOTal|CTOTal|BSIDes|CSELect Adjacent Channel Power Reference Function This command sets the reference of the relative level display for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod 2-314...
Page 325 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod? Adjacent Channel Power Reference Query Function This command queries the reference of the relative level display for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod? Response <method> Parameter Reference method for the relative level display of <method>...
Page 326 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:RCARrier:METHod? Adjacent Channel Power Reference Query Function This command queries the reference of the relative level display for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod?. Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod? [:SENSe]:ACPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 Adjacent Channel Power Noise Cancel...
Page 327 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 Adjacent Channel Power Noise Cancel Function This command sets whether to enable the noise-canceling function. Refer to [:SENSe]:ACPower:CORRection:NOISe[:AUTO] . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CORRection:NOISe[:AUTO] [:SENSe]:ACPower:CORRection:NOISe[:AUTO]? Adjacent Channel Power Noise Cancel Query Function This command queries whether the noise-canceling function is enabled.
Page 328 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CORRection:NOISe[:AUTO]? Adjacent Channel Power Noise Cancel Query Function This command queries whether the noise-canceling function is enabled. Refer to [:SENSe]:ACPower:CORRection:NOISe[:AUTO]?. Related Command This command has the same function as the following command. [:SENSe]:ACPower:CORRection:NOISe[:AUTO]? [:SENSe]:ACPower:OFFSet[1]:BANDwidth[:INTegration] <bandwidth> Adjacent Channel Power Offset Channel Bandwidth Function This command sets Offset Channel bandwidth for Adjacent Channel...
Page 329 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration] <bandwidth> Adjacent Channel Power Offset Channel Bandwidth Function This command sets Offset Channel bandwidth for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:OFFSet[1]:BANDwidth [:INTegration] . Related Command This command has the same function as the following command. [:SENSe]:ACPower:OFFSet[1]:BANDwidth[:INTegration] [:SENSe]:ACPower:OFFSet[1]:BANDwidth[:INTegration]? Adjacent Channel Power Offset Channel Bandwidth Query...
Page 330 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration]? Adjacent Channel Power Offset Channel Bandwidth Query Function This command queries Offset Channel bandwidth for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:OFFSet[1]:BANDwidth [:INTegration]? . Related Command This command has the same function as the following command. [:SENSe]:ACPower:OFFSet[1]:BANDwidth[:INTegration]? 2-320...
Page 331 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] <bandwidth> Adjacent Channel Power Carrier Bandwidth Function This command sets the measurement bandwidth of the carrier for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] <bandwidth> Parameter Inband channel bandwidth <bandwidth> Range 1 to 125 MHz Resolution 1 Hz Suffix code...
Page 332 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] <bandwidth> Adjacent Channel Power Carrier Bandwidth Function This command sets the measurement bandwidth of the carrier for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:OFFSet[1]:LIST:BANDwidth [:INTegration] . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] 2-322...
Page 333 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration]? Adjacent Channel Power Carrier Bandwidth Query Function This command queries the measurement bandwidth of the carrier for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] Response <bandwidth> Parameter Inband channel bandwidth <bandwidth> Range 1 Hz to 125 MHz Resolution 1 Hz No suffix code.
Page 334 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration]? Adjacent Channel Power Carrier Bandwidth Query Function This command queries the measurement bandwidth of the carrier for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:OFFSet[1]:LIST:BANDwidth [:INTegration]? . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] 2-324...
Page 335 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:CARRier[1]:RCFRequency <freq> Adjacent Channel Power In Band Center Function This command sets the In Band center frequency for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:RCFRequency <freq> Parameter In Band center frequency <freq> Range 125 MHz centered at the center frequency (Center Frequency) of waveform capture Resolution 1 Hz...
Page 336 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:RCFRequency <freq> Adjacent Channel Power In Band Center Function This command sets the Inband center frequency for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCFRequency . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCFRequency [:SENSe]:ACPower:CARRier[1]:RCFRequency? Adjacent Channel Power In Band Center Query...
Page 337 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:CARRier[1]:RCFRequency? Adjacent Channel Power In Band Center Query Function This command queries the In Band center frequency for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCFRequency? . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCFRequency? 2-327...
Page 338 Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:CARRier[1]:COUNt <integer> Adjacent Channel Power Carrier Number Function This command sets the carrier number for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:COUNt <integer> Parameter Carrier Number <integer> Range 1 to 12 Resolution Suffix code None Default value Details This command is available when the following trace is active:...
Page 339 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:CARRier[1]:COUNt <integer> Adjacent Channel Power Carrier Number Function This command sets the carrier number for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:COUNt. Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:COUNt [:SENSe]:ACPower:CARRier[1]:COUNt? Adjacent Channel Power Carrier Number Query Function...
Page 340 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:COUNt? Adjacent Channel Power Carrier Number Query Function This command queries the carrier number for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:COUNt? . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:COUNt? 2-330...
Page 341 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:CARRier[1]:LIST:WIDTh <bandwidth> Adjacent Channel Power Carrier Spacing Function This command sets the frequency interval among carriers for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:LIST:WIDTh <bandwidth> Parameter Frequency interval among carriers <bandwidth> Range 0 to 125 MHz Resolution 1 Hz Suffix code...
Page 342 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:LIST:WIDTh <bandwidth> Adjacent Channel Power Carrier Spacing Function This command sets the frequency interval among carriers for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:LIST:WIDTh. Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:LIST:WIDTh [:SENSe]:ACPower:CARRier[1]:LIST:WIDTh? Adjacent Channel Power Carrier Spacing Query...
Page 343 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:CARRier[1]:LIST:WIDTh? Adjacent Channel Power Carrier Spacing Query Function This command queries the frequency interval among carriers for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:LIST:WIDTh? . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:LIST:WIDTh? [:SENSe]:ACPower:OFFSet[1]:LIST:STATe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0...
Page 344 Chapter 2 SCPI Device Message Details Example of Use To set the offset channel and query the results. ACP:OFFS:LIST:STAT ON,ON,ON *WAI FETC:ACP? Related Command This command has the same function as the following command. :CALCulate:ACPower:OFFSet[1]:LIST:STATe :CALCulate:ACPower:OFFSet[1]:LIST:STATe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Adjacent Channel Power Offset Function This command sets the offset channel On/Off for Adjacent Channel Power measurement.
Page 345 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:OFFSet[1]:LIST:STATe? Adjacent Channel Power Offset Query Function This command queries the On/Off state of the offset channel for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:OFFSet[1]:LIST:STATe? Response <switch_1>,<switch_2>,<switch_3> Parameter Measurement channel n On/Off <switch_n> Measures the offset channel n. Does not measure the offset channel n.
Page 346 Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency] <freq>,<freq>,<freq> Adjacent Channel Power Offset Frequency Function This command sets the offset frequency of the offset channel for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency] <freq_1>,<freq_2>,<freq_3> Parameter Offset frequency for offset channel n <freq_n> Range −125 to 125 MHz Resolution...
Page 347 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:OFFSet[1]:LIST[:FREQuency] <freq>,<freq>,<freq> Adjacent Channel Power Offset Frequency Function This command sets the offset frequency of the offset channel for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency]. Related Command This command has the same function as the following command. [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency] [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency]? Adjacent Channel Power Offset Frequency Query...
Page 348 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:OFFSet[1]:LIST[:FREQuency]? Adjacent Channel Power Offset Frequency Query Function This command queries the offset frequency of the offset channel for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency]? . Related Command This command has the same function as the following command. [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency]? [:SENSe]:ACPower:CARRier[1]:LIST:METHod IBW|RRC|RC Adjacent Channel Power Filter Type...
Page 349 Adjacent Channel Power Measurement Settings Related Command This command has the same function as the following commands. :CALCulate:ACPower:CARRier[1]:LIST:METHod [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE :CALCulate:ACPower:CARRier[1]:FILTer:TYPE :CALCulate:ACPower:CARRier[1]:LIST:METHod IBW|RRC|RC Adjacent Channel Power Filter Type Function This command sets filter type of carriers for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:LIST:METHod .
Page 350 Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:CARRier[1]:LIST:METHod? Adjacent Channel Power Filter Type Query Function This command queries the filter type of carriers for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:CARRier[1]:LIST:METHod? Response <mode> Parameter Measurement method of carrier <mode> Rectangle filter Root Nyquist filter Nyquist filter Details This command is available when the following trace is active:...
Page 351 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:CARRier[1]:LIST:METHod? Adjacent Channel Power Filter Type Query Function This command queries the filter type of carriers for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:LIST:METHod? . Related Command This command has the same function as the following commands. [:SENSe]:ACPower:CARRier[1]:LIST:METHod? [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE? :CALCulate:ACPower:CARRier[1]:FILTer:TYPE?
Page 352 Chapter 2 SCPI Device Message Details Example of Use To set filter type of carriers for ACP measurement to Nyquist and query the results. ACP:CARR:FILT:TYPE NYQ *WAI FETC:ACP? Related Command This command has the same function as the following commands. [:SENSe]:ACPower:CARRier[1]:LIST:METHod :CALCulate:ACPower:CARRier[1]:LIST:METHod :CALCulate:ACPower:CARRier[1]:FILTer:TYPE...
Page 353 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE? Adjacent Channel Power Filter Type Query Function This command queries filter type of carriers for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE? Response <filter> Parameter Filter type <filter> Rectangle filter RECT Nyquist filter Root Nyquist filter (Default value) RNYQ Details This command is available when the following trace is active:...
Page 354 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:FILTer:TYPE? Adjacent Channel Power Filter Type Query Function This command queries filter type of carriers for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE? . Related Command This command has the same function as the following commands. [:SENSe]:ACPower:CARRier[1]:LIST:METHod? :CALCulate:ACPower:CARRier[1]:LIST:METHod? [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE?
Page 355 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:FILTer[:RRC][:STATe] OFF|ON|0|1 Adjacent Channel Power Offset Filter Type Function This command sets filter type of the offset channel for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:FILTer[:RRC][:STATe] . Related Command This command has the same function as the following commands. [:SENSe]:ACPower:FILTer[:RRC][:STATe] [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE :CALCulate:ACPower:OFFSet[1]:FILTer:TYPE...
Page 356 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:FILTer[:RRC][:STATe]? Adjacent Channel Power Offset Filter Type Query Function This command queries filter type of the offset channel for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:FILTer[:RRC][:STATe]? . Related Command This command has the same function as the following commands. [:SENSe]:ACPower:FILTer[:RRC][:STATe]? [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE? :CALCulate:ACPower:OFFSet[1]:FILTer:TYPE?
Page 357 Adjacent Channel Power Measurement Settings Related Command This command has the same function as the following commands. [:SENSe]:ACPower:FILTer[:RRC][:STATe] :CALCulate:ACPower:FILTer[:RRC][:STATe] :CALCulate:ACPower:OFFSet[1]:FILTer:TYPE :CALCulate:ACPower:OFFSet[1]:FILTer:TYPE RECT|NYQuist|RNYQuist Adjacent Channel Power Offset Filter Type Function This command sets filter type of the offset channel for Adjacent Channel Power measurement.
Page 358 Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE? Adjacent Channel Power Offset Filter Type Query Function This command queries filter type of the offset channel for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE? Response <mode> Parameter Filter type <mode> Rectangle filter RECT Nyquist filter Root Nyquist filter (Default value) RNYQ...
Page 359 Adjacent Channel Power Measurement Settings :DISPlay:ACPower:RESult:TYPE CARRier|OFFSet Adjacent Channel Power Result Type Function This command switches the result display type for Adjacent Channel Power measurement. Command :DISPlay:ACPower:RESult:TYPE <mode> Parameter Filter type <mode> Sets the result display for ACP measurement to CARRier Carrier Power.
Page 360 Chapter 2 SCPI Device Message Details :DISPlay:ACPower:RESult:TYPE? Adjacent Channel Power Result Type Query Function This command queries the result display type for Adjacent Channel Power measurement. Command :DISPlay:ACPower:RESult:TYPE? Response <mode> Parameter Filter type <mode> Sets the result display for ACP measurement to CARR Carrier Power.
Page 361 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> Adjacent Channel Power Rolloff Ratio Function This command sets the rolloff ratio of the reference channel filter for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> Parameter Filter rolloff ratio <real> Range 0.01 to 1.00 Resolution 0.01 Suffix code...
Page 362 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> Adjacent Channel Power Rolloff Ratio Function This command sets the rolloff ratio of the reference channel filter for ACP measurement. Refer to [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa 2-352...
Page 363 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa? Adjacent Channel Power Rolloff Ratio Query Function This command queries the rolloff ratio of the reference channel filter for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa? Response <real> Parameter Filter Rolloff ratio <real> Range 0.01 to 1.00 Resolution 0.01 Suffix code...
Page 364 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:LIST:FILTer:ALPHa? Adjacent Channel Power Rolloff Ratio Query Function This command queries the rolloff ratio of the reference channel filter for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa? . Related Command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa? [:SENSe]:ACPower:FILTer[:RRC]:ALPHa <real>...
Page 365 Adjacent Channel Power Measurement Settings Related Command This command has the same function as the following command. :CALCulate:ACPower:FILTer[:RRC]:ALPHa :CALCulate:ACPower:FILTer[:RRC]:ALPHa <real> Adjacent Channel Power Offset Rolloff Ratio Function This command sets the rolloff ratio of the offset channel filter for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:FILTer[:RRC]:ALPHa .
Page 366 Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:FILTer[:RRC]:ALPHa? Adjacent Channel Power Offset Rolloff Ratio Query Function This command queries the rolloff ratio of the offset channel filter for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:FILTer[:RRC]:ALPHa? Response <real> Parameter Filter rolloff ratio <real> Range 0.01 to 1.00 Resolution...
Page 367 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:FILTer[:RRC]:ALPHa? Adjacent Channel Power Offset Rolloff Ratio Query Function This command queries the rolloff ratio of the offset channel filter for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:FILTer[:RRC]:ALPHa? . Related Command This command has the same function as the following command. [:SENSe]:ACPower:FILTer[:RRC]:ALPHa? :CONFigure:ACP Adjacent Channel Power Configure...
Page 368 Chapter 2 SCPI Device Message Details :INITiate:ACP Adjacent Channel Power Initiate Function This command performs an Adjacent Channel Power measurement. Command :INITiate:ACP Details When this function is executed, ACP measurement is set to On and a measurement is performed. Spectrum is set, if this command is executed when the trace is set to other than Spectrum.
Page 369 Adjacent Channel Power Measurement Settings :FETCh:ACP[n]? Adjacent Channel Power Read Fetch Function This command queries the measurement result for Adjacent Channel Power measurement. Query :FETCh:ACP[n]? Response When RESult Mode is A. For ACP measurement (ACP Result Type is OFFSet) Two values of ref_carrier_a are output when ACP Reference is BSIDes.
Page 370 Chapter 2 SCPI Device Message Details 0.0,<total_carrier_b>, <ref_carrier_lower>,<ref_carrier_upper>, <lower_offset_1_rel>,<lower_offset_1_abs>, <upper_offset_1_rel>,<upper_offset_1_abs>, <lower_offset_2_rel>,<lower_offset_2_abs>, <upper_offset_2_rel>,<upper_offset_2_abs>, <lower_offset_3_rel>,<lower_offset_3_abs>, <upper_offset_3_rel>,<upper_offset_3_abs> (n = 1 or when omitted, and ACP Reference is Both Sides of Carriers) <channel_1_rel>,<channel_1_abs>, <channel_2_rel>,<channel_2_abs>, ..<channel_12_rel>,<channel_12_abs>, <lower_offset_1_rel>,<lower_offset_1_abs>, <upper_offset_1_rel>,<upper_offset_1_abs>, <lower_offset_2_rel>,<lower_offset_2_abs>, <upper_offset_2_rel>,<upper_offset_2_abs>, <lower_offset_3_rel>,<lower_offset_3_abs>, <upper_offset_3_rel>,<upper_offset_3_abs> (n = 2) Parameter Relative power of the lower side of <lower_offset_n_rel>...
Page 371 Adjacent Channel Power Measurement Settings Absolute power of the upper side of <upper_offset_n_abs> Offset-n No suffix code, in dBm units, resolution: 0.01 dB −999.0 is returned when no measurement is performed or an error has occurred. Absolute value of the integral power on <integration_abs>...
Page 372 Chapter 2 SCPI Device Message Details :READ:ACP[n]? Adjacent Channel Power Read Function This command performs a measurement for Adjacent Channel Power and outputs the measurement result. This command has the same function as the following commands executed in this order: :INITiate:ACP :FETCh:ACP[n]? This command is available when the following trace is active:...
Page 373 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the maximum level point of the main trace and moves the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum . Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum...
Page 374 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time>|<sample>|<dist> Zone Marker Frequency (Time) Function This command moves the center of the zone marker to the set frequency (time). Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X . Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X...
Page 375 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Marker Level Query Function This command queries the level of the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? . Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: :DISPlay:ACPower:ANNotation:TITLe:DATA <string> Title Entry Function This command registers the title character string.
Page 376 Chapter 2 SCPI Device Message Details :DISPlay:ACPower:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string. Refer to :DISPlay:ANNotation:TITLe:DATA? . Related Command This command has the same function as the following commands. :DISPlay:ANNotation:TITLe:DATA? :DISPlay:CHPowe:ANNotation:TITLe:DATA? :DISPlay:OBWidth:ANNotation:TITLe:DATA? :DISPlay:BPOWer|:TXPowe:ANNotation:TITLe:DATA? :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> Log Scale Range Function This command sets the Y-axis scale range when Scale Mode is set to Log.
Page 377 Adjacent Channel Power Measurement Settings :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision ? Log Scale Range Query Function This command queries the Y-axis scale range when Scale Mode is set to Log. Refer to : DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision [:LOGarithmic]? . Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision[:LOGarithmi :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion...
Page 378 Chapter 2 SCPI Device Message Details :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Reference Level Query Function This command queries the reference level. Refer to : DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? . Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCAL e]:RLEVel? :TRIGger:ACPower[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF Trigger Source Function...
Page 379 Adjacent Channel Power Measurement Settings :TRIGger:ACPower[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source type. Refer to TRIGger[:SEQuence]:SOURce? . Related Command This command has the same function as the following commands. TRIGger[:SEQuence]:SOURce? TRIGger:CHPower[:SEQuence]:SOURce? TRIGger:OBWidth[:SEQuence]:SOURce? TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? TRIGger:CCDF|:PSTatistic[:SEQuence]:SOURce? [:SENSe]:ACPower:AVERage:COUNt <integer> Average Count Function This command sets the storage count.
Page 380 Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:AVERage:COUNt? Average Count Query Function This command queries the storage count. Refer to [:SENSe]:AVERage:COUNt? . Related Command This command has the same function as the following commands. [:SENSe]:AVERage:COUNt? [:SENSe]:CHPower:AVERage:COUNt? [:SENSe]:OBWidth:AVERage:COUNt? [:SENSe]:BPOWer|:TXPower:ACPower:AVERage:COUNt? [:SENSe]:ACPower:AVERage[:STATe] ON|OFF|1|0 Storage Mode Function This command sets the storage mode.
Page 381 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:AVERage[:STATe]? Storage Mode Query Function This command queries the storage mode. Query [:SENSe]:ACPower:AVERage[:STATe]? Response <switch> Parameter Storage Mode Setting <switch> Average Other than Average Example of Use To query the setting of Storage Mode. ACP:AVER? >...
Page 382 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution] . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution] :CALCulate:BANDwidth|:BWIDth[:RESolution] [:SENSe]:ACPower:BANDwidth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] [:SENSe]:OBWidth:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]...
Page 383 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:BANDwidth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]? . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]? :CALCulate:BANDwidth|:BWIDth[:RESolution]? [:SENSe]:ACPower:BANDwidth[:RESolution]? [:SENSe]:CHPower:BANDwidth[:RESolution]? :CALCulate:CHPower:BANDwidth[:RESolution]? [:SENSe]:OBWidth:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]? [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0...
Page 384 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the automatic resolution bandwidth (RBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO[:SENSe]:O...
Page 385 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO? [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO? [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO?
Page 386 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:DETector[:FUNCtion] NORMal|POSitive|NEGative|AVERage Detection Mode Function This command selects the detection mode of the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion] . Related Command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion] :CALCulate:DETector[:FUNCtion] [:SENSe]:ACPower:DETector[:FUNCtion] [:SENSe]:CHPower:DETector[:FUNCtion] :CALCulate:CHPower:DETector[:FUNCtion] [:SENSe]:OBWidth:DETector[:FUNCtion]...
Page 387 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:DETector[:FUNCtion]? Detection Mode Query Function This command selects the detection mode of the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion]? Related Command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion]? :CALCulate:DETector[:FUNCtion]? [:SENSe]:ACPower:DETector[:FUNCtion]? [:SENSe]:CHPower:DETector[:FUNCtion]? :CALCulate:CHPower:DETector[:FUNCtion]? [:SENSe]:OBWidth:DETector[:FUNCtion]? :CALCulate:OBWidth:DETector[:FUNCtion]? [:SENSe]:ACPower:FREQuency:SPAN <freq>...
Page 388 Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:SWEep:POINts? Trace Point Query Function This command queries the number of the trace display points. Refer to [:SENSe]:SWEep:POINts? . Related Command This command has the same function as the following commands. [:SENSe]:SWEep:POINts? [:SENSe]:CHPower:SWEep:POINts? [:SENSe]:OBWidth:SWEep:POINts? [:SENSe]:ACPower:SWEep:TIME <time>...
Page 389 Adjacent Channel Power Measurement Settings [:SENSe]:ACPower:SWEep:TIME:AUTO OFF|ON|0|1 Sweep Time Auto/Manual Function This command enables/disables automatic setting for the waveform capture time. Refer to [:SENSe]:SWEep:TIME:AUTO . Related Command This command has the same function as the following commands. [:SENSe]:SWEep:TIME:AUTO [:SENSe]:CHPower:SWEep:TIME:AUTO [:SENSe]:OBWidth:SWEep:TIME:AUTO [:SENSe]:ACPower:SWEep:TIME:AUTO? Sweep Time Auto/Manual Query Function...
Page 390 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode Function This command sets the marker mode. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE . Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? Marker Mode Query Function This command queries the marker mode.
Page 391 Adjacent Channel Power Measurement Settings :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Relative To Function This command sets the reference marker when Marker Mode is set to Delta. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> . Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc...
Page 392: Channel Power Measurement Settings
Chapter 2 SCPI Device Message Details 2.10 Channel Power Measurement Settings Table 2.10-1 lists device messages for Channel Power measurement. Table 2.10-1 Device messages for Channel Power measurement Function Device Message [:SENSe]:CHPower[:STATe] ON|OFF|1|0 [:SENSe]:CHPower[:STATe]? Measure Channel Power :CALCulate:CHPower[:STATe] ON|OFF|1|0 :CALCulate:CHPower[:STATe]? [:SENSe]:CHPower:FREQuency:CENTer <freq>...
Page 393 2.10 Channel Power Measurement Settings Table 2.10-1 Device messages for Channel Power measurement (Cont’d) Function Device Message :READ:CHPower[n]? Channel Power :READ:CHPower:CHPower? Read :READ:CHPower:DENSity? :MEASure:CHPower[n]? Channel Power :MEASure:CHPower:CHPower? Measure :MEASure:CHPower:DENSity? All Marker Off :CALCulate:CHPower:MARKer:AOFF Peak Search :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> Zone Marker |<sample>|<dist>...
Page 394 Chapter 2 SCPI Device Message Details Table 2.10-1 Device messages for Channel Power measurement (Cont’d) Function Device Message [:SENSe]:CHPower:DETector[:FUNCtion] NORMal|POSitive|NEGative|AVERage [:SENSe]:CHPower:DETector[:FUNCtion]? Detection Mode :CALCulate:CHPower:DETector[:FUNCtion] NORMal|POSitive|NEGative|AVERage :CALCulate:CHPower:DETector[:FUNCtion]? [:SENSe]:CHPower:FREQuency:SPAN <freq> Span Frequency [:SENSe]:CHPower:FREQuency:SPAN? Trace Point Query [:SENSe]:CHPower:SWEep:POINts? [:SENSe]:CHPower:SWEep:TIME <time> Sweep Time [:SENSe]:CHPower:SWEep:TIME? [:SENSe]:CHPower:SWEep:TIME:AUTO OFF|ON|0|1 Sweep Time Auto/Manual...
Page 395 2.10 Channel Power Measurement Settings [:SENSe]:CHPower[:STATe] ON|OFF|1|0 Measure Channel Power Function This command executes Channel Power measurement. Command [:SENSe]:CHPower[:STATe] <switch> Parameter CHP measurement On/Off <switch> Sets CHP measurement On. ON|1 Sets CHP measurement Off (Default value). OFF|0 Details This command is available when the following trace is active: ●...
Page 396 Chapter 2 SCPI Device Message Details :CALCulate:CHPower[:STATe] ON|OFF|1|0 Measure Channel Power Function This command executes Channel Power measurement. Refer to [:SENSe]:CHPower[:STATe] . Related Command This command has the same function as the following command. [:SENSe]:CHPower[:STATe] [:SENSe]:CHPower[:STATe]? Measure Channel Power Query Function This command queries the setting of Channel Power measurement.
Page 397 2.10 Channel Power Measurement Settings [:SENSe]:CHPower:FREQuency:CENTer <freq> Channel Power Channel Center Frequency Function This command sets the center frequency for Channel Power measurement. Command [:SENSe]:CHPower:FREQuency:CENTer <freq> Parameter Channel center frequency <freq> Range 125 MHz centered at the center frequency (Center Frequency) of waveform capture Resolution 1 Hz Suffix code...
Page 398 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:FREQuency:CENTer <freq> Channel Power Channel Center Frequency Function This command sets the center frequency for Channel Power measurement. Refer to [:SENSe]:CHPower:FREQuency:CENTer . Related Command This command has the same function as the following command. [:SENSe]:CHPower:FREQuency:CENTer [:SENSe]:CHPower:FREQuency:CENTer? Channel Power Channel Center Frequency Query...
Page 399 2.10 Channel Power Measurement Settings :CALCulate:CHPower:FREQuency:CENTer? Channel Power Channel Center Frequency Query Function This command queries the center frequency for Channel Power measurement. Refer to [:SENSe]:CHPower:FREQuency:CENTer? . Related Command This command has the same function as the following command. [:SENSe]:CHPower:FREQuency:CENTer? [:SENSe]:CHPower:BANDwidth:INTegration <freq>...
Page 400 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:BANDwidth:INTegration <freq> Channel Power Channel Bandwidth Function This command sets the channel bandwidth for channel power measurement. Refer to [:SENSe]:CHPower:BANDwidth:INTegration . Related Command This command has the same function as the following command. [:SENSe]:CHPower:BANDwidth:INTegration [:SENSe]:CHPower:BANDwidth:INTegration? Channel Power Channel Bandwidth Query Function...
Page 401 2.10 Channel Power Measurement Settings :CALCulate:CHPower:BANDwidth:INTegration? Channel Power Channel Bandwidth Query Function This command queries the channel bandwidth for Channel Power measurement. Refer to [:SENSe]:CHPower:BANDwidth:INTegration? . Related Command This command has the same function as the following command. [:SENSe]:CHPower:BANDwidth:INTegration? [:SENSe]:CHPower:FILTer:TYPE RECT|NYQuist|RNYQuist Channel Power Filter Type Function This command sets filter type for channel power measurement.
Page 402 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:FILTer:TYPE RECT|NYQuist|RNYQuist Channel Power Filter Type Function This command sets filter type for channel power measurement. Refer to [:SENSe]:CHPower:FILTer:TYPE . Related Command This command has the same function as the following commands. [:SENSe]:CHPower:FILTer:TYPE [:SENSe]:CHPower:FILTer[:RRC][:STATe] :CALCulate:CHPower:FILTer[:RRC][:STATe] [:SENSe]:CHPower:FILTer:TYPE? Channel Power Filter Type Query...
Page 403 2.10 Channel Power Measurement Settings :CALCulate:CHPower:FILTer:TYPE? Channel Power Filter Type Query Function This command queries filter type for Channel Power measurement. Refer to [:SENSe]:CHPower:FILTer:TYPE?. Related Command This command has the same function as the following commands. [:SENSe]:CHPower:FILTer:TYPE? [:SENSe]:CHPower:FILTer[:RRC][:STATe]? :CALCulate:CHPower:FILTer[:RRC][:STATe]? [:SENSe]:CHPower:FILTer[:RRC][:STATe] ON|OFF|1|0 Channel Power Filter Type Function This command sets filter type for Channel Power measurement.
Page 404 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:FILTer[:RRC][:STATe] ON|OFF|1|0 Channel Power Filter Type Function This command sets filter type for Channel Power measurement. Refer to [:SENSe]:CHPower:FILTer[:RRC][:STATe] . Related Command This command has the same function as the following commands. [:SENSe]:CHPower:FILTer:TYPE :CALCulate:CHPower:FILTer:TYPE [:SENSe]:CHPower:FILTer[:RRC][:STATe] [:SENSe]:CHPower:FILTer[:RRC][:STATe]? Channel Power Filter Type Query...
Page 405 2.10 Channel Power Measurement Settings :CALCulate:CHPower:FILTer[:RRC][:STATe]? Channel Power Filter Type Query Function This command queries filter type for Channel Power measurement. Refer to [:SENSe]:CHPower:FILTer[:RRC][:STATe]? . Related Command This command has the same function as the following commands. [:SENSe]:CHPower:FILTer:TYPE? :CALCulate:CHPower:FILTer:TYPE? [:SENSe]:CHPower:FILTer[:RRC][:STATe]? [:SENSe]:CHPower:FILTer[:RRC]:ALPHa <real>...
Page 406 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:FILTer[:RRC]:ALPHa <real> Channel Power Rolloff Ratio Function This command sets the rolloff ratio for Channel Power measurement. Refer to [:SENSe]:CHPower:FILTer[:RRC]:ALPHa . Related Command This command has the same function as the following command. [:SENSe]:CHPower:FILTer[:RRC]:ALPHa [:SENSe]:CHPower:FILTer[:RRC]:ALPHa? Channel Power Rolloff Ratio Query Function...
Page 407 2.10 Channel Power Measurement Settings :CALCulate:CHPower:FILTer[:RRC]:ALPHa? Channel Power Rolloff Ratio Query Function This command queries the rolloff ratio for Channel Power measurement. Refer to [:SENSe]:CHPower:FILTer[:RRC]:ALPHa? . Related Command This command has the same function as the following command. [:SENSe]:CHPower:FILTer[:RRC]:ALPHa? :CONFigure:CHPower Channel Power Configure Function This command sets Channel Power measurement to On.
Page 408 Chapter 2 SCPI Device Message Details :INITiate:CHPower Channel Power Initiate Function This command performs a Channel Power measurement. Command :INITiate:CHPower Details When this command is executed, Channel Power measurement is set to On and the measurement is performed. Spectrum is set if this command is executed when the trace is set to other than Spectrum.
Page 409 2.10 Channel Power Measurement Settings :FETCh:CHPower[n]? Channel Power Fetch Function This command queries the results of Channel Power measurement. Query :FETCh:CHPower[n]? Response <power>,<density> n = 1 or when omitted Parameter Power aggregate in the band specified in <power> Channel bandwidth. When Scale Mode is Log: Log Scale Unit units (Note: dBm units for V, W units for W)
Page 410 Chapter 2 SCPI Device Message Details :FETCh:CHPower:CHPower? Channel Power Fetch Channel Power Function This command queries the power aggregate in the band for Channel Power measurement. Query :FETCh:CHPower:CHPower? Response <power> Parameter Power aggregate in the band specified in <power> Channel bandwidth. When Scale Mode is Log: Log Scale Unit units (Note: dBm units for V, W units for W...
Page 411 2.10 Channel Power Measurement Settings :FETCh:CHPower:DENSity? Channel Power Fetch Density Function This command queries the power density in the band for Channel Power measurement. Query :FETCh:CHPower:DENSity? Response <density> Parameter Power density in the band specified in Channel <density> bandwidth When Scale Mode is Log: Log Scale Unit units (Note: dBm units for V, W units for W Value without a suffix code is returned.
Page 412 Chapter 2 SCPI Device Message Details :READ:CHPower:CHPower? Channel Power Read Channel Power Function This command performs Channel Power measurement and queries the power aggregate in the band. This command functions the same as when the following commands are executed in this order: :INITiate:CHPower :FETCh:CHPower:CHPower? :READ:CHPower:DENSity?
Page 413 2.10 Channel Power Measurement Settings :MEASure:CHPower:CHPower? Channel Power Measure Channel Power Function This command performs Channel Power measurement and queries the power aggregate in the band. This command has the same function as the following commands executed in this order: :CONFigure:CHPower :INITiate:CHPower :FETCh:CHPower:CHPower?
Page 414 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the maximum level point of the main trace and moves the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum . Related Command This command has the same function as the following commands: :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum...
Page 415 2.10 Channel Power Measurement Settings :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? Zone Marker Frequency (Time) Query Function This command queries the center of the zone marker. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X? . Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X? :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Marker Level Query...
Page 416 Chapter 2 SCPI Device Message Details :DISPlay:CHPower:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string. Refer to :DISPlay:ANNotation:TITLe:DATA? . Related Command This command has the same function as the following commands. :DISPlay:ANNotation:TITLe:DATA? :DISPlay:ACPowe:ANNotation:TITLe:DATA? :DISPlay:OBWidth:ANNotation:TITLe:DATA? :DISPlay:BPOWer|:TXPowe:ANNotation:TITLe:DATA? :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> Log Scale Range Function This command sets the Y-axis scale range when Scale Mode is set to Log.
Page 417 2.10 Channel Power Measurement Settings :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision ? Log Scale Range Query Function This command queries the Y-axis scale range when Scale Mode is set to Log. Refer to : DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision [:LOGarithmic]? . Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision[:LOGarithmi :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion?
Page 418 Chapter 2 SCPI Device Message Details :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Reference Level Query Function This command queries the reference level. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? . Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCAL e]:RLEVel? :TRIGger:CHPower[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF Trigger Source Function This command selects the trigger source.
Page 419 2.10 Channel Power Measurement Settings :TRIGger:CHPower[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source. Refer to TRIGger[:SEQuence]:SOURce? . Related Command This command has the same function as the following commands. TRIGger[:SEQuence]:SOURce? TRIGger:ACPower[:SEQuence]:SOURce? TRIGger:OBWidth[:SEQuence]:SOURce? TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? TRIGger:CCDF|:PSTatistic[:SEQuence]:SOURce? [:SENSe]:CHPower:AVERage:COUNt <integer> Average Count Function This command sets the storage count.
Page 420 Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:AVERage[:STATe] ON|OFF|1|0 Storage Mode Function This command sets the storage method. Refer to [:SENSe]:ACPower:AVERage[:STATe] . Related Command This command has the same function as the following commands. :TRACe:STORage:MODE [:SENSe]:ACPower:AVERage[:STATe] [:SENSe]:OBWidth:AVERage[:STATe] [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] [:SENSe]:CHPower:AVERage[:STATe]? Storage Mode Query Function This command queries the storage method.
Page 421 2.10 Channel Power Measurement Settings :CALCulate:CHPower:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution] . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution] :CALCulate:BANDwidth|:BWIDth[:RESolution] [:SENSe]:ACPower:BANDwidth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] [:SENSe]:OBWidth:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution]?
Page 422 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:BANDwidth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]? . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]? :CALCulate:BANDwidth|:BWIDth[:RESolution]? [:SENSe]:ACPower:BANDwidth[:RESolution]? :CALCulate:ACPower:BANDwidth[:RESolution]? [:SENSe]:CHPower:BANDwidth[:RESolution]? [:SENSe]:OBWidth:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]?
Page 423 2.10 Channel Power Measurement Settings :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the automatic resolution bandwidth (RBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO...
Page 424 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO? [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO?
Page 425 2.10 Channel Power Measurement Settings :CALCulate:CHPower:DETector[:FUNCtion] NORMal|POSitive|NEGative|AVERage Detection Mode Function This command selects the detection mode for the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion] . Related Command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion] :CALCulate:DETector[:FUNCtion] [:SENSe]:ACPower:DETector[:FUNCtion] :CALCulate:ACPower:DETector[:FUNCtion] [:SENSe]:CHPower:DETector[:FUNCtion] [:SENSe]:OBWidth:DETector[:FUNCtion] :CALCulate:OBWidth:DETector[:FUNCtion]...
Page 426 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:DETector[:FUNCtion]? Detection Mode Query Function This command selects the detection mode for the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion]? . Related Command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion]? :CALCulate:DETector[:FUNCtion]? [:SENSe]:ACPower:DETector[:FUNCtion]? :CALCulate:ACPower:DETector[:FUNCtion]? [:SENSe]:CHPower:DETector[:FUNCtion]? [:SENSe]:OBWidth:DETector[:FUNCtion]?
Page 427 2.10 Channel Power Measurement Settings [:SENSe]:CHPower:SWEep:POINts? Trace Point Query Function This command queries the number of the trace display points. Refer to [:SENSe]:SWEep:POINts?. Related Command This command has the same function as the following commands. [:SENSe]:SWEep:POINts? [:SENSe]:ACPower:SWEep:POINts? [:SENSe]:OBWidth:SWEep:POINts? [:SENSe]:CHPower:SWEep:TIME <time> Sweep Time Function This command sets the sweep time.
Page 428 Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:SWEep:TIME:AUTO OFF|ON|0|1 Sweep Time Auto/Manual Function This command enables/disable the automatic sweep time setting function. Refer to [:SENSe]:SWEep:TIME:AUTO . Related Command This command has the same function as the following commands. [:SENSe]:SWEep:TIME:AUTO [:SENSe]:ACPower:SWEep:TIME:AUTO [:SENSe]:OBWidth:SWEep:TIME:AUTO [:SENSe]:CHPower:SWEep:TIME:AUTO? Sweep Time Auto/Manual Query Function...
Page 429 2.10 Channel Power Measurement Settings :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode Function This command sets the marker mode. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE . Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? Marker Mode Query Function This command queries the marker mode.
Page 430 Chapter 2 SCPI Device Message Details :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Relative To Function This command sets the reference marker when Marker Mode is set to Delta. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> . Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc...
Page 431: Occupied Bandwidth Measurement Settings
2.11 Occupied Bandwidth Measurement Settings 2.11 Occupied Bandwidth Measurement Settings Table 2.11-1 lists device messages for Occupied Bandwidth measurement. Table 2.11-1 Device messages for Occupied Bandwidth measurement Function Device Message [:SENSe]:OBWidth[:STATe] ON|OFF|1|0 Measure Occupied [:SENSe]:OBWidth[:STATe]? Bandwidth :CALCulate:OBWidth[:STATe] ON|OFF|1|0 :CALCulate:OBWidth[:STATe]? [:SENSe]:OBWidth:METHod NPERcent|XDB [:SENSe]:OBWidth:METHod? OBW Method :CALCulate:OBWidth:METHod NPERcent|XDB...
Page 432 Chapter 2 SCPI Device Message Details Table 2.11-1 Device messages for Occupied Bandwidth measurement (Cont’d) Function Device Message :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> Log Scale Range :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision? :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? :TRIGger:OBWidth[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF Trigger Source :TRIGger:OBWidth[:SEQuence]:SOURce? [:SENSe]:OBWidth:AVERage:COUNt <integer> Average Count [:SENSe]:OBWidth:AVERage:COUNt? [:SENSe]:OBWidth:AVERage[:STATe] ON|OFF|1|0 Storage Mode [:SENSe]:OBWidth:AVERage[:STATe]? [:SENSe]:OBWidth:BANDwidth[:RESolution] <freq>...
Page 433 2.11 Occupied Bandwidth Measurement Settings [:SENSe]:OBWidth[:STATe] ON|OFF|1|0 Measure Occupied Bandwidth Function This command executes Occupied Bandwidth measurement. Command [:SENSe]:OBWidth[:STATe] <switch> Parameter OBW measurement On/Off <switch> ON|1 OFF|0 Details This command is available when the following trace is active: ● Spectrum For reading out a measurement result after this command has been executed, use *WAI commands to perform synchronized control.
Page 434 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth[:STATe]? Measure Occupied Bandwidth Query Function This command queries the Occupied Bandwidth measurement setting. Command [:SENSe]:OBWidth[:STATe]? Parameter OBW measurement On/Off <switch> Details This command is available when the following trace is active: ● Spectrum Example of Use To query the OBW measurement setting.
Page 435 2.11 Occupied Bandwidth Measurement Settings [:SENSe]:OBWidth:METHod NPERcent|XDB OBW Method Function This command sets the measurement method for Occupied Bandwidth measurement. Command [:SENSe]:OBWidth:METHod NPERcent|XDB Parameter Measurement method <method> N% method (Default value) NPERcent X dB Down method Details This command is available when the following trace is active: ●...
Page 436 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:METHod? OBW Method Query Function This command queries the measurement method of Occupied Bandwidth measurement. Query [:SENSe]:OBWidth:METHod? Response <method> Parameter Measurement method <method> N% method NPER X dB Down method Details This command is available when the following trace is active: ●...
Page 437 2.11 Occupied Bandwidth Measurement Settings [:SENSe]:OBWidth:PERCent <percent> OBW N% Ratio Function This command sets the condition for Occupied Frequency Bandwidth (N% method). Command [:SENSe]:OBWidth:PERCent <percent> Parameter <percent> Range 0.01 to 99.99% Resolution 0.01 Suffix code None Default value 99.00% Details This command is available when the following trace is active: ●...
Page 438 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:PERCent? OBW N% Ratio Query Function This command sets the condition for Occupied Frequency Bandwidth (N% method). Query [:SENSe]:OBWidth:PERCent? Response <percent> Parameter <percent> Range 0.01 to 99.99% Resolution 0.01 No suffix code. Value is returned in % units. Details This command is available when the following trace is active: ●...
Page 439 2.11 Occupied Bandwidth Measurement Settings [:SENSe]:OBWidth:XDB <rel_ampl> OBW X dB Value Function This command sets the condition for Occupied Frequency Bandwidth (N% method). Command [:SENSe]:OBWidth:XDB <rel_ampl> Parameter X dB <rel_ampl> Range 0.01 to 100.00 dB Resolution 0.01 dB Suffix code dB is used when omitted.
Page 440 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:XDB? OBW X dB Value Query Function This command queries the condition of Occupied Frequency Bandwidth (X dB). Query [:SENSe]:OBWidth:XDB? Response <rel_ampl> Parameter X dB <rel_ampl> Range 0.01 to 100.00 dB Resolution 0.01 dB Value is returned in dB units.
Page 441 2.11 Occupied Bandwidth Measurement Settings :CONFigure:OBWidth Occupied Bandwidth Configure Function This command sets OBW measurement to On. Command :CONFigure:OBWidth Details No measurement is performed. Spectrum is set, if this command is executed when the trace is set to other than Spectrum. For reading out a measurement result after this command has been executed, use *WAI commands to perform synchronized control.
Page 442 Chapter 2 SCPI Device Message Details :FETCh:OBWidth[n]? Occupied Bandwidth Fetch Function This command queries the measurement result of OBW measurement. Query :FETCh:OBWidth[n]? Response When Result Mode is A: <obw>,<center>,<start>,<stop> (n = 1 or when omitted) When Result Mode is B: <obw_nper>,-999.0,<span>,<trace_point>, <rbw>,<freq_error>,<obw_xdb>...
Page 443 2.11 Occupied Bandwidth Measurement Settings Details This command queries the measurement result of OBW measurement performed lastly. This function does not accompany any capture, thus this function is used to output the measurement result in a different type, when the measurement has already completed. Use READ command to perform re-measurement with redoing capture.
Page 444 Chapter 2 SCPI Device Message Details :FETCh:OBWidth:FERRor? Occupied Bandwidth Fetch Function This command queries the difference between the center frequency of Occupied Bandwidth of OBW measurement and the center frequency. Query :FETCh:OBWidth:FERRor? Response <freq_error> Parameter Difference between the center frequency of <freq_error>...
Page 445 2.11 Occupied Bandwidth Measurement Settings :READ:OBWidth:FERRor? Occupied Bandwidth Read Function This command performs OBW measurement and queries the difference between the center frequency of Occupied Bandwidth and the center frequency. This command has the same function as the following commands executed in this order: :INITiate:OBWidth :FETCh:OBWidth:FERRor?
Page 446 Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:MARKer:AOFF All Marker Off Function This command sets all markers to OFF. Refer to :CALCulate:MARKer:AOFF . Related Command This command has the same function as the following commands. :CALCulate:MARKer:AOFF :CALCulate:ACPower:MARKer:AOFF :CALCulate:CHPower:MARKer:AOFF :CALCulate:BPOWer|:TXPower:MARKer:AOFF :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the maximum level point of the main trace and moves the marker point.
Page 447 2.11 Occupied Bandwidth Measurement Settings :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time>|<sample>|<dist> Zone Marker Frequency (Time) Function This command moves the frequency (time) which specified the center of the zone marker. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X . Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X...
Page 448 Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Marker Level Query Function This command queries the level of the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? . Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: :DISPlay:OBWidth:ANNotation:TITLe:DATA <string>...
Page 449 2.11 Occupied Bandwidth Measurement Settings :DISPlay:OBWidth:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string. Refer to :DISPlay:ANNotation:TITLe:DATA? . Related Command This command has the same function as the following commands. :DISPlay:ANNotation:TITLe:DATA? :DISPlay:ACPowe:ANNotation:TITLe:DATA :DISPlay:CHPowe:ANNotation:TITLe:DATA :DISPlay:BPOWer|:TXPowe:ANNotation:TITLe:DATA :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> Log Scale Range Function This command sets the Y-axis scale range when Scale Mode is set to Log.
Page 450 Chapter 2 SCPI Device Message Details :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision ? Log Scale Range Query Function This command queries the Y-axis scale range when Scale Mode is set to Log. Refer to : DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision [:LOGarithmic]? . Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision[:LOGarithmi :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion?
Page 451 2.11 Occupied Bandwidth Measurement Settings :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Reference Level Query Function This command queries the reference level. Refer to : DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? . Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCAL e]:RLEVel? :TRIGger:OBWidth[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF Trigger Source Function This command selects the trigger source.
Page 452 Chapter 2 SCPI Device Message Details :TRIGger:OBWidth[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source. Refer to TRIGger[:SEQuence]:SOURce? . Related Command This command has the same function as the following commands. TRIGger[:SEQuence]:SOURce? TRIGger:ACPower[:SEQuence]:SOURce? TRIGger:CHPower[:SEQuence]:SOURce? TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? TRIGger:CCDF|:PSTatistic[:SEQuence]:SOURce? [:SENSe]:OBWidth:AVERage:COUNt <integer> Average Count Function This command sets the storage count.
Page 453 2.11 Occupied Bandwidth Measurement Settings [:SENSe]:OBWidth:AVERage:COUNt? Average Count Query Function This command queries the storage count. Refer to [:SENSe]:AVERage:COUNt? . Related Command This command has the same function as the following commands. [:SENSe]:AVERage:COUNt? [:SENSe]:ACPower:AVERage:COUNt? [:SENSe]:CHPower:AVERage:COUNt? [:SENSe]:BPOWer|:TXPower:ACPower:AVERage:COUNt? [:SENSe]:OBWidth:AVERage[:STATe] ON|OFF|1|0 Storage Mode Function This command sets the storage method.
Page 454 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution] . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution] :CALCulate:BANDwidth|:BWIDth[:RESolution] [:SENSe]:ACPower:BANDwidth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]...
Page 455 2.11 Occupied Bandwidth Measurement Settings [:SENSe]:OBWidth:BANDwidth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]? . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]? :CALCulate:BANDwidth|:BWIDth[:RESolution]? [:SENSe]:ACPower:BANDwidth[:RESolution]? :CALCulate:ACPower:BANDwidth[:RESolution]? [:SENSe]:CHPower:BANDwidth[:RESolution]? :CALCulate:CHPower:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]?
Page 456 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the automatic resolution bandwidth (RBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO...
Page 457 2.11 Occupied Bandwidth Measurement Settings [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO? [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO? :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO?
Page 458 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:DETector[:FUNCtion] NORMal|POSitive|NEGative|AVERage Detection Mode Function This command selects the detection mode for the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion] . Related Command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion] :CALCulate:DETector[:FUNCtion] [:SENSe]:ACPower:DETector[:FUNCtion] :CALCulate:ACPower:DETector[:FUNCtion] [:SENSe]:CHPower:DETector[:FUNCtion] :CALCulate:CHPower:DETector[:FUNCtion]...
Page 459 2.11 Occupied Bandwidth Measurement Settings [:SENSe]:OBWidth:DETector[:FUNCtion]? Detection Mode Query Function This command selects the detection mode for the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion]? . Related Command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion]? :CALCulate:DETector[:FUNCtion]? [:SENSe]:ACPower:DETector[:FUNCtion]? :CALCulate:ACPower:DETector[:FUNCtion]? [:SENSe]:CHPower:DETector[:FUNCtion]? :CALCulate:CHPower:DETector[:FUNCtion]? :CALCulate:OBWidth:DETector[:FUNCtion]?
Page 460 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:FREQuency:SPAN <freq> Span Frequency Function This command sets the span frequency. Refer to [:SENSe]:FREQuency:SPAN . Related Command This command has the same function as the following commands. [:SENSe]:FREQuency:SPAN [:SENSe]:ACPower:FREQuency:SPAN [:SENSe]:CHPower:FREQuency:SPAN [:SENSe]:OBWidth:FREQuency:SPAN? Span Frequency Query Function This command queries the span frequency.
Page 461 2.11 Occupied Bandwidth Measurement Settings [:SENSe]:OBWidth:SWEep:TIME <time> Sweep Time Function This command sets the sweep time. Refer to [:SENSe]:SWEep:TIME . Related Command This command has the same function as the following commands. [:SENSe]:SWEep:TIME [:SENSe]:ACPower:SWEep:TIME [:SENSe]:CHPower:SWEep:TIME [:SENSe]:BPOWer|:TXPower:SWEep:TIME [:SENSe]:OBWidth:SWEep:TIME? Sweep Time Query Function This command queries the sweep time.
Page 462 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:SWEep:TIME:AUTO? Sweep Time Auto/Manual Query Function This command queries the On/Off state of the automatic sweep time. Refer to [:SENSe]:SWEep:TIME:AUTO? . Related Command This command has the same function as the following commands. [:SENSe]:SWEep:TIME:AUTO? [:SENSe]:ACPower:SWEep:TIME:AUTO? [:SENSe]:CHPower:SWEep:TIME:AUTO? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE...
Page 463 2.11 Occupied Bandwidth Measurement Settings :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Relative To Function This command sets the reference marker when Marker Mode is set to Delta. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> . Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc...
Page 464: Burst Average Power Measurement Settings
Chapter 2 SCPI Device Message Details 2.12 Burst Average Power Measurement Settings Table 2.12-1 lists device messages for Burst Average Power measurement. Table 2.12-1 Device messages for Burst Average Power measurement Function Device Message [:SENSe]:BPOWer|:TXPower[:STATe] ON|OFF|1|0 [:SENSe]:BPOWer|:TXPower[:STATe]? Measure Burst Average Power :CALCulate:BPOWer|:TXPower[:STATe] ON|OFF|1|0 :CALCulate:BPOWer|:TXPower[:STATe]? [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO] ON|OFF|1|0...
Page 465 2.12 Burst Average Power Measurement Settings Table 2.12-1 Device messages for Burst Average Power measurement (Cont’d) Function Device Message [:SENSe]:BPOWer|:TXPower:SWEep:TIME <time> Sweep Time [:SENSe]:BPOWer|:TXPower:SWEep:TIME? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X Zone Marker <freq>|<time>|<sample>|<dist> Frequency (Time) :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? Marker Level :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Query All Marker Off :CALCulate:BPOWer|:TXPower:MARKer:AOFF :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimu Peak Search [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] <freq>...
Page 466 Chapter 2 SCPI Device Message Details [:SENSe]:BPOWer|:TXPower[:STATe] ON|OFF|1|0 Measure Burst Average Power Function This command executes Burst Average Power measurement. Command [:SENSe]:BPOWer|:TXPower[:STATe] <switch> Parameter Sets Burst Average Power measurement On/Off <switch> Sets Burst Average Power measurement On ON|1 Sets Burst Average Power measurement Off OFF|0 Details This command is available when the following trace is active:...
Page 467 2.12 Burst Average Power Measurement Settings :CALCulate:BPOWer|:TXPower[:STATe] ON|OFF|1|0 Measure Burst Average Power Function This command performs Burst Average Power measurement. Refer to [:SENSe]:BPOWer|:TXPower[:STATe]. Related Command This command has the same function as the following command. [:SENSe]:BPOWer|:TXPower[:STATe] [:SENSe]:BPOWer|:TXPower[:STATe]? Measure Burst Average Power Query Function This command queries the setting of Burst Average Power measurement.
Page 468 Chapter 2 SCPI Device Message Details :CALCulate:BPOWer|:TXPower[:STATe]? Measure Burst Average Power Query Function This command queries the Burst Average Power measurement setting. Refer to [:SENSe]:BPOWer|:TXPower[:STATe]? . Related Command This command has the same function as the following command. [:SENSe]:BPOWer|:TXPower[:STATe]? [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 Noise Cancel Function This command sets whether to enable the noise-canceling function.
Page 469 2.12 Burst Average Power Measurement Settings :CALCulate:BPOWer|:TXPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 Noise Cancel Function This command sets whether to enable the noise-canceling function. Refer to [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO] . Related Command This command has the same function as the following command. [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO] [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO]? Noise Cancel Query Function This command queries the noise-canceling function setting.
Page 470 Chapter 2 SCPI Device Message Details Example of Use To query the noise-canceling function setting. BPOW:CORR:NOIS? > 0 Related Command This command has the same function as the following command. :CALCulate:BPOWer|:TXPower:CORRection:NOISe[:AUTO]? :CALCulate:BPOWer|:TXPower:CORRection:NOISe[:AUTO]? Noise Cancel Query Function This command queries the setting of the noise-canceling function. Refer to [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO]? .
Page 471 2.12 Burst Average Power Measurement Settings :INITiate:BPOWer|:TXPower Burst Average Power Initiate Function This command performs Burst Average Power measurement. Command :INITiate:BPOWer|:TXPower Details When this command is executed, Burst Average Power measurement is set to On and measurement will be performed. Power vs Time is set, if this command is executed when the trace is set to other than Power vs Time.
Page 472 Chapter 2 SCPI Device Message Details :FETCh:BPOWer|:TXPower[n]? Burst Average Power Fetch Function This command queries the result for Burst Average Power measurement. Query :FETCh:BPOWer|:TXPower[n]? Response When RESult Mode is A: <power> (n = 1 or when omitted) When RESult Mode is B: <sweep_time>,<power>,<power>,<trace_point>, -999.0,-999.0,-999.0,-999.0, <burst_time>,-999.0...
Page 473 2.12 Burst Average Power Measurement Settings Details This command queries the measurement result of Burst Average Power measurement performed lastly. This function does not accompany any capture, thus this function is used to output the measurement result in a different type, when the measurement has already completed. Use READ command to perform re-measurement with redoing capture.
Page 474 Chapter 2 SCPI Device Message Details :DISPlay:BPOWer|:TXPower:ANNotation:TITLe:DATA <string> Title Entry Function This command registers the title character string. Refer to : DISPlay:ANNotation:TITLe:DATA . Related Command This command has the same function as the following commands. :DISPlay:ANNotation:TITLe:DATA :DISPlay:ACPowe:ANNotation:TITLe:DATA :DISPlay:CHPowe:ANNotation:TITLe:DATA :DISPlay:OBWidth:ANNotation:TITLe:DATA :DISPlay:BPOWer|:TXPower:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string.
Page 475 2.12 Burst Average Power Measurement Settings :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVisi on <rel_ampl> Log Scale Range Function This command sets the Y-axis scale range when Scale Mode is set to Log. Refer to : DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision [:LOGarithmic] . Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:PDIVision[:LOGarithmi :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion...
Page 476 Chapter 2 SCPI Device Message Details :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level Function This command sets the reference level. Refer to : DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel . Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe 2-466...
Page 477 2.12 Burst Average Power Measurement Settings :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel Reference Level Query Function This command queries the reference level. Refer to : DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? . Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF Trigger Source Function This command selects the trigger source.
Page 478 Chapter 2 SCPI Device Message Details :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source. Refer to TRIGger[:SEQuence]:SOURce? . Related Command This command has the same function as the following commands. TRIGger[:SEQuence]:SOURce? TRIGger:ACPower[:SEQuence]:SOURce? TRIGger:CHPower[:SEQuence]:SOURce? TRIGger:OBWidth[:SEQuence]:SOURce? TRIGger:CCDF|:PSTatistic[:SEQuence]:SOURce? [:SENSe]:BPOWer|:TXPower:AVERage:COUNt <integer> Average Count Function This command sets the storage count.
Page 479 2.12 Burst Average Power Measurement Settings [:SENSe]:BPOWer|:TXPower:AVERage:COUNt? Average Count Query Function This command queries the storage count. Refer to [:SENSe]:AVERage:COUNt? . Related Command This command has the same function as the following commands. [:SENSe]:AVERage:COUNt? [:SENSe]:ACPower:AVERage:COUNt? [:SENSe]:CHPower:AVERage:COUNt? [:SENSe]:OBWidth:AVERage:COUNt? [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] ON|OFF|1|0 Storage Mode Function This command sets the storage mode.
Page 480 Chapter 2 SCPI Device Message Details [:SENSe]:BPOWer|:TXPower:SWEep:TIME <time> Sweep Time Function This command sets the capture time. Refer to [:SENSe]:SWEep:TIME . Related Command This command has the same function as the following commands. [:SENSe]:SWEep:TIME [:SENSe]:ACPower:SWEep:TIME [:SENSe]:CHPower:SWEep:TIME [:SENSe]:OBWidth:SWEep:TIME [:SENSe]:BPOWer|:TXPower:SWEep:TIME? Sweep Time Query Function This command queries the capture time.
Page 481 2.12 Burst Average Power Measurement Settings :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? Zone Marker Frequency (Time) Query Function This command queries the center of the zone marker. Refer to : CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X? . Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X? :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X?
Page 482 Chapter 2 SCPI Device Message Details :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the maximum level point of the active trace and moves the marker point. Refer to : CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum . Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum...
Page 483 2.12 Burst Average Power Measurement Settings :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution] . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution] :CALCulate:BANDwidth|:BWIDth[:RESolution] [:SENSe]:ACPower:BANDwidth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] [:SENSe]:OBWidth:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]...
Page 484 Chapter 2 SCPI Device Message Details :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]? . Related Command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]? :CALCulate:BANDwidth|:BWIDth[:RESolution]? [:SENSe]:ACPower:BANDwidth[:RESolution]? :CALCulate:ACPower:BANDwidth[:RESolution]? [:SENSe]:CHPower:BANDwidth[:RESolution]? :CALCulate:CHPower:BANDwidth[:RESolution]? [:SENSe]:OBWidth:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]?
Page 485: Am Depth Measurement Settings
2.13 AM Depth Measurement Settings 2.13 AM Depth Measurement Settings Table 2.13-1 lists device messages for setting the AM Depth measurement. Table 2.13-1 Device Messages for setting AM Depth measurement Function Device Message [:SENSe]:AM[:STATe] ON|OFF|1|0 Measure AM Depth [:SENSe]:AM[:STATe]? AM Depth :CONFigure:AM Configure AM Depth Initiate...
Page 486 Chapter 2 SCPI Device Message Details [:SENSe]:AM[:STATe] ON|OFF|1|0 Measure AM Depth Function This command executes the AM Depth measurement. Command [:SENSe]:AM[:STATe] <switch> Parameter AM Depth measurement On/Off <switch> Sets the AM Depth measurement to On. ON|1 Sets the AM Depth measurement to Off. OFF|0 Details This command is available when the following trace is active:...
Page 487 2.13 AM Depth Measurement Settings :CONFigure:AM AM Depth Configure Function This command sets the AM Depth measurement to On. Command :CONFigure:AM Details No measurement is performed. When this command is executed, Scale Mode is set to Linear and Detection is set to Pos&Neg, and Peak to Peak Function is set to ON. Example of Use To set the AM Depth measurement to On.
Page 488 Chapter 2 SCPI Device Message Details :FETCh:AM? AM Depth Fetch Function This command queries the result of the AM Depth measurement. Query :FETCh:AM? Response <pos>,<neg>,<p-p>,<avg> Parameter Peak to Peak measurement result +Peak value <pos> −Peak value <neg> {(−Peak) − (+Peak)}/2 <p-p>...
Page 489 2.13 AM Depth Measurement Settings :READ:AM? AM Depth Read Function This command performs the AM Depth measurement and queries the result. This command has the same function as the following commands executed in this order: :INITiate:AM :FETCh:AM? :MEASure:AM? AM Depth Measure Function This command performs the AM Depth measurement and queries the result.
Page 490: Fm Deviation Measurement Settings
Chapter 2 SCPI Device Message Details 2.14 FM deviation Measurement Settings Table 2.14-1 lists device messages for setting the FM deviation measurement. Table 2.14-1 Device Messages for setting the FM deviation measurement Function Device Message [:SENSe]:FM[:STATe] ON|OFF|1|0 Measure FM deviation [:SENSe]:FM[:STATe]? FM deviation :CONFigure:FM...
Page 491 2.14 FM deviation Measurement Settings [:SENSe]:FM[:STATe] ON|OFF|1|0 Measure FM deviation Function This command executes the FM deviation measurement. Command [:SENSe]:FM[:STATe] <switch> Parameter FM deviation measurement On/Off <switch> Sets FM deviation measurement to On. ON|1 Sets FM deviation measurement to Off. OFF|0 Details This command is available when the following trace is active:...
Page 492 Chapter 2 SCPI Device Message Details :CONFigure:FM FM deviation Configure Function This command sets the FM deviation measurement to On. Command :CONFigure:FM Details No measurement is performed. After this command has been executed, then Scale Unit is set to ∆Hz, Detection is set to Pos&Neg, and Peak to Peak Function is set to On.
Page 493 2.14 FM deviation Measurement Settings :FETCh:FM? FM deviation Fetch Function This command queries the result of the FM deviation measurement. Query :FETCh:FM? Response <pos>,<neg>,<p-p>,<avg> Parameter Peak to Peak measurement result +Peak value <pos> −Peak value <neg> {(−Peak) − (+Peak)}/2 <p-p> Value is returned in Hz units, without suffix code.(Frequency vs Time) −999999999999 is returned when no...
Page 494 Chapter 2 SCPI Device Message Details :READ:FM? FM deviation Read Function This command performs the FM deviation measurement and queries the result. This command has the same function as the following commands executed in this order: :INITiate:FM :FETCh:FM? :MEASure:FM? FM deviation Measure Function This command performs the FM deviation measurement and queries the result.
Page 495: Digrf 3G Settings
2.15 DigRF 3G Settings 2.15 DigRF 3G Settings Table 2.15-1 lists device messages for DigRF 3G measurement settings. Note: The DigRF 3G is not available only when the MS269x Series Option 040/140 Baseband Interface Unit is not installed or the software package is Ver.6.00.00 or later;...
Page 496 Chapter 2 SCPI Device Message Details [:SENSe]:FEED RF|DIGRF3G Terminal Change Function This command sets Terminal. Command [:SENSe]:FEED <terminal> Parameter Terminal <terminal> Sets RF for terminal. Sets DigRF 3G (only for MS269x Series) for DIGRF3G terminal. Details This command is not available while the Replay function is being executed.
Page 497 2.15 DigRF 3G Settings [:SENSe]:DIGRf3g:TARGet WCDMA|GSM Target System Function This command selects Target System of Input Signals. Command [:SENSe]:DIGRf3g:TARGet <communication> Parameter Target System <communication> Sets Target System for W-CDMA WCDMA Sets Target System for GSM Details This command is not available while the Replay function is being executed.
Page 498 Chapter 2 SCPI Device Message Details [:SENSe]:DIGRf3g:ADRange <volt> AD Full Range Function This command sets the coefficient used for the unit conversion of the DigRF 3G (only for MS269x Series) signal to the V unit system. Command [:SENSe]:DIGRf3g:ADRange <volt> Parameter Voltage <volt>...
Page 499 2.15 DigRF 3G Settings [:SENSe]:DIGRf3g:ADRange? AD Full Range Query Function This command queries the coefficient used for the unit conversion of the DigRF 3G (only for MS269x Series) signal to the V unit system. Query [:SENSe]:DIGRf3g:ADRange? Response <volt> Parameter Voltage <volt>...
Page 500 Chapter 2 SCPI Device Message Details [:SENSe]:DIGRf3g:IQSign SIGNbit|TWOComp I/Q Sign Function This command sets the I/Q Sign. Command [:SENSe]:DIGRf3g:IQSign <i/q sign> Parameter I/Q Sign <i/q sign> Sets to Sign bit + Absolute value SIGNbit Sets to two's complement. TWOComp Details This command is not available while the Replay function is being executed.
Page 501 2.15 DigRF 3G Settings [:SENSe]:DIGRf3g:MEASch PRIMary|DIVersity Measurement Channel Function This command sets the Logical channel Type of the receiving DigRF 3G (only for MS269x Series) signal. Command [:SENSe]:DIGRf3g:MEASch <channel> Parameter Measurement Channel <channel> Primary PRIMary Diversity DIVersity Details This command is not available while the Replay function is being executed.
Page 502 Chapter 2 SCPI Device Message Details [:SENSe]:DIGRf3g:MEASch? Measurement Channel Query Function This command queries the Logical channel Type of the receiving DigRF 3G (only for MS269x Series) signal. Query [:SENSe]:DIGRf3g:MEASch? Response <channel> Parameter Measurement Channel <channel> Primary PRIM Diversity Example of Use To query the Logical Channel Type.
Page 503 2.15 DigRF 3G Settings [:SENSe]:SWEep:SAMPle <point> Capture Sample Length Function This command sets the waveform capture sample length when Terminal is set to DigRF 3G (only for MS269x Series). Command [:SENSe]:SWEep:SAMPle <point> Parameter Number of capture samples <point> Range 100 to 500000000 (W-CDMA) 100 to 200000000 (GSM) Resolution 1 sample...
Page 504 Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:SAMPle? Capture Sample Length Query Function This command queries the number of waveform capture samples when Terminal is set to DigRF 3G (only for MS269x Series). Query [:SENSe]:SWEep:SAMPle? Response <point> Parameter Capture sample length <point>...
Page 505 2.15 DigRF 3G Settings :CALCulate:ATIMe:STARt:SAMPle<point> Analysis Start Sample Function This command sets the analysis start sample of the main trace with sample numbers when Terminal is set to DigRF 3G (only for MS269x Series). Command :CALCulate:ATIMe:STARt:SAMPle <point> Parameter Analysis start sample <point>...
Page 506 Chapter 2 SCPI Device Message Details :CALCulate:ATIMe:STARt:SAMPle? Analysis Start Sample Query Function This command querie the analysis start position of the main trace with sample numbers when Terminal is set to DigRF 3G (only for MS269x Series). Query :CALCulate:ATIMe:STARt:SAMPle? Response <point>...
Page 507 2.15 DigRF 3G Settings :CALCulate:ATIMe:LENGth:SAMPle <point> Analysis Sample Length Function This command sets the analysis sample length of the main trace when Terminal is set to DigRF 3G (only for MS269x Series). Command :CALCulate:ATIMe:LENGth:SAMPle <point> Parameter Analysis sample length <point> Range 0 to Capture Time Length –...
Page 508 Chapter 2 SCPI Device Message Details :CALCulate:ATIMe:LENGth:SAMPle? Analysis Sample Length Query Function This command queries the analysis sample length of the main trace when Terminal is set to DigRF 3G (only for MS269x Series). Query :CALCulate:ATIMe:LENGth:SAMPle? Response <point> Parameter Analysis sample length <point>...
Page 509 2.15 DigRF 3G Settings :CALCulate:IQData <source> Input Source Function This command selects the Input Source when the data is analyzed. Command :CALCulate:IQData <source> Parameter Input Source <source> Selects a complex data for I and Q phase. COMPlex Selects the I phase data. Selects the Q phase data.
Page 510 Chapter 2 SCPI Device Message Details :CALCulate:IQData? Input Source Query Function This command queries the Input Source when the data is analyzed. Command :CALCulate:IQData? Parameter Input Source <source> I and Q phase COMP I phase Q phase Example of Use To query the Input Source.
Page 511 2.15 DigRF 3G Settings :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:CVOLtage <voltage> Vertical Scale Center Function This command sets the value for center of the vertical scale. Command :DISPlay:WINDow[1]:TRACe:Y[SCALe]:CVOLtage <Voltage> Parameter Settings scale value <voltage> Range –Reference Level to Reference Level Resolution 0.01 pV Suffix codes PV,NV,UV,MV,V V is used when omitted.
Page 512 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:CVOLtage? Vertical Scale Center Query Function This command queries the value for center of the vertical scale. Query :DISPlay:WINDow[1]:TRACe:Y[SCALe]:CVOLtage? Response <voltage> Parameter Settings scale val ue <voltage> Range –70.7 V to 70.7 V Resolution 0.01 pV No Suffix code Details...
Page 513 2.15 DigRF 3G Settings :CALCulate:SMOothing:LENGth:SAMPle<sample> Smoothing Sample Length Function This command sets the smoothing sample length of the main trace when Terminal is set to DigRF 3G (only for MS269x Series). Command :CALCulate:SMOothing:LENGth:SAMPle <sample> Parameter Smoothing sample length <sample> Range 1 to 10000 Resolution 1 sample...
Page 514 Chapter 2 SCPI Device Message Details :CALCulate:SMOothing:LENGth:SAMPle? Smoothing Sample Length Query Function This command queries the smoothing sample length of the main trace when Terminal is set to DigRF 3G (only for MS269x Series). Query :CALCulate:SMOothing:LENGth:SAMPle? Response <sample> Parameter Smoothing sample length <sample>...
Page 515 2.15 DigRF 3G Settings :UNIT:TMARker SAMPle|SECond Marker Unit Function This command sets the units of the marker display value (time) when Terminal is set to DigRF 3G (only for MS269x Series). Command :UNIT:TMARker <Unit> Parameter Units of marker display value <unit>...
Page 516: Setting Replay Function
Chapter 2 SCPI Device Message Details 2.16 Setting Replay function Table 2.16-1 lists device messages for setting the Replay function. Table 2.16-1 Device messages for setting Replay function Function Device Message Stop Replay :MMEMory:LOAD:IQData:STOP Execute Replay :MMEMory:LOAD:IQData <filename>,<device>,<application> Replay File :MMEMory:LOAD:IQData:INFormation? Information Query Replay Execute...
Page 517 2.16 Setting Replay function :MMEMory:LOAD:IQData:STOP Stop Replay Function This command stops the Replay function. Command :MMEMory:LOAD:IQData:STOP Details This command is available only when the Replay function is being executed. Example of Use To stop the Replay function. MMEM:LOAD:IQD:STOP :MMEMory:LOAD:IQData <filename>,<device>,<application> Execute Replay Function This command executes the Replay function.
Page 518 Chapter 2 SCPI Device Message Details :MMEMory:LOAD:IQData:INFormation? Replay File Information Query Function This command queries the file information while the Replay function is being executed. Query :MMEMory:LOAD:IQData:INFormation? Response <filename>,<start_time>,<time_length> Parameter File name <filename> Character string within 128 characters (excluding extension) *** is returned unless the Replay function is executed.
Page 519 2.16 Setting Replay function :MMEMory:LOAD:IQData:INFormation:STATe? Replay Execute Query Function This command queries whether the Replay function is executed. Query :MMEMory:LOAD:IQData:INFormation:STATe? Response <switch> Parameter Replay On/off <switch> The Replay function is executed. The Replay function is not executed. Example of Use To query whether the Replay function is executed.
Page 520 Chapter 2 SCPI Device Message Details :MMEMory:LOAD:IQData:INFormation:DEVice? Replay Device Query Function This command queries the name of the drive for which the Replay function is executed. Query :MMEMory:LOAD:IQData:INFormation:DEVice? Response <device> Parameter Drive name <device> A,B,D,E,F,... *** is returned unless the Replay function is executed.
Page 521 2.16 Setting Replay function :MMEMory:LOAD:IQData:INFormation:STARt? Replay Start Time Query Function This command queries the start time of analyzable IQ data for the Replay function. Query :MMEMory:LOAD:IQData:INFormation:STARt? Response <start_time> Parameter Start time of analyzable IQ data <start_time> Resolution 1 ns No suffix code. Value is returned in S units. –999999999999 is returned unless the Replay function is executed.
Page 522 Chapter 2 SCPI Device Message Details :MMEMory:LOAD:IQData:INFormation:CONDition? Replay Level Over Query Function This command queries whether Level Over is displayed while the Replay function is being executed. Query :MMEMory:LOAD:IQData:INFormation:CONDition? Response <switch> Level Over is displayed. Normal –999.0 is returned unless the Replay function is executed.
Page 523 2.16 Setting Replay function :MMEMory:LOAD:IQData:INFormation:CORRection? Replay Correction Query Function This command queries the Correction value when the Replay function is executed. Query :MMEMory:LOAD:IQData:INFormation:CORRection? Response <real> Parameter Correction level <real> Range −100 to 100 dB 0.000 is returned when Correction is set to Off. –999.0 is returned unless the Replay function is executed.
Page 524: Sub Trace Settings
Chapter 2 SCPI Device Message Details 2.17 Sub Trace Settings Table 2.17-1 lists device messages for setting sub traces. Table 2.17-1 Device messages for setting sub traces Function Device Message :CALCulate:STRace:MODE OFF|PVTime|SPGRam Change Sub Trace :CALCulate:STRace:MODE? :CALCulate:STRace:DETector[:FUNCtion] Sub Trace NORMal|POSitive|NEGative|AVERage Detection Mode :CALCulate:STRace:DETector[:FUNCtion]? Sub Trace...
Page 525 2.17 Sub Trace Settings :CALCulate:STRace:MODE OFF|PVTime|SPGRam Change Sub Trace Function This command sets the sub-trace type. Command :CALCulate:STRace:MODE <trace> Parameter Type <trace> None (Default value) Power vs Time PVTime Spectrogram SPGRam Details Spectrogram cannot be set when Scale Mode is set to Lin or when Terminal is set to DigRF 3G (only for MS269x Series).
Page 526 Chapter 2 SCPI Device Message Details :CALCulate:STRace:DETector[:FUNCtion] NORMal|POSitive|NEGative|AVERage Sub Trace Detection Mode Function This command sets the detection mode for the waveform pattern of the sub-trace. Command :CALCulate:STRace:DETector[:FUNCtion] <mode> Parameter Detection mode <mode> Simultaneous detection of positive and negative NORMal peaks (unavailable for Spectrogram sub trace) Positive peak detection POSitive...
Page 527 2.17 Sub Trace Settings :CALCulate:STRace:DETector[:FUNCtion]? Sub Trace Detection Mode Query Function This command queries the detection mode for the waveform pattern of the sub-trace. Query :CALCulate:STRace:DETector[:FUNCtion]? Response <mode> Parameter Detection mode for sub trace <mode> Simultaneous detection of positive and negative NORM peaks Positive peak detection...
Page 528 Chapter 2 SCPI Device Message Details :CALCulate:STRace:ATIMe:AUTO? Sub Trace Analysis Time Auto/Manual Query Function This command queries whether the analysis time for sub traces is set automatically or manually. Query :CALCulate:STRace:ATIMe:AUTO? Response <switch> Parameter Auto/Manual <switch> Auto Manual Example of Use To query whether the analysis time for sub traces is set automatically or manually.
Page 529 2.17 Sub Trace Settings :CALCulate:STRace:ATIMe:STARt <time> Sub Trace Analysis Start Time Function This command sets the analysis start time of the sub-trace. Command :CALCulate:STRace:ATIMe:STARt <time> Parameter Analysis start time <time> Range/Resolution For details, refer to MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer...
Page 530 Chapter 2 SCPI Device Message Details :CALCulate:STRace:ATIMe:STARt? Sub Trace Analysis Start Time Query Function This command queries the analysis start time of the sub-trace. Query :CALCulate:STRace:ATIMe:STARt? Response <time> Parameter Analysis start time <time> Range/Resolution For details, refer to MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Signal Analyzer function Operation) MS2830A/MS2840A Signal...
Page 531 2.17 Sub Trace Settings :CALCulate:STRace:ATIMe:STARt:SAMPle <integer> Sub Trace Analysis Start Sample Function This command uses the number of samples to set the sub trace analysis start position when Terminal is set to DigRF 3G (only for MS269x Series). Command :CALCulate:STRace:ATIMe:STARt:SAMPle <integer> Parameter Sub trace analysis start position <integer>...
Page 532 Chapter 2 SCPI Device Message Details :CALCulate:STRace:ATIMe:STARt:SAMPle? Sub Trace Analysis Start Sample Query Function This command uses the number of samples to query the sub trace analysis start position when Terminal is set to DigRF 3G (only for MS269x Series). Query :CALCulate:STRace:ATIMe:STARt:SAMPle? Response...
Page 533 2.17 Sub Trace Settings :CALCulate:STRace:ATIMe:LENGth <time> Sub Trace Analysis Time Length Function This command sets the analysis time length of the sub-trace. Command :CALCulate:STRace:ATIMe:LENGth <time> Parameter Time analysis length <time> Range/Resolution For details, refer to MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer...
Page 534 Chapter 2 SCPI Device Message Details :CALCulate:STRace:ATIMe:LENGth? Sub Trace Analysis Time Length Query Function This command queries the analysis time length of the sub-trace. Query :CALCulate:STRace:ATIMe:LENGth? Response <time> Parameter Time analysis length <time> Range/Resolution For details, refer to MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) MS2830A/MS2840A Signal...
Page 535 2.17 Sub Trace Settings :CALCulate:STRace:ATIMe:LENGth:SAMPle <integer> Sub Trace Analysis Sample Length Function This command sets the analysis sample length of the sub-trace when Terminal is set to DigRF 3G (only for MS269x Series). Command :CALCulate:STRace:ATIMe:LENGth:SAMPle <integer> Parameter Analysis sample length <integer>...
Page 536 Chapter 2 SCPI Device Message Details :CALCulate:STRace:ATIMe:LENGth:SAMPle? Sub Trace Analysis Sample Length Query Function This command queries the analysis sample length of the sub-trace when Terminal is set to DigRF 3G (only for MS269x Series). Query :CALCulate:STRace:ATIMe:LENGth:SAMPle? Response <integer> Parameter Analysis sample length <integer>...
Page 537 2.17 Sub Trace Settings :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LOGarithmic <rel_ampl> Sub Trace Log Scale Level Full Scale Function This command sets the level-axis scale range for sub traces in Log scale mode. Command :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LOGa rithmic <rel_ampl> Parameter Y-axis scale <rel_ampl> Resolution 10 dB Data Range 10 to 150 dB Default value 100 dB...
Page 538 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LOGarithmic? Sub Trace Log Scale Level Full Scale Query Function This command queries the level-axis scale range for sub traces in Log scale mode. Query :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LOGa rithmic? Response <rel_ampl> Parameter Y-axis scale <rel_ampl> Resolution 10 dB Data Range 10 to 150 dB...
Page 539 2.17 Sub Trace Settings :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LINear <percent> Sub Trace Linear Scale Level Full Scale Function This command sets the level-axis scale range for sub traces in Linear scale mode. Command :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LINe ar <percent> Parameter Y-axis scale <percent> 10 % 20 % 50 % 100 % Default value...
Page 540 Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LINear? Sub Trace Linear Scale Level Full Scale Query Function This command queries the level-axis scale range for sub traces in Linear scale mode. Query :DISPlay:WINDow[1]:STRace:Y[:SCALe]:PDIVision:RANGe:LIN? Response <percent> Parameter Y-axis scale <percent> 100% 150% –999.0 is returned when no measurement is performed or an error occurs.
Page 541 2.17 Sub Trace Settings :CALCulate:STRace:BANDwidth|:BWIDth[:RESolution] <bandwidth> Sub Trace Resolution Bandwidth Function This command sets the resolution bandwidth (RBW) of the sub-trace. Command :CALCulate:STRace:BANDwidth|:BWIDth[:RESolution] <bandwidth> Parameter Resolution bandwidth (RBW) <bandwidth> Range/Resolution 1 Hz to 10 MHz (1-3 sequence) Suffix code HZ,KHZ,KZ,MHZ,MZ,GHZ,GZ Hz is used when omitted.
Page 542 Chapter 2 SCPI Device Message Details :CALCulate:STRace:BANDwidth|:BWIDth[:RESolution]? Sub Trace Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW) of the sub-trace. Query :CALCulate:STRace:BANDwidth|:BWIDth[:RESolution]? Response <bandwidth> Parameter Resolution bandwidth ( RBW ) <bandwidth> Range/Resolution 1 Hz to 10 MHz (1-3 sequence) No suffix code.
Page 543 2.17 Sub Trace Settings :CALCulate:STRace:BANDwidth|:BWIDth[:RESolution]:AUTO? Sub Trace Resolution Bandwidth Auto/Manual Function This command queries whether the resolution bandwidth (RBW) for sub traces is set automatically or manually. Query :CALCulate:STRace:BANDwidth|:BWIDth[:RESolution]:AUTO? Response <switch> Parameter Auto/Manual <switch> Auto mode is on. Auto mode is off. Example of Use To query whether the RBW for sub traces is set automatically or manually.
Page 544: Other Function Settings
Chapter 2 SCPI Device Message Details 2.18 Other Function Settings Table 2.18-1 lists device messages for other settings. Table 2.18-1 Device messages for other settings Function Device Message Measurement :STATus:ERRor? Status Query Erase Warm Up :DISPlay:ANNotation:WUP:ERASe Message :DISPlay:ANNotation:TITLe[:STATe] ON|OFF|1|0 Display Title :DISPlay:ANNotation:TITLe[:STATe]? :DISPlay:ANNotation:TITLe:DATA <string>...
Page 545 2.18 Other Function Settings :STATus:ERRor? Measurement Status Query Function This command queries the measurement status. Query :STATus:ERRor? Response <status> Parameter Status <status> Value = bit0 + bit1 + bit2 + bit3 + bit4 + bit5 + bit6 + bit7 + bit8 + bit9 + bit10 + bit11 + bit12 + bit13 + bit14 + bit15 bit0 : 2 Not measured...
Page 546 Chapter 2 SCPI Device Message Details :DISPlay:ANNotation:WUP:ERASe Erase Warm Up Message Function This command erases the warm-up message shown shortly after started. Command :DISPlay:ANNotation:WUP:ERASe Details This command is not available while the Replay function is being executed. Example of Use To erase the warm-up message.
Page 547 2.18 Other Function Settings :DISPlay:ANNotation:TITLe[:STATe]? Display Title Query Function This command queries the On/Off state of the title display. Query :DISPlay:ANNotation:TITLe[:STATe]? Response <switch> Parameter Title display On/Off <switch> Title is displayed. Title is hidden. Example of Use To query the title display setting. DISP:ANN:TITL? >...
Page 548 Chapter 2 SCPI Device Message Details :DISPlay:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string. Query :DISPlay:ANNotation:TITLe:DATA? Response <string> Parameter Character string within 32 characters <string> Example of Use To query the title character string. DISP:ANN:TITL:DATA? > SPECTRUM ANALYZER Related Command This command has the same function as the following commands.
Page 549 2.18 Other Function Settings :CALibration:RCLock[:VALue] <integer> Adjust Reference Clock Function This command sets the adjustment value of the internal reference signal oscillator (Reference Clock). Command :CALibration:RCLock[:VALue] <integer> Parameter Adjustment value <integer> Range 0 to 1023 (MS2830A) 0 to 4095 (MS2840A) Resolution Details This command is not available while the Replay function is being...
Page 550 Chapter 2 SCPI Device Message Details :CALibration:RCLock[:VALue]:PRESet Adjust Reference Clock Preset Function This command resets the adjustment value of the internal reference signal oscillator (Reference Clock). Command :CALibration:RCLock[:VALue]:PRESet Details This command is not available while the Replay function is being executed.
Page 551 2.18 Other Function Settings :CALibration:YTF? Pre-selector Auto Tune Query Function This command queries whether automatic setting is completed normally for the preselector peaking bias value. Query :CALibration:YTF? Response <result> Parameter Normal/Error <result> Normal Error Details This command is not available while the Replay function is being [MS269xA] executed.
Page 552 Chapter 2 SCPI Device Message Details [:SENSe]:POWer[:RF]:PADJust <freq> Pre-selector Tune Function This command sets the Preselector peaking bias value. Command [:SENSe]:POWer[:RF]:PADJust <freq> Parameter Peaking bias value <freq> Range −128 to 127 Resolution Default value Details This command is not available in the following cases: [MS269xA] ●...
Page 553 2.18 Other Function Settings [:SENSe]:POWer[:RF]:PADJust? Pre-selector Tune Query Function This command queries the Preselector peaking bias value. Query [:SENSe]:POWer[:RF]:PADJust? Response <freq> Parameter Peaking bias value <freq> Range −128 to 127 Resolution Details This command is not available in the following cases: [MS269xA] ●...
Page 554 Chapter 2 SCPI Device Message Details [:SENSe]:DATA? Captured Data Query Function This command queries the IQ data captured into the waveform memory. Query [:SENSe]:DATA? [<start>[,<length>[,<mode>]]] Response When ASCii,0 is set to :FORMat[:DATA] : <datai_1>,<dataq_1>,<datai_2>,<dataq_2>,... When REAL,32 is set to :FORMat[:DATA], “ # ”(in the Ascii format) is followed by, in the following order, “Character string range which indicates the byte length of the binary data (in the Ascii format)”, “Byte length of binary data (in the Ascii format)”, and “IQ data string(in the...
Page 555 2.18 Other Function Settings When omitted: Query length (in sample units) <length> Range Starting from 1 ( Analysis Start Time[s] + Analysis Time Length[s] ) × Sampling Rate[Hz] – <start> (When Capture Time is Auto) Starting from 1 Capture Time Length[s] × Sampling Rate[Hz] –...
Page 556 Chapter 2 SCPI Device Message Details When Terminal is DigRF 3G (only for MS269x Series), parameters are set as follows: Same as when Terminal is RF: <start> Same as when Terminal is RF: <length> I phase data <datai_n> No suffix code When ASCii,0 is set for :FORMat[:DATA] , it will be output as exponential form of 8 digits of essential figures.
Page 557 2.18 Other Function Settings Note that the range of the IQ data read out by this command is different from that of the IQ data saved by the Save Captured Data function. The position at which Analysis Start Time of IQ data saved by Save Capture Data is 0 s is calculated by the following formula: −...
Page 558 Chapter 2 SCPI Device Message Details (When Terminal is DigRF 3G (only for MS269x Series)) Actual range of IQ data that is captured will be wider than what is set with Analysis Sample Length (or Capture Time Length), due to the internal analysis process, such as filter process, etc.
Page 559 2.18 Other Function Settings :FORMat:BORDer NORMal|SWAPped Binary Data Byte Order Function This command sets the byte order of the reading data when REAL,32 is set to :FORMat[:DATA] . Command :FORMat:BORDer <border> Parameter Byte order <border> Sets the byte order to Big-endian (Default value) NORMal Sets the byte order to Little-endian.
Page 560 Chapter 2 SCPI Device Message Details :FORMat:BORDer? Binary Data Byte Order Query Function This command queries the byte order of the reading data when REAL,32 is set to :FORMat[:DATA] . Query :FORMat:BORDer? Response <border> Parameter Byte order <border> Byte order is set to Big-endian. NORM Byte order is set to Little-endian.
Page 561 2.18 Other Function Settings :FORMat[:DATA] ASCii|REAL[,<integer>] Numeric Data Format Function This command sets the IQ data format read out by [:SENSe]:DATA?. Command :FORMat[:DATA] <format>[,<length>] Parameter It will be following parameters when Terminal is RF: IQ data format <format> Ascii format (initial value) ASCii Binary 32 byte floating point number format REAL...
Page 562 Chapter 2 SCPI Device Message Details Details (When Terminal is RF) When REAL is set, IQ data is read out in the 32 byte single precision floating point number format specified in IEEE754. (When Terminal is DigRF 3G (only for MS269x Series)) When the REAL is set, IQ data is output in 16 bits for the Target System:GSM, and in 8 bits for Target System:W-CDMA.
Page 563 2.18 Other Function Settings :FORMat[:DATA]? Numeric Data Format Query Function This command queries the format of the IQ data read out by [:SENSe]:DATA?. Query :FORMat[:DATA]? Response <format>,<length> Parameter When Terminal is RF, parameters are set as follows: IQ data format <format>...
Page 564 Chapter 2 SCPI Device Message Details [:SENSe]:POWer[:RF]:MW:PRESelector[:STATe] ON|OFF|1|0 Micro Wave Preselector Bypass Function This command sets the Microwave Preselector Bypass. Command [:SENSe]:POWer[:RF]:MW:PRESelector[:STATe] <switch> Parameter Microwave Preselector Bypass <switch> Enables bypassing ON|1 Disables bypassing OFF|0 Default Details This function is available when MS269xA-067/167 is installed. This function is available when MS2830A-007/067/167, MS2840A-067/167 is installed.
Page 565 2.18 Other Function Settings [:SENSe]:POWer[:RF]:MW:PRESelector[:STATe]? Micro Wave Preselector Bypass Query Function This command queries the Micro Wave Preselector Bypass. Query [:SENSe]:POWer[:RF]:MW:PRESelector[:STATe]? Response <status> Parameter Microwave Preselector Bypass <status> Enables bypassing Disables bypassing Details This function is available when MS269xA-067/167 is installed. This function is available when MS2830A-007/067/167, MS2840A-067/167 is installed.
Page 566: Questionable Status Register
Chapter 2 SCPI Device Message Details 2.19 QUEStionable Status Register Figure 2.19-1, Table 2.19-1, and Table 2.19-2 show the layer structure of the QUEStionable status register. VOLTage (NOT USED) CURRent (NOT USED) Status Byte Register DB3 TIME (NOT USED) POWer (NOT USED) TEMPerature (NOT USED) FREQuency (NOT USED) PHASe (NOT USED)
Page 567 2.19 QUEStionable Status Register Table 2.19-3 lists device messages for the QUEStionable status register. Table 2.19-3 Device message for QUEStionable Status Register Function Device Message Questionable Status Register :STATus:QUEStionable[:EVENt]? Event Questionable Status Register :STATus:QUEStionable:CONDition? Condition Questionable :STATus:QUEStionable:ENABle <integer> Status Register :STATus:QUEStionable:ENABle? Enable Questionable...
Page 568 Chapter 2 SCPI Device Message Details :STATus:QUEStionable[:EVENt]? Questionable Status Register Event Function This command queries the event register of the QUEStionable status register. Query :STATus:QUEStionable[:EVENt]? Response <integer> Parameter Total bytes of event register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
Page 569 2.19 QUEStionable Status Register :STATus:QUEStionable:ENABle <integer> Questionable Status Register Enable Function This command sets the event enable register of the QUEStionable status register. Command :STATus:QUEStionable:ENABle <integer> Parameter Total bytes of event enable register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
Page 570 Chapter 2 SCPI Device Message Details :STATus:QUEStionable:NTRansition <integer> Questionable Status Register Negative Transition Function This command sets the transition filter (negative transition) of the QUEStionable status register. Command :STATus:QUEStionable:NTRansition <integer> Parameter Total bytes of transition filter <integer> (negative transition) Resolution Range 0 to 65535 Details...
Page 571 2.19 QUEStionable Status Register :STATus:QUEStionable:PTRansition <integer> Questionable Status Register Positive Transition Function This command sets the transition filter (positive transition) of the QUEStionable status register. Command :STATus:QUEStionable:PTRansition <integer> Parameter Total bytes of transition filter <integer> (positive transition) Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
Page 572 Chapter 2 SCPI Device Message Details :STATus:QUEStionable:MEASure[:EVENt]? Questionable Measure Register Event Function This command queries the event register of the QUEStionable Measure register. Query :STATus:QUEStionable[:EVENt]? Response <integer> Parameter Total bytes of event register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
Page 573 2.19 QUEStionable Status Register :STATus:QUEStionable:MEASure:ENABle <integer> Questionable Measure Register Enable Function This command sets the event enable register of the QUEStionable Measure register. Command :STATus:QUEStionable:ENABle <integer> Parameter Total bytes of event enable register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
Page 574 Chapter 2 SCPI Device Message Details :STATus:QUEStionable:MEASure:NTRansition <integer> Questionable Measure Register Negative Transition Function This command sets the transition filter (negative transition) of the QUEStionable Measure register. Command :STATus:QUEStionable:NTRansition <integer> Parameter Total bytes of transition filter <integer> (negative transition) Resolution Range 0 to 65535 Details...
Page 575 2.19 QUEStionable Status Register :STATus:QUEStionable:MEASure:PTRansition <integer> Questionable Measure Register Positive Transition Function This command sets the transition filter (positive transition) of the QUEStionable Measure register. Command :STATus:QUEStionable:PTRansition <integer> Parameter Total bytes of transition filter <integer> (positive transition) Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
Page 576: Operation Status Register
Chapter 2 SCPI Device Message Details 2.20 OPERation Status Register Figure 2.20-1 and Table 2.20-1 show the layer structure of the OPERation Status Register. CALibrating SETTling RANGing (NOT USED) Status Byte Register DB7 SWEeping MEASuring Wainting for TRIG Waiting for ARM (NOT USED) CORRecting (NOT USED) FILE Operating NOT USED...
Page 577 2.20 OPERation Status Register Table 2.20-2 lists device messages for the OPERation Status Register. Table 2.20-2 Device messages for OPERation Status Register Function Device Message Operation Status Register :STATus:OPERation[:EVENt]? Event Operation Status Register :STATus:OPERation:CONDition? Condition Operation :STATus:OPERation:ENABle <integer> Status Register :STATus:OPERation:ENABle? Enable Operation Status...
Page 578 Chapter 2 SCPI Device Message Details :STATus:OPERation[:EVENt]? Operation Status Register Event Function This command queries the event register of the OPERation status register. Query :STATus:OPERation[:EVENt]? Response <integer> Parameter Total bytes of event register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
Page 579 2.20 OPERation Status Register :STATus:OPERation:CONDition? Operation Status Register Condition Function This command queries the condition register of the OPERation status register. Query :STATus:OPERation:CONDition? Response <integer> Parameter Total bytes of condition register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode. Example of Use To query the contents of the condition register of the OPERation status register.
Page 580 Chapter 2 SCPI Device Message Details :STATus:OPERation:ENABle? Operation Status Register Enable Query Function This command queries the event enable register of the OPERation status register. Query :STATus:OPERation:ENABle? Response <integer> Parameter Total bytes of event enable register <integer> Resolution Range 0 to 65535 Example of Use To query the event enable register of the OPERation status register.
Page 581 2.20 OPERation Status Register :STATus:OPERation:NTRansition? Operation Status Register Negative Transition Query Function This command queries the transition filter (negative transition) of the OPERation status register. Query :STATus:OPERation:NTRansition? Response <integer> Parameter Total bytes of transition filter <integer> (negative transition) Resolution Range 0 to 65535 Example of Use To query the transition filter (negative transition) of the OPERation...
Page 582 Chapter 2 SCPI Device Message Details :STATus:OPERation:PTRansition <integer> Operation Status Register Positive Transition Function This command sets the transition filter (positive transition) of the OPERation status register. Command :STATus:OPERation:PTRansition <integer> Parameter Total bytes of transition filter <integer> (positive transition) Resolution Range 0 to 65535 Details...
Page 583: Batch Processing Function Setting
2.21 Batch Processing Function Setting 2.21 Batch Processing Function Setting Table 2.21-2 lists messages related to the batch processing function. Table 2.21-1 Batch Processing Function Messages Function Device Message Measure Power :MEASure:POWadj? Adjust <span>,<length>,<sg_start_level>,<sg_max_level>,<target>,<ran ge> [,<frequency>[,<count>[,<adjust_log>]]] 2-573...
Page 584 Chapter 2 SCPI Device Message Details :MEASure:POWadj? <span>,<length>,<sg_start_level>,<sg_max_level>,<target>,<range>[,<frequ ency>[,<count>[,<adjust_log>[,<sg_offset_switch>]]]] Measure Power Adjust Function This command executes power adjustment and captures the results. Power adjustment combines the SG option and power measurement function and sets the output level of the DUT, such as amplifiers, to the specified level.
Page 585 2.21 Batch Processing Function Setting [MS2830A], [MS2840A] Option 005/105/007/009/109 When the Analysis Bandwidth Extension to 31.25 MHz option is installed, the following frequency spans can be set in addition to *2. 25000000, 31250000 Option 006/106 When the Analysis Bandwidth 10 MHz option is installed, only the following frequency spans can be set.
Page 586 Chapter 2 SCPI Device Message Details Specify the SG max. output level. Set so that the <sg_max_level> DUT input level and RF Input do not exceed the maximum input level. Range [MS269xA] –140 to –5 dBm [MS2830A], [MS2840A] –40.00 to +20.00 dBm ( ≥ 25 MHz) –40.00 to +2.00 dBm ( ≤...
Page 587 2.21 Batch Processing Function Setting <sg_offset_switch> Specifies whether or not to return level offset setting in SG output level setting range. Returns level offset setting ON|1 Does not return level offset setting OFF|0 Evaluates power adjustment. <judge> PASS. FAIL Unmeasured “–999.0”...
Page 588 Chapter 2 SCPI Device Message Details Reference Level setting value Reference Level < target > Crest Factor Correction Crest Factor = 12 dB However, it is rounded to 50 dBm when Reference Level > 50 dBm (30 dBm at Pre-amp On) and to –120 dBm when Reference Level < –120 dBm.
Page 589: Setting External Mixer
2.22 Setting External Mixer 2.22 Setting External Mixer Table 2.22-1 lists the device messages related to External Mixer settings. Table 2.22-1 Device messages for setting External Mixer Function Device Message [:SENSe]:MIXer[:STATe] ON|OFF|1|0 External Mixer Mode [:SENSe]:MIXer[:STATe]? [:SENSe]:MIXer[:HARMonic]:BAND VHP|EHP|A|Q|U|V|E|W|F|D|G|Y|J External Mixer Band [:SENSe]:MIXer[:HARMonic]:BAND? [:SENSe]:MIXer:BIAS <bias>...
Page 590 Chapter 2 SCPI Device Message Details [:SENSe]:MIXer[:STATe] ON|OFF|1|0 External Mixer Mode Function This command switches between Internal and External Mixer. Command [:SENSe]:MIXer[:STATe] <switch> Parameter External mixer switch <switch> Selects External Mixer ON|1 Selects Internal Mixer OFF|0 Default Details This function is available when Option 044/045 is installed for MS2830A. This function is available when Option 044/046 is installed for MS2840A.
Page 591 2.22 Setting External Mixer [:SENSe]:MIXer[:HARMonic]:BAND VHP|EHP|A|Q|U|V|E|W|F|D|G|Y|J External Mixer Band Function This command selects external mixer band. Command [:SENSe]:MIXer[:HARMonic]:BAND <band> Parameter External mixer band <band> High Performance Waveguide Mixer Band VHP (50.0 to 75.0 GHz, 8+) High Performance Waveguide Mixer Band EHP (60.0 to 90.0 GHz, 12–) Band A (26.5 to 40.0 GHz, 4+) Band Q (33.0 to 50.0 GHz, 5+) Band U (40.0 to 60.0 GHz, 6+)
Page 592 Chapter 2 SCPI Device Message Details [:SENSe]:MIXer[:HARMonic]:BAND? External Mixer Band Query Function This command queries the current external mixer band. Query [:SENSe]:MIXer[:HARMonic]:BAND? Response <band> Parameter External mixer band <band> High Performance Waveguide Mixer Band VHP (50.0 to 75.0 GHz, 8+) High Performance Waveguide Mixer Band EHP (60.0 to 90.0 GHz, 12–) Band A (26.5 to 40.0 GHz, 4+)
Page 593 2.22 Setting External Mixer [:SENSe]:MIXer:BIAS <bias> External Mixer Bias Function This command sets the external mixer’s bias current. Command [:SENSe]:MIXer:BIAS <bias> Parameter External mixer’s bias current <bias> Range 0.0 to 20.0 mA Resolution 0.1 mA Suffix code NA,UA,MA,A mA is used when omitted. Default 0.0 mA Details...
Page 594 Chapter 2 SCPI Device Message Details [:SENSe]:MIXer:BIAS? External Mixer Bias Query Function This command queries the current external mixer’s bias current. Query [:SENSe]:MIXer:BIAS? Response <bias> Parameter External mixer’s bias current <bias> Range 0.1 to 20.0 mA Resolution 0.1 mA No suffix code. Value is returned in mA units. Details This function is available when Option 044/045 is installed for MS2830A.
Page 595 2.22 Setting External Mixer [:SENSe]:MIXer:LOSS <power> External Mixer Conversion Loss Function This command sets the external mixer’s conversion loss. Command [:SENSe]:MIXer:LOSS <power> Parameter Conversion Loss of External Mixer <power> Range 0.00 to 99.99 dB Resolution 0.01 dB Suffix code dB is used when omitted. Default 15.00 dB Details...
Page 596 Chapter 2 SCPI Device Message Details [:SENSe]:MIXer:LOSS? External Mixer Conversion Loss Query Function This command queries the external mixer’s conversion loss. Query [:SENSe]:MIXer:LOSS? Response <power> Parameter Conversion Loss of External Mixer <power> Range 0.00 to 99.99 dB Resolution 0.01 dB No suffix code.
Page 597: Fm Cw Measurement Settings
2.23 FM CW Measurement Settings 2.23 FM CW Measurement Settings Table 2.0-1 lists device messages for setting FM CW measurement. Table 2.0-1 Device messages for setting FM CW measurement Function Device Message [:SENSe]:FMCW[:STATe] ON|OFF|1|0 Measure FM CW [:SENSe]:FMCW[:STATe]? FM CW Configure :CONFigure:FMCW FM CW Initiate :INITiate:FMCW...
Page 598 Chapter 2 SCPI Device Message Details [:SENSe]:FMCW[:STATe] ON|OFF|1|0 Measure FM CW Function This command executes FM CW measurement. Command [:SENSe]:FMCW[:STATe] <switch> Parameter FM CWmeasurement On/Off <switch> Sets FM CW measurement On. ON|1 Sets FM CW measurement Off (Default value). OFF|0 Details This command is available when the following trace is active: ●...
Page 599 2.23 FM CW Measurement Settings :CONFigure:FMCW FM CW Configure Function This command sets Channel Power measurement to On. Command :CONFigure:FMCW Details No measurement is performed. For querying the measurement value after this command has been executed, use *WAI commands to perform synchronized control. Example of Use To set FM CW measurement to On and query the results.
Page 600 Chapter 2 SCPI Device Message Details :FETCh:FMCW? FM CW Fetch Function This command queries the result of the 1st slope (Chirp Index = 0) of the FM CW measurement. Query :FETCh:FMCW? Response Refer to Table 2.23-2. Parameter None Details This function queries the measurement result of the FM CW measurement performed last.
Page 601 2.23 FM CW Measurement Settings :READ:FMCW? FM CW Read Function This command performs FM CW measurement and queries the result. This command has the same function as the following commands executed in this order: :INITiate:FMCW :FETCh:FMCW? :MEASure:FMCW? FM CW Measure Function This command performs FM CW measurement and queries the result.
Page 602 Chapter 2 SCPI Device Message Details [:SENSe]:FMCW:INTVal:MODE AUTO|MARKer Measurement Interval Mode Function This command selects the mode to set the measurement interval. Command [:SENSe]:FMCW:INTVal:MODE <switch> Parameter Measurement Interval Mode <switch> Selects the measurement interval automatically. AUTO (Default) Specify the measurement interval by markers MARKer manually.
Page 603 2.23 FM CW Measurement Settings :FETCh:FMCW:CHIRp:NUMBer? FM CW Fetch Number of Chirp Function This command queries the queryable chirp number (slope number) of the FM CW measurement. Query :FETCh:FMCW:CHIRp:NUMBer? Response <NUM> Parameter Chirp number <NUM> Range 0 to 10 Details This command queries the chirp number queryable by the :FETCh:FMCW:CHIRp[n]? command.
Page 604 Chapter 2 SCPI Device Message Details [:SENSe]:FMCW:CHIRp:SLOPe AUTO|UP|DOWN FMCW Slope Function This command sets the chirp type (up/down) to detect at automatic chirp detection. Command [:SENSe]:FMCW:CHIRp:SLOPe <switch> Parameter Chirp type to detect automatically < switch > Detects up-chirps automatically. Detects down-chirps automatically. DOWN Detects both up-chirps and down-chirps AUTO...
Page 605: Chapter 3 Native Device Message List
Chapter 3 Native Device Message List This chapter describes remote control commands for executing the signal analyzer function (hereinafter, referred to as “this application”) using a list organized by functions. Refer to Chapter 4 “Device Message Details” for detailed specifications for each command. Refer to the MS2690A/MS2691A/MS2692A and MS2830A/MS2840A Signal Analyzer Operation Manual (Mainframe Remote Control) for detailed specifications on IEEE488.2 common device messages and application...
Page 606: Ieee488.2 Common Device Messages
Table 3.1-1 lists IEEE488.2 common device messages available in this application. Table 3.1-1 IEEE488.2 common device messages Function Command Query Response Remarks model : Main unit model name ANRITSU,model,serial *IDN? serial : Main unit serial number Identification ,version version : Software package version *OPC? Operation Complete...
Page 607 Table 3.1-1 IEEE488.2 common device messages (Cont’d) Function Command Query Response Remarks byte = bit7: EESB7 bit6: MSS/RQS bit5: ESB byte Status Byte Register bit4: MAV *STB? bit3: EESB3 bit2: EESB2 (END Event) bit1: EESB1 bit0: EESB0 Standard Event Status Enable byte = *ESE? byte...
Page 608: Application Common Device Messages
3.2 Application Common Device Messages Table 3.2-1 lists application common device messages available in this application. Table 3.2-1 Application common device messages Function Command Query Response Remarks apl: Application name = SIGANA window: Window status SYS apl,window SYS? apl status,window Application Switch = ACT | INACT | MIN | NON status: Application execution status...
Page 609 Table 3.2-1 Application common device messages (Cont’d) Function Command Query Response Remarks file : Filename PRINT file,device device : Drive name Hard Copy PRINT = A | B | D | E | … PMOD format PMOD? format format : Specifies file format Hard Copy Mode PMOD PMOD?
Page 610 Table 3.2-1 Application common device messages (Cont’d) Function Command Query Response Remarks mode : Calibration mode = ALL | LEVEL | LOLEAK_SUPPRESS CAL mode Calibration | BAND Asynchronous command switch = ON|OFF|1|0 POW:MW:PRES switch POW:MW:PRES? status Micro Wave Preselector Bypass status = 1|0...
Page 611: Frequency/Time Settings
3.3 Frequency/Time Settings Table 3.3-1 lists device messages for setting frequency and time. Table 3.3-1 Frequency/time setting messages Function Command Query Response Remarks CNF freq CNF? freq Center Frequency FREQ:CENT:STEP freq FREQ:CENT:STEP? freq Frequency Step Size SPF freq SPF? freq Frequency Span STF freq STF?
Page 612: Level Settings
3.4 Level Settings Table 3.4-1 lists device messages for setting levels. Table 3.4-1 Level setting messages Function Command Query Response Remarks RLV level RLV? level Reference Level ROFFSET on_off ROFFSET? When set to On , response is level . Reference Level Offset Mode ROFFSETMD on_off ROFFSETMD? on_off...
Page 613: Measurement/Trigger Settings
3.5 Measurement/Trigger Settings Table 3.5-1 lists device messages for setting measurement/trigger. Table 3.5-1 Measurement/trigger setting messages Function Command Query Response Remarks SNGLS Single Measurement Asynchronous command CONTS Asynchronous command Continuous Measurement STOP Storage Stop switch: TRGS switch TRGS? switch Trigger Switch = FREE | TRGD source: TRGSOURCE source...
Page 614: Common Settings For Each Trace
3.6 Common Settings for Each Trace Table 3.6-1 lists device messages for configuring the settings common to each trace. Table 3.6-1 Common trace setting messages Function Command Query Response Remarks trace : Trace type TRCCHG trace TRCCHG? trace Change Trace = SPECTRUM | POWERVSTIME | FREQVSTIME|CCDF|SPECTROGRAM AANLY auto_manual...
Page 615: Spectrum Trace Settings
3.7 Spectrum Trace Settings Table 3.7-1 lists device messages for setting spectrum trace. Table 3.7-1 Spectrum trace setting messages Function Command Query Response Remarks ZMCNT freq ZMCNT? freq Zoom Center ZMWDTH freq ZMWDTH? freq Zoom Width RB bandwidth bandwidth Resolution Bandwidth (RBW) bandwidth : Resolution bandwidth RB AUTO mode : Detection mode...
Page 616 Table 3.7-1 Spectrum trace setting messages (Cont’d) Function Command Query Response Remarks MKR mode,marker MKR? Marker mode : Marker mode mode Marker Mode marker : Marker name MKR mode MKR? MKACT marker MKACT? marker marker : Marker name Active Marker MKLTYPE type MKLTYPE? type...
Page 617 Table 3.7-1 Spectrum trace setting messages (Cont’d) Function Command Query Response Remarks CALC:MARK:REF Relative To CALC:MARK:REF? marker integer marker: Marker name marker,integer CALC:MARK:TABL CALC:MARK:TABL? switch_res Marker List switch_com CALC:MARK:SLIN Spot Line CALC:MARK:SLIN? switch_res switch_com CALC:MARK:COUP:ZONE Couple Zone CALC:MARK:COUP:ZONE? switch_res switch_com CALC:MARK:WIDT:TYPE CALC:MARK:WIDT:TYPE? marker: Marker name...
Page 618 Table 3.7-1 Spectrum trace setting messages (Cont’d) Function Command Query Response Remarks freqs_1,power_1,freqs_2,power_ 2,..., freqs_10,power_10 ( in Spectrum ) <sample_1>,<freqf_1>,<sample_2 >,<freqf_2>( When using MS269x Series, the terminal being set for DigRF 3G ) time_1,power_1,time_2,power_2( i n Power vs Time trace ) <sample_1>,<power_1>,<sample_2 Marker Readout Query CALC:MARK:READ?
Page 619 Table 3.7-1 Spectrum trace setting messages (Cont’d) Function Command Query Response Remarks Mode : Detection mode SRCHTH mode SRCHTH? mode Signal Search Mode = OFF | ON | ABOVE | BELOW SRCHTHLVL level SRCHTHLVL? level Signal Search Threshold Level MKCF Marker to Center Frequency MKRL Marker to Reference Level...
Page 620 Table 3.7-2 lists device messages for setting Adjacent Channel Power measurement function of spectrum trace. Table 3.7-2 Spectrum trace (Adjacent Channel Power measurement function) setting messages Function Command Query Response Remarks MEAS ADJ MEAS? Measure Adjacent Channel Power MEAS OFF MEAS? mode : Measurement method MADJMOD mode...
Page 621 Table 3.7-2 Spectrum trace (Adjacent Channel Power measurement function) setting messages (Cont’d) Function Command Query Response Remarks ADJROF ratio ADJROF? ratio,ratio ratio : Filter rolloff ratio target: Target filter ACP Roll-off Factor ratio ADJROF ratio,target ADJROF? target = INBAND | OFFSET standard SELECTSTD standard SELECTSTD?
Page 622 Table 3.7-2 Spectrum trace (Adjacent Channel Power measurement function) setting messages (Cont’d) Function Command Query Response Remarks lc: Reference power absolute value by ACP Reference lr1: Measurement frequency 1 (Bottom side) power relative value la1: Measurement frequency 1 (Bottom side) power absolute value ur1: Measurement frequency 1 (Top side) RES? power relative value...
Page 623 Table 3.7-2 Spectrum trace (Adjacent Channel Power measurement function) setting messages (Cont’d) Function Command Query Response Remarks ls: Measurement span frequency power absolute value lca: Measurement carrier total power absolute value lc1: Measurement carrier-1 power absolute value lc2: Measurement carrier-2 power absolute value lc3: Measurement carrier-3 power absolute value...
Page 624 Table 3.7-3 lists device messages for setting Channel Power measurement function of spectrum trace. Table 3.7-3 Spectrum trace (Channel Power measurement function) setting messages Function Command Query Response Remarks MEAS CHPWR MEAS? CHPWR Measure Channel Power MEAS OFF MEAS? Channel Power Channel Center CHPWRCENTER freq CHPWRCENTER? freq...
Page 625 Table 3.7-4 lists device messages for setting occupied bandwidth measurement function of spectrum trace. Table 3.7-4 Spectrum trace (occupied bandwidth measurement function) setting messages Function Command Query Response Remarks MEAS OBW MEAS? Measure Occupied Bandwidth MEAS OFF MEAS? method : Measurement method MOBW method MOBW? method...
Page 626: Power Vs Time Trace Settings
3.8 Power vs Time Trace Settings Table 3.8-1 lists device messages for setting Power vs Time trace. Table 3.8-1 Power vs Time trace setting messages Function Command Query Response Remarks mode : Detection mode DET mode DET? mode Detection = NRM | POS | NEG | AVG SMOOTH on_off SMOOTH? on_off...
Page 627 Table 3.8-1 Power vs Time trace setting messages (Cont’d) Function Command Query Response Remarks scale: dB/div LOGSCALEDIV scale LOGSCALEDIV? scale Log Scale Range = 0.1 | 0.2 | 0.5 | 1 | 2 | 5 | 10 | 20 scale: %/div LINSCALEDIV scale LINSCALEDIV? scale...
Page 628 Table 3.8-1 Power vs Time trace setting messages (Cont’d) Function Command Query Response Remarks PEAKTOPEAK on_off PEAKTOPEAK? on_off Display Peak to Peak Value On/Off ZOOM Zoom ZOOMOUT Zoom Out TDPNT? point Time Trace Point Query SWEEPCOUNT? count Measurement Count Query MKL? : Amplitude value of Marker 1 MKL? 1...
Page 629 Table 3.8-2 lists device messages for setting Burst Average Power measurement function of Power vs Time trace. Table 3.8-2 Power vs Time trace (Burst Average Power measurement function) setting messages Function Command Query Response Remarks MEAS BRSTAVGPWR MEAS? BRSTAVGPWR Measure Burst Average Power MEAS OFF MEAS? LOADSTD...
Page 630 Table 3.8-3 lists device messages for setting the AM Depth measurement function of Power vs Time trace. Table 3.8-3 Power vs Time trace (AM Depth Measurement Function) setting messages Function Command Query Response Remarks MEAS AM MEAS? Measure AM Depth MEAS OFF MEAS? switch_com :...
Page 631: Frequency Vs Time Trace Settings
3.9 Frequency vs Time Trace Settings Table 3.9-1 lists device messages for setting Frequency vs Time trace. Table 3.9-1 Frequency vs Time trace setting messages Function Command Query Response Remarks mode : Detection mode DET mode DET? mode Detection = NRM | POS | NEG | AVG SMOOTH on_off SMOOTH? on_off...
Page 632 Table 3.9-1 Frequency vs Time trace setting messages (Cont’d) Function Command Query Response Remarks det : Detection mode DETMODE det,marker DETMODE? Marker = POS | NEG Marker Value in Pos&Neg detection marker : Marker name DETMODE det DETMODE? = MKR1 | MKR2 | BOTH MKPK HI Peak Search MKPK...
Page 633 Table 3.9-1 Frequency vs Time trace setting messages (Cont’d) Function Command Query Response Remarks ANLYFREQRANGE? freq Maximum Frequency Range Query SWEEPCOUNT? count Measurement Count Query MKL? : Frequency value of Marker 1 MKL? 1 : Frequency value of Marker 2 Marker Frequency Query MKL? 2 MKL? 3...
Page 634 Table 3.9-2 lists device messages for setting FM deviation Frequency vs Time trace. measurement functions of Table 3.9-2 Frequency vs Time trace (FM deviation Measurement Function) setting messages Function Command Query Response Remarks MEAS FM MEAS? Measure FM deviation MEAS OFF MEAS? switch_com : FM switch_com...
Page 635: Ccdf Trace Settings
3.10 CCDF Trace Settings Table 3.10-1 lists device messages for setting CCDF trace. Table 3.10-1 CCDF trace setting messages Function Command Query Response Remarks method : Measurement mode MMETHOD method MMETHOD? method Measure Method = CCDF | APD CALC:CCDF:THR:STAT switch_com : CALC:CCDF:THR:STAT? switch_res CCDF Threshold On/Off...
Page 636 Table 3.10-1 CCDF trace setting messages (Cont’d) Function Command Query Response Remarks CALC:ATIM:GMOD:RANG: CALC:ATIM:GMOD:RANG: Time_1,time_2,time_3 STOP Range Stop Time time_n : Range_n stop time STOP? time_1,time_2,time_3 Mode: specified method for CALC:CCDF:MODE mode CALC:CCDF:MODE? Mode measurement target CCDF Measure Mode = TIME|COUN filter : Filter type FLTRTYP filter FLTRTYP?
Page 637 Table 3.10-1 CCDF trace setting messages (Cont’d) Function Command Query Response Remarks data : Measured waveform's MKL? Data power deviation or Marker Result probability SMMLYPWR? Average,max,crest SMMLYPWR? AVG average average : Average power Power Result Query max : Maximum power SMMLYPWR? MAX crest : Crest factor SMMLYPWR?
Page 638 Table 3.10-1 CCDF trace setting messages (Cont’d) Function Command Query Response Remarks switch : display/no display CCDF:GAUS switch CCDF:GAUS? switch Gaussian Trace = ON|OFF|1|0 dist CALC:MARK:X:D marker name dist_result_gauss Marker Query marker : ELT? marker dist_result_ref When Result Mode is A. mean_power,peak_power_dbm,cre st (n=1 or when omitted.) rel_ampl_1,rel_ampl_2,rel_am...
Page 639 Table 3.10-1 CCDF trace setting messages (Cont’d) Function Command Query Response Remarks <count>(n=7) <mean_power_range_1>,<peak_po wer_dbm_range_1>,<crest_range _1>(n=8) <rel_ampl_ range_1_1>,<rel_ampl_ range_1_2>,<rel_ampl_ range_1_3>, <rel_ampl_ range_1_4>,<rel_ampl_ range_1_5>,<rel_ampl_ range_1_6>(n=9) <percent_range_1_1>,<percent_ range_1_2>,<percent_range_1_3 CCDF Fetch >, FETC:CCDF? (Cont’d) <percent_ range_1_4>,<percent_ range_1_5>(n=10) When Measure Method is CCDF: <meas_per_ range_1_1>,<meas_per_ range_1_2>,...<...
Page 640 Table 3.10-1 CCDF trace setting messages (Cont’d) Function Command Query Response Remarks When Measure Method is CCDF: <ref_per_range_1_1>,<ref_per _range_1_2>,...<ref_per_rang e_1_5001> When Measure Method is APD: <ref_per_range_1_1>,<ref_per _range_1_2>,…<ref_per_range_ 1_10001>(n=13) <count_range_1> (n=14) <mean_power_range_2>,<peak_p ower_dbm_range_2>,<crest_ran CCDF Fetch FETC:CCDF? ge_2> (n=15) (Cont’d) <rel_ampl_range_2_1>,<rel_am pl_range_2_2>,<rel_ampl_rang e_2_3>,<rel_ampl_range_2_4>, <rel_ampl_range_2_5>,<rel_am pl_range_2_6>...
Page 641 Table 3.10-1 CCDF trace setting messages (Cont’d) Function Command Query Response Remarks When Measure Method is CCDF: <meas_per_range_2_1>,<meas_per _range_2_2>,...<meas_per_range _2_5001> When Measure Method is APD: <meas_per_range_2_1>,<meas_per _range_2_2>,...<meas_per_range _2_10001>(n=18) When Measure Method is CCDF: <ref_per_range_2_1>,<ref_per_r ange_2_2>,...<ref_per_range_2_ 5001> When Measure Method is APD: <ref_per_range_2_1>,<ref_per_r ange_2_2>,...<ref_per_range_2_ CCDF Fetch...
Page 642 Table 3.10-1 CCDF trace setting messages (Cont’d) Function Command Query Response Remarks When Measure Method is CCDF: <meas_per_range_3_1>,<meas_per _range_3_2>,...< meas_per_range_3_5001> When Measure Method is APD: <meas_per_range_3_1>,<meas_per _range_3_2>,...< meas_per_range_3_10001>(n=25) When Measure Method is CCDF: CCDF Fetch FETC:CCDF? <ref_per_range_3_1>,<ref_per_r (Cont’d) ange_3_2>,...<ref_per_range_3_ 5001> When Measure Method is APD: <ref_per_range_3_1>,<ref_per_r ange_3_2>,...<ref_per_range_3_...
Page 643 Table 3.10-1 CCDF trace setting messages (Cont’d) Function Command Query Response Remarks When Result Mode is B : mean_power,mean_power_prob,r el_ampl_1, rel_ampl_2,rel_ampl_3,rel_am pl_4,rel_ampl_5,rel_ampl_6,c rest,count (n=1 when omitted.) [CCDF] meas_per_1,meas_per_2,... CCDF Fetch meas_per_5001 FETC:CCDF? (Cont’d) [APD] meas_per_1,meas_per_2,... meas_per_10001 (n=2) gauss_per_1,gauss_per_2,...g uass_per_5001 (n=3) [CCDF] ref_per_1,ref_per_2,...ref_p er_5001...
Page 644: Spectrogram Trace Settings
3.11 Spectrogram Trace Settings Table 3.11-1 lists device messages for setting Spectrogram trace. Table 3.11-1 Spectrogram trace setting messages Function Command Query Response Remarks DISP:WIND:TRAC:Y:PDI DISP:WIND:TRAC:Y:PDI rel_ampl Level Full Scale V:RANG rel_ampl V:RANG? RB bandwidth bandwidth Resolution Bandwidth RB AUTO mode : Detection mode DET mode DET?
Page 645 Table 3.11-1 Spectrogram trace setting messages (Cont’d) Function Command Query Response Remarks type_com : Marker result MKLTYPE type_com MKLTYPE? type_res Marker Result = INT |TOTAL|DENS|AVG| PEAK|PACC MKCF Marker to Center Freq MKRL Marker to Reference Level MKL? 1 Marker Query MKL? 2 CALC:ANAL:SPEC Analyze with Spectrum Trace...
Page 646: Digrf 3G Measurement Settings
3.12 DigRF 3G Measurement Settings Table 3.12-1 lists device messages for the DigRF 3G measurement settings. Note: The DigRF 3G is not available only when the MS269x Series Option 040/140 Baseband Interface Unit is not installed or the software package is Ver.6.00.00 or later; it is not supported by MS2830A and MS2840A. Table 3.12-1 DigRF 3G measurement settings Function Command...
Page 647 Table 3.12-1 DigRF3G measurement settings (Cont’d) Function Command Query Response Remarks source : Input Source CALC:IQD source CALC:IQD? source Input Source = COMP | I | Q CALC:TRIG:DIGR:DEL? sample Result Delay Query DISP:WIND:TRAC:Y:CVO DISP:WIND:TRAC:Y:CVO voltage Vertical Scale Center voltage : Scale setting value L voltage CALC:SMO:LENG:SAMP CALC:SMO:LENG:SAMP?
Page 648: Waveform Data Saving Function Settings
3.13 Waveform Data Saving Function Settings Table 3.13-1 lists device messages for setting the waveform data saving function. Table 3.13-1 Waveform data saving function setting messages Function Command Query Response Remarks File : File name DGTZ file,device Device : Drive name Save Captured Data = A | B | D | E | ...
Page 649: Replay Function Settings
3.14 Replay Function Settings Table 3.14-1 lists device messages for setting the Replay function. Table 3.14-1 Replay function settings Function Command Query Response Remarks MMEM:LOAD:IQD:STOP Stop Replay MMEM:LOAD:IQD filename : File name filename,device,appl Execute Replay device : Drive name ication application : Application name filename : File name filename,start_time,...
Page 650 Table 3.14-1 Replay function settings (Cont’d) Function Command Query Response Remarks MMEM:LOAD:IQD:INF:ER switch : Error icon On/Off state switch Replay Error Query = 1|0 MMEM:LOAD:IQD:INF:CO real real : Correction value Replay Correction Query source : Frequency reference MMEM:LOAD:IQD:INF:RO Replay External Reference source signal source Query...
Page 651: Sub Trace Settings
3.15 Sub Trace Settings Table 3.15-1 lists device messages for setting a sub-trace. Table 3.15-1 Sub trace settings Function Command Query Response Remarks trace : Trace type CALC:STR:MODE trace CALC:STR:MODE? trace Change Sub Trace = OFF|PVT|SPGR mode : Detection mode CALC:STR:DET mode CALC:STR:DET? mode...
Page 652 Table 3.15-1 Sub trace settings (Cont’d) Function Command Query Response Remarks CALC:STR:BAND:AUTO Sub Trace Resolution Bandwidth switch_com : CALC:STR:BAND:AUTO? switch_res switch_com Auto/Manual = ON|OFF|1|0 CALC:STR:TRIG:DIGR:D sample Sub Trace Result Delay Query...
Page 653: Reference Signal Settings
3.16 Reference Signal Settings Device messages for setting reference signal are shown in Table 3.16-1. Table 3.16-1 Reference signal settings Function Command Query Response Remarks REFCLOCK_ADJUST value REFCLOCK_ADJUST? value value : Adjustment value Adjust Reference Clock REFCLOCK_ADJUST PRESET...
Page 654: Power Adjustment
3.17 Power Adjustment The device message for setting power adjustment are shown in Table 3.17-1. Table 3.17-1 Power adjustment settings Function Command Query Response Remarks MEA:POW? judge,sa_input,sg_ou span,length,sg_start tput,count_res,time, _level,sg_max_level, sa_input_log_n, target,range[,freque Measure Power Adjust sg_output_log_n,coun ncy [,count t_log_n [,adjust_log] [,sg_offset_switch]]...
Page 655: Other Settings
3.18 Other Settings Table 3.18-1 lists device messages for other settings. Table 3.18-1 Other setting messages Function Command Query Response Remarks ERASEWUP Erase Warm Up Message TTL on_off TTL? on_off Display Title string: Character string to be TITLE string TITLE? string Entry Title Character displayed...
Page 656: Setting External Mixer
3.19 Setting External Mixer Table 3.19-1 lists the device messages related to External Mixer settings. Table 3.19-1 External Mixer Settings Function Command Query Response Remarks mode : Mixer mode MXRMODE mode MXRMODE? mode Mixer Mode =EXT | INT FULBAND band FULBAND? band band : External mixer band...
Page 657: Chapter 4 Native Device Message Details
Chapter 4 Native Device Message Details This chapter describes detailed specifications on Native remote control commands for executing functions of this application in alphabetical MS2690A/MS2691A/MS2692A and order. Refer to the MS2830A/MS2840A Signal Analyzer Operation Manual (Mainframe Remote Control) for detailed specifications on IEEE488.2 common device messages and application common device messages.
Page 658 Chapter 4 Native Device Message Details CALC:CCDF:COUN/CCDF:COUN? ........4-38 CALC:CCDF:STOR:REF ............4-39 CALC:CCDF:THR:STAT/CALC:CCDF:THR:STAT? .... 4-39 CALC:IQD/CALC:IQD? ............4-40 CALC:MARK:AOFF ............... 4-41 CALC:MARK:COUP:ZONE/CALC:MARK:COUP:ZONE? ..4-41 CALC:MARK:PEAK:SORT:COUN/CALC:MARK:PEAK: SORT:COUN? ............4-42 CALC:MARK:PEAK:SORT:X ..........4-43 CALC:MARK:PEAK:SORT:Y ..........4-44 CALC:MARK:READ? ............4-45 CALC:MARK:REF/CALC:MARK:REF? ......... 4-47 CALC:MARK:SLIN/CALC:MARK:SLIN? .......
Page 659 Chapter 4 Native Device Message Details CHPWRROF/CHPWRROF? ..........4-87 CHPWRWIDTH/CHPWRWIDTH? ........4-88 CNF/CNF? ................4-89 CNVLOSS/CNVLOSS? ............4-91 CONF:AM ................4-92 CONF:FM ................4-92 CONF:FMCW ................ 4-93 CONF:SAN ................4-93 CONTS .................. 4-94 DATA? ................... 4-95 DET/DET? ................4-99 DETMODE/DETMODE? ............. 4-100 DGTZ ..................
Page 660 Chapter 4 Native Device Message Details FORM/FORM? ..............4-133 FORM:BORD/FORM:BORD? ..........4-135 FREQ:CENT:STEP/FREQ:CENT:STEP?......4-136 FREQ:SYNT/FREQ:SYNT? ..........4-138 FREQ:SYNT:LPH:STAT? ........... 4-139 FULBAND/FULBAND? ............4-140 FUNITS/FUNITS? ............... 4-141 .................. 4-141 INIT:AM ................4-142 INIT:FM ................4-142 INIT:FMCW ................. 4-143 LINSCALEDIV/LINSCALEDIV? .......... 4-143 LOADSTD/LOADSTD? ............
Page 661 Chapter 4 Native Device Message Details MMEM:LOAD:IQD:INF:STAR? ........... 4-184 MMEM:LOAD:IQD:INF:STAT? ........... 4-184 MMEM:LOAD:IQD:STOP ............ 4-185 MMEM:STOR:IQD:LENG/MMEM:STOR:IQD:LENG? ..4-185 MMEM:STOR:IQD:LENG:SAMP/MMEM:STOR:IQD: LENG:SAMP? ............4-186 MMEM:STOR:IQD:MODE/MMEM:STOR:IQD:MODE? ..4-187 MMEM:STOR:IQD:STAR/MMEM:STOR:IQD:STAR? ..4-188 MMEM:STOR:IQD:STAR:SAMP/MMEM:STOR:IQD: STAR:SAMP? ............4-189 MMEM:STOR:TRAC ............4-190 MMETHOD/MMETHOD? ............ 4-191 MOBW/MOBW? ..............4-192 MSTAT? ................
Page 662 Chapter 4 Native Device Message Details SNGLS ................4-224 SOF/SOF? ................4-225 SPF/SPF? ................4-227 SRCHTH/SRCHTH? ............4-230 SRCHTHLVL/SRCHTHLVL? ..........4-231 STF/STF? ................4-233 STOP .................. 4-235 STORAGECOUNT/STORAGECOUNT? ......4-236 STORAGEMODE/STORAGEMODE? ........ 4-237 SWE:SAMP/SWE:SAMP? ..........4-238 SWEEPCOUNT? ..............4-239 TDLY/TDLY? ............... 4-240 TDPNT? ................
Page 663: Aanly/Aanly
Chapter 4 Native Device Message Details AANLY/AANLY? Analysis Time Auto/Manual Function This command selects Auto/Manual mode for the Analysis Time of the main trace. Command AANLY auto_manual Query AANLY? Response auto_manual Parameter Auto/Manual mode of Analysis Time auto_manual Auto AUTO MANUAL Manual Details...
Page 664: Acap/Acap
Chapter 4 Native Device Message Details ACAP/ACAP? Capture Time Auto/Manual Function This command selects Auto/Manual mode for the waveform capture time of the active trace. Command ACAP auto_manual Query ACAP? Response auto_manual Parameter Auto/manual mode of capture time auto_manual Auto AUTO Manual MANUAL...
Page 665: Adjcarriercnt/Adjcarriercnt
Chapter 4 Native Device Message Details ADJCARRIERCNT/ADJCARRIERCNT? ACP In Band Center Function This command sets the In Band center frequency for Adjacent Channel Power measurement. Command ADJCARRIERCNT freq Query ADJCARRIERCNT? Response freq Returns a value in Hz units without a suffix code. Parameter In Band center frequency freq...
Page 666: Adjcarriernum/Adjcarriernum
Chapter 4 Native Device Message Details ADJCARRIERNUM/ADJCARRIERNUM? ACP Carrier Number Function This command sets the carrier number for Adjacent Channel Power measurement. Command ADJCARRIERNUM n Query ADJCARRIERNUM? Response Returns a value without a suffix code. Parameter Carrier Number Range 1 to 12 Resolution Suffix code None...
Page 667: Adjcarrierspac/Adjcarrierspac
Chapter 4 Native Device Message Details ADJCARRIERSPAC/ADJCARRIERSPAC? ACP Carrier Spacing Function This command sets the frequency interval among carriers for Adjacent Channel Power measurement. Command ADJCARRIERSPAC freq Query ADJCARRIERSPAC? Response freq Returns a value in Hz units without a suffix code. Parameter Frequency interval among carriers freq...
Page 668: Adjchbw/Adjchbw
Chapter 4 Native Device Message Details ADJCHBW/ADJCHBW? ACP Offset Channel BW Function This command sets the bandwidth of the Offset Channel for Adjacent Channel Power measurement. Command ADJCHBW freq Query ADJCHBW? Response freq Returns a value in Hz units without a suffix code. Parameter Offset Channel bandwidth for Adjacent Channel freq...
Page 669: Adjchslct/Adjchslct
Chapter 4 Native Device Message Details ADJCHSLCT/ADJCHSLCT? ACP Channel Select Function This command selects the target Offset Channel for Adjacent Channel Power measurement. Command ADJCHSLCT ch,on_off Query ADJCHSLCT? ch Response on_off Parameter Target Offset Channel for measurement Offset Channel 1 Offset Channel 2 Offset Channel 3 Measurement ON/OFF...
Page 670: Adjchsp/Adjchsp
Chapter 4 Native Device Message Details ADJCHSP/ADJCHSP? ACP Offset Frequency Function This command sets the Offset Frequency of the Offset Channel for Adjacent Channel Power measurement. Command ADJCHSP ch,freq Query ADJCHSP? ch Response freq Returns a value in Hz units without a suffix code. Parameter Target offset channel for measurement Offset Channel 1...
Page 671: Adjfiltertype/Adjfiltertype
Chapter 4 Native Device Message Details ADJFILTERTYPE/ADJFILTERTYPE? ACP Filter Type Function This command sets the In Band filter or filter type of the Offset Channel for Adjacent Channel Power measurement. Command ADJFILTERTYPE filter,target Query ADJFILTERTYPE? target Response filter filter,filter (When the target is omitted: The former indicates the offset channel filter and the latter the In Band filter.) Parameter Filter type...
Page 672: Adjinbw/Adjinbw
Chapter 4 Native Device Message Details ADJINBW/ADJINBW? ACP Carrier BW Function This command sets the carrier measurement bandwidth for Adjacent Channel Power measurement. Command ADJINBW freq Query ADJINBW? Response freq Returns a value in Hz units without a suffix code. Parameter Carrier measurement bandwidth freq...
Page 673: Adjpwrtype/Adjpwrtype
Chapter 4 Native Device Message Details ADJPWRTYPE/ADJPWRTYPE? ACP Power Result Type Function This command switches the result display type for Adjacent Channel Power measurement. Command ADJPWRTYPE mode Query ADJPWRTYPE? Response mode Parameter Result display type mode Sets the result display for Adjacent Channel CARRIER Power measurement to Carrier Power.
Page 674: Adjrof/Adjrof
Chapter 4 Native Device Message Details ADJROF/ADJROF? ACP Rolloff Factor Function This command sets the rolloff ratio of the In Band filter and/or Offset Channel filter for Adjacent Channel Power measurement. Command ADJROF ratio,target Query ADJROF? target Response ratio ratio,ratio (When the target is omitted: The former indicates the offset channel filter rolloff ratio, and the latter the In Band filter rolloff ratio.) Parameter...
Page 675: Afltr/Afltr
Chapter 4 Native Device Message Details AFLTR/AFLTR? Filter Auto/Manual Function This command switches between auto and manual for filter bandwidth. Command AFLTR auto_manual Query AFLTR? Response auto_manual Parameter Auto/manual filter bandwidth setting auto_manual Sets filter bandwidth automatically AUTO Sets filter bandwidth manually MANUAL Details This command is available when the following trace is active:...
Page 676: Am/Am
Chapter 4 Native Device Message Details AM/AM? Measure AM Depth Function This command performs the AM Depth measurement. Command AM switch_com Query Response switch_res Parameter AM Depth measurement On/Off switch_com Sets AM Depth measurement to On. Same as above Sets AM Depth measurement to Off. Same as above AM Depth measurement On/Off switch_res...
Page 677: Anlyfreqrange
Chapter 4 Native Device Message Details ANLYFREQRANGE? Maximum Frequency Range Query Function This command queries the maximum value of the frequency display range. Query ANLYFREQRANGE? Response freq No suffix code. Value is returned in Hz units. Details This command is available when the following trace is active: •...
Page 678: Anlylen/Anlylen
Chapter 4 Native Device Message Details ANLYLEN/ANLYLEN? Analysis Time Length Function This command sets the analysis time length for the main trace. Command ANLYLEN time Query ANLYLEN? Response time No suffix code. Value is returned in ms units. Parameter Analysis time length time Range and resolution MS2690A/MS2691A/MS2692A Signal Analyzer...
Page 679: Anlyst/Anlyst
Chapter 4 Native Device Message Details ANLYST/ANLYST? Analysis Start Time Function This command sets the Analysis Start Time for the main trace. Command ANLYST time Query ANLYST? Response time Returns a value in ms units without a suffix code. Parameter Start time time Range and resolution...
Page 680: At/At
Chapter 4 Native Device Message Details AT/AT? Attenuator Function This command sets the RF attenuator. Command AT att AT action Query Response Returns a value in dB units without a suffix code. Parameter Attenuator value Range 0 to 60 dB Resolution 2 dB [MS269xA]...
Page 681: Aunits/Aunits
Chapter 4 Native Device Message Details AUNITS/AUNITS? Log Scale Unit Function This command sets the level display unit system at log scale. Command AUNITS unit Query AUNITS? Response unit Parameter Level display unit system at log scale unit dBµV DBUV dBmV DBMV dBµV (emf)
Page 682: Bndsp/Bndsp
Chapter 4 Native Device Message Details BNDSP/BNDSP? Frequency Band Mode Function This command sets the frequency band path. The frequency at which the path is switched to the preselector band or a path that does not pass through the preselector can be set with this function. Command BNDSP mode Query...
Page 683: Cal
Chapter 4 Native Device Message Details Calibration Function This command executes calibration. Command CAL mode Parameter Calibration mode mode Executes all calibrations Executes Level CAL LEVEL LOLEAK_SUPPRESS Executes local leak suppression Executes inband calibration BAND Executes analysis bandwidth calibration within EXTRABAND the current frequency.
Page 684: Calc
Chapter 4 Native Device Message Details CALC Calculate Function This command executes waveform analysis without capturing. Used to re-analyze the same captured waveform with different parameters. Command CALC Details This command can be executed only when the waveform Capture Time (ACAP command) is set to MANUAL.
Page 685 Chapter 4 Native Device Message Details CALC:ANAL:SPEC Analyze with Spectrum Trace Function This command analyzes the range selected in Time 1 and Time 2 by using Spectrum trace. Command CALC:ANAL:SPEC Details This command is available when the following trace is active: •...
Page 686 Chapter 4 Native Device Message Details CALC:ATIM:GMOD/CALC:ATIM:GMOD? Gate Mode On/Off Function When the main trace is CCDF, this command selects whether or not to use the GateMode for analysis of only the specified section in the Analysis Time, as well as to read-out. Command CALC:ATIM:GMOD switch_com Query...
Page 687 Chapter 4 Native Device Message Details CALC:ATIM:GMOD:PER/CALC:ATIM:GMOD:PER? Period Function When GateMode is On, this command sets or queries the Period setting for each range. Command CALC:ATIM:GMOD:PER time Query CALC:ATIM:GMOD:PER? Response Time No suffix code Returns the values in s unit Parameter <time>...
Page 688 Chapter 4 Native Device Message Details CALC:ATIM:GMOD:RANG:STAT/CALC:ATIM:GMOD:RANG:STAT? Range State Function This command sets and queries each range On/Off. Command CALC:ATIM:GMOD:RANG:STAT switch_com_1, switch_com_2, switch_com_3 Query CALC:ATIM:GMOD:RANG:STAT? Response switch_res_1, switch_res_2, switch_res_3 Parameter Range n On/Off switch_com_n Sets Range_n to On ON|1 Sets Rnage_n to Off OFF|0 Default Range1...
Page 689 Chapter 4 Native Device Message Details CALC:ATIM:GMOD:RANG:STAR/CALC:ATIM:GMOD:RANG:STAR? Range Start Time Function This command sets and queries the start time of each range. Command CALC:ATIM:GMOD:RANG:STAR <time_n> Query CALC:ATIM:GMOD:RANG:STAR? Response time_1,time_2,time_3 Suffix code none, returns values in S unit Parameter Start time for each Range time_n Range 0~(Range setting period (Period)—Resolution)
Page 690 Chapter 4 Native Device Message Details CALC:ATIM:GMOD:RANG:STOP/CALC:ATIM:GMOD:RANG:STOP? Range Stop Time Function This command sets and queries the stop time for each range. Command CALC:ATIM:GMOD:RANG:STOP time_1,time_2,time_3 Query CALC:ATIM:GMOD:RANG:STOP? Response time_1,time_2,time_3 Suffix code none, returns values in S unit Parameter Stop time for each Range time_n Range Resolution to Range setting period (Period)
Page 691 Chapter 4 Native Device Message Details CALC:ATIM:LENG:SAMP/CALC:ATIM:LENG:SAMP? Analysis Sample Length Function This command sets the Analysis Sample Length for main trace when Terminal is DigRF 3G (only for MS269x Series). Command CALC:ATIM:LENG:SAMP point Query CALC:ATIM:LENG:SAMP? Response point Parameter Analysis sample length point Range 0 to Capture Time Length −...
Page 692 Chapter 4 Native Device Message Details CALC:ATIM:STAR:SAMP/CALC:ATIM:STAR:SAMP? Analysis Start Sample Function This command sets the number of sample to Analysis Start Sample of the main trace when Terminal is DigRF 3G (only for MS269x Series). Command CALC:ATIM:STAR:SAMP point Query CALC:ATIM:STAR:SAMP? Response point Parameter...
Page 693 Chapter 4 Native Device Message Details CALC:CCDF:MODE/CALC:CCDF:MODE? CCDF Meas Mode Function This command sets or reads the specified measurement method for the CCDF trace to be measured. Command CALC:CCDF:MODE <mode> Query CALC:CCDF:MODE? Response mode Parameter Specified method for CCDF trace to be measured mode Analyses Range data specified at Time Length TIME...
Page 694: Calc:ccdf:coun/Ccdf:coun
Chapter 4 Native Device Message Details CALC:CCDF:COUN/CCDF:COUN? Data Count Function This command specifies and queries the measurement target data count of the CCDF trace. Command CALC:CCDF:COUN sample Query CALC:CCDF:COUN? Response sample Parameter Measurement target data count sample Range 100 to 2000000000 Resolution 1 sample Default...
Page 695 Chapter 4 Native Device Message Details CALC:CCDF:STOR:REF Store Reference Trace Function This command records the current CCDF/APD waveform data in the internal memory as user-defined reference trace data. Command CALC:CCDF:STOR:REF Details This function can be set when the CCDF trace is active. Example of Use To record the current measurement result in the reference data.
Page 696: Calc:ccdf:thr:stat/Calc:ccdf:thr:stat
Chapter 4 Native Device Message Details Example of Use To set Threshold to On. CALC:CCDF:THR:STAT ON CALC:CCDF:THR:STAT? > 1 CALC:IQD/CALC:IQD? Input Source Function This command selects the Input Source for data analysis. Command CALC:IQD source Query CALC:IQD? Response source Parameter Input Source source Selects complex data of I and Q phases.
Page 697: Calc:mark:aoff
Chapter 4 Native Device Message Details CALC:MARK:AOFF All Marker Off Function This command sets all markers to Off. Command CALC:MARK:AOFF Example of Use To set all markers to Off. CALC:MARK:AOFF CALC:MARK:COUP:ZONE/CALC:MARK:COUP:ZONE? Couple Zone Function This command enables/disables sharing of the Zone Width setting. Command CALC:MARK:COUP:ZONE switch_com Query...
Page 698: Calc:mark:peak:sort:coun/Calc:mark:peak:sort:coun
Chapter 4 Native Device Message Details CALC:MARK:PEAK:SORT:COUN/CALC:MARK:PEAK:SORT:COUN? Search Peaks Number Function This command sets the number of searches when Search Peaks Sort Y/X is executed. Command CALC:MARK:PEAK:SORT:COUN integer Query CALC:MARK:PEAK:SORT:COUN? Response integer Parameter Number of searches integer Range 1 to 10 Resolution Default value Details...
Page 699: Calc:mark:peak:sort:x
Chapter 4 Native Device Message Details CALC:MARK:PEAK:SORT:X Search Peaks Sort X Function This command sorts as many markers as the number set in Search Peaks Number by frequency (time) on the trace. Command CALC:MARK:PEAK:SORT:X Details This command is available when the following trace is active: •...
Page 700: Calc:mark:peak:sort:y
Chapter 4 Native Device Message Details CALC:MARK:PEAK:SORT:Y Search Peaks Sort Y Function This command sorts as many markers as the number set in Search Peaks Number by level on the trace. Command CALC:MARK:PEAK:SORT:Y Details This command is available when the following trace is active: •...
Page 701: Calc:mark:read
Chapter 4 Native Device Message Details CALC:MARK:READ? Marker Readout Query Function This command queries all the marker values. Query CALC:MARK:READ? Response freqs_1,power_1,freqs_2,power_2,..., freqs_10,power_10 (For Spectrum trace) time_1,power_1,time_2,power_2 (For Power vs Time trace) sample_1,power_1,sample_2,power_2 (When trace is Power vs Time, and Terminal is DigRF 3G)time_1,freqf_1,time_2,freqf_2 (For Frequency vs Time trace) sample_1,freqf_1,sample_2,freqf_2...
Page 702 Chapter 4 Native Device Message Details resolution –999.0 is returned when no measurement is performed, an error has occurred, or marker is set to Off. (When marker level display units are V-system units) No suffix code, V units, 0.01 pV resolution –999.0 is returned when no measurement is performed, an error has occurred, or marker is set to Off.
Page 703: Calc:mark:ref/Calc:mark:ref
Chapter 4 Native Device Message Details Example of Use To query all marker values (Spectrum). CALC:MARK:READ? > 1000000.0,-15.321,1100000.0,-23.000, 1200000.0,-15.321,1300000.0,-12.680, 1400000.0,-5.622,1500000.0,-65.056, 1600000.0,-26.534,1700000.0,-34.264, 1800000.0,-35.644,-999999999999,-999.0 CALC:MARK:REF/CALC:MARK:REF? Relative To Function This command sets the reference marker when Marker Mode is set to Delta. Command CALC:MARK:REF marker,integer Query CALC:MARK:REF? marker...
Page 704 Chapter 4 Native Device Message Details Marker10 When omitted: Active marker Details This command is available when the following trace is active: • Spectrum The setting target marker cannot be set to the reference marker. Example of Use To set the reference marker for Marker 2 to Marker 4. CALC:MARK:REF 2,4 CALC:MARK:REF? 2 >...
Page 705: Calc:mark:tabl/Calc:mark:tabl
Chapter 4 Native Device Message Details CALC:MARK:TABL/CALC:MARK:TABL? Marker List Function This command selects the marker list display On/Off. Command CALC:MARK:TABL switch_com Query CALC:MARK:TABL? Response switch_res Parameter Marker list display On/Off switch_com Sets the marker list display to On. Same as above Sets the marker list display to Off.
Page 706: Calc:mark:widt:type/Calc:mark:widt:type
Chapter 4 Native Device Message Details CALC:MARK:WIDT:TYPE/CALC:MARK:WIDT:TYPE? Zone Width Type Function This command sets the zone type of the marker. Command CALC:MARK:WIDT:TYPE marker,type Query CALC:MARK:WIDT:TYPE? marker Response type Parameter Zone type type Zone marker ZONE Spot marker SPOT Marker type marker Marker1 Marker2...
Page 707: Calc:mark:x/Calc:mark:x
Chapter 4 Native Device Message Details CALC:MARK:X/CALC:MARK:X? Marker Frequency Function This command moves the center of the marker to the specified frequency (time). This command queries the center of the marker. Command CALC:MARK:X marker, freq (At spectrum, spectrogram trace) CALC:MARK:X marker, time (At Power vs Time, Frequency vs Time, Phase vs Time trace) CALC:MARK:X marker, sample (When performing a Power vs Time, Frequency vs Time, or...
Page 708 Chapter 4 Native Device Message Details Parameter (At Spectrum trace) Marker number marker Specifies marker 1 Specifies marker 2 Specifies marker 3 Specifies marker 4 Specifies marker 5 Specifies marker 6 Specifies marker 7 Specifies marker 8 Specifies marker 9 Specifies marker 10 When omitted Specifies marker 1...
Page 709 Chapter 4 Native Device Message Details Range/Resolution Within the sample range of trace display For details, refer to MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) Marker position dist Range/Resolution Within the power deviation range of trace display For details, refer to...
Page 710 Chapter 4 Native Device Message Details Details If the marker position is changed during a Spectrum trace, the target marker becomes the active marker. In addition, if Marker Mode is Fixed or Off, Normal is specified. If the marker position is changed during Power vs Time, Frequency vs Time, Phase vs Time, or Spectrogram, the target marker is set to On and changed to the active marker.
Page 711: Calc:mark:x:delt/Calc:mark:x:delt
Chapter 4 Native Device Message Details CALC:MARK:X:DELT/CALC:MARK:X:DELT? Marker Query Function When in Spectrum trace, this command moves the center of the marker to the frequency specified by relative value. This command queries the center of marker in relative value. When in CCDF trace, this command queries the difference value of a Gaussian trace or reference trace.
Page 712 Chapter 4 Native Device Message Details Marker position freq Range/Resolution Within the frequency range of trace display For details, refer to MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) Suffix code HZ , KHZ , KZ , MHZ , MZ , GHZ , GZ Hz is used when omitted.
Page 713 Chapter 4 Native Device Message Details Difference from the reference trace at the dist_result_ref marker position Range/Resolution Within the power deviation range of trace display For details, refer to MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) Suffix code...
Page 714: Calc:mark:y:delt
Chapter 4 Native Device Message Details CALC:MARK:Y:DELT? Marker Query Function This command queries the delta marker value of main trace. Query CALC:MARK:Y:DELT? marker Response rel_ampl_spe (At Spectrum trace) ratio_spe (For a Spectrum trace when Scale Mode is set to Linear and Marker Result is set to Peak (Fast) or Peak (Accuracy)) rel_ampl_pvt (At Power vs Time trace)
Page 715 Chapter 4 Native Device Message Details (At Power vs Time, Frequency vs Time, Phase vs Time trace) Marker number marker Marker 1 and 2 are targeted. When omitted Marker 1 and 2 are targeted. Comparison of the marker selected by n and the rel_ampl_spe Relative To target marker No suffix code.
Page 716 Chapter 4 Native Device Message Details –999.0 is returned if the Gaussian trace is off, there is no measurement, or there is an error. The difference value of the target marker and prob_result_ref reference trace is returned. A percentage value with no suffix code is returned.
Page 717 Chapter 4 Native Device Message Details CALC:MARK:Y:PHAS? Marker Phase Query Function Returns phase spectrum θ [rad] when marker position Fourier coefficient is π θ π However, − < ≤ Query CALC:MARK:Y:PHAS? marker Response phase Parameter Marker Number marker Specifies Marker 1 Specifies Marker 2 Specifies Marker 3 Specifies Marker 4...
Page 718: Calc:mark:y:phas? 1
Chapter 4 Native Device Message Details When using this function, :CALCulate:PHASe:STATe must be set to (For details, refer to :CALCulate:PHASe:STATe .) Although multiple Fourier transformations are performed when Analysis Time Length is longer than 0 s, the phase spectrum used for the measurement results is the one for the Fourier transform performed last in the analysis time range.
Page 719: Calc:phas:stat/Calc:phas:stat
Chapter 4 Native Device Message Details CALC:PHAS:STAT/CALC:PHAS:STAT? Calculate Phase Spectrum Function This command sets phase spectrum calculation On and Off Command CALC:PHAS:STAT switch_com Query CALC:PHAS:STAT? Response switch_res Parameter switch_com Sets phase spectrum calculation On and Off Does not execute phase spectrum calculation 0|OFF (default setting) Executes phase spectrum calculation...
Page 720 Chapter 4 Native Device Message Details CALC:MARK:Y:PHAS? Marker Phase Query Function Returns phase spectrum [rad] θ when marker position Fourier coefficient is However, π θ π − < ≤ Query CALC:MARK:Y:PHAS? marker Response phase Parameter Marker Number marker Specifies marker 1 Specifies marker 2 Specifies marker 3 Specifies marker 4...
Page 721: Calc:mark:y:phas? 1
Chapter 4 Native Device Message Details Details 999.0 returned when – Returns phase spectrum of Zone Center position when Marker Result setting is Integration or Density Returns phase spectrum for marker positions in zone when Marker Result is Peak (Fast) or Peak (Accuracy) and Zone Type is Zone This function can be used in the following cases: •...
Page 722: Calc:smo:leng:samp/Calc:smo:leng:samp
Chapter 4 Native Device Message Details CALC:SMO:LENG:SAMP/CALC:SMO:LENG:SAMP? Smoothing Sample Length Function This command sets the Smoothing Sample Length of the main trace when Terminal is DigRF 3G (only for MS269x Series). Command CALC:SMO:LENG:SAMP sample Query CALC:SMO:LENG:SAMP? Response sample Parameter Smoothing Sample Length sample Range 1 to 10000...
Page 723: Calc:str:atim:auto/Calc:str:atim:auto
Chapter 4 Native Device Message Details CALC:STR:ATIM:AUTO/CALC:STR:ATIM:AUTO? Sub Trace Analysis Time Auto/Manual Function This command selects whether to set the analysis time for sub traces automatically or manually. Command CALC:STR:ATIM:AUTO switch_com Query CALC:STR:ATIM:AUTO? Response switch_res Parameter Auto/Manual switch_com Auto ON|1 Manual OFF|0 Auto/Manual...
Page 724: Calc:str:atim:leng/Calc:str:atim:leng
Chapter 4 Native Device Message Details CALC:STR:ATIM:LENG/CALC:STR:ATIM:LENG? Sub Trace Analysis Time Length Function This command sets the analysis time length of the sub-trace. Command CALC:STR:ATIM:LENG time Query CALC:STR:ATIM:LENG? Response time No suffix code. Value is returned in S units. Parameter Time analysis length time Range/Resolution...
Page 725: Samp
Chapter 4 Native Device Message Details CALC:STR:ATIM:LENG:SAMP/CALC:STR:ATIM:LENG:SAMP? Sub Trace Analysis Sample Length Function This command sets the sub trace analysis sample length when Terminal is set to DigRF 3G (only for MS269x Series). Command CALC:STR:ATIM:LENG:SAMP integer Query CALC:STR:ATIM:LENG:SAMP? Response integer Parameter Analysis sample length integer...
Page 726: Calc:str:atim:star/Calc:str:atim:star
Chapter 4 Native Device Message Details CALC:STR:ATIM:STAR/CALC:STR:ATIM:STAR? Sub Trace Analysis Start Time Function This command sets the analysis start time of the sub-trace. Command CALC:STR:ATIM:STAR time Query CALC:STR:ATIM:STAR?, Response time No suffix code. Value is returned in S units. Parameter Time analysis length time Range/Resolution...
Page 727: Samp
Chapter 4 Native Device Message Details CALC:STR:ATIM:STAR:SAMP/CALC:STR:ATIM:STAR:SAMP? Sub Trace Analysis Start Sample Function This command uses the number of samples to set the sub trace analysis start position when Terminal is set to DigRF 3G (only for MS269x Series). Command CALC:STR:ATIM:STAR:SAMP integer Query CALC:STR:ATIM:STAR:SAMP?
Page 728: Calc:str:band/Calc:str:band
Chapter 4 Native Device Message Details CALC:STR:BAND/CALC:STR:BAND? Sub Trace Resolution Bandwidth Function This command sets the resolution bandwidth (RBW) of the sub-trace. Command CALC:STR:BAND bandwidth Query CALC:STR:BAND? Response bandwidth Parameter Resolution bandwidth (RBW) bandwidth Range/Resolution 1 Hz to 10 MHz (1-3 sequence) Suffix code HZ , KHZ , KZ , MHZ , MZ , GHZ , GZ Hz is used when omitted.
Page 729: Calc:str:band:auto/Calc:str:band:auto
Chapter 4 Native Device Message Details CALC:STR:BAND:AUTO/CALC:STR:BAND:AUTO? Sub Trace Resolution Bandwidth Auto/Manual Function This command selects whether to set the resolution bandwidth (RBW) for sub traces automatically or manually. Command CALC:STR:BAND:AUTO switch_com Query CALC:STR:BAND:AUTO? Response switch_res Parameter Auto/Manual switch_com Sets the auto mode to On. ON|1 Sets the auto mode to Off.
Page 730: Calc:str:det/Calc:str:det
Chapter 4 Native Device Message Details CALC:STR:DET/CALC:STR:DET? Sub Trace Detection Mode Function This command selects the detection mode for waveform patterns of sub traces. Command CALC:STR:DET mode Query CALC:STR:DET? Response mode Parameter Detection mode mode Simultaneous detection of positive and negative NORM peaks (unavailable for Spectrogram sub trace) Positive peak detection...
Page 731: Calc:str:mode/Calc:str:mode
Chapter 4 Native Device Message Details CALC:STR:MODE/CALC:STR:MODE? Change Sub Trace Function This command sets the sub-trace type. Command CALC:STR:MODE trace Query CALC:STR:MODE? Response trace Parameter Trace type trace None Power vs Time Spectrogram SPGR Details Spectrogram cannot be set when Scale Mode is set to Lin or when Terminal is set to DigRF 3G (only for MS269x Series).
Page 732: Calc:str:trig:digr:del
Chapter 4 Native Device Message Details CALC:STR:TRIG:DIGR:DEL? Sub Trace Result Delay Query Function This command queries the delay time of sub trace results in sample units. Command CALC:STR:TRIG:DIGR:DEL? Response sample Details When a trigger is used for DigRF 3G (only for MS269x Series), a delay may occur in the results because there is no pre-trigger.
Page 733: Calc:tmar:coup:zone/Calc:tmar:coup:zone
Chapter 4 Native Device Message Details CALC:TMAR:COUP:ZONE/CALC:TMAR:COUP:ZONE? Couple Time Marker 1 and 2 Function This command enables/disables sharing of the Time Marker setting. Command CALC:TMAR:COUP:ZONE switch_com Query CALC:TMAR:COUP:ZONE? Response switch_res Parameter Time Marker setting sharing On/Off switch_com Enables setting sharing (On). Same as above Disables setting sharing (Off).
Page 734: Calc:tmar:peak:x
Chapter 4 Native Device Message Details CALC:TMAR:PEAK:X? Time Marker Peak Query Function This command queries the time at the peak of Time Marker. Query :CALC:TMAR:PEAK:X? Response time Parameter Marker number Marker 1 Marker 2 (When Marker Type is Spot, or when Marker Type is Zone and when Couple Time 1 and 2 are Off) Range Analysis Start Time to Analysis Start Time +...
Page 735: Calc:tmar:x/Calc:tmar:x
Chapter 4 Native Device Message Details CALC:TMAR:X/CALC:TMAR:X? Time Marker Position Function This command moves Time Marker to the specified time. Command CALC:TMAR:X n,time Query CALC:TMAR:X? n Response time Parameter Marker number Time Marker 1 Time Marker 2 When omitted: Time Marker 1 Marker position time (When Marker Type is Spot, or when Marker Type is Zone and when...
Page 736: Calc:trig:digr:del
Chapter 4 Native Device Message Details CALC:TRIG:DIGR:DEL? Result Delay Query Function This command queries the delay time of the result by sample unit. Query CALC:TRIG:DIGR:DEL? Response sample Details Since there is no pre-trigger when the trigger is used with DigRF 3G (only for MS269x Series), there is a chance of delay in the results.
Page 737: Capln/Capln
Chapter 4 Native Device Message Details CAPLN/CAPLN? Capture Time Length Function This command sets waveform capture time. Command CAPLN time Query CAPLN? Response time Returns a value in ms units without a suffix code. Parameter Capture time time Range and resolution MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal...
Page 738: Ccdf:coun/Ccdf:coun
Chapter 4 Native Device Message Details CCDF:COUN/CCDF:COUN? Data Count Function This command specifies and queries the measurement target data count of the CCDF trace. Command CCDF:COUN <sample> Query CCDF:COUN? Response Measurement target data count sample Parameter Measurement target data count sample Range 100 to 2000000000...
Page 739: Ccdf:gaus/Ccdf:gaus
Chapter 4 Native Device Message Details CCDF:GAUS/CCDF:GAUS? Gaussian Trace Function This command sets whether to show or hide the Gaussian trace data during CCDF measurement. Command CCDF:GAUS switch Query CCDF:GAUS? Parameter switch To display Gaussian trace data. ON|1 Does not display Gaussian trace data. OFF|0 Details This function can be set when the CCDF trace is active.
Page 740: Ccdf:rtr/Ccdf:rtr
Chapter 4 Native Device Message Details CCDF:RTR/CCDF:RTR? Reference Trace Function This command sets whether to show or hide the reference trace data recorded by a user during CCDF measurement. Command CCDF:RTR switch Query CCDF:RTR? Parameter switch Displays the reference trace data. ON|1 Does not display the reference trace data.
Page 741: Chpwrcenter/Chpwrcenter
Chapter 4 Native Device Message Details CHPWRCENTER/CHPWRCENTER? Channel Power Channel Center Frequency Function This command sets the center frequency for Channel Power measurement. Command CHPWRCENTER freq Query CHPWRCENTER? Response freq Parameter Channel center frequency freq Range 125 MHz centered at the center frequency of waveform capture Resolution 1 Hz...
Page 742: Chpwrfltrtyp/Chpwrfltrtyp
Chapter 4 Native Device Message Details CHPWRFLTRTYP/CHPWRFLTRTYP? Channel Power Filter Type Function This command sets the filter type for Channel Power measurement. Command CHPWRFLTRTYP filter Query CHPWRFLTRTYP? Response filter Parameter Filter type filter Rectangle filter RECT Nyquist filter NYQUIST Root Nyquist filter ROOTNYQUIST Details This command is available when the following trace is active:...
Page 743: Chpwrrof/Chpwrrof
Chapter 4 Native Device Message Details CHPWRROF/CHPWRROF? Channel Power Rolloff Factor Function This command sets the filter rolloff ratio for Channel Power measurement. Command CHPWRROF factor Query CHPWRROF? Response factor Parameter Filter rolloff ratio factor Range 0.01 to 1 Resolution 0.01 Default 0.22...
Page 744: Chpwrwidth/Chpwrwidth
Chapter 4 Native Device Message Details CHPWRWIDTH/CHPWRWIDTH? Channel Power Channel Bandwidth Function This command sets the channel bandwidth for Channel Power measurement. Command CHPWRWIDTH freq Query CHPWRWIDTH? Response freq Parameter Channel bandwidth freq Range 1 Hz to 125 MHz Resolution 1 Hz Suffix code HZ , KHZ , KZ , MHZ , MZ , GHZ , GZ...
Page 745: Cnf/Cnf
Chapter 4 Native Device Message Details CNF/CNF? Center Frequency Function This command sets the center frequency for waveform capturing. Command CNF freq Query CNF? Response freq Parameter Center frequency freq Range [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 6 GHz (MS2690A) 0 Hz to 13.5 GHz (MS2691A) 0 Hz to 26.5 GHz (MS2692A)
Page 746 Chapter 4 Native Device Message Details With MS2830A-077/078, with MS2830A-067/167, and frequency span > 31.25 MHz 300 MHz to 26.5 GHz (Option 044) 300 MHz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤ 31.25 MHz 0 Hz to 3.6 GHz (Option 040) 0 Hz to 6.0 GHz (Option 041) 0 Hz to 26.5 GHz (Option 044) 0 Hz to 44.5 GHz (Option 046)
Page 747: Cnvloss/Cnvloss
Chapter 4 Native Device Message Details CNVLOSS/CNVLOSS? External Mixer Conversion Loss Function This command sets the external mixer's conversion loss. Command CNVLOSS power Query CNVLOSS? Response power Parameter External mixer's conversion loss power Range 0.00 to 99.99 dB Resolution 0.01 dB Suffix code None.
Page 748: Conf:am
Chapter 4 Native Device Message Details CONF:AM AM Depth Configure Function This command sets the AM Depth measurement to On. Command CONF:AM Details No measurement is performed. Scale Mode is set to Linear and Detection is set to Pos&Neg, and Peak to Peak function is set to ON.
Page 749: Conf:fmcw
Chapter 4 Native Device Message Details CONF:FMCW FM CW Configure Function This command sets the FM CW measurement to On. Command CONF:FMCW Details No measurement is performed. Scale Unit is set to ∆Hz, Detection is set to Pos&Neg. Example of Use To set the FM CW measurement to On.
Page 750: Conts
Chapter 4 Native Device Message Details CONTS Continuous Measurement Function This command executes continuous measurement. Command CONTS Details Other commands or queries are received while this function is being executed. If a command that requires re-capturing of a waveform or re-calculation of a trace is received, however, this function is paused during execution of such command.
Page 751: Data
Chapter 4 Native Device Message Details DATA? Captured Data Query Function This command queries the IQ data captured into the waveform memory. Query DATA? start,length Response When ASC,0 is set to FORM: datai_1,dataq_1,datai_2,dataq_2,... When REAL,32 is set to :FORM, “#” (in the Ascii format) is followed by, in the following order, “Character string range which indicates the byte length of the binary data (in the Ascii format)”, “Byte length of binary data (in the Ascii format)”, and “IQ data string (in the binary format).
Page 752 Chapter 4 Native Device Message Details Query length (in sample units) length Range 1 to (Analysis Start Time[s] + Analysis Time Length[s]) ×Sampling Rate[Hz] – <start> (When Capture Time is Auto) 1 to Capture Time Length[s]×Sampling Rate[Hz] – <start> (When Capture Time is Manual) Up to 200000 can be set.
Page 753 Chapter 4 Native Device Message Details I-phase data datai_n No Suffix code When ASCii,0 is set for :FORMat[:DATA], it will be output as exponential form of 8 digits of essential figures. When REAL,32 is set for :FORMat[:DATA], Target System:GSM is output in 16 bit format, and Target System:W-CDMA is output in 8 bit format.
Page 754 Chapter 4 Native Device Message Details IQ data can be converted into power by the following formula: Where, P : Power [dBm] I : I phase data Q : Q phase data The query function is disabled when Analysis Start Time is set to 0 s, when Analysis Time Length is set to 0 s, and when Capture Time is set to Auto.
Page 755: Det/Det
Chapter 4 Native Device Message Details DET/DET? Detection Function This command sets the detection mode for the main trace. Command DET mode Query DET? Response mode Parameter Detection mode mode Maximum/minimum value detection Maximum value detection Minimum value detection Average value detection Sample detection SAMP Details...
Page 756 Chapter 4 Native Device Message Details DETMODE/DETMODE? Marker Value in Pos&Neg detection Function This command selects the marker value to be displayed when the detection mode is Pos&Neg. Command DETMODE det,marker Query DETMODE? marker Response Parameter Detection mode to be displayed Displays the maximum value detection value Displays the minimum value detection value Displayed marker...
Page 757: Dgtz
This function results in an error if a parameter requires re-capturing of waveform after execution of waveform capturing. Files are saved in the following directory of the specified drive. \Anritsu Corporation\Signal Analyzer\User Data \Digitized Data\Signal Analyzer Up to 1000 files can be saved in a folder.
Page 758: Dgtzcancel
Chapter 4 Native Device Message Details DGTZCANCEL Cancel Execute Digitize Function This command cancels saving of waveform data into a file. Command DGTZCANCEL Example of Use To cancel digitizing. DGTZCANCEL DGTZRATE/DGTZRATE? Output Rate for Save Captured Data Function This command sets the output rate when executing Save Captured Data. Command DGTZRATE rate Query...
Page 759 Chapter 4 Native Device Message Details Frequency Minimum Maximum Default Resolution span[Hz] [Hz] [Hz] [Hz] [Hz] 1000 * 1000 2000 2000 2500 * 2000 5000 5000 5000 * 5000 10000 10000 10000 * 10000 20000 20000 25000 * 20000 50000 50000 50000 * 50000...
Page 760: Digr:adr/Digr:adr
Chapter 4 Native Device Message Details Details Returns to the default value if the frequency span is changed. The setting range is limited by the Frequency Span setting. This command is not available in the following case: • When Terminal is DigRF 3G (only for MS269x Series). Example of Use To set the output rate to 30 MHz.
Page 761: Digr:iqs/Digr:iqs
Chapter 4 Native Device Message Details DIGR:IQS/DIGR:IQS? I/Q Sign Function This command sets the I/Q sign. Command DIGR:IQS iq_sign Query DIGR:IQS? Response iq_sign Parameter I/Q Sign iq_sign Sets to “Sign Bit + Abs. Value” SIGN Sets to “Two's Complement” TWOC Details This command is not available in the following cases: [MS269xA]...
Page 762: Digr:meas/Digr:meas
Chapter 4 Native Device Message Details DIGR:MEAS/DIGR:MEAS? Measurement Channel Function This command sets the Logical channel Type of the receiving DigRF 3G (only for MS269x Series) signal. Command DIGR:MEAS channel Query DIGR:MEAS? Response channel Parameter Measurement Channel channel Sets to Primary PRIM Sets to Diversity Details...
Page 763: Digr:targ/Digr:targ
Chapter 4 Native Device Message Details DIGR:TARG/DIGR:TARG? Target System Function This command selects the communication method for DigRF 3G (only for MS269x Series). Command DIGR:TARG communication Query DIGR:TARG? Response communication Parameter Communication method communication Sets the communication method to W-CDMA WCDMA Sets the communication method to GSM Details...
Page 764: Disp:wind:str:y:pdiv:rang:lin/Disp:wind:str:y:pdiv:rang:lin
Chapter 4 Native Device Message Details DISP:WIND:STR:Y:PDIV:RANG:LIN/DISP:WIND:STR:Y:PDIV:RANG:LIN? Sub Trace Linear Scale Level Full Scale Function This command sets the level-axis scale range for sub traces in Linear scale mode. Command DISP:WIND:STR:Y:PDIV:RANG:LIN percent Query DISP:WIND:STR:Y:PDIV:RANG:LIN? Response percent Parameter Y-axis Scale percent 10 % 20 % 50 %...
Page 765: Disp:wind:str:y:pdiv:rang:log/Disp:wind:str:y:pdiv:rang:log
Chapter 4 Native Device Message Details DISP:WIND:STR:Y:PDIV:RANG:LOG/DISP:WIND:STR:Y:PDIV:RANG:LOG? Sub Trace Log Scale Level Full Scale Function This command sets the level-axis scale range for sub traces in Log scale mode. Command DISP:WIND:STR:Y:PDIV:RANG:LOG rel_ampl Query DISP:WIND:STR:Y:PDIV:RANG:LOG? Response rel_ampl Parameter Y-axis Scale rel_ampl Resolution 10 dB Range...
Page 766: Disp:wind:trac:y:cvol/Disp:wind:trac:y:cvol
Chapter 4 Native Device Message Details DISP:WIND:TRAC:Y:CVOL/DISP:WIND:TRAC:Y:CVOL? Vertical Scale Center Function This command sets the value for the center of the vertical scale. Command DISP:WIND:TRAC:Y:CVOL voltage Query DISP:WIND:TRAC:Y:CVOL? Response voltage Parameter Scale setting value voltage Range −Reference Level to Reference Level Resolution 0.01 pV Suffix code...
Page 767: Disp:wind:trac:y:pdiv:rang/Disp:wind:trac:y:pdiv:rang
Chapter 4 Native Device Message Details DISP:WIND:TRAC:Y:PDIV:RANG/DISP:WIND:TRAC:Y:PDIV:RANG? Level Full Scale Function This command sets the level-axis scale range. Command DISP:WIND:TRAC:Y:PDIV:RANG rel_ampl Query DISP:WIND:TRAC:Y:PDIV:RANG? Response rel_ampl Parameter Y-axis scale rel_ampl 10 dB Resolution 10 to 150 dB Range 100 dB Default value Details This command is available on the following trace: •...
Page 768: Distscale/Distscale
Chapter 4 Native Device Message Details DISTSCALE/DISTSCALE? Power Distribution Scale Function This command sets power distribution axis scale. Command DISTSCALE scale Query DISTSCALE? Response scale Parameter Power distribution axis scale scale 5 dB 10 dB 20 dB 50 dB Details This command is available when the following trace is active: •...
Page 769: Dtcnt
Chapter 4 Native Device Message Details DTCNT? Data Point Query Function This command queries the number of the measured points. Query DTCNT? Response point Details This command is available when the following trace is active: • CCDF Example of Use To query the number of the measured points.
Page 770 Chapter 4 Native Device Message Details ESE2/ESE2? End Event Status Enable Command/Query Function This command sets the END event status enable register. When the query command is issued, the value of the END event status enable register is returned. Command ESE2 n Query ESE2?
Page 771 Chapter 4 Native Device Message Details ESE3/ESE3? ERROR Event Status Enable Command/Query Function This command sets the ERROR event status enable register. When the query command is issued, the value of the ERROR event status enable register is returned. Command ESE3 n Query ESE3?
Page 772: Esr2
Chapter 4 Native Device Message Details ESR2? END Event Status Register Query Function This command queries the END event status register value and clears the END event status register after query. Query ESR2? Response Parameter END event status register Value = bit0 + bit1 + bit2 + bit3 + bit4 + bit5 + bit6 + bit7 bit0: 2 End of measurement...
Page 773: Esr3
Chapter 4 Native Device Message Details ESR3? ERROR Event Status Register Query Function This command queries the error event status register value and clears the ERROR event status register after query. Query ESR3? Response Parameter ERROR event status register Value = bit0 + bit1 + bit2 + bit3 + bit4 + bit5 + bit6 + bit7 bit0: 2 (Not used)
Page 774: Fdpnt
Chapter 4 Native Device Message Details FDPNT? Trace Point Query Function This command queries the number of data points on the frequency axis of the main trace. Query FDPNT? Response point Parameter Number of data points on the frequency axis point Details This command is available when the following traces are active:...
Page 775: Feed/Feed
Chapter 4 Native Device Message Details FEED/FEED? Terminal Change Function This command selects Terminal. Command FEED terminal Query FEED? Response terminal Parameter Terminal terminal Sets Terminal to RF Sets Terminal to DigRF 3G (only for MS269x DIGRF3G Series) Details This command is not available in the following cases: [MS269xA] •...
Page 776: Fetc:am
Chapter 4 Native Device Message Details FETC:AM? AM Depth Fetch Function This command queries the result of the AM Depth measurement. Query FETC:AM? Response pos,neg,p-p,avg Parameter Peak to Peak measurement result +Peak value −Peak value {(−Peak)−(+Peak)}/2 Suffix code None, Value is returned in % units. –999999999999 is returned when no measurement is performed or an error occurs.
Page 777 Chapter 4 Native Device Message Details FETC:CCDF? CCDF Fetch Function This command fetches the CCDF measurement result. Query FETC:CCDF? Response When Result Mode is “A”. mean_power,peak_power_dbm,crest (n=1 or when omitted) rel_ampl_1,rel_ampl_2,rel_ampl_3,rel_ampl_4, rel_ampl_5,rel_ampl_6 (n=2) percent_1,percent_2,percent_3,percent_4, percent_5 (n=3) [Measure method is CCDF] meas_per_1,meas_per_2,...meas_per_5001 [Measure method is APD] meas_per_1,meas_per_2,...meas_per_10001...
Page 778 Chapter 4 Native Device Message Details [Measure Method is CCDF] meas_per_range_1_1,meas_per_ range_1_2,... meas_per_range_1_5001 [Measure Method is APD] meas_per_range_1_1,meas_per_range_1_2,... meas_per_range_1_10001 (n=11) [Measure Method is CCDF] ref_per_range_1_1,ref_per_range_1_2,... ref_per_range_1_5001 [Measure Method is APD] ref_per_range_1_1,ref_per_range_1_2,... ref_per_range_1_10001 (n=13) count_range_1 (n=14) mean_power_range_2, peak_power_dbm_range_2,crest_range_2 (n=15) rel_ampl_range_2_1,rel_ampl_range_2_2, rel_ampl_range_2_3,rel_ampl_range_2_4, rel_ampl_range_2_5,rel_ampl_range_2_6 (n=16) percent_range_2_1, percent_range_2_2, percent_range_2_3,...
Page 779 Chapter 4 Native Device Message Details rel_ampl_range_3_1,rel_ampl_range_3_2, rel_ampl_range_3_3,rel_ampl_range_3_4, rel_ampl_range_3_5,rel_ampl_range_3_6 (n=23) percent_range_3_1,percent_range_3_2,percent_range_3_3, percent_range_3_4,percent_range_3_5 (n=24) [Measure Method is CCDF] meas_per_range_3_1,meas_per_range_3_2,... meas_per_range_3_5001 [Measure Method is APD ] meas_per_range_3_1,meas_per_range_3_2,... meas_per_range_3_10001 (n=25) [Measure Method is CCDF] ref_per_range_3_1,ref_per_range_3_2,... ref_per_range_3_5001 [Measure Method is APD] ref_per_range_3_1,ref_per_range_3_2,... ref_per_range_3_10001 (n=27) count_range_3 (n=28) When Result Mode is “B”.
Page 780 Chapter 4 Native Device Message Details Suffix code None. Value is returned in dBm units. –999.0 is returned at no measurement or error Each value indicates the power deviation in the percent_n probability distributions below. • 1, 2, 3, 4, 5 dB (When Horizontal Scale is set to 5 dB) •...
Page 781 Chapter 4 Native Device Message Details Each value indicates the power deviation of the ref_percent_n reference trace in the probability distributions below. • –50.00, –49.99, ...,49.99, 50.00 dB (APD) • 00.00, 00.01, ...,49.99, 50.00 dB (CCDF ) Resolution 0.0001% Suffix code None.
Page 782: Fetc:fm
Chapter 4 Native Device Message Details FETC:FM? FM deviation Fetch Function This command queries the result of the FM deviation measurement. Query FETC:FM? Response pos,neg,p-p,avg Parameter Peak to Peak measurement result +Peak value −Peak value {(−Peak)−(+Peak)}/2 Suffix code None, Value is returned in Hz units. –999999999999 is returned when no measurement is performed or an error occurs.
Page 783: Fetc:fmcw
Chapter 4 Native Device Message Details FETC:FMCW? FM CW Fetch Function This command queries the result for FM CW measurement. Query FETC:FMCW? Response Refer to Table 2.23-2 Parameter None Details This function queries the measurement result of the FM CW measurement performed last.
Page 784: Fltrbw/Fltrbw
Chapter 4 Native Device Message Details FLTRBW/FLTRBW? Filter Bandwidth Function This command sets the filter bandwidth of the main trace. Command FLTRBW bandwidth Query FLTRBW? Response bandwidth Parameter Filter bandwidth bandwidth Range and resolution Limited by settings for Frequency Span and Filter Type.
Page 785: Fltrofs/Fltrofs
Chapter 4 Native Device Message Details FLTROFS/FLTROFS? Filter Frequency Offset Function This command sets the filter frequency offset of the main trace. Command FLTROFS freq Query FLTROFS? Response freq Returns a value in Hz units without a suffix code. Parameter Channel width freq Range...
Page 786: Fltrtyp/Fltrtyp
Chapter 4 Native Device Message Details FLTRTYP/FLTRTYP? Filter Type Function This command selects the Filter Type for the main trace. Command FLTRTYP filter Query FLTRTYP? Response filter Parameter Filter type filter Rectangle filter RECT Gauss filter GAUSS Nyquist filter NYQUIST Root Nyquist filter ROOTNYQUIST No filtering...
Page 787 Chapter 4 Native Device Message Details FM/FM? Measure FM deviation Function This command performs the FM deviation measurement. Command FM switch_com Query Response switch_res Parameter FM deviation measurement On/Off switch_com Sets FM deviation measurement to On. ON/1 Sets FM deviation measurement to Off. OFF/0 FM deviation measurement On/Off switch_res...
Page 788 Chapter 4 Native Device Message Details FMCW/FMCW? Measure FM CW Function This command executes FM CW measurement. Command FMCW switch_com Query FMCW? Response switch_res Parameter FM CW measurement On/Off switch_com Sets FM CW measurement On. ON/1 Sets FM CW measurement Off (Default value). OFF/0 FM CW measurement On/Off switch_res...
Page 789: Form/Form
Chapter 4 Native Device Message Details FORM/FORM? Numeric Data Format Function This command sets the format of the IQ data read out by DATA?. Command FORM format_com,length Query FORM? Response format_res,length Parameter The following are set when the terminal is RF: IQ data format format_com Ascii format (Default value)
Page 790 Chapter 4 Native Device Message Details IQ data format format_res Ascii format (Default value) Binary 16 bits format (When Target System is REAL GSM) Binary 8 bits format (When Target System is W-CDMA) Supplementary setting for selected format length Result is sent back in number of significant figures of this instrument.
Page 791: Form:bord/Form:bord
Chapter 4 Native Device Message Details FORM:BORD/FORM:BORD? Binary Data Byte Order Function This command sets the byte order of the reading data when REAL,32 is set to FORM . Command FORM:BORD border_com Query FORM:BORD? Response border_res Parameter Byte order border_com Sets the byte order to Big-endian (Default value) NORM Sets the byte order to Little-endian.
Page 792: Freq:cent:step/Freq:cent:step
Chapter 4 Native Device Message Details FREQ:CENT:STEP/FREQ:CENT:STEP? Frequency Step Size Function This command sets the step size of the center, start and stop frequency. Command FREQ:CENT:STEP freq Query FREQ:CENT:STEP? Response freq Parameter Step size freq Range [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤ 31.25 MHz 1 Hz to 6 GHz (MS2690A) 1 Hz to 13.5 GHz (MS2691A) 1 Hz to 26.5 GHz (MS2692A)
Page 793 Chapter 4 Native Device Message Details With MS2830A-077/078, with MS2830A-067/167, and frequency span > 31.25 MHz 1 Hz to 26.5 GHz (Option 044) 1 Hz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤ 31.25 MHz 1 Hz to 3.6 GHz (Option 040) 1 Hz to 6.0 GHz (Option 041) 1 Hz to 26.5 GHz (Option 044) 1 Hz to 44.5 GHz (Option 046)
Page 794: Freq:synt/Freq:synt
Chapter 4 Native Device Message Details FREQ:SYNT/FREQ:SYNT? Switching Speed Function This command selects the switching speed of frequency. Command FREQ:SYNT mode Query FREQ:SYNT? Response Frequency switching mode mode Parameter Frequency switching speed <mode> The operation is done so as to improve the phase noise characteristic rather than the frequency switching speed.
Page 795: Freq:synt:lph:stat
Chapter 4 Native Device Message Details FREQ:SYNT:LPH:STAT? Low Phase Noise Performance Status Query Function This command queries the state of Low Phase Noise function with the current measurement conditions. Query FREQ:SYNT:LPH:STAT? Response Low Phase Noise function status status Parameter Low Phase Noise function status status Lowers Phase Noise Does not lower Phase Noise...
Page 796: Fulband/Fulband
Chapter 4 Native Device Message Details FULBAND/FULBAND? External Mixer Band Select Function This command selects external mixer band. Command FULBAND band Query FULBAND? Response band Parameter External mixer band band Band A (26.5 to 40.0 GHz, 4+) Band Q (33.0 to 50.0 GHz, 5+) Band U (40.0 to 60.0 GHz, 6+) Band V (50.0 to 75.0 GHz, 8+) Band E (60.0 to 90.0 GHz, 9+)
Page 797: Funits/Funits
Chapter 4 Native Device Message Details FUNITS/FUNITS? Frequency Scale Unit Function This command sets the display unit system of the frequency axis. Command FUNITS unit Query FUNITS? Response unit Parameter Display unit system of the frequency axis unit ∆Hz Details This command is available when the following trace is active: •...
Page 798: Init:am
Chapter 4 Native Device Message Details INIT:AM AM Depth Initiate Function This command starts the AM Depth measurement. Command INIT:AM Details When this function has been executed, the AM Depth measurement is set to On and the measurement will start. Scale Mode is set to Linear and Detection is set to Pos&Neg, and Peak to Peak function is set to On.
Page 799: Init:fmcw
Chapter 4 Native Device Message Details INIT:FMCW FM CW Initiate Function This command starts the FM CW measurement. Command INIT:FMCW Details When this function has been executed, the FM CW measurement is set to On and the measurement starts. Scale Unit is set to ∆Hz, Detection is set to Pos&Neg. Example of Use To start the FM CW measurement.
Page 800: Loadstd/Loadstd
Chapter 4 Native Device Message Details LOADSTD/LOADSTD? Load Standard Parameter Function This command changes parameter settings according to the communication method selected for Standard. Command LOADSTD measure LOADSTD measure,pattern Query LOADSTD? measure Response pattern Parameter Target measurement measure ACP measurement (Spectrum) Channel power measurement (Spectrum) CHPWR OBW measurement (Spectrum)
Page 801 Chapter 4 Native Device Message Details When Standard is set to W-CDMA Uplink (Burst Average Power measurement) Parameter to be set Pattern 3GPP W-CDMA Uplink, Mean Power MEAN measurement 3GPP W-CDMA Uplink, RRC Filtered Power RRCFILTER measurement When omitted: 3GPP W-CDMA Uplink, Mean Power measurement When Standard is set to W-CDMA Downlink (ACP measurement): Parameter to be set...
Page 802 Chapter 4 Native Device Message Details When Standard is set to Mobile WiMAX Parameter to be set pattern 10MHz BW (Channel Bandwidth 10 MHz) 5MHz BW (Channel Bandwidth 5 MHz) When omitted: 10MHz BW When Standard is set to LTE Uplink/Downlink (ACP measurement) Parameter to be set pattern 1.4MHz BW (UTRA 5 MHz)
Page 803 Chapter 4 Native Device Message Details 15MHz Bandwidth 15MBW 20MHz Bandwidth 20MBW When omitted: 5MHz Bandwidth When Standard is set to LTE Uplink/Downlink or LTE TDD Uplink/Downlink (Channel Power measurement) Parameter to be set pattern Mean Power 1.4MHz BW MEAN_1M4BW Mean Power 3MHz BW MEAN_3MBW Mean Power 5MHz BW...
Page 804 Chapter 4 Native Device Message Details When Standard is set to ETC_DSRC (Burst Average Power measurement) Parameter to be set pattern Mean Power MEAN When omitted: Mean Power When Standard is set to TD-SCDMA (ACP measurement) Parameter to be set pattern Single Carrier TDD128M1C...
Page 805 Chapter 4 Native Device Message Details When Standard is set to EV-DO Forward Link (ACP, Channel Power, OBW measurement) pattern Parameter to be set EV-DO Forward Link EVDOFWD When omitted: EV-DO Forward Link When Standard is set to EV-DO Forward Link (Burst Average Power measurement) pattern Parameter to be set...
Page 806: Logscalediv/Logscalediv
Chapter 4 Native Device Message Details LOGSCALEDIV/LOGSCALEDIV? Log Scale Range Function This command sets the scale range of the level axis for the main trace (Log scale). Command LOGSCALEDIV scale Query LOGSCALEDIV? Response scale Returns a value in dB units without a suffix code. Parameter Level axis scale scale...
Page 807: Madjmod/Madjmod
Chapter 4 Native Device Message Details MADJMOD/MADJMOD? ACP Reference Function This command sets the reference of the relative level display for Adjacent Channel Power measurement. Command MADJMOD mode MADJMOD num Query MADJMOD? Response mode Parameter Reference method for the relative level display mode for ACP measurement.
Page 808: Mbias/Mbias
Chapter 4 Native Device Message Details Details This command is available when the following trace is active: • Spectrum Example of Use To set the relative level display reference for ACP measurement to Carrier Total and query the results. MADJMOD INBAND *WAI RES? MBIAS/MBIAS?
Page 809: Meas/Meas
Chapter 4 Native Device Message Details MEAS/MEAS? Measure Function This command performs the measurement function for the main trace. Command MEAS item Query MEAS? Response item Parameter Measurement function type item ACP measurement (Spectrum) Channel Power measurement (Spectrum) CHPWR OBW measurement (Spectrum) Burst Average Power measurement (Power vs BRSTAVGPWR Time)
Page 810: Meas:am
Chapter 4 Native Device Message Details MEAS:AM? AM Depth Measure Function This command performs the AM Depth measurement and queries the result. This command has the same function as the following commands executed in this order: CONF:AM INIT:AM FETC:AM? MEAS:FM? FM deviation Measure Function This command performs the FM deviation measurement and queries the...
Page 811: Meas:pow
Chapter 4 Native Device Message Details MEAS:POW? Measure Power Adjust Function This command executes power adjustment and reads the result. Power adjustment combines the SG option and power measurement functions to set the output level of the DUT, such as an amplifier, to the specified level.
Page 812 Chapter 4 Native Device Message Details [MS2830A], [MS2840A] MS2830A-005/105/007/009/109 MS2840A-005/105/009/109 When the Analysis Bandwidth Extension to 31.25 MHz option is installed, the following frequency spans can be set in addition to *2. 25000000 , 31250000 Option 006/106 When the Analysis Bandwidth 10 MHz option is installed, the following frequency spans can be set.
Page 813 Chapter 4 Native Device Message Details Range [MS269xA] –140 to –5 dBm [MS2830A], [MS2840A] –40.00 to +20.00 dBm ( > 25 MHz) –40.00 to +2.00 dBm ( ≤ 25 MHz) –136.00 to +15.00 dBm ( > 25 MHz) (Option 022/122) –136.00 to –3.00 dBm ( ≤...
Page 814 Chapter 4 Native Device Message Details DUT output level sa_input Suffix code None, dBm units Resolution 0.01 dB (resolution) Unmeasured “–999.0” is returned. Output level of SG Output of this equipment sg_output Suffix code None, dBm units Resolution 0.01 dB (resolution) Unmeasured –999.0 is returned if there is no measurement.
Page 815 Chapter 4 Native Device Message Details However, it is rounded to 60 dB when Attenuator > 60 and to 0 dBm when Attenuator < 0. Additionally, when the Attenuator value is an odd number, it is rounded up to the nearest even number (Example: 35 dB →...
Page 816: Mkact/Mkact
Chapter 4 Native Device Message Details MKACT/MKACT? Active Marker Function This command specifies active marker for the active trace. Command MKACT marker Query MKACT? Response marker Parameter (For Spectrum trace) Active marker marker Marker 1 MKR1 Marker 2 MKR2 Marker 3 MKR3 Marker 4 MKR4...
Page 817: Mkaxis/Mkaxis
Chapter 4 Native Device Message Details MKAXIS/MKAXIS? Marker Axis Function This command specifies the marker movement axis for the main trace. Command MKAXIS axis Query MKAXIS? Response axis Parameter Marker movement axis axis Probability distribution direction (vertical axis) PROB Power distribution direction (horizontal axis) DSTRBT Details This command is available when the following trace is active:...
Page 818: Mkcf
Chapter 4 Native Device Message Details MKCF Marker to Center Freq Function This command sets the active marker frequency to the center frequency for waveform capturing. Command MKCF Details This command is available when the following trace is active: • Spectrum •...
Page 819: Mkf
Chapter 4 Native Device Message Details MKF? Marker Frequency Query Function This command queries the frequency at the marker point of the active marker, and queries the frequency difference between the delta marker and the marker set by Relative To when Marker Mode is Delta. Query MKF? marker Response...
Page 820: Mkl
Chapter 4 Native Device Message Details MKL? Marker Query Function This command queries the data at the marker point of the main trace. Query (Spectrum,Power vs Time,Freq vs Time, Phase MKL? type vs Time) (CCDF) MKL? Response For Spectrum, Spectrogram (Unavailable for type 3 to 10) This command queries the level at the active marker point, and the level ratio for delta markers (Spectrum).
Page 821 Chapter 4 Native Device Message Details For Power vs Time trace Response has no suffix code. For Power vs Time trace, returns a value in Log Scale Unit when Scale Mode is Log. However, for V, the unit is µV, and for W, the unit is µW.
Page 822: Mkltype/Mkltype
Chapter 4 Native Device Message Details Details *** is returned if there is no marker value. Example of Use To query the marker value of Marker 2. MKL? 2 MKLTYPE/MKLTYPE? Marker Result Function This command sets the type of the marker display value of the main trace.
Page 823: Mkp/Mkp
Chapter 4 Native Device Message Details MKP/MKP? Marker Position Function This command sets the marker position for the main trace. Command (Power vs Time, Frequency vs Time, Phase vs Time) MKP time, marker MKP sample, marker (When performing a Power vs Time, Frequency vs Time, or Phase vs Time trace for the MS269x series with the DigRF 3G terminal) MKP position, type ( CCDF )
Page 824 Chapter 4 Native Device Message Details Marker position sample Range and Resolution For details, refer to the MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) MS2830A/MS2840A Signal Analyzer Operation Manual (Signal Analyzer Function Operation) Suffix code None Marker type marker Marker 1 Marker 2...
Page 825 Chapter 4 Native Device Message Details To query a marker value by setting the position of Marker 1 to 10 µs. MKP 10US,1 *WAI MKL? 4-169...
Page 826: Mkpk
Chapter 4 Native Device Message Details MKPK Signal Search Function This command searches for the peak point of the main trace and moves the marker. Command MKPK move Parameter Detection method move Moves to the peak point where the marker value becomes maximum (Peak Search).
Page 827: Mkpx/Mkpx
Chapter 4 Native Device Message Details MKPX/MKPX? Search Resolution Function This command sets the search resolution at the search point of the main trace. Command MKPX level (For Spectrum trace, when Result Mode is Integration or Density; or for Spectrum trace, when Result Mode is Peak (Fast) or Peak (Accuracy) and Scale Mode is Log Scale.
Page 828 Chapter 4 Native Device Message Details Parameter Search resolution level Range 0.01 to 50.00 dB Resolution 0.01 Suffix code dB is used when omitted. Default value 1 dB Search resolution percent Range 0.01 to 50.00% Resolution 0.01 Suffix code None Search resolution freq Range...
Page 829: Mkr/Mkr
Chapter 4 Native Device Message Details MKR/MKR? Marker Mode Function This command sets the marker mode. Command (Spectrum,Power vs Time,Frequency vs Time, MKR mode,marker Phase vs Time,Spectrogram)) (CCDF) MKR mode Query (Spectrum,Power vs Time,Frequency vs Time, MKR? marker Phase vs Time,Spectrogram)) (CCDF) MKR? Response...
Page 830: Mkrl
Chapter 4 Native Device Message Details Marker type marker Marker 1 Marker 2 When omitted: Active marker Marker 1 applies when both Markers 1 and 2 are active. Example of Use To query a marker value by setting the marker mode of the active marker to Delta.
Page 831: Mkw/Mkw
Chapter 4 Native Device Message Details MKW/MKW? Marker Width (Grid) Function This command sets the zone width of the marker in grid (div). Command MKW width,marker Query MKW? marker Response width Parameter Zone marker width width 0.5 div 1 div 2 div 5 div 10 div...
Page 832: Mkzf/Mkzf
Chapter 4 Native Device Message Details Example of Use To query a marker value by setting the width of Marker 2 to Spot. MKW 1,2 *WAI MKL? MKZF/MKZF? Marker Frequency Function This command sets the center frequency of the marker. Command MKZF freq,marker Query...
Page 833 Chapter 4 Native Device Message Details Details This command is available when the following trace is active: • Spectrum • Spectrogram (Unavailable for Marker 3 to 10) For Spectrum, when the center frequency of a zone marker is changed, the marker is set to ON and becomes the active marker. Example of Use To set the center frequency of the active marker to 6 GHz.
Page 834: Mmem:load:iqd
Chapter 4 Native Device Message Details MMEM:LOAD:IQD Execute Replay Function This command executes the Replay function. IQ data for which the Replay function is to be executed can be selected by selecting a file name, drive name, and an application. Command MMEM:LOAD:IQD filename,device,application Parameter...
Page 835: Mmem:load:iqd:inf
Chapter 4 Native Device Message Details MMEM:LOAD:IQD:INF? Replaying File Information Query Function This command queries the file information when the Replay function is being executed. Query MMEM:LOAD:IQD:INF? Response filename,start_time,time_length Parameter File name filename Character string within characters (excluding extension) *** is returned when the Replay function is not executed.
Page 836: Mmem:load:iqd:inf:appl
Chapter 4 Native Device Message Details MMEM:LOAD:IQD:INF:APPL? Replay Application Query Function This command queries the name of the application for which the Replay function is executed. Query MMEM:LOAD:IQD:INF:APPL? Response application Parameter Application to load IQ data file application Signal Analyzer SIGANA Extended Digitizing EXTDIG...
Page 837: Mmem:load:iqd:inf:corr
Chapter 4 Native Device Message Details MMEM:LOAD:IQD:INF:CORR? Replay Correction Query Function This command queries the Correction value when the Replay function is being executed. Query MMEM:LOAD:IQD:INF:CORR? Response real Parameter Correction level real −100 to 100 dB Range 0.000 is returned when Correction is set to Off. –999.0 is returned when the Replay function is not executed.
Page 838: Mmem:load:iqd:inf:err
Chapter 4 Native Device Message Details MMEM:LOAD:IQD:INF:ERR? Replay Level Over Query Function This command queries whether Replay Error Info. icon is displayed while the Replay function is being executed. Query MMEM:LOAD:IQD:INF:ERR? Response switch Replay Error Info. icon is displayed. Normal –999.0 is returned when the Replay function is not executed.
Page 839: Mmem:load:iqd:inf:leng
Chapter 4 Native Device Message Details MMEM:LOAD:IQD:INF:LENG? Replay Time Length Query Function This command queries the time length of analyzable IQ data for the Replay function. Query MMEM:LOAD:IQD:INF:LENG? Response time_length Parameter Time length of analyzable IQ data time_length Resolution 1 ns No suffix code.
Page 840: Mmem:load:iqd:inf:star
Chapter 4 Native Device Message Details MMEM:LOAD:IQD:INF:STAR? Replay Start Time Query Function This command queries the start time of analyzable IQ data for the Replay function. Query MMEM:LOAD:IQD:INF:STAR? Response start_time Parameter Start time of analyzable IQ data start_time Resolution 1 ns No suffix code.
Page 841: Mmem:load:iqd:stop
Chapter 4 Native Device Message Details MMEM:LOAD:IQD:STOP Stop Replay Function This command stops the Replay function. Command MMEM:LOAD:IQD:STOP Details This command is available while the Replay function is being executed. Example of Use To stop the Replay function. MMEM:LOAD:IQD:STOP MMEM:STOR:IQD:LENG/MMEM:STOR:IQD:LENG? Time Length Function This command sets the time length of IQ data to be saved when...
Page 842: Mmem:stor:iqd:leng:samp/Mmem:stor:iqd:leng:samp
Chapter 4 Native Device Message Details Example of Use To set the time length to 12 ms. MMEM:STOR:IQD:LENG 12MS MMEM:STOR:IQD:LENG? > 0.01200000 MMEM:STOR:IQD:LENG:SAMP/MMEM:STOR:IQD:LENG:SAMP? Sample Length Function This command sets the sample length of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Command MMEM:STOR:IQD:LENG:SAMP sample Query...
Page 843: Mmem:stor:iqd:mode/Mmem:stor:iqd:mode
Chapter 4 Native Device Message Details MMEM:STOR:IQD:MODE/MMEM:STOR:IQD:MODE? Time Range Function This command sets the range of IQ data to be saved when executing Save Captured Data. Command MMEM:STOR:IQD:MODE mode Query MMEM:STOR:IQD:MODE? Response mode Parameter Range over which IQ data is stored. mode Full range FULL...
Page 844: Mmem:stor:iqd:star/Mmem:stor:iqd:star
Chapter 4 Native Device Message Details MMEM:STOR:IQD:STAR/MMEM:STOR:IQD:STAR? Start Time Function This command sets the start position of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Command MMEM:STOR:IQD:STAR time Query MMEM:STOR:IQD:STAR? Response time No suffix code.
Page 845: Mmem:stor:iqd:star:samp/Mmem:stor:iqd:star:samp
Chapter 4 Native Device Message Details MMEM:STOR:IQD:STAR:SAMP/MMEM:STOR:IQD:STAR:SAMP? Start Sample Function This command uses the number of samples to set the start position of IQ data to be saved when executing Save Captured Data with Time Range set to MANual. Command MMEM:STOR:IQD:STAR:SAMP sample Query MMEM:STOR:IQD:STAR:SAMP?
Page 846: Mmem:stor:trac
No more files can be saved if numbers up to 99 are already used. Files are saved to the following directory in the specified drive. \Anritsu Corporation\Signal Analyzer\User Data\Trace Data\Signal Analyzer Up to 100 files can be saved in a folder.
Page 847: Mmethod/Mmethod
Chapter 4 Native Device Message Details MMETHOD/MMETHOD? Measure Method Function This command selects the measurement method for CCDF trace. Command MMETHOD method Query MMETHOD? Response method Parameter Measurement method for CCDF trace method APD measurement CCDF measurement CCDF Details This command is available when the following trace is active: •...
Page 848: Mobw/Mobw
Chapter 4 Native Device Message Details MOBW/MOBW? OBW Method Function This command sets the OBW measurement method. Command MOBW method Query MOBW? Response method Parameter Measurement method method N% method X dB method Details This command is available when the following trace is active: •...
Page 849: Mstat
Chapter 4 Native Device Message Details MSTAT? Measurement Status Query Function This command queries the main trace status. Query MSTAT? Response status Parameter Status status Normal end Level over Not measured Example of Use To query the main trace status. MSTAT? 4-193...
Page 850: Mxrmode/Mxrmode
Chapter 4 Native Device Message Details MXRMODE/MXRMODE? Mixer Mode Function This command switches between Internal and External Mixer. Command MXRMODE mode Query MXRMODE? Response mode Parameter Mixer mode mode Selects External Mixer Selects Internal Mixer Details This function is available when Option 044/045 is installed for MS2830A. This function is available when Option 044/046 is installed for MS2840A.
Page 851: Mzwf/Mzwf
Chapter 4 Native Device Message Details MZWF/MZWF? Marker Width (Frequency) Function This command sets the zone width of the marker in frequency. Command MZWF freq,marker Query MZWF? marker Response freq Returns a value in Hz units without a suffix code. Parameter Marker frequency width freq...
Page 852 Chapter 4 Native Device Message Details Details This command is available when the following trace is active: • Spectrum • Spectrogram The target marker is set to be active when the width of zone marker is changed. Also, it is set to Normal when Marker Mode is set to Fixed or Off.
Page 853: Noisecancel/Noisecancel
Chapter 4 Native Device Message Details NOISECANCEL/NOISECANCEL? Noise Cancel Function This command sets whether to enable the noise-canceling function. Command NOISECANCEL on_off Query NOISECANCEL? Response on_off Parameter Noise-canceling function on/off on_off Enables the noise-canceling function. Disables the noise-canceling function. Details This command is available only when the main trace is Spectrum or Power vs Time (cf.
Page 854: Obwn/Obwn
Chapter 4 Native Device Message Details OBWN/OBWN? OBW N% Ratio Function This command sets the OBW (N% method) condition. Command OBWN ratio Query OBWN? Response ratio Returns a value in percentage units without a suffix code. Parameter ratio Range 0.01 to 99.99% Resolution 0.01 Suffix code...
Page 855: Obwxdb/Obwxdb
Chapter 4 Native Device Message Details OBWXDB/OBWXDB? OBW X dB Value Function This command sets the OBW (X dB) condition. Command OBWXDB level Query OBWXDB? Response level Returns a value in dB units without a suffix code. Parameter X dB level Range 0.01 to 100.00 dB...
Page 856: Peaktopeak/Peaktopeak
Chapter 4 Native Device Message Details PEAKTOPEAK/PEAKTOPEAK? Display Peak to Peak Value On/Off Function This command sets the Peak to Peak measurement ON/OFF. Command PEAKTOPEAK on_off Query PEAKTOPEAK? Response on_off Parameter Peak to peak measurement function ON/OFF on_off Details This command is available when either of the following traces is active: •...
Page 857: Peaktopeakres
Chapter 4 Native Device Message Details PEAKTOPEAKRES? Peak to Peak Value Query Function This command queries the results of the Peak to Peak measurement. Query PEAKTOPEAKRES? format Response (when format is POS) (when format is NEG) (when format is DELTAAVG) Returns a value in percentage units without a suffix code.
Page 858: Pow:mw:pres/Pow:mw:pres
Chapter 4 Native Device Message Details POW:MW:PRES/POW:MW:PRES? Micro Wave Preselector Bypass Function This command sets the micro wave preselector bypass. Command POW:MW:PRES switch Query POW:MW:PRES? Response status Parameter Microwave Preselector Bypass switch Enables bypassing ON|1 Disables bypassing OFF|0 Default Microwave Preselector Bypass status Enables bypassing Disables bypassing...
Page 859: Pre
Chapter 4 Native Device Message Details Initialize Function This command initializes the parameters. Command Example of Use To initialize the parameters. PREAMP/PREAMP? Pre Amp Function This command sets Pre Amp On/Off. Command PREAMP on_off Query PREAMP? Response on_off Parameter Pre Amp On/Off on_off Details The pre-amplifier is fixed to Off when the Option 008/108 6 GHz...
Page 860: Presel/Presel
Chapter 4 Native Device Message Details PRESEL/PRESEL? Pre-selector Function This command sets the Preselector peaking bias value. Command PRESEL action PRESEL bias Query PRESEL? Response bias Parameter Action action Sets peaking bias value automatically. AUTO Sets peaking bias value to 0. PRESET Peaking bias value bias...
Page 861: Probpwr
Chapter 4 Native Device Message Details PROBPWR? Power Deviation and Distribution Query Function This command queries the power deviation and probability distribution. Query PROBPWR? type Response (When type is PWR ) Returns a value without a suffix code in dB units with a resolution of 0.01 dB.
Page 862: Rb/Rb
Chapter 4 Native Device Message Details RB/RB? Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Command RB bandwidth RB AUTO Query Response bandwidth No suffix code. Value is returned in Hz units. Parameter Resolution bandwidth (RBW) bandwidth Range and resolution 1 Hz to 10 MHz (1−3 sequence) Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ...
Page 863: Read:am
Chapter 4 Native Device Message Details READ:AM? AM Depth Read Function This command performs the AM Depth measurement and queries the result. It works in the same way as the two commands are transmitted in the following order: INIT:AM FETC:AM? READ:FM? FM deviation Read Function...
Page 864: Refclock_Adjust/Refclock_Adjust
Chapter 4 Native Device Message Details REFCLOCK_ADJUST/REFCLOCK_ADJUST? Adjust Reference Clock Function This command sets the adjustment value of the internal reference signal oscillator (Reference Clock). Command REFCLOCK_ADJUST value REFCLOCK_ADJUST PRESET Query REFCLOCK_ADJUST? Response value Parameter Adjustment value value Range 0 to 1023 (MS2830A) 0 to 4095 (MS2840A) Resolution Resets the adjustment value to the factory...
Page 865: Res
Chapter 4 Native Device Message Details RES? Measurement Result Query Function This command queries the measurement results of the measurement function for the main trace. Query RES? RES? mode (in ACP measurement) Response Format varies according to the measurement function to be executed. Refer to the following pages for details.
Page 866 Chapter 4 Native Device Message Details Response (detailed) For ACP measurement (for Spectrum trace and when mode is set to OFFSET or omitted): lc(,lc),lr1,la1,ur1,ua1,lr2,la2,ur2,la2,lr3,la3,ur3,ua3 Returns values without suffix codes. Two lc values will be output when ACP Reference is set to Both Sides of Carriers.
Page 867 Chapter 4 Native Device Message Details For ACP measurement (for Spectrum trace and when mode is set to CARRIER ) ls,lca,lc1,lc2,lc3,lc4,lc5,lc6, lc7,lc8,lc9,lc10,lc11,lc12 Returns a value without a suffix code. • • The result of the carrier position greater than the carrier number set by ACP Carrier Number is output as “***”.
Page 868 Chapter 4 Native Device Message Details For Channel Power measurement (for Spectrum trace): power,density Returns values without suffix codes. Symbol Description Units Total power of the band specified using When Scale Mode is Log: Channel bandwidth (CHPWRWIDTH In Log Scale Unit units (dBm for V, power command) µW for W...
Page 869: Rlv/Rlv
Chapter 4 Native Device Message Details For FM deviation measurement (Frequency vs Time trace) pos,neg,p-p,avg Value is returned, without suffix code. Symbol Description Units +peak value −peak value {(−Peak)−(+Peak)}/2 Average value For FM CW measurement (Frequency vs Time trace) Refer to Table 2.23-2. RLV/RLV? Reference Level Function...
Page 870: Rof/Rof
Chapter 4 Native Device Message Details µV µW Log Scale Unit settings apply when omitted. V is used for Linear Scale. Example of Use To set the reference level to –10 dBm. RLV -10DBM ROF/ROF? Rolloff Factor Function This command sets the filter rolloff ratio. Command ROF factor Query...
Page 871: Roffset/Roffset
Chapter 4 Native Device Message Details ROFFSET/ROFFSET? Reference Level Offset Function This command sets the offset value of the reference level offset function. Command ROFFSET level ROFFSET on_off Query ROFFSET? Response When this function is ON level When this function is OFF Parameter Reference level offset value level...
Page 872: Roffsetmd/Roffsetmd
Chapter 4 Native Device Message Details ROFFSETMD/ROFFSETMD? Reference Level Offset On/Off Function This command sets the reference level offset function On/Off. Command ROFFSETMD on_off Query ROFFSETMD? Response on_off Parameter Reference level offset function On/Off on_off Details This command is not available in the following case: •...
Page 873: Rstevrycap/Rstevrycap
Chapter 4 Native Device Message Details RSTEVRYCAP/RSTEVRYCAP? Reset Result Every Capture Function This command sets whether to reset the result after each CCDF measurement. Command RSTEVRYCAP on_off Query RSTEVRYCAP? Response on_off Parameter on_off Resets the result after each measurement. Does not reset the result after each measurement.
Page 874: Scalelines/Scalelines
Chapter 4 Native Device Message Details SCALELINES/SCALELINES? Log Scale Line Function This command sets the number of Y-axis scale segments for log scale. Command SCALELINES line Query SCALELINES? Response line Parameter Number of Y-axis scale segments line 10 segments 12 segments Details This command is available when either of the following traces is active: •...
Page 875: Scalemode/Scalemode
Chapter 4 Native Device Message Details SCALEMODE/SCALEMODE? Scale Mode Function This command switches the scale mode. Command SCALEMODE mode Query SCALEMODE? Response mode Parameter Scale mode mode Log scale Linear scale Details This command is not available when Trace Mode is set to Spectrogram or No Trace.
Page 876: Selectstd/Selectstd
Chapter 4 Native Device Message Details SELECTSTD/SELECTSTD? Select Standard Function This command selects the communication method used when executing a measurement function. The parameter set by executing Load Standard Parameter is changed according to the selected communication method. Command SELECTSTD standard Query SELECTSTD? Response...
Page 877: Smmlypwr
Chapter 4 Native Device Message Details SMMLYPWR? Power Result Query Function This command queries the average power, maximum power, and crest factor of CCDF measurement. Query SMMLYPWR? type Response (When type is AVG ) average Returns a value in dBm units without a suffix code. (When type is MAX ) Returns a value in dBm units without a suffix code.
Page 878: Smooth/Smooth
Chapter 4 Native Device Message Details SMOOTH/SMOOTH? Smoothing Function This command enables/disables smoothing for the main trace. Command SMOOTH on_off Query SMOOTH? Response on_off Parameter Smoothing ON/OFF on_off Details This command is available when either of the following traces is active: •...
Page 879: Smoothln/Smoothln
Chapter 4 Native Device Message Details SMOOTHLN/SMOOTHLN? Smoothing Time Length Function This command sets the time length for smoothing the main trace. Command SMOOTHLN time Query SMOOTHLN? Response time Returns a value in ms units without a suffix code. Parameter Smoothing time length time Range and resolution...
Page 880: Smplrate
Chapter 4 Native Device Message Details SMPLRATE? Sampling Rate Query Function This command queries the sampling rate of waveform capturing. Query SMPLRATE? Response rate No suffix code. Value is returned in Hz units. Example of Use To query the sampling rate. SMPLRATE? SNGLS Single Measurement...
Page 881: Sof/Sof
Chapter 4 Native Device Message Details SOF/SOF? Stop Frequency Function This command sets the stop frequency of waveform capturing. Command SOF freq Query SOF? Response freq Parameter Stop frequency freq Range Range adding Frequency Span/2 to the following center frequency ranges: [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤...
Page 882 Chapter 4 Native Device Message Details 300 MHz to 6 GHz (Option 044) 300 MHz to 6 GHz (Option 045) With MS2830A-077/078, with MS2830A-067/167, and frequency span > 31.25 MHz 300 MHz to 26.5 GHz (Option 044) 300 MHz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤...
Page 883: Spf/Spf
Chapter 4 Native Device Message Details Details This function is restricted by the following condition: • Stop frequency will be fixed to +270.833 kHz (for GSM) or +3.84 MHz (for W-CDMA) when the terminal is set to DigRF 3G (only for MS269x Series).
Page 884 Chapter 4 Native Device Message Details Default 31.25 MHz [MS269xA] 31.25 MHz [MS2830A] (Option 005/105/007/009/109/077/078) 10 MHz (Option 006/106) 31.25 MHz [MS2840A] (Option 005/105/009/109/077/177/078/178) 10 MHz (Option 006/106) Details This function is restricted by the Frequency Band Mode, Center Frequency and Terminal settings. [MS269xA] Option 004/104 The following frequency spans are available when the Wideband...
Page 885 Chapter 4 Native Device Message Details installed: 50000000, 62500000 MS2830A-078, MS2840A-078/178 In addition to the *3, the following frequency spans are available when the Analysis Bandwidth Extension to 125 MHz option is installed: 100000000, 125000000 The following frequency spans are not available when the Frequency Band Mode is Spurious.
Page 886: Srchth/Srchth
Chapter 4 Native Device Message Details SRCHTH/SRCHTH? Search Threshold Function This command sets the threshold value condition for the main trace search point detection. Command SRCHTH mode Query SRCHTH? Response mode Parameter Threshold value condition mode Does not set the threshold value. Sets the threshold value (setting only).
Page 887: Srchthlvl/Srchthlvl
Chapter 4 Native Device Message Details SRCHTHLVL/SRCHTHLVL? Search Threshold Level Function This command sets the threshold value for the main trace search point detection. Command (Spectrum, Power vs Time) SRCHTHLVL level (Freq vs Time) SRCHTHLVL freq Query SRCHTHLVL? Response Level Returns a value without a suffix code.
Page 888 Chapter 4 Native Device Message Details Suffix code DBM, DM dBmV DBMV dBµV DBUV dBµV (emf) DBUVE µV µW Log Scale Unit settings apply when omitted. (For Spectrum trace, dBm units for V .) In the linear scale mode, dBm units are used for Spectrum trace, while V units are used for Power vs Time trace.
Page 889: Stf/Stf
Chapter 4 Native Device Message Details STF/STF? Start Frequency Function This command sets the start frequency of waveform capturing. Command STF freq Query STF? Response freq Parameter Start frequency freq Range Range subtracting Frequency Span/2 from the following center frequency ranges: [MS269xA] Without MS269xA-077/177/078/178, or frequency span ≤...
Page 890 Chapter 4 Native Device Message Details 300 MHz to 6 GHz (Option 044) 300 MHz to 6 GHz (Option 045) With MS2830A-077/078, with MS2830A-067/167, and frequency span > 31.25 MHz 300 MHz to 26.5 GHz (Option 044) 300 MHz to 43 GHz (Option 045) [MS2840A] Without MS2840A-077/177/078/178, or frequency span ≤...
Page 891: Stop
Chapter 4 Native Device Message Details Details This command is not available while the Replay function is being executed. This function is restricted by the Frequency Span setting. When MS2690A/91/92A is used and Frequency Span is 50 MHz or more, the lower limit frequency is 100 MHz. When MS2830A, MS2840A is used and Frequency Span is 50 MHz or more, the lower limit frequency is 300 MHz.
Page 892: Storagecount/Storagecount
Chapter 4 Native Device Message Details STORAGECOUNT/STORAGECOUNT? Storage Count Function This command sets the storage count of the main trace. Command STORAGECOUNT count Query STORAGECOUNT? Response count Parameter Storage count count Range 2 to 9999 Resolution Details This command is available when any of the following traces is active: •...
Page 893: Storagemode/Storagemode
Chapter 4 Native Device Message Details STORAGEMODE/STORAGEMODE? Storage Mode Function This command sets the storage mode for the main trace data. Command STORAGEMODE mode Query STORAGEMODE? Response mode Parameter Storage mode mode Does not store any data. Stores the maximum value. LINAVG Stores the average value.
Page 894: Swe:samp/Swe:samp
Chapter 4 Native Device Message Details SWE:SAMP/SWE:SAMP? Capture Sample Length Function This command sets the number of waveform capture samples when the terminal is set to DigRF 3G (only for MS269x Series). Command SWE:SAMP point Query SWE:SAMP? Response point Parameter Number of capture samples point Range...
Page 895: Sweepcount
Chapter 4 Native Device Message Details SWEEPCOUNT? Measurement Count Query Function This command queries the current storage count of the main trace. Query SWEEPCOUNT? Response count Parameter Storage count count Range 0 to 9999 Resolution Details This command is available when any one of the following traces is active: •...
Page 896: Tdly/Tdly
Chapter 4 Native Device Message Details TDLY/TDLY? Trigger Delay Function This command sets the delay from trigger input to start of waveform capturing. Command TDLY time Query TDLY? Response time Returns a value in ms units without a suffix code. Parameter Delay time time...
Page 897: Tdpnt
Chapter 4 Native Device Message Details TDPNT? Time Trace Point Query Function This command queries the number of trace points on the time axis of the main trace. Query TDPNT? Response point Parameter Number of trace points point Returns a value without a suffix code. Details This command is available when either of the following traces is active: •...
Page 898: Thrshld/Thrshld
Chapter 4 Native Device Message Details THRSHLD/THRSHLD? Threshold Function This command sets the minimum level of input signals for CCDF measurement. Command THRSHLD level Query THRSHLD? Response level No suffix code. Values is returned in dBm units. Parameter Minimum level of input signals level Range –170 to reference level (dBm)
Page 899: Title/Title
Character string within 32 characters enclosed by double quotes (“ ”) or single quotes (‘ ’). Details Setting the title character string sets title display (Display Title) to On automatically. Example of Use To set the title character string to Anritsu. TITLE “Anritsu” 4-243...
Page 900: Trac
Chapter 4 Native Device Message Details TRAC? Query Trace Data Function This command queries the trace data. Query TRAC? [start[,length]] Response data_1,data_2,... Parameter Query start point start Range 0 to Number of trace points – 1 Resolution When omitted: Query length length Range 1 to Number of trace points –...
Page 901 Chapter 4 Native Device Message Details Data range Returns a value within the range of Start Freq to Stop Freq for Spectrum trace. Returns a value within the range of Analysis Start Time to Analysis Start Time + Analysis Time Length for Power vs Time trace. Divides a trace into the number of trace points and returns a value within the range of Start to Length for Spectrogram.
Page 902: Trac:neg
Chapter 4 Native Device Message Details Details For Power vs Time or Frequency vs Time, when Detection is set to Positive & Negative, returns the reading for the trace data of Positive detection. In other cases, reads out the data of the set Detection. This command is not available when Trace Mode is set to No Trace.
Page 903 Chapter 4 Native Device Message Details For Freq vs Time trace Resolution 0.01 Hz The center frequency is 0.00. –999999999999 is returned when no measurement is performed or an error has occurred. Data range Returns a value within the range of Analysis Start Time to Analysis Start Time + Analysis Time Length.
Page 904: Trcchg/Trcchg
Chapter 4 Native Device Message Details TRCCHG/TRCCHG? Change Trace Function This command sets the main trace type. Command TRCCHG trace Query TRCCHG? Response trace Parameter Trace type trace Spectrum SPECTRUM Power vs Time POWERVSTIME Frequency vs Time FREQVSTIME Phase vs Time PHASEVSTIME CCDF CCDF...
Page 905: Trglvl/Trglvl
Chapter 4 Native Device Message Details TRGLVL/TRGLVL? Trigger Level Function This command sets the trigger level for the Video and Wide IF Video triggers. Command TRGLVL level Query TRGLVL? Response Trigger Level (Video) level Returns Trigger Level (Video) when the trigger source is not Wide IF Video.
Page 906: Trgs/Trgs
Chapter 4 Native Device Message Details Details When the trigger source is Wide IF Video, Trigger Level (Wide IF Video) is set, and trigger switch is set to ON. When the trigger source is not Wide IF Video, Trigger Level (Video) is set, trigger source is set to Video, and trigger switch is set to ON.
Page 907: Trgslp/Trgslp
Chapter 4 Native Device Message Details TRGSLP/TRGSLP? Trigger Slope Function This command sets the trigger detection direction (rising/falling). Command TRGSLP edge Query TRGSLP? Response edge Parameter Trigger detection direction edge Rising edge RISE Falling edge FALL Details Changing the trigger detection direction sets trigger switch to On. This command is not available while the Replay function is being executed.
Page 908: Trgsource/Trgsource
Chapter 4 Native Device Message Details TRGSOURCE/TRGSOURCE? Trigger Source Function This command sets the trigger source type. Command TRGSOURCE source Query TRGSOURCE? Response source Parameter Trigger source type source [MS269xA] Video trigger Wide IF Video trigger WIDEVID External trigger SG Marker trigger Baseband Interface trigger BBIF [MS2830A], [MS2840A]...
Page 909: Trig:fram:offs/Trig:fram:offs
Chapter 4 Native Device Message Details TRIG:FRAM:OFFS/TRIG:FRAM:OFFS? Frame Sync Offset Function This command sets the offset time between when a signal source for generating a frame trigger is input and when the frame trigger is generated. Command TRIG:FRAM:OFFS time Query TRIG:FRAM:OFFS? Response time...
Page 910: Trig:fram:per/Trig:fram:per
Chapter 4 Native Device Message Details TRIG:FRAM:PER/TRIG:FRAM:PER? Frame Trigger Period Function This command sets the period for generating a frame trigger. Command TRIG:FRAM:PER time Query TRIG:FRAM:PER? Parameter Frame trigger time Range 1 s to 1 s Resolution 10 ns Suffix code NS, US, MS, S S is used when the suffix code is omitted.
Page 911: Trig:fram:sync/Trig:fram:sync
Chapter 4 Native Device Message Details TRIG:FRAM:SYNC/TRIG:FRAM:SYNC? Frame Sync Source Function This command selects the synchronization signal source for starting a frame trigger. Command TRIG:FRAM:SYNC sync Query TRIG:FRAM:SYNC? Parameter Sync signal source sync External input (Default) Free run Wideband IF detection (Wide IF Video) Details This command is not available for MS269x Series.
Page 912: Trig:hold/Trig:hold
Chapter 4 Native Device Message Details TRIG:HOLD/TRIG:HOLD? Trigger Hold Function This command sets the fixed amount of time trigger input is disabled between the first trigger input and the next trigger input. Command TRIG:HOLD time Query TRIG:HOLD? Parameter Offset time time Range 0 to 1 s...
Page 913: Trig:hold:stat/Trig:hold:stat
Chapter 4 Native Device Message Details TRIG:HOLD:STAT/TRIG:HOLD:STAT? Trigger Hold On/Off Function This command sets the function for disabling trigger input between the first trigger input and the next trigger input for a fixed amount of time to On or Off. Command TRIG:HOLD:STAT switch Query...
Page 914: Ttl/Ttl
Chapter 4 Native Device Message Details TTL/TTL? Title On/Off Function This command sets title display to On/Off. Command TTL on_off Query TTL? Response on_off Parameter Title display On/Off on_off Displays the title. Hides the title. Example of Use To hide the title. TTL OFF 4-258...
Page 915: Unit:tmar/Unit:tmar
Chapter 4 Native Device Message Details UNIT:TMAR/UNIT:TMAR? Marker Unit Function This command sets the units of the marker display value (time) when the terminal is set to DigRF 3G (only for MS269x Series). Command UNIT:TMAR unit Query UNIT:TMAR? Response unit Parameter Units of marker display value unit...
Page 916: Zmcnt/Zmcnt
Chapter 4 Native Device Message Details ZMCNT/ZMCNT? Zoom Center Function This command sets the center frequency of display frequency axis scale. Command ZMCNT freq Query ZMCNT? Response freq Parameter Scale center frequency freq Range and resolution MS2690A/MS2691A/MS2692A Refer to the Signal Analyzer Operation Manual (Signal Analyzer Function Operation) MS2830A/MS2840A Signal Analyzer Operation...
Page 917: Zmwdth/Zmwdth
Chapter 4 Native Device Message Details ZMWDTH/ZMWDTH? Zoom Width/Vertical Scale Width Function This command sets the frequency width of the display frequency axis scale. Command (Spectrum) ZMWDTH freq (Frequency vs Time) ZMWDTH scale Query ZMWDTH? Response freq Parameter Scale frequency width freq Range and resolution MS2690A/MS2691A/MS2692A...
Page 918: Zoom
Chapter 4 Native Device Message Details ZOOM Zoom Function This command expands the trace in the range specified by the marker. Command ZOOM Details When the main trace is Spectrum, the active marker zone range is reflected to the display frequency range. When the main trace is Power vs Time, Frequency vs Time, or Phase vs Time, the time range between Marker and Marker is reflected to the analysis range.
Page 919: Zoomout
Chapter 4 Native Device Message Details ZOOMOUT Zoom Out Function This command compresses the display frequency range to the range specified by the marker. Command ZOOMOUT Details When the main trace is Spectrum, the display frequency range is compressed (zoom out) to the range specified by the active marker zone width.
Page 920 Chapter 4 Native Device Message Details 4-264.
