MAT-TUNER

SPECIFICATIONS

- 0.1 to 120 watts SSB and CW peak power, 30 watts on PSK and digital modes, and 100 watts
on 6 meters.
- 16,000 memories for instantaneous frequency and band changing.
- Controlled from Yaesu TUNE button on radio. Powered from Yaesu radio.
- Works with most Yaesu radios that are FC-30,FC-40 or FC-50 compatible.
- Partial radio list: FT-100,FT-857D,FT-897D,FT-450D,FT-891,FT-950,FT-991.
- Tuning time: 0.1 to 5 seconds full tune, 0.1 seconds memory tune.
- 1.8 to 54.0 MHz coverage.
- Tunes 5 to 1500 ohm loads.
- For dipoles, verticals, Vees, beams, long wire or any coax-fed antenna.
- Includes interface cable.
- Dimensions: 20cm x 13cm x 4cm (L x W x H).
- Weight: 0.8Kg.
AN IMPORTANT WORD ABOUT POWER LEVELS
The mAT-30 is rated at 120 watts maximum power input at most. Many ham transmitters
and transceivers, and virtually all amplifiers, output well over 120 watts. Power levels that
significantly exceed specifications will definitely damage or destroy your mAT-30. If your tuner
fails during overload, it could also damage your transmitter or transceiver. Be sure to observe
the specified power limitations.

FRONT PANEL

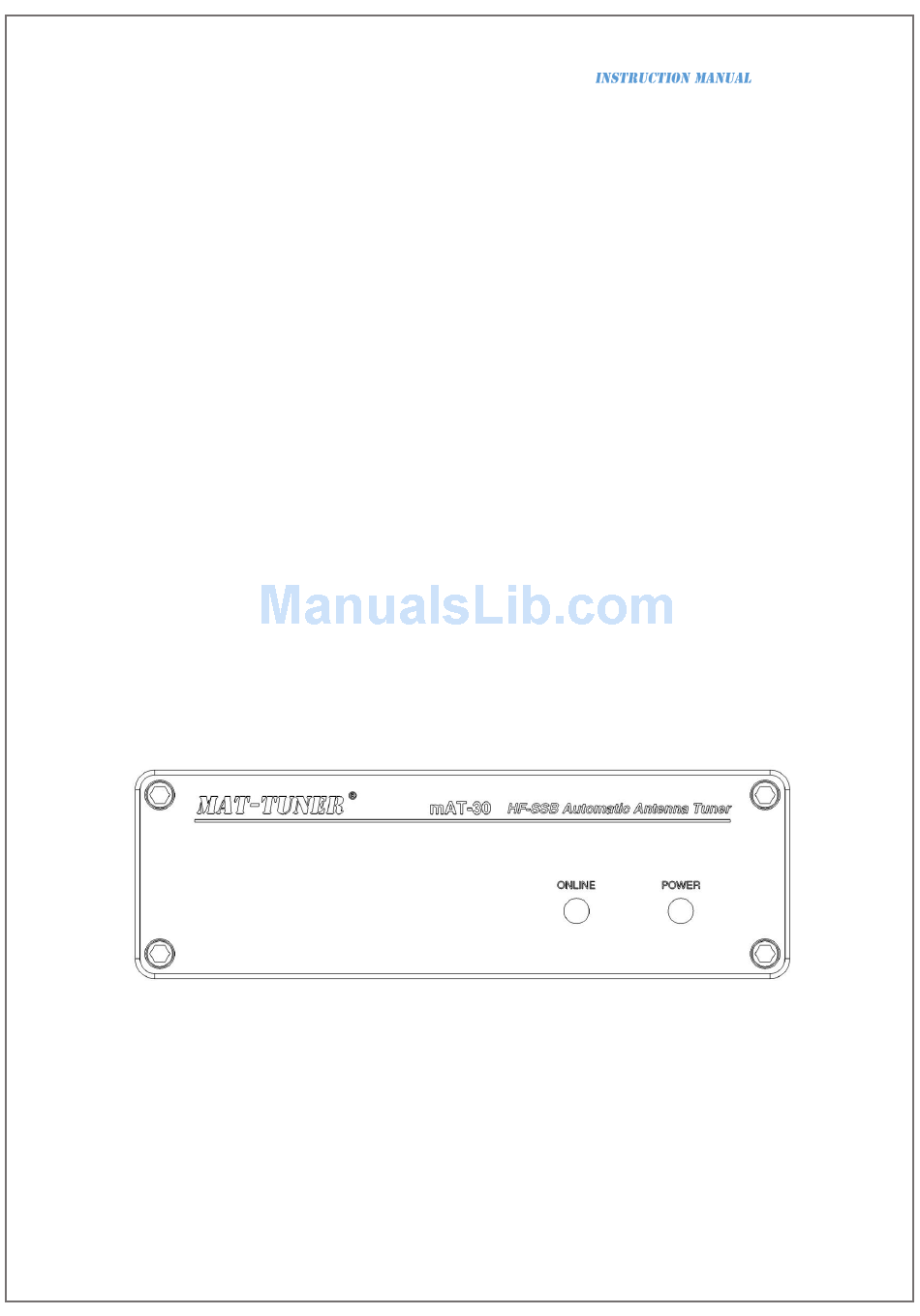

On the front panel there are two LED indicator lights.
ONLINE: The tuner is Active or bypass.
POWER: Poser light.

REAR PANEL

The rear panel of the mAT-30 features five connectors.
ANTENNA: Connect the 50-ohm coax antenna feedline to this standard SO-239 connector.
RF IN: Connect a 50 ohm coax jumper cable from this standard SO-239 connector to the ANT jack
on the back of the transceiver.
Radio: This mini-DIN 8-pin connector connects to the supplied radio interface cable, which
connects to the mAT-30 tuner port on the transceiver. DC power is also supplied over this jack.
