FlashLogic FLRSGM10 Install Manual page 10

MODULE
A
RF PORT/WEBLINK PORT
G
F TELEMATIC PORT
B
E
C
D
A
MS2 MS2
2 1
4 3
6 5
B
2 1
4 3
6 5
8 7
MS1 MS1
10 9
12 11
14 13
16 15
18 17
20 19
C
2 1 01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
4 3 02 GRAY - RAP SHUTDOWN (-) OUTPUT
6 5
8 7
10 9
12 11 11 GRAY/GREEN - HORN (-) OUTPUT
D
2 1
4 3
04 GRAY/WHITE - HOOD STATUS (-) INPUT
6 5
8 7
WITHOUT OEM HOOD SWITCH:
10 9
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2017

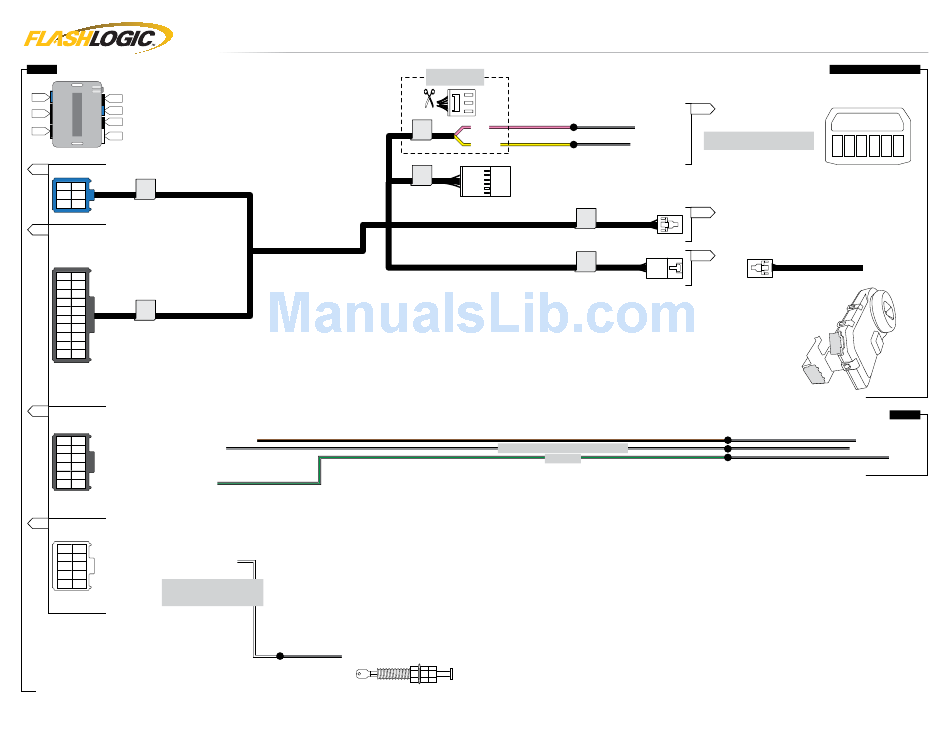

TYPE 2 - WIRING DIAGRAM - 1 OF 1
CUT CONNECTOR
FROM HARNESS
VS3 VS3
PINK
YELLOW
VS4 VS4
(NC)
CONNECT IF NOT SUPPORTED BY DATA
AFTERMARKET HOOD SWITCH (-)
FLC-GM(RS)-GM10-[FLRSGM10]-EN
A1
IGNITION (+)
REFER TO WIRE CHART
PASSLOCK (+) FOR WIRE COLOR AND LOCATION
B1
VS1 VS1
B2
VS2 VS2
OPTIONAL
PAGE 10 OF 20
• 20170427
DOC.: #38693
VEHICLE IGNITION SWITCH
1 2 3 4 5 6
IGNITION CONNECTOR
PK3 CONNECTOR
PK3 HARNESS
B1
A1
VEHICLE
PARKING LIGHT (-)
DRIVER DOOR PIN (-)
HORN (-)
