Horton C2150 Setup Instructions

Control with version 3 software and encoders for 2001 light-duty industrial door operators
Hide thumbs Also See for C2150:

Advertisement

Quick Links

Download this manual

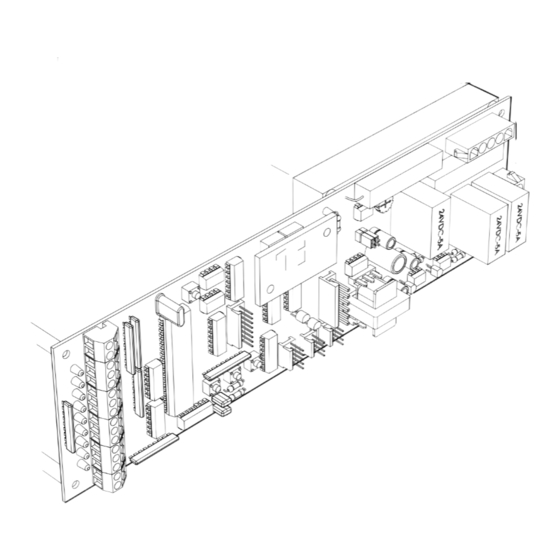

C2150 Control
with Version 3 Software and Encoders
for 2001 Light-Duty Industrial
Door Operators
SETUP INSTRUCTIONS & TROUBLESHOOTING
To be used with either G2001 or G206 Installation Instructions
H603, OCT 2002

Advertisement

loading
Need help?

Need help?

Do you have a question about the C2150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Horton C2150

Summary of Contents for Horton C2150

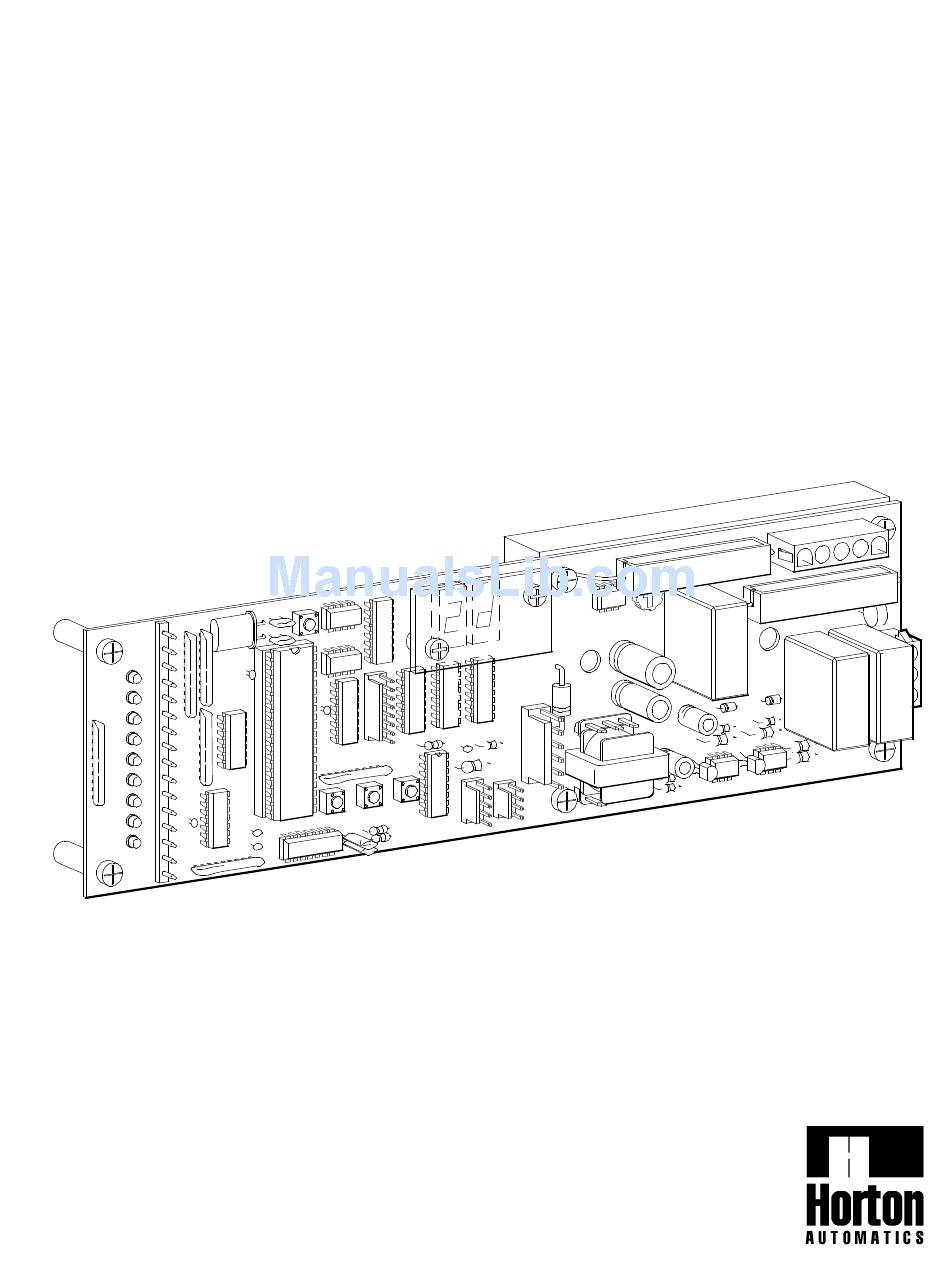

  • Page 1 C2150 Control with Version 3 Software and Encoders for 2001 Light-Duty Industrial Door Operators SETUP INSTRUCTIONS & TROUBLESHOOTING To be used with either G2001 or G206 Installation Instructions H603, OCT 2002...
  • Page 2 (these switches are in series with the toggle switch circuit).] 6. Depressing the DOWN button on the C2150 control will now actuate the door to open at the factory selected default settings for open speed, open check, braking, and time delay. Inspect for smooth operation, free of any binds, excessive noise, etc.
  • Page 3 Accelaration oF (use standard accelaration) oF/on 3-button station present oF (standard switches in use) oF/on Lock present oF (on if Horton lock is present) oF/on Fail-SAfe lock oF (fail-secure/on if fail-safe lock found) oF/on Unmonitored Lock oF (monitored lock)

  • Page 4: Section 3: Common Questions & Answers

    The minimum stroke is 12" if Horton's standard S2001 gear drive and 3.183" drive pulleys are in use. (Note: Version 3.02 & earlier have a 20" stroke minimum.)
  • Page 5 15 and 16 of CN2. This is the input marked KEYSW as described above. If you have a "mushroom" palm switch or other switch that has maintained contacts, Horton recommends wiring it into the toggle circuit at pins 8 and 9 of CN2.
  • Page 6 A3-1 magnetic locks, a bi-stable (two coil) lock, or even a screw-bolt type lock. If a standard Horton S2001 lock is to be used, put it into connector CN4 on the control and force a complete learn cycle by holding down the SET button while momentarily pressing RESET (or powering up).
  • Page 7 30 seconds before servicing the power supply assembly!! If F2 seems to be OK, check the motor and motor harness for an open motor. Finally, if both the motor and F2 appear to be good, replace the C2150 control.
  • Page 8 NOTE: If the C2150 control is retrofitted to an earlier operator that uses a 3ppr "paddle wheel" encoder, the JS parameter will probably need to be turned oF. These encoders do not generate pulses quickly enough to prevent timing out the software and generating a false J1 indication.
  • Page 9 C3678 Fail Secure C3993 Bi-Part C3789 C3608-1 Autolock C3993-1 Single C3607 C3577 C3976 (4)C437 C3681-1 C3675-1 (1/8 hp) C3676-1 (1/4 hp) To C2150(CN1) To C2150(CN2) To C2150 To C2150 Terminal Strip (CN8) (CN4) C5196 C3633-1 C5521 C5293 C9655 C3682-5 C3632-5...
  • Page 10 C3959 24" Harness C3925 Power Supply Ground Screw C2150 Control All Fuses are 5x20 mm Type "T" Motor & Rated 3.15Amp Encoder Autolock C3899 C3913 C3898 C3898 Terminal Strip C100R C3961 switch C2150 MICROPROCESSOR CONTROL 2.167d2...
  • Page 11 - Three Button Station enabled - Idle Mode (Executive) - Partial Open CutoffPoint - Automatic Lock Present (oF / Off; on / Horton Autolock) - Control is Braking Motor - Total Stroke - Autolock Type (oF / Fail Secure; on / Fail Safe)
  • Page 12 A U T O M A T I C S A Division of Overhead Door Corporation, A Sanwa Shutter Company Form H603, OCT 2002, printed in U.S.A. Horton Automatics reserves the right to improve the product and change its specifications without notice.
